Storage options for applications in Azure Kubernetes Service (AKS)
Applications running in Azure Kubernetes Service (AKS) may need to store and retrieve data. While some application workloads can use local, fast storage on unneeded, emptied nodes, others require storage that persists on more regular data volumes within the Azure platform.
Multiple pods may need to:
- Share the same data volumes.
- Reattach data volumes if the pod is rescheduled on a different node.
Finally, you might need to collect and store sensitive data or application configuration information into pods.

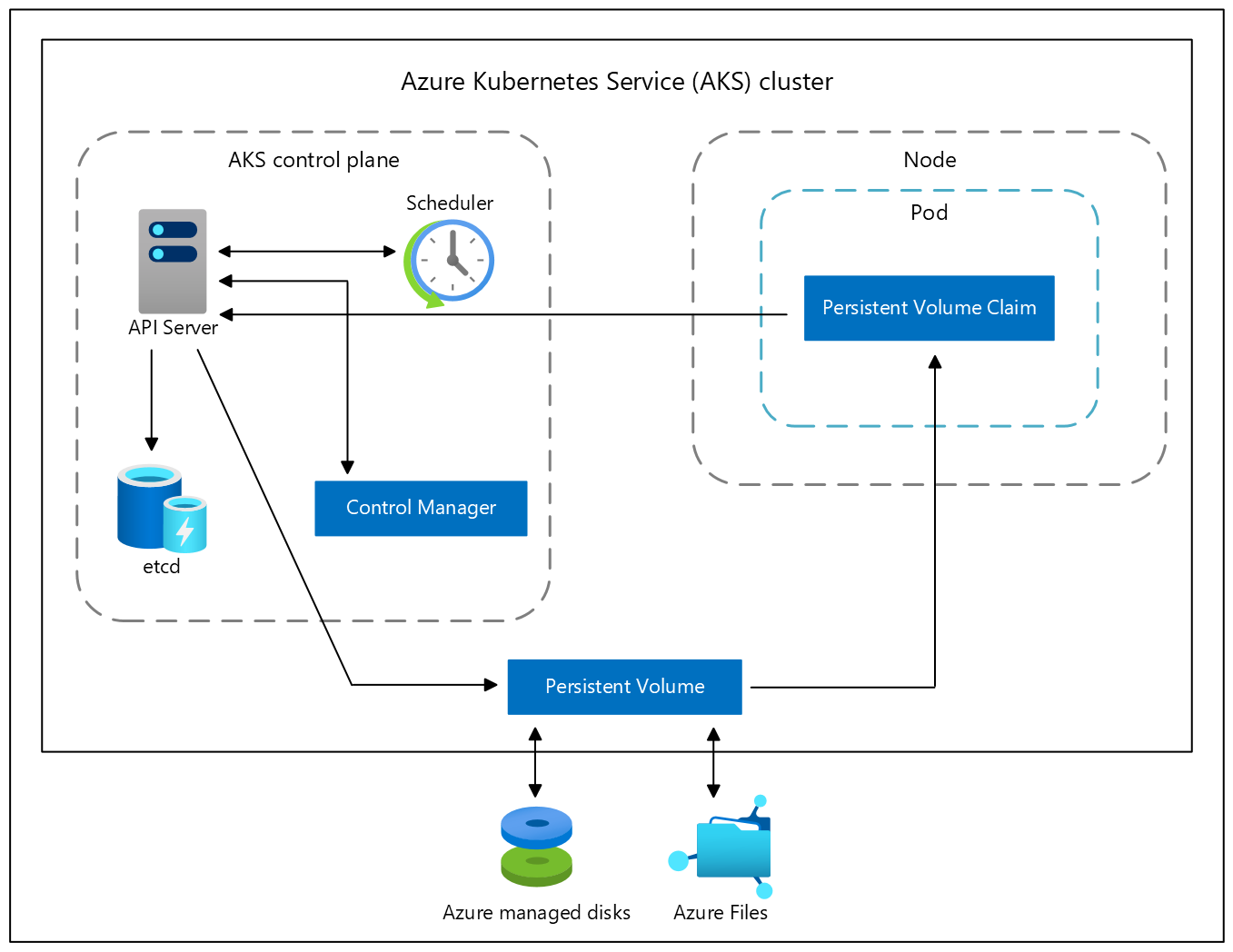

This article introduces the core concepts that provide storage to your applications in AKS:
Kubernetes typically treats individual pods as ephemeral, disposable resources. Applications have different approaches available to them for using and persisting data. A volume represents a way to store, retrieve, and persist data across pods and through the application lifecycle.
Traditional volumes are created as Kubernetes resources backed by Azure Storage. You can manually create data volumes to be assigned to pods directly, or have Kubernetes automatically create them. Data volumes can use: Azure Disks, Azure Files, Azure NetApp Files, or Azure Blobs.
Depending on the VM SKU that's being used, the Azure Disks CSI driver might have a per-node volume limit. For some powerful VMs (for example, 16 cores), the limit is 64 volumes per node. To identify the limit per VM SKU, review the Max data disks column for each VM SKU offered. For a list of VM SKUs offered and their corresponding detailed capacity limits, see General purpose virtual machine sizes.
Use Azure Disks to create a Kubernetes DataDisk resource. Disks types include:
- Ultra Disks
- Premium SSDs
- Standard SSDs
- Standard HDDs
For most production and development workloads, use Premium SSD.
Because Azure Disks are mounted as ReadWriteOnce, they're only available to a single node. For storage volumes that can be accessed by pods on multiple nodes simultaneously, use Azure Files.
Use Azure Files to mount a Server Message Block (SMB) version 3.1.1 share or Network File System (NFS) version 4.1 share backed by an Azure storage account to pods. Azure Files let you share data across multiple nodes and pods and can use:
- Azure Premium storage backed by high-performance SSDs
- Azure Standard storage backed by regular HDDs
Azure NetApp Files
- Ultra Storage
- Premium Storage
- Standard Storage
Azure Blob Storage
Use Azure Blob Storage to create a blob storage container and mount it using the NFS v3.0 protocol or BlobFuse.
- Block Blobs
Kubernetes volumes represent more than just a traditional disk for storing and retrieving information. Kubernetes volumes can also be used as a way to inject data into a pod for use by the containers.
Common volume types in Kubernetes include:
Commonly used as temporary space for a pod. All containers within a pod can access the data on the volume. Data written to this volume type persists only for the lifespan of the pod. Once you delete the pod, the volume is deleted. This volume typically uses the underlying local node disk storage, though it can also exist only in the node's memory.
You can use secret volumes to inject sensitive data into pods, such as passwords.
- Create a Secret using the Kubernetes API.
- Define your pod or deployment and request a specific Secret.
- Secrets are only provided to nodes with a scheduled pod that requires them.
- The Secret is stored in tmpfs, not written to disk.
- When you delete the last pod on a node requiring a Secret, the Secret is deleted from the node's tmpfs.
- Secrets are stored within a given namespace and can only be accessed by pods within the same namespace.
You can use configMap to inject key-value pair properties into pods, such as application configuration information. Define application configuration information as a Kubernetes resource, easily updated and applied to new instances of pods as they're deployed.
Like using a secret:
- Create a ConfigMap using the Kubernetes API.
- Request the ConfigMap when you define a pod or deployment.
- ConfigMaps are stored within a given namespace and can only be accessed by pods within the same namespace.

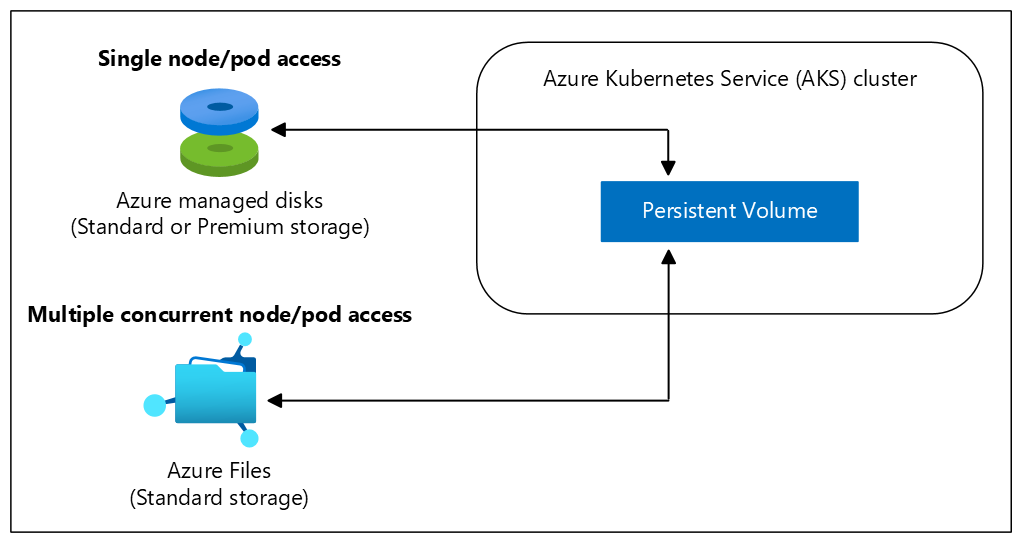

Volumes defined and created as part of the pod lifecycle only exist until you delete the pod. Pods often expect their storage to remain if a pod is rescheduled on a different host during a maintenance event, especially in StatefulSets. A persistent volume (PV) is a storage resource created and managed by the Kubernetes API that can exist beyond the lifetime of an individual pod.
You can use Azure Disks or Azure Files to provide the PersistentVolume. As noted in the Volumes section, the choice of Disks or Files is often determined by the need for concurrent access to the data or the performance tier.
A PersistentVolume can be statically created by a cluster administrator, or dynamically created by the Kubernetes API server. If a pod is scheduled and requests currently unavailable storage, Kubernetes can create the underlying Azure Disk or Files storage and attach it to the pod. Dynamic provisioning uses a StorageClass to identify what type of Azure storage needs to be created.
Persistent volumes can't be shared by Windows and Linux pods due to differences in file system support between the two operating systems.
To define different tiers of storage, such as Premium and Standard, you can create a StorageClass.
The StorageClass also defines the reclaimPolicy. When you delete the persistent volume, the reclaimPolicy controls the behavior of the underlying Azure storage resource. The underlying storage resource can either be deleted or kept for use with a future pod.
For clusters using the Container Storage Interface (CSI) drivers the following extra
StorageClasses are created:
||Uses Azure StandardSSD locally redundant storage (LRS) to create a Managed Disk. The reclaim policy ensures that the underlying Azure Disk is deleted when the persistent volume that used it is deleted. The storage class also configures the persistent volumes to be expandable, you just need to edit the persistent volume claim with the new size.|
||Uses Azure Premium locally redundant storage (LRS) to create a Managed Disk. The reclaim policy again ensures that the underlying Azure Disk is deleted when the persistent volume that used it is deleted. Similarly, this storage class allows for persistent volumes to be expanded.|
||Uses Azure Standard storage to create an Azure File Share. The reclaim policy ensures that the underlying Azure File Share is deleted when the persistent volume that used it is deleted.|
||Uses Azure Premium storage to create an Azure File Share. The reclaim policy ensures that the underlying Azure File Share is deleted when the persistent volume that used it is deleted.|
||Uses Azure Premium storage to create an Azure Blob storage container and connect using the NFS v3 protocol. The reclaim policy ensures that the underlying Azure Blob storage container is deleted when the persistent volume that used it is deleted.|
||Uses Azure Premium storage to create an Azure Blob storage container and connect using BlobFuse. The reclaim policy ensures that the underlying Azure Blob storage container is deleted when the persistent volume that used it is deleted.|
Unless you specify a StorageClass for a persistent volume, the default StorageClass will be used. Ensure volumes use the appropriate storage you need when requesting persistent volumes.
Starting with Kubernetes version 1.21, AKS only uses CSI drivers by default and CSI migration is enabled. While existing in-tree persistent volumes continue to function, starting with version 1.26, AKS will no longer support volumes created using in-tree driver and storage provisioned for files and disk.
default class will be the same as
You can create a StorageClass for additional needs using
kubectl. The following example uses Premium Managed Disks and specifies that the underlying Azure Disk should be retained when you delete the pod:
apiVersion: storage.k8s.io/v1 kind: StorageClass metadata: name: managed-premium-retain provisioner: disk.csi.azure.com parameters: skuName: Premium_LRS reclaimPolicy: Retain volumeBindingMode: WaitForFirstConsumer allowVolumeExpansion: true
AKS reconciles the default storage classes and will overwrite any changes you make to those storage classes.
For more information about storage classes, see StorageClass in Kubernetes.
Persistent volume claims

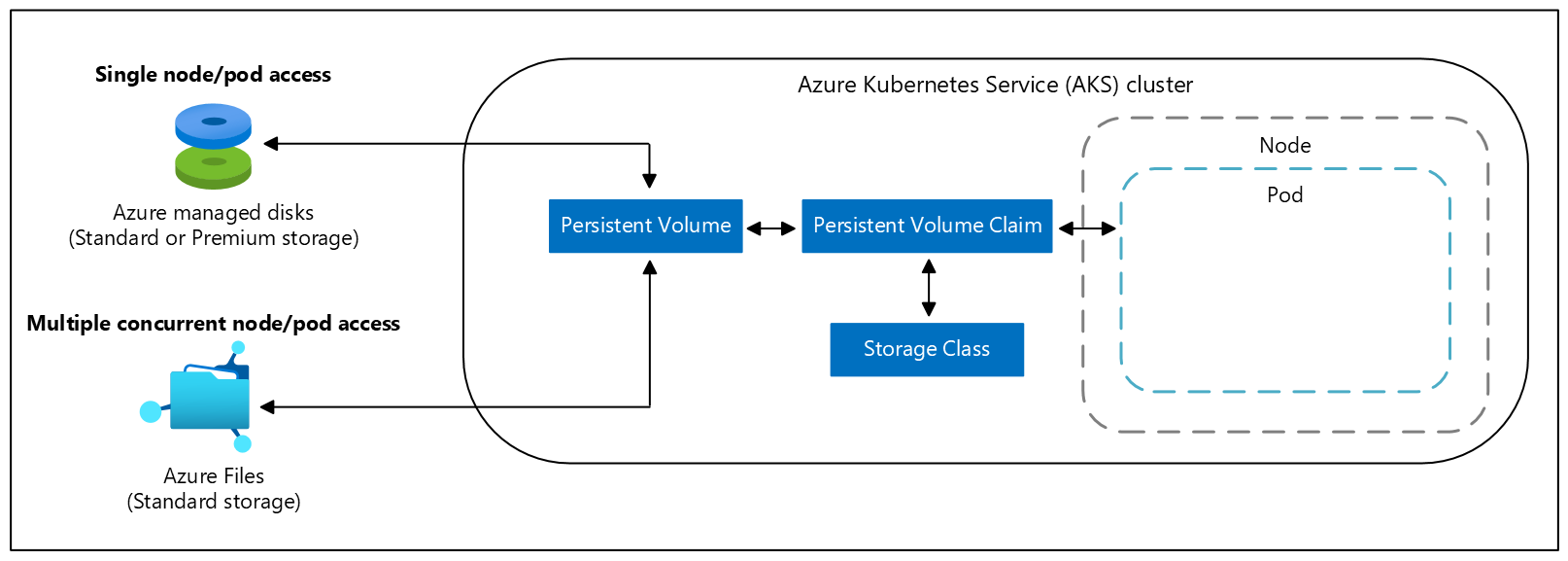

A PersistentVolumeClaim requests storage of a particular StorageClass, access mode, and size. The Kubernetes API server can dynamically provision the underlying Azure storage resource if no existing resource can fulfill the claim based on the defined StorageClass.
The pod definition includes the volume mount once the volume has been connected to the pod.
Once an available storage resource has been assigned to the pod requesting storage, PersistentVolume is bound to a PersistentVolumeClaim. Persistent volumes are 1:1 mapped to claims.
The following example YAML manifest shows a persistent volume claim that uses the managed-premium StorageClass and requests a Disk 5Gi in size:
apiVersion: v1 kind: PersistentVolumeClaim metadata: name: azure-managed-disk spec: accessModes: - ReadWriteOnce storageClassName: managed-premium-retain resources: requests: storage: 5Gi
When you create a pod definition, you also specify:
- The persistent volume claim to request the desired storage.
- The volumeMount for your applications to read and write data.
The following example YAML manifest shows how the previous persistent volume claim can be used to mount a volume at /mnt/azure:
kind: Pod apiVersion: v1 metadata: name: nginx spec: containers: - name: myfrontend image: mcr.microsoft.com/oss/nginx/nginx:1.15.5-alpine volumeMounts: - mountPath: "/mnt/azure" name: volume volumes: - name: volume persistentVolumeClaim: claimName: azure-managed-disk
For mounting a volume in a Windows container, specify the drive letter and path. For example:
... volumeMounts: - mountPath: "d:" name: volume - mountPath: "c:\k" name: k-dir ...
For associated best practices, see Best practices for storage and backups in AKS.
To see how to use CSI drivers, see the following how-to articles:
- Enable Container Storage Interface (CSI) drivers for Azure Disks, Azure Files, and Azure Blob storage on Azure Kubernetes Service
- Use Azure Disks CSI driver in Azure Kubernetes Service
- Use Azure Files CSI driver in Azure Kubernetes Service
- Use Azure Blob storage CSI driver (preview) in Azure Kubernetes Service
- Integrate Azure NetApp Files with Azure Kubernetes Service
