Quickstart: Use Azure App Configuration in Azure Container Apps

In this quickstart, you will use Azure App Configuration in an app running in Azure Container Apps. This way, you can centralize the storage and management of the configuration of your apps in Container Apps. This quickstart leverages the ASP.NET Core app created in Quickstart: Create an ASP.NET Core app with App Configuration. You will containerize the app and deploy it to Azure Container Apps. Complete the quickstart before you continue.


While following this quickstart, preferably register all new resources within a single resource group, so that you can regroup them all in a single place and delete them faster later on if you don't need them anymore.


Connect Azure App Configuration to the container app

In the Azure portal, navigate to your Container App instance. Follow the Service Connector quickstart for Azure Container Apps to create a service connection with your App Configuration store using the settings below.

  • In the Basics tab:

    • select App Configuration for Service type

    • pick your App Configuration store for "App Configuration"

      Screenshot the Azure platform showing a form in the Service Connector menu in a Container App.

  • In the Authentication tab:

    • pick Connection string authentication type and Read-Only for "Permissions for the connection string
    • expand the Advanced menu. In the Configuration information, there should be an environment variable already created called "AZURE_APPCONFIGURATION_CONNECTIONSTRING". Edit the environment variable by selecting the icon on the right and change the name to ConnectionStrings__AppConfig. We need to make this change as ConnectionStrings__AppConfig is the name of the environment variable the application built in the ASP.NET Core quickstart will look for. This is the environment variable which contains the connection string for App Configuration. If you have used another application to follow this quickstart, please use the corresponding environment variable name. Then select Done.
  • Use default values for everything else.

Once done, an environment variable named ConnectionStrings__AppConfig will be added to the container of your Container App. Its value is a reference of the Container App secret, the connection string of your App Configuration store.

Build a container

  1. Run the dotnet publish command to build the app in release mode and create the assets in the published folder.

    dotnet publish -c Release -o published
  2. Create a file named Dockerfile in the directory containing your .csproj file, open it in a text editor, and enter the following content. A Dockerfile is a text file that doesn't have an extension and that is used to create a container image.

    FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS runtime
    WORKDIR /app
    COPY published/ ./
    ENTRYPOINT ["dotnet", "TestAppConfig.dll"]
  3. Build the container by running the following command.

    docker build --tag aspnetapp .

Create an Azure Container Registry instance

Create an Azure Container Registry (ACR). ACR enables you to build, store, and manage container images.

  1. To create the container registry, follow the Azure Container Registry quickstart.
  2. Once the deployment is complete, open your ACR instance and from the left menu, select Settings > Access keys.
  3. Take note of the Login server value listed on this page. You'll use this information in a later step.
  4. Switch Admin user to Enabled. This option lets you connect the ACR to Azure Container Apps using admin user credentials. Alternatively, you can leave it disabled and configure the container app to pull images from the registry with a managed identity.

Push the image to Azure Container Registry

Push the Docker image to the ACR created earlier.

  1. Run the az acr login command to log in to the registry.

    az acr login --name myregistry

    The command returns Login Succeeded once login is successful.

  2. Use docker tag to tag the image appropriate details.

    docker tag aspnetapp myregistry.azurecr.io/aspnetapp:v1


    To review the list of your existing docker images and tags, run docker image ls. In this scenario, you should see at least two images: aspnetapp and myregistry.azurecr.io/aspnetapp.

  3. Use docker push to push the image to the container registry. This example creates the aspnetapp repository in ACR containing the aspnetapp image. In the example below, replace the placeholders <login-server, <image-name> and <tag> by the ACR's log-in server value, the image name and the image tag.


    docker push <login-server>/<image-name>:<tag>


    docker push myregistry.azurecr.io/aspnetapp:v1
  4. Open your Azure Container Registry in the Azure portal and confirm that under Repositories, you can see your new repository.

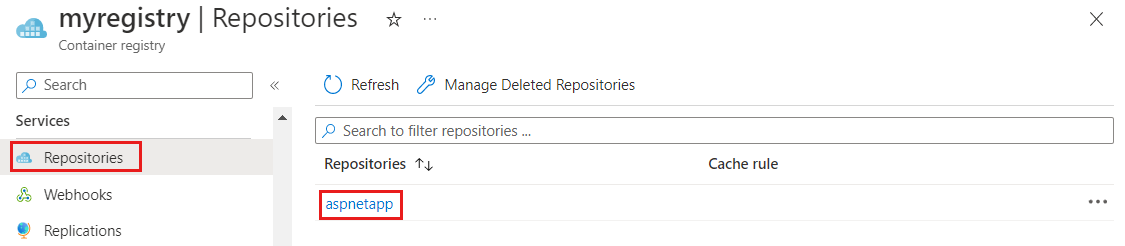

    Screenshot of the Azure platform showing a repository in Azure Container Registries.

Add your container image to Azure Container Apps

Update your Container App to load the container image from your ACR.

  1. In the Azure portal, open your Azure Container Apps instance.

  2. In the left menu, under Application, select Containers.

  3. Select Edit and deploy.

  4. Under Container image, click on the name of the existing container image.

  5. Update the following settings:

    Setting Suggested value Description
    Image source Azure Container Registry Select Azure Container Registry as your image source.
    Authentication Admin Credentials Use the admin user credential option that was enabled earlier in the container registry. If you didn't enable the admin user but configured to use a managed identity, you would need to manually enter the image and tag in the form.
    Registry myregistry.azurecr.io Select the Azure Container Registry you created earlier.
    Image aspnetapp Select the docker image you created and pushed to ACR earlier.
    Image tag v1 Select your image tag from the list.
  6. Select Save and then Create to deploy the update to Azure Container App.

Browse to the URL of the Azure Container App

In the Azure portal, in the Azure Container Apps instance, go to the Overview tab and open the Application Url.

The web page looks like this:

Screenshot of an internet browser displaying the app running.

Clean up resources

If you don't want to continue using the resources created in this article, delete the resource group you created here to avoid charges.


Deleting a resource group is irreversible. The resource group and all the resources in it are permanently deleted. Ensure that you don't accidentally delete the wrong resource group or resources. If you created the resources for this article inside a resource group that contains other resources you want to keep, delete each resource individually from its respective pane instead of deleting the resource group.

  1. Sign in to the Azure portal, and select Resource groups.
  2. In the Filter by name box, enter the name of your resource group.
  3. In the result list, select the resource group name to see an overview.
  4. Select Delete resource group.
  5. You're asked to confirm the deletion of the resource group. Enter the name of your resource group to confirm, and select Delete.

After a few moments, the resource group and all its resources are deleted.

Next steps

In this quickstart, you:

  • Connected Azure App Configuration to Azure Container Apps
  • Used Docker to build a container image from an ASP.NET Core app with App Configuration settings
  • Created an Azure Container Registry instance
  • Pushed the image to the Azure Container Registry instance
  • Added the container image to Azure Container Apps
  • Browsed to the URL of the Azure Container Apps instance updated with the settings you configured in your App Configuration store.

The managed identity enables one Azure resource to access another without you maintaining secrets. You can streamline access from Container Apps to other Azure resources. For more information, see how to access App Configuration using the managed identity and how to [access Container Registry using the managed identity].

To learn how to configure your ASP.NET Core web app to dynamically refresh configuration settings, continue to the next tutorial.
