Overview of Azure Connected Machine agent

  • Article

The Azure Connected Machine agent enables you to manage your Windows and Linux machines hosted outside of Azure on your corporate network or other cloud providers.

Warning

Only Connected Machine agent versions within the last 1 year are officially supported by the product group. Customers should update to an agent version within this window.

Agent components

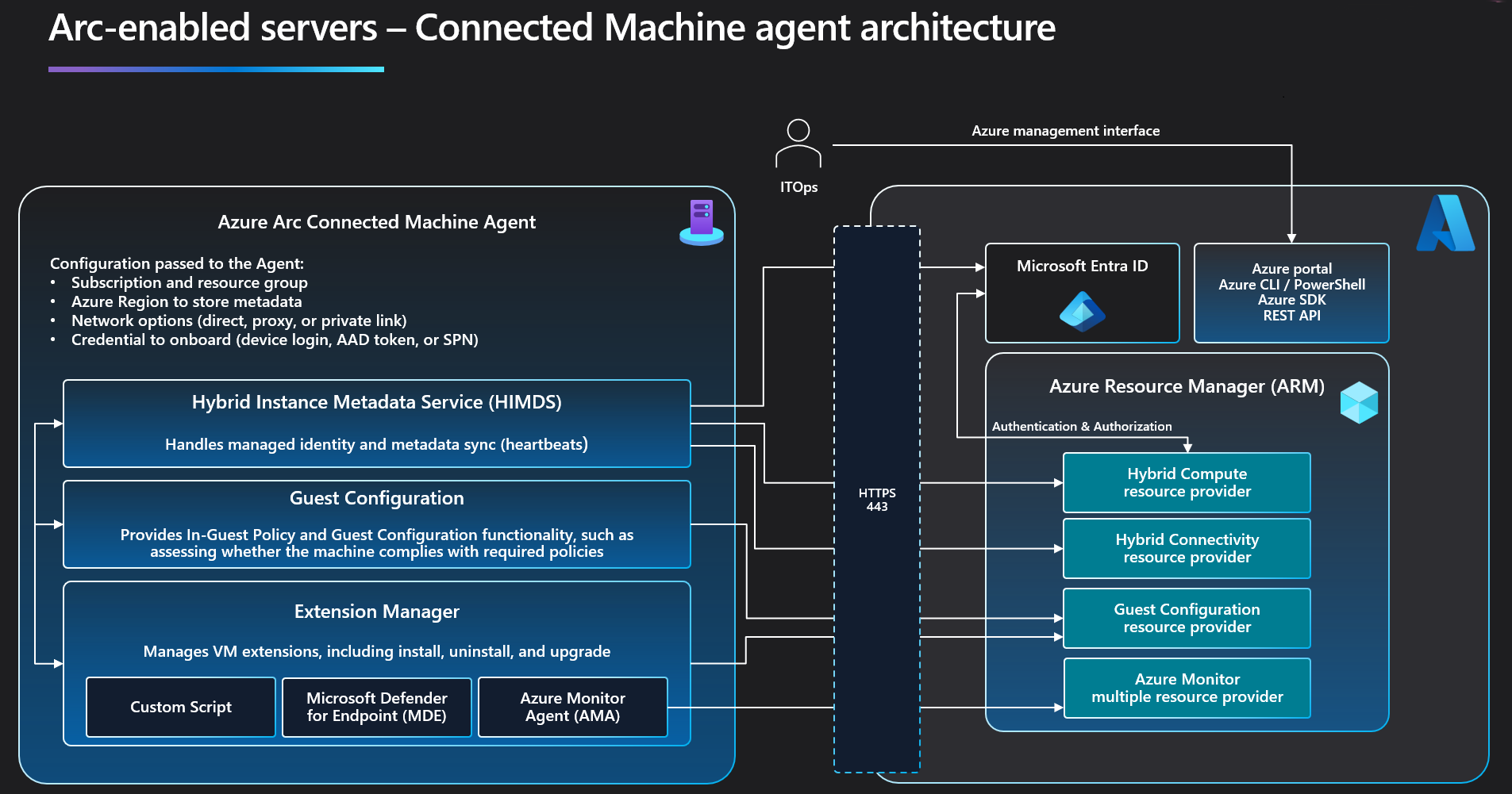

Azure Connected Machine agent architectural overview.

The Azure Connected Machine agent package contains several logical components bundled together:

  • The Hybrid Instance Metadata service (HIMDS) manages the connection to Azure and the connected machine's Azure identity.

  • The guest configuration agent provides functionality such as assessing whether the machine complies with required policies and enforcing compliance.

    Note the following behavior with Azure Policy guest configuration for a disconnected machine:

    • An Azure Policy assignment that targets disconnected machines is unaffected.
    • Guest assignment is stored locally for 14 days. Within the 14-day period, if the Connected Machine agent reconnects to the service, policy assignments are reapplied.
    • Assignments are deleted after 14 days, and aren't reassigned to the machine after the 14-day period.

  • The Extension agent manages VM extensions, including install, uninstall, and upgrade. Azure downloads extensions and copies them to the %SystemDrive%\%ProgramFiles%\AzureConnectedMachineAgent\ExtensionService\downloads folder on Windows, and to /opt/GC_Ext/downloads on Linux. On Windows, the extension installs to the following path %SystemDrive%\Packages\Plugins\<extension>, and on Linux the extension installs to /var/lib/waagent/<extension>.

Note

The Azure Monitor agent (AMA) is a separate agent that collects monitoring data, and it does not replace the Connected Machine agent; the AMA only replaces the Log Analytics agent, Diagnostics extension, and Telegraf agent for both Windows and Linux machines.

Azure Arc Proxy

The Azure Arc Proxy service is responsible for aggregating network traffic from the Azure Connected Machine agent services and any extensions you’ve installed and deciding where to route that data. If you’re using the Azure Arc gateway (Limited preview) to simplify your network endpoints, the Azure Arc Proxy service is the local component that forwards network requests via the Azure Arc gateway instead of the default route. The Azure Arc Proxy runs as a Network Service on Windows and a standard user account (arcproxy) on Linux. It's disabled by default until you configure the agent to use the Azure Arc gateway (Limited preview).

Agent resources

The following information describes the directories and user accounts used by the Azure Connected Machine agent.

Windows agent installation details

The Windows agent is distributed as a Windows Installer package (MSI). Download the Windows agent from the Microsoft Download Center. Installing the Connected Machine agent for Window applies the following system-wide configuration changes:

  • The installation process creates the following folders during setup.

    Directory Description
    %ProgramFiles%\AzureConnectedMachineAgent azcmagent CLI and instance metadata service executables.
    %ProgramFiles%\AzureConnectedMachineAgent\ExtensionService\GC Extension service executables.
    %ProgramFiles%\AzureConnectedMachineAgent\GCArcService\GC Guest configuration (policy) service executables.
    %ProgramData%\AzureConnectedMachineAgent Configuration, log and identity token files for azcmagent CLI and instance metadata service.
    %ProgramData%\GuestConfig Extension package downloads, guest configuration (policy) definition downloads, and logs for the extension and guest configuration services.
    %SYSTEMDRIVE%\packages Extension package executables

  • Installing the agent creates the following Windows services on the target machine.

    Service name Display name Process name Description
    himds Azure Hybrid Instance Metadata Service himds.exe Synchronizes metadata with Azure and hosts a local REST API for extensions and applications to access the metadata and request Microsoft Entra managed identity tokens
    GCArcService Guest configuration Arc Service gc_arc_service.exe (gc_service.exe prior to version 1.36) Audits and enforces Azure guest configuration policies on the machine.
    ExtensionService Guest configuration Extension Service gc_extension_service.exe (gc_service.exe prior to version 1.36) Installs, updates, and manages extensions on the machine.

  • Agent installation creates the following virtual service account.

    Virtual Account Description
    NT SERVICE\himds Unprivileged account used to run the Hybrid Instance Metadata Service.

    Tip

    This account requires the "Log on as a service" right. This right is automatically granted during agent installation, but if your organization configures user rights assignments with Group Policy, you might need to adjust your Group Policy Object to grant the right to "NT SERVICE\himds" or "NT SERVICE\ALL SERVICES" to allow the agent to function.

  • Agent installation creates the following local security group.

    Security group name Description
    Hybrid agent extension applications Members of this security group can request Microsoft Entra tokens for the system-assigned managed identity

  • Agent installation creates the following environmental variables

    Name Default value Description
    IDENTITY_ENDPOINT http://localhost:40342/metadata/identity/oauth2/token
    IMDS_ENDPOINT http://localhost:40342

  • There are several log files available for troubleshooting, described in the following table.

    Log Description
    %ProgramData%\AzureConnectedMachineAgent\Log\himds.log Records details of the heartbeat and identity agent component.
    %ProgramData%\AzureConnectedMachineAgent\Log\azcmagent.log Contains the output of the azcmagent tool commands.
    %ProgramData%\GuestConfig\arc_policy_logs\gc_agent.log Records details about the guest configuration (policy) agent component.
    %ProgramData%\GuestConfig\ext_mgr_logs\gc_ext.log Records details about extension manager activity (extension install, uninstall, and upgrade events).
    %ProgramData%\GuestConfig\extension_logs Directory containing logs for individual extensions.

  • The process creates the local security group Hybrid agent extension applications.

  • After uninstalling the agent, the following artifacts remain.

    • %ProgramData%\AzureConnectedMachineAgent\Log
    • %ProgramData%\AzureConnectedMachineAgent
    • %ProgramData%\GuestConfig
    • %SystemDrive%\packages

Linux agent installation details

The preferred package format for the distribution (.rpm or .deb) that's hosted in the Microsoft package repository provides the Connected Machine agent for Linux. The shell script bundle Install_linux_azcmagent.sh installs and configures the agent.

Installing, upgrading, and removing the Connected Machine agent isn't required after server restart.

Installing the Connected Machine agent for Linux applies the following system-wide configuration changes.

  • Setup creates the following installation folders.

    Directory Description
    /opt/azcmagent/ azcmagent CLI and instance metadata service executables.
    /opt/GC_Ext/ Extension service executables.
    /opt/GC_Service/ Guest configuration (policy) service executables.
    /var/opt/azcmagent/ Configuration, log and identity token files for azcmagent CLI and instance metadata service.
    /var/lib/GuestConfig/ Extension package downloads, guest configuration (policy) definition downloads, and logs for the extension and guest configuration services.

  • Installing the agent creates the following daemons.

    Service name Display name Process name Description
    himdsd.service Azure Connected Machine Agent Service himds This service implements the Hybrid Instance Metadata service (IMDS) to manage the connection to Azure and the connected machine's Azure identity.
    gcad.service GC Arc Service gc_linux_service Audits and enforces Azure guest configuration policies on the machine.
    extd.service Extension Service gc_linux_service Installs, updates, and manages extensions on the machine.

  • There are several log files available for troubleshooting, described in the following table.

    Log Description
    /var/opt/azcmagent/log/himds.log Records details of the heartbeat and identity agent component.
    /var/opt/azcmagent/log/azcmagent.log Contains the output of the azcmagent tool commands.
    /var/lib/GuestConfig/arc_policy_logs Records details about the guest configuration (policy) agent component.
    /var/lib/GuestConfig/ext_mgr_logs Records details about extension manager activity (extension install, uninstall, and upgrade events).
    /var/lib/GuestConfig/extension_logs Directory containing logs for individual extensions.

  • Agent installation creates the following environment variables, set in /lib/systemd/system.conf.d/azcmagent.conf.

    Name Default value Description
    IDENTITY_ENDPOINT http://localhost:40342/metadata/identity/oauth2/token
    IMDS_ENDPOINT http://localhost:40342

  • After uninstalling the agent, the following artifacts remain.

    • /var/opt/azcmagent
    • /var/lib/GuestConfig

Agent resource governance

The Azure Connected Machine agent is designed to manage agent and system resource consumption. The agent approaches resource governance under the following conditions:

  • The Machine Configuration (formerly Guest Configuration) service can use up to 5% of the CPU to evaluate policies.

  • The Extension service can use up to 5% of the CPU on Windows machines and 30% of the CPU on Linux machines to install, upgrade, run, and delete extensions. Some extensions might apply more restrictive CPU limits once installed. The following exceptions apply:

    Extension type Operating system CPU limit
    AzureMonitorLinuxAgent Linux 60%
    AzureMonitorWindowsAgent Windows 100%
    LinuxOsUpdateExtension Linux 60%
    MDE.Linux Linux 60%
    MicrosoftDnsAgent Windows 100%
    MicrosoftMonitoringAgent Windows 60%
    OmsAgentForLinux Linux 60%

During normal operations, defined as the Azure Connected Machine agent being connected to Azure and not actively modifying an extension or evaluating a policy, you can expect the agent to consume the following system resources:

Windows Linux
CPU usage (normalized to 1 core) 0.07% 0.02%
Memory usage 57 MB 42 MB

The performance data above was gathered in April 2023 on virtual machines running Windows Server 2022 and Ubuntu 20.04. Actual agent performance and resource consumption will vary based on the hardware and software configuration of your servers.

Custom resource limits

The default resource governance limits are the best choice for most servers. However, small virtual machines and servers with limited CPU resources might encounter timeouts when managing extensions or evaluating policies because there aren't enough CPU resources to complete the tasks. Starting with agent version 1.39, you can customize the CPU limits applied to the extension manager and Machine Configuration services to help the agent complete these tasks faster.

To see the current resource limits for the extension manager and Machine Configuration services, run the following command.

azcmagent config list

In the output, you'll see two fields, guestconfiguration.agent.cpulimit and extensions.agent.cpulimit with the current resource limit specified as a percentage. On a fresh install of the agent, both will show 5 because the default limit is 5% of the CPU.

To change the resource limit for the extension manager to 80%, run the following command:

azcmagent config set extensions.agent.cpulimit 80

Instance metadata

Metadata information about a connected machine is collected after the Connected Machine agent registers with Azure Arc-enabled servers. Specifically:

  • Operating system name, edition, type, and version
  • Computer name
  • Computer manufacturer and model
  • Computer fully qualified domain name (FQDN)
  • Domain name (if joined to an Active Directory domain)
  • Active Directory and DNS fully qualified domain name (FQDN)
  • UUID (BIOS ID)
  • Connected Machine agent heartbeat
  • Connected Machine agent version
  • Public key for managed identity
  • Policy compliance status and details (if using guest configuration policies)
  • SQL Server installed (Boolean value)
  • Cluster resource ID (for Azure Stack HCI nodes)
  • Hardware manufacturer
  • Hardware model
  • CPU family, socket, physical core and logical core counts
  • Total physical memory
  • Serial number
  • SMBIOS asset tag
  • Network interface information
    • IP address
    • Subnet
  • Windows licensing information
    • OS license status
    • OS license channel
    • Extended Security Updates eligibility
    • Extended Security Updates license status
    • Extended Security Updates license channel
  • Cloud provider
  • Amazon Web Services (AWS) metadata, when running in AWS:
    • Account ID
    • Instance ID
    • Region
  • Google Cloud Platform (GCP) metadata, when running in GCP:
    • Instance ID
    • Image
    • Machine type
    • Project ID
    • Project number
    • Service accounts
    • Zone
  • Oracle Cloud Infrastructure metadata, when running in OCI:
    • Display name

The agent requests the following metadata information from Azure:

  • Resource location (region)
  • Virtual machine ID
  • Tags
  • Microsoft Entra managed identity certificate
  • Guest configuration policy assignments
  • Extension requests - install, update, and delete.

Note

Azure Arc-enabled servers doesn't store/process customer data outside the region the customer deploys the service instance in.

Deployment options and requirements

Agent deployment and machine connection require certain prerequisites. There are also networking requirements to be aware of.

We provide several options for deploying the agent. For more information, see Plan for deployment and Deployment options.

Disaster Recovery

There are no customer-enabled disaster recovery options for Arc-enabled servers. In the event of an outage in an Azure region, the system will failover to another region in the same Azure geography (if one exists). While this failover procedure is automatic, it does take some time. The Connected Machine agent will be disconnected during this period and will show a status of Disconnected until the failover is complete. The system will failback to its original region once the outage has been restored.

An outage of Azure Arc won't affect the customer workload itself; only management of the applicable servers via Arc will be impaired.
