Microsoft.ManagedIdentity.IdentitySelector UI element

  • Article

A control for assigning managed identities for a resource in a deployment.

UI sample

The control consists of the following elements:

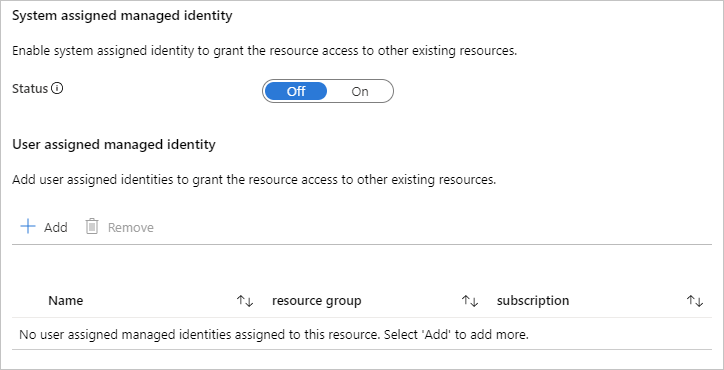

Microsoft.ManagedIdentity.IdentitySelector first step

When the user selects Add, the following form opens. The user can select one or more user-assigned identities for the resource.

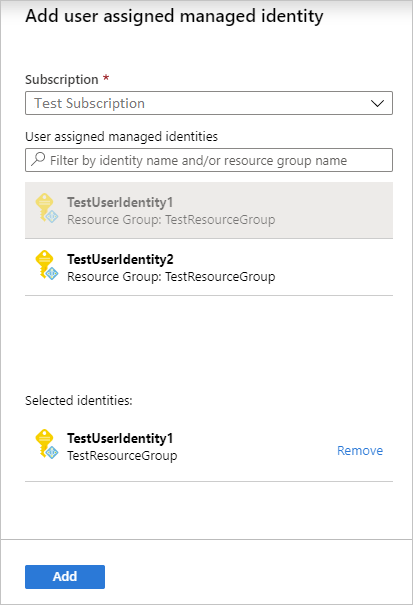

Microsoft.ManagedIdentity.IdentitySelector second step

The selected identities are displayed in the table. The user can add or delete items from this table.

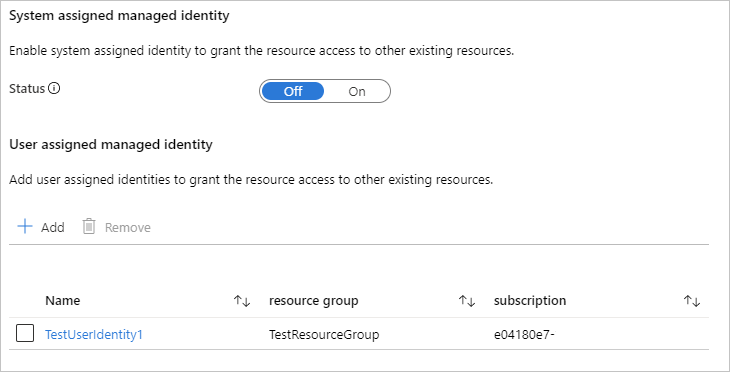

Microsoft.ManagedIdentity.IdentitySelector third step

Schema

{
  "name": "identity",
  "type": "Microsoft.ManagedIdentity.IdentitySelector",
  "label": "Managed Identity Configuration",
  "toolTip": {
    "systemAssignedIdentity": "Enable system assigned identity to grant the resource access to other existing resources.",
    "userAssignedIdentity": "Add user assigned identities to grant the resource access to other existing resources."
  },
  "defaultValue": {
    "systemAssignedIdentity": "Off"
  },
  "options": {
    "hideSystemAssignedIdentity": false,
    "hideUserAssignedIdentity": false
  },
  "visible": true
}

Sample output

{
  "identity": {
    "value": {
      "type": "UserAssigned",
      "userAssignedIdentities": {
        "/subscriptions/xxxx/resourceGroups/TestResourceGroup/providers/Microsoft.ManagedIdentity/userAssignedIdentities/TestUserIdentity1": {}
      }
    }
  }
}

Remarks

  • Use defaultValue.systemAssignedIdentity to set an initial value for the system assigned identity options control. The default value is Off. The following values are allowed:

    • On – A system assigned identity is assigned to the resource.
    • Off – A system assigned identity isn't assigned to the resource.
    • OnOnly – A system assigned identity is assigned to the resource. Users can't edit this value during deployment.
    • OffOnly – A system assigned identity isn't assigned to the resource. Users can't edit this value during deployment.

  • If options.hideSystemAssignedIdentity is set to true, the UI to configure the system assigned identity isn't displayed. The default value for this option is false.

  • If options.hideUserAssignedIdentity is set to true, the UI to configure the user assigned identity isn't displayed. The resource isn't assigned a user assigned identity. The default value for this option is false.
