CreateUiDefinition.json for Azure managed application's create experience
Article
This document introduces the core concepts of the createUiDefinition.json file. The Azure portal uses this file to define the user interface when creating a managed application.
A createUiDefinition.json file always contains three properties:
handler
version
parameters
The handler should always be Microsoft.Azure.CreateUIDef, and the latest supported version is 0.1.2-preview.
The schema of the parameters property depends on the combination of the specified handler and version. For managed applications, the supported properties are config, basics, steps, and outputs. You use config only when you need to override the default behavior of the basics step. The basics and steps properties contain the elements - like textboxes and dropdowns - to be displayed in the Azure portal. The outputs property is used to map the output values of the specified elements to the parameters of the Azure Resource Manager template.
Including $schema is recommended, but optional. If specified, the value for version must match the version within the $schema URI.
The config property is optional. Use it to either override the default behavior of the basics step, or to set your interface as a step-by-step wizard. If config is used, it's the first property in the createUiDefinition.json file's parameters section. The following example shows the available properties.
"config": {
"isWizard": false,
"basics": {
"description": "Customized description with **markdown**, see [more](https://www.microsoft.com).",
"subscription": {
"constraints": {
"validations": [
{
"isValid": "[not(contains(subscription().displayName, 'Test'))]",
"message": "Can't use test subscription."
},
{
"permission": "Microsoft.Compute/virtualmachines/write",
"message": "Must have write permission for the virtual machine."
},
{
"permission": "Microsoft.Compute/virtualMachines/extensions/write",
"message": "Must have write permission for the extension."
}
]
},
"resourceProviders": [
"Microsoft.Compute"
]
},
"resourceGroup": {
"constraints": {
"validations": [
{
"isValid": "[not(contains(resourceGroup().name, 'test'))]",
"message": "Resource group name can't contain 'test'."
}
]
},
"allowExisting": true
},
"location": {
"label": "Custom label for location",
"toolTip": "provide a useful tooltip",
"resourceTypes": [
"Microsoft.Compute/virtualMachines"
],
"allowedValues": [
"eastus",
"westus2"
],
"visible": true
}
}
},
For the isValid property, write an expression that resolves to either true or false. For the permission property, specify one of the resource provider actions.
Wizard
The isWizard property enables you to require successful validation of each step before proceeding to the next step. When the isWizard property isn't specified, the default is false, and step-by-step validation isn't required.
When isWizard is enabled, set to true, the Basics tab is available and all other tabs are disabled. When the Next button is selected the tab's icon indicates if a tab's validation passed or failed. After a tab's required fields are completed and validated, the Next button allows navigation to the next tab. When all tabs pass validation, you can go to the Review and Create page and select the Create button to begin the deployment.
Override basics
The basics config lets you customize the basics step.
For description, provide a markdown-enabled string that describes your resource. Multi-line format and links are supported.
The subscription and resourceGroup elements enable you to specify more validations. The syntax for specifying validations is identical to the custom validation for text box. You can also specify permission validations on the subscription or resource group.
The subscription control accepts a list of resource provider namespaces. For example, you can specify Microsoft.Compute. It shows an error message when the user selects a subscription that doesn't support the resource provider. The error occurs when the resource provider isn't registered on that subscription, and the user doesn't have permission to register the resource provider.
The resource group control has an option for allowExisting. When true, the users can select resource groups that already have resources. This flag is most applicable to solution templates, where default behavior mandates users must select a new or empty resource group. In most other scenarios, specifying this property isn't necessary.
For location, specify the properties for the location control you wish to override. Any properties not overridden are set to their default values. resourceTypes accepts an array of strings containing fully qualified resource type names. The location options are restricted to only regions that support the resource types. allowedValues accepts an array of region strings. Only those regions appear in the dropdown. You can set both allowedValues and resourceTypes. The result is the intersection of both lists. Lastly, the visible property can be used to conditionally or completely disable the location dropdown.
Basics

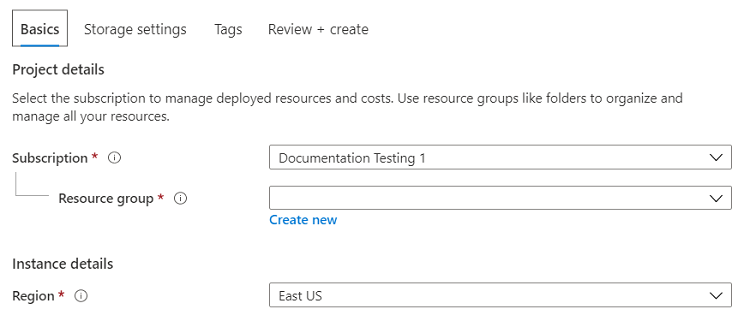

The Basics step is the first step generated when the Azure portal parses the file. By default, the basics step lets users choose the subscription, resource group, and location for deployment.
You can add more elements in this section. When possible, add elements that query deployment-wide parameters, like the name of a cluster or administrator credentials.
The following example shows a text box that has been added to the default elements.
"basics": [
{
"name": "textBox1",
"type": "Microsoft.Common.TextBox",
"label": "Textbox on basics",
"defaultValue": "my text value",
"toolTip": "",
"visible": true
}
]
Steps
The steps property contains zero or more steps to display after basics. Each step contains one or more elements. Consider adding steps per role or tier of the application being deployed. For example, add a step for primary node inputs, and a step for the worker nodes in a cluster.
The Azure portal uses the outputs property to map elements from basics and steps to the parameters of the Azure Resource Manager deployment template. The keys of this dictionary are the names of the template parameters, and the values are properties of the output objects from the referenced elements.
To set the managed application resource name, you must include a value named applicationResourceName in the outputs property. If you don't set this value, the application assigns a GUID for the name. You can include a textbox in the user interface that requests a name from the user.
To filter the available locations to only those locations that support the resource types to deploy, provide an array of the resource types. If you provide more than one resource type, only those locations that support all of the resource types are returned. This property is optional.
CreateUiDefinition provides functions for working with elements' inputs and outputs, and features such as conditionals. These functions are similar in both syntax and functionality to Azure Resource Manager template functions.
Next steps
The createUiDefinition.json file itself has a simple schema. The real depth of it comes from all the supported elements and functions. Those items are described in greater detail at:
A current JSON schema for createUiDefinition is available here: https://schema.management.azure.com/schemas/0.1.2-preview/CreateUIDefinition.MultiVm.json.
