Microsoft.Storage.StorageBlobSelector UI element

A control for selecting a blob from an Azure storage account.

UI sample

The user is presented with the option to browse for available storage blobs.

Microsoft.Storage.StorageBlobSelector - browse

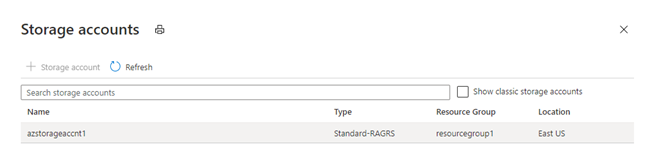

After selecting Browse, the user can select a storage account.

Microsoft.Storage.StorageBlobSelector - select storage

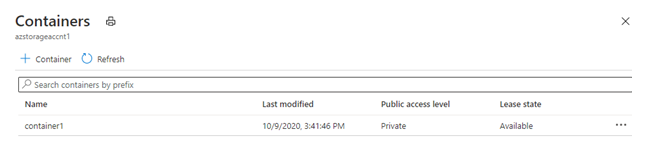

The user sees the containers in the storage account and can select one.

Microsoft.Storage.StorageBlobSelector - select container

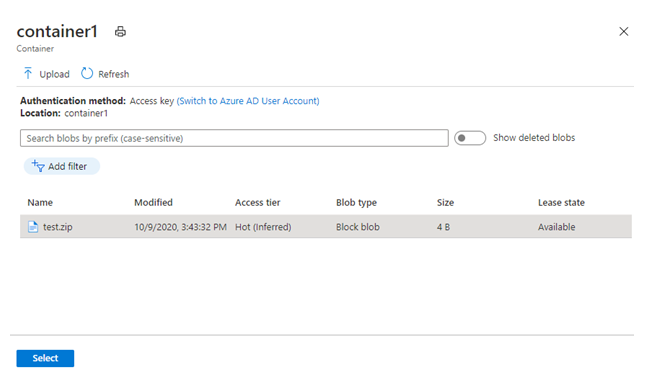

From the container, the user can select a file.

Microsoft.Storage.StorageBlobSelector - file

The control is updated to display the selected file name.

Microsoft.Storage.StorageBlobSelector - show select file


  "name": "storageBlobSelection",
  "type": "Microsoft.Storage.StorageBlobSelector",
  "visible": true,
  "toolTip": "Select storage blob",
  "label": "Package (.zip, .cspkg)",
  "options": {
    "text": "Select Package"
  "constraints": {
    "allowedFileExtensions": [ "zip", "cspkg" ]

Sample output

  "blobName": "",
  "sasUri": ""


The constraints.allowedFileExtensions property specifies the allowed file types.
