Upstream settings

Upstream is a feature that allows Azure SignalR Service to send messages and connection events to a set of endpoints in serverless mode. You can use upstream to invoke a hub method from clients in serverless mode and let endpoints get notified when client connections are connected or disconnected.

Note

Only serverless mode can configure upstream settings.

Details of upstream settings

Upstream settings consist of a list of order-sensitive items. Each item consists of:

  • A URL template, which specifies where messages send to.
  • A set of rules.
  • Authentication configurations.

When the specified event happens, an item's rules are checked one by one in order. Messages will be sent to the first matching item's upstream URL.

URL template settings

You can parameterize the URL to support various patterns. There are three predefined parameters:

Predefined parameter Description
{hub} A hub is a concept of Azure SignalR Service. A hub is a unit of isolation. The scope of users and message delivery is constrained to a hub.
{category} A category can be one of the following values:
  • connections: Connection lifetime events. It's fired when a client connection is connected or disconnected. It includes connected and disconnected events.
  • messages: Fired when clients invoke a hub method. It includes all other events, except those in the connections category.
{event} For the messages category, an event is the target in an invocation message that clients send. For the connections category, only connected and disconnected are used.

These predefined parameters can be used in the URL pattern. Parameters will be replaced with a specified value when you're evaluating the upstream URL. For example:

http://host.com/{hub}/api/{category}/{event}

When a client connection in the "chat" hub is connected, a message will be sent to this URL:

http://host.com/chat/api/connections/connected

When a client in the "chat" hub invokes the hub method broadcast, a message will be sent to this URL:

http://host.com/chat/api/messages/broadcast

Key Vault secret reference in URL template settings

The URL of upstream is not encryption at rest. If you have any sensitive information, it's suggested to use Key Vault to save them where access control has better insurance. Basically, you can enable the managed identity of Azure SignalR Service and then grant read permission on a Key Vault instance and use Key Vault reference instead of plaintext in Upstream URL Pattern.

  1. Add a system-assigned identity or user-assigned identity. See How to add managed identity in Azure Portal

  2. Grant secret read permission for the managed identity in the Access policies in the Key Vault. See Assign a Key Vault access policy using the Azure portal

  3. Replace your sensitive text with the below syntax in the Upstream URL Pattern:

    {@Microsoft.KeyVault(SecretUri=<secret-identity>)}


    <secret-identity> is the full data-plane URI of a secret in Key Vault, optionally including a version, e.g., https://myvault.vault.azure.net/secrets/mysecret/ or https://myvault.vault.azure.net/secrets/mysecret/ec96f02080254f109c51a1f14cdb1931

    For example, a complete reference would look like the following:

    {@Microsoft.KeyVault(SecretUri=https://myvault.vault.azure.net/secrets/mysecret/)}


    An upstream URL to Azure Function would look like the following:

    https://contoso.azurewebsites.net/runtime/webhooks/signalr?code={@Microsoft.KeyVault(SecretUri=https://myvault.vault.azure.net/secrets/mysecret/)}


Note

The service rereads the secret content every 30 minutes or whenever the upstream settings or managed identity changes. Try updating the Upstream settings if you'd like an immediate update when the Key Vault content is changed.

Rule settings

You can set rules for hub rules, category rules, and event rules separately. The matching rule supports three formats. Take event rules as an example:

  • Use an asterisk(*) to match any events.
  • Use a comma (,) to join multiple events. For example, connected, disconnected matches the connected and disconnected events.
  • Use the full event name to match the event. For example, connected matches the connected event.

Note

If you're using Azure Functions and SignalR trigger, SignalR trigger will expose a single endpoint in the following format: <Function_App_URL>/runtime/webhooks/signalr?code=<API_KEY>. You can just configure URL template settings to this url and keep Rule settings default. See SignalR Service integration for details about how to find <Function_App_URL> and <API_KEY>.

Authentication settings

You can configure authentication for each upstream setting item separately. When you configure authentication, a token is set in the Authentication header of the upstream message. Currently, Azure SignalR Service supports the following authentication types:

  • None
  • ManagedIdentity

When you select ManagedIdentity, you must enable a managed identity in Azure SignalR Service in advance and optionally specify a resource. See Managed identities for Azure SignalR Service for details.

Create upstream settings via the Azure portal

Note

Integration with App Service Environment is currently not supported.

  1. Go to Azure SignalR Service.

  2. Select Settings and switch Service Mode to Serverless. The upstream settings will appear:

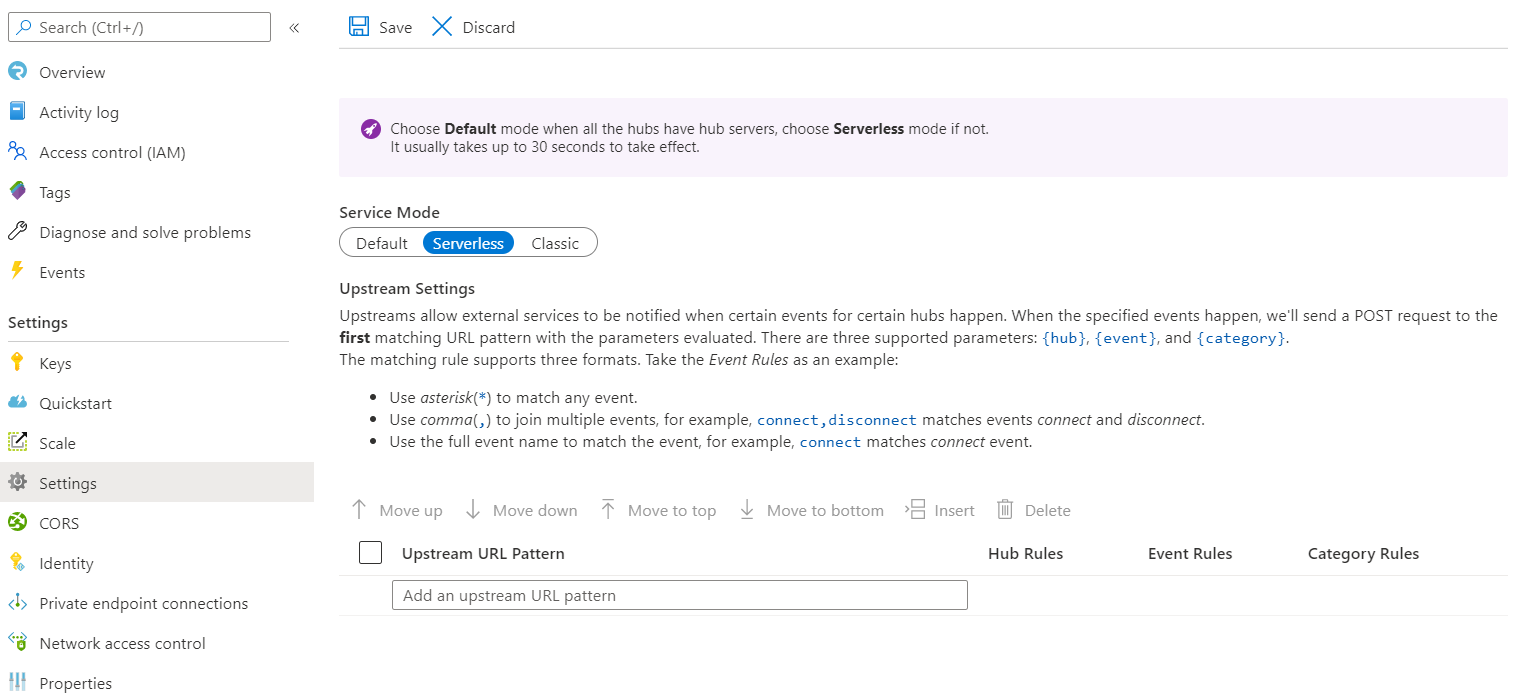

    Upstream settings

  3. Add URLs under Upstream URL Pattern. Then settings such as Hub Rules will show the default value.

  4. To set settings for Hub Rules, Event Rules, Category Rules, and Upstream Authentication, select the value of Hub Rules. A page that allows you to edit settings appears:

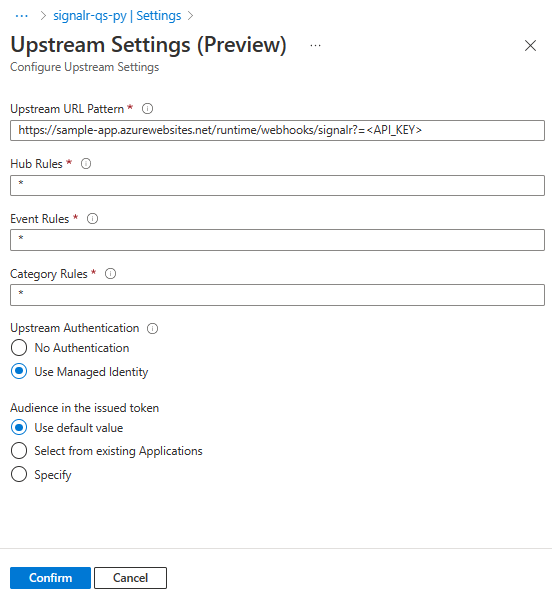

    Upstream setting details

  5. To set Upstream Authentication, make sure you've enabled a managed identity first. Then select Use Managed Identity. According to your needs, you can choose any options under Auth Resource ID. See Managed identities for Azure SignalR Service for details.

Create upstream settings via Resource Manager template

To create upstream settings by using an Azure Resource Manager template, set the upstream property in the properties property. The following snippet shows how to set the upstream property for creating and updating upstream settings.

{
  "properties": {
    "upstream": {
      "templates": [
        {
          "UrlTemplate": "http://host.com/{hub}/api/{category}/{event}",
          "EventPattern": "*",
          "HubPattern": "*",
          "CategoryPattern": "*",
          "Auth": {
            "Type": "ManagedIdentity",
            "ManagedIdentity": {
              "Resource": "<resource>"
            }
          }
        }
      ]
    }
  }
}

Serverless protocols

Azure SignalR Service sends messages to endpoints that follow the following protocols. You can use SignalR Service trigger binding with Function App, which handles these protocols for you.

Method

POST

Request header

Name Description
X-ASRS-Connection-Id The connection ID for the client connection.
X-ASRS-Hub The hub that the client connection belongs to.
X-ASRS-Category The category that the message belongs to.
X-ASRS-Event The event that the message belongs to.
X-ASRS-Signature A hash-based message authentication code (HMAC) that's used for validation. See Signature for details.
X-ASRS-User-Claims A group of claims of the client connection.
X-ASRS-User-Id The user identity of the client that sends the message.
X-ASRS-Client-Query The query of the request when clients connect to the service.
Authentication An optional token when you're using ManagedIdentity.

Request body

Connected

Content-Type: application/json

Disconnected

Content-Type: application/json

Name Type Description
Error string The error message of a closed connection. Empty when connections close with no error.

Invocation message

Content-Type: application/json or application/x-msgpack

Name Type Description
InvocationId string An optional string that represents an invocation message. Find details in Invocations.
Target string The same as the event and the same as the target in an invocation message.
Arguments Array of object An array that contains arguments to apply to the method referred to in Target.

Signature

The service will calculate SHA256 code for the X-ASRS-Connection-Id value by using both the primary access key and the secondary access key as the HMAC key. The service will set it in the X-ASRS-Signature header when making HTTP requests to upstream:

Hex_encoded(HMAC_SHA256(accessKey, connection-id))
