Enable Managed SNAT for Azure VMware Solution workloads

  • Article

In this article, you'll learn how to enable Azure VMware Solution’s Managed Source NAT (SNAT) to connect to the Internet outbound. A SNAT service translates from RFC1918 space to the public Internet for simple outbound Internet access. Note that ICMP (ping) is disabled by design; you cannot ping an Internet host. The SNAT service won't work when you have a default route from Azure.

With this capability, you:

  • Have a basic SNAT service with outbound Internet connectivity from your Azure VMware Solution private cloud.
  • Have no control of outbound SNAT rules.
  • Are unable to view connection logs.
  • Have a limit of 128 000 concurrent connections.

Reference architecture

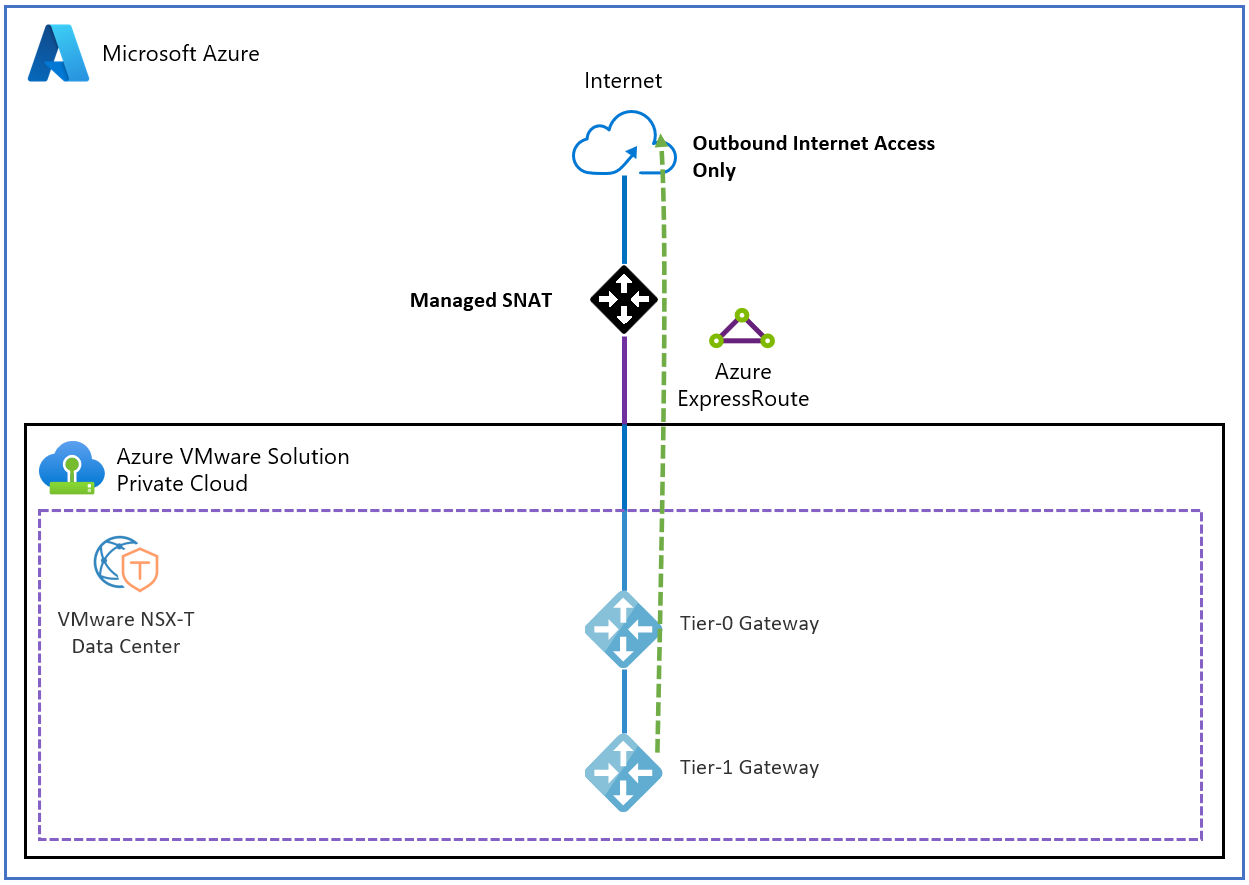

The architecture shows Internet access outbound from your Azure VMware Solution private cloud using an Azure VMware Solution Managed SNAT Service.

Diagram that shows architecture of Internet access to and from your Azure VMware Solution Private Cloud using a Public IP directly to the SNAT Edge.

Configure Outbound Internet access using Managed SNAT in the Azure port

  1. Log in to the Azure portal and then search for and select Azure VMware Solution.
  2. Select the Azure VMware Solution private cloud.
  3. In the left navigation, under Workload Networking, select Internet Connectivity.
  4. Select Connect using SNAT button and select Save. You have successfully enabled outbound Internet access for your Azure VMware Solution private cloud using our Managed SNAT service.
