About SAP HANA database backup in Azure VMs

SAP HANA databases are mission critical workloads that require a low recovery point objective (RPO) and a fast recovery time objective (RTO). You can now back up SAP HANA databases running on Azure VMs using Azure Backup.

Azure Backup is Backint certified by SAP, to provide native backup support by leveraging SAP HANA's native APIs. This offering from Azure Backup aligns with Azure Backup's mantra of zero-infrastructure backups, eliminating the need to deploy and manage backup infrastructure. You can now seamlessly back up and restore SAP HANA databases running on Azure VMs (M series VMs also supported now!) and leverage enterprise management capabilities that Azure Backup provides.

Added value

Using Azure Backup to back up and restore SAP HANA databases, gives the following advantages:

  • 15-minute Recovery Point Objective (RPO): Recovery of critical data of up to 15 minutes is now possible.
  • One-click, point-in-time restores: Restore of production data to alternate HANA servers is made easy. Chaining of backups and catalogs to perform restores is all managed by Azure behind the scenes.
  • Long-term retention: For rigorous compliance and audit needs. Retain your backups for years, based on the retention duration, beyond which the recovery points will be pruned automatically by the built-in lifecycle management capability.
  • Backup Management from Azure: Use Azure Backup's management and monitoring capabilities for improved management experience. Azure CLI is also supported.

To view the backup and restore scenarios that we support today, see the SAP HANA scenario support matrix.

Backup architecture

You can back up SAP HANA databases running inside an Azure VM and stream backup data directly to the Azure Recovery Services vault.

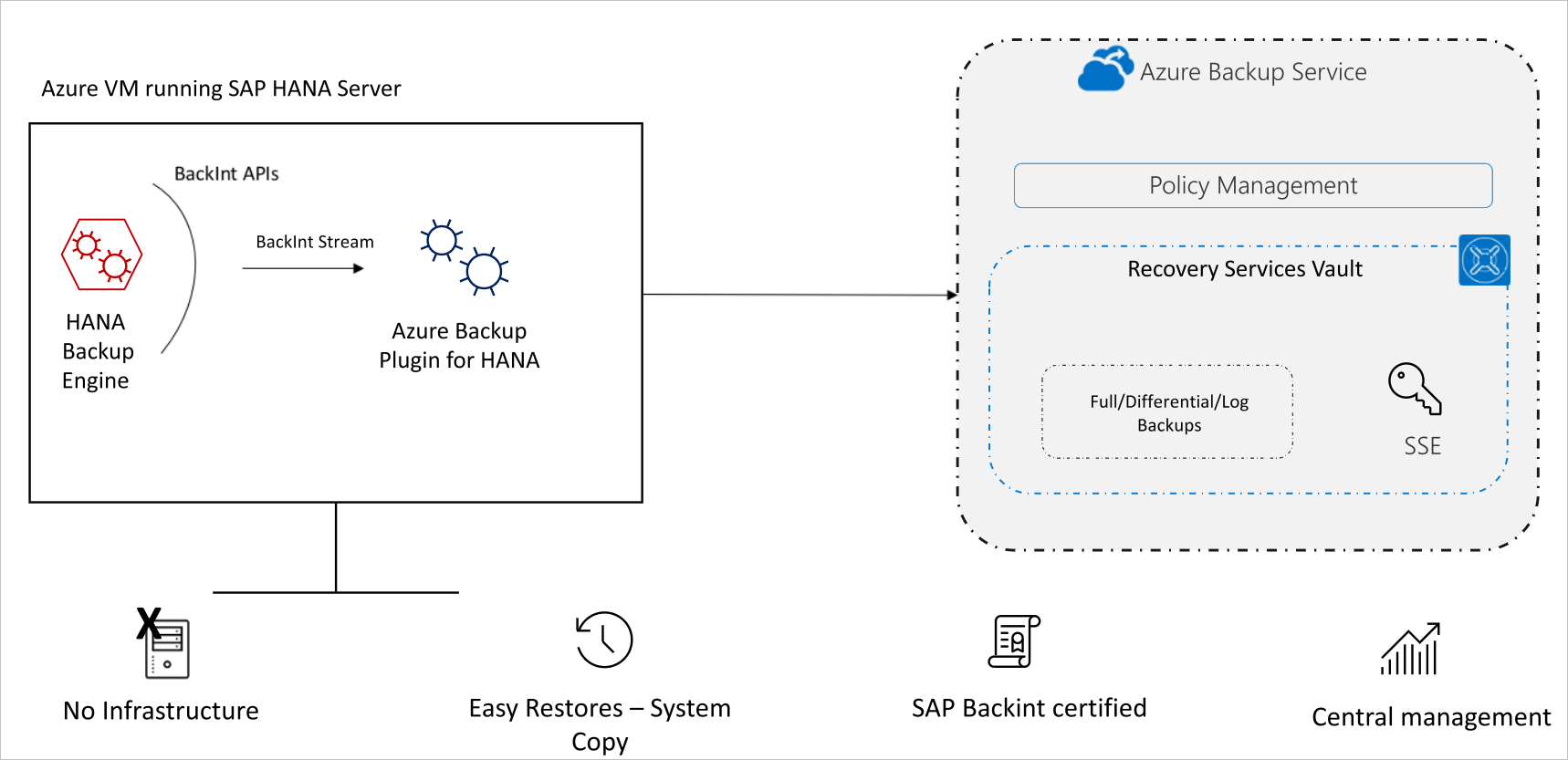

Backup architecture diagram

  • The backup process begins by creating a Recovery Services vault in Azure. This vault will be used to store the backups and recovery points created over time.

  • The Azure VM running SAP HANA server is registered with the vault, and the databases to be backed-up are discovered. To enable the Azure Backup service to discover databases, a preregistration script must be run on the HANA server as a root user.

  • This script creates the AZUREWLBACKUPHANAUSER database user/uses the custom Backup user you have already created, and then creates a corresponding key with the same name in hdbuserstore. Learn more about the functionality of the script.

  • Azure Backup Service now installs the Azure Backup Plugin for HANA on the registered SAP HANA server.

  • The AZUREWLBACKUPHANAUSER database user created by the pre-registration script/custom Backup user that you’ve created (and added as input to the pre-registration script) is used by the Azure Backup Plugin for HANA to perform all backup and restore operations. If you attempt to configure backup for SAP HANA databases without running this script, you might receive the UserErrorHanaScriptNotRun error.

  • To configure backup on the databases that are discovered, choose the required backup policy and enable backups.

  • Once the backup is configured, Azure Backup service sets up the following Backint parameters at the DATABASE level on the protected SAP HANA server:

    • [catalog_backup_using_backint:true]
    • [enable_accumulated_catalog_backup:false]
    • [parallel_data_backup_backint_channels:1]
    • [log_backup_timeout_s:900)]
    • [backint_response_timeout:7200]


Ensure that these parameters are not present at HOST level. Host-level parameters will override these parameters and might cause unexpected behavior.

  • The Azure Backup Plugin for HANA maintains all the backup schedules and policy details. It triggers the scheduled backups and communicates with the HANA Backup Engine through the Backint APIs.
  • The HANA Backup Engine returns a Backint stream with the data to be backed up.
  • All the scheduled backups and on-demand backups (triggered from the Azure portal) that are either full or differential are initiated by the Azure Backup Plugin for HANA. However, log backups are managed and triggered by HANA Backup Engine itself.
  • Azure Backup for SAP HANA, being a BackInt certified solution, doesn't depend on underlying disk or VM types. The backup is performed by streams generated by HANA.

Using Azure VM backup with Azure SAP HANA backup

In addition to using the SAP HANA backup in Azure that provides database level backup and recovery, you can use the Azure VM backup solution to back up the OS and non-database disks.

The Backint certified Azure SAP HANA backup solution can be used for database backup and recovery.

Azure VM backup can be used to back up the OS and other non-database disks. The VM backup is taken once every day and it backups up all the disks (except Write Accelerator (WA) OS disks and ultra disks). Since the database is being backed up using the Azure SAP HANA backup solution, you can take a file-consistent backup of only the OS and non-database disks using the Selective disk backup and restore for Azure VMs feature.

To restore a VM running SAP HANA, follow these steps:

  • Restore a new VM from Azure VM backup from the latest recovery point. Or create a new empty VM and attach the disks from the latest recovery point.
  • If WA disks are excluded, they aren’t restored. In this case, create empty WA disks and log area.
  • After all the other configurations (such as IP, system name, and so on) are set, the VM is set to receive DB data from Azure Backup.
  • Now restore the DB into the VM from the Azure SAP HANA DB backup to the desired point-in-time.
