Create an Azure Batch pool in a virtual network

  • Article
  • 9 minutes to read

When you create an Azure Batch pool, you can provision the pool in a subnet of an Azure virtual network (VNet) that you specify. This article explains how to set up a Batch pool in a VNet.

Why use a VNet?

Compute nodes in a pool can communicate with each other, such as to run multi-instance tasks, without requiring a separate VNet. However, by default, nodes in a pool can't communicate with virtual machines that are outside of the pool, such as license or file servers.

To allow compute nodes to communicate securely with other virtual machines, or with an on-premises network, you can provision the pool in a subnet of an Azure VNet.

Prerequisites

  • Authentication. To use an Azure VNet, the Batch client API must use Azure Active Directory (AD) authentication. Azure Batch support for Azure AD is documented in Authenticate Batch service solutions with Active Directory.

  • An Azure VNet. See the following section for VNet requirements and configuration. To prepare a VNet with one or more subnets in advance, you can use the Azure portal, Azure PowerShell, the Azure Command-Line Interface (CLI), or other methods.

General virtual network requirements

  • The VNet must be in the same subscription and region as the Batch account you use to create your pool.

  • The subnet specified for the pool must have enough unassigned IP addresses to accommodate the number of VMs targeted for the pool; that is, the sum of the targetDedicatedNodes and targetLowPriorityNodes properties of the pool. If the subnet doesn't have enough unassigned IP addresses, the pool partially allocates the compute nodes, and a resize error occurs.

  • If you aren't using Simplified Compute Node Communication, Azure Storage endpoints need to be resolved by any custom DNS servers that serve your virtual network. Specifically, URLs of the form <account>.table.core.windows.net, <account>.queue.core.windows.net, and <account>.blob.core.windows.net should be resolvable.

  • Multiple pools can be created in the same virtual network or in the same subnet (as long as it has sufficient address space). A single pool can't exist across multiple virtual networks or subnets.

Other virtual network requirements differ, depending on whether the Batch pool is in the VirtualMachineConfiguration or CloudServiceConfiguration. VirtualMachineConfiguration for Batch pools is recommended as CloudServiceConfiguration pools are deprecated.

Important

Batch pools can be configured in one of two node communication modes. Classic node communication mode is where the Batch service initiates communication to the compute nodes. Simplified node communication mode is where the compute nodes initiate communication to the Batch Service.

Pools in Virtual Machine Configuration

Requirements:

  • Supported VNets: Azure Resource Manager-based (ARM) virtual networks only
  • Subnet ID: when specifying the subnet using the Batch APIs, use the resource identifier of the subnet. The subnet identifier is of the form:

/subscriptions/{subscription}/resourceGroups/{group}/providers/Microsoft.Network/virtualNetworks/{network}/subnets/{subnet}

  • Permissions: check whether your security policies or locks on the VNet's subscription or resource group restrict a user's permissions to manage the VNet.
  • Networking resources: Batch automatically creates more networking resources in the resource group containing the VNet.

Important

For each 100 dedicated or low-priority nodes, Batch creates: one network security group (NSG), one public IP address, and one load balancer. These resources are limited by the subscription's resource quotas. For large pools, you might need to request a quota increase for one or more of these resources.

Network security groups for Virtual Machine Configuration pools: Batch default

Batch will create a network security group (NSG) at the network interface level of each Virtual Machine Scale Set deployment within a Batch pool. For pools that don't have public IP addresses under simplified compute node communication, NSGs aren't created.

In order to provide the necessary communication between compute nodes and the Batch service, these NSGs are configured such that:

  • Inbound TCP traffic on ports 29876 and 29877 from Batch service IP addresses that correspond to the BatchNodeManagement.region service tag. This rule is only created in classic pool communication mode.
  • Inbound TCP traffic on port 22 (Linux nodes) or port 3389 (Windows nodes) to permit remote access. For certain types of multi-instance tasks on Linux (such as MPI), you'll need to also allow SSH port 22 traffic for IPs in the subnet containing the Batch compute nodes. This traffic may be blocked per subnet-level NSG rules (see below).
  • Outbound any traffic on port 443 to Batch service IP addresses that correspond to the BatchNodeManagement.region service tag.
  • Outbound traffic on any port to the virtual network. This rule may be amended per subnet-level NSG rules (see below).
  • Outbound traffic on any port to the Internet. This rule may be amended per subnet-level NSG rules (see below).

Important

Use caution if you modify or add inbound or outbound rules in Batch-configured NSGs. If communication to the compute nodes in the specified subnet is denied by an NSG, the Batch service will set the state of the compute nodes to unusable. Additionally, no resource locks should be applied to any resource created by Batch, since this can prevent cleanup of resources as a result of user-initiated actions such as deleting a pool.

Network security groups for Virtual Machine Configuration pools: Specifying subnet-level rules

If you have an NSG associated with the subnet for Batch compute nodes, you must configure this NSG with at least the inbound and outbound security rules that are shown in the following tables.

Warning

Batch service IP addresses can change over time. Therefore, we highly recommend that you use the BatchNodeManagement.region service tag for the NSG rules indicated in the following tables. Avoid populating NSG rules with specific Batch service IP addresses.

Inbound security rules

Source Service Tag or IP Addresses Destination Ports Protocol Pool Communication Mode Required
BatchNodeManagement.region service tag 29876-29877 TCP Classic Yes
Source IP addresses for remotely accessing compute nodes 3389 (Windows), 22 (Linux) TCP Classic or Simplified No

Configure inbound traffic on port 3389 (Windows) or 22 (Linux) only if you need to permit remote access to the compute nodes from outside sources. You may need to enable port 22 rules on Linux if you require support for multi-instance tasks with certain MPI runtimes. Allowing traffic on these ports isn't strictly required for the pool compute nodes to be usable. You can also disable default remote access on these ports through configuring pool endpoints.

Outbound security rules

Destination Service Tag Destination Ports Protocol Pool Communication Mode Required
BatchNodeManagement.region service tag 443 * Simplified Yes
Storage.region service tag 443 TCP Classic Yes

Outbound to BatchNodeManagement.region service tag is required in classic pool communication mode if using Job Manager tasks or if your tasks must communicate back to the Batch service. For outbound to BatchNodeManagement.region in simplified pool communication mode, the Batch service currently only uses TCP protocol, but UDP may be required for future compatibility. For pools without public IP addresses using simplified communication mode and with a node management private endpoint, an NSG isn't needed. For more information about outbound security rules for the BatchNodeManagement.region service tag, see Use simplified compute node communication.

Pools in the Cloud Services Configuration

Warning

Cloud Services Configuration pools are deprecated. Please use Virtual Machine Configuration pools instead.

Requirements:

  • Supported VNets: Classic VNets only
  • Subnet ID: when specifying the subnet using the Batch APIs, use the resource identifier of the subnet. The subnet identifier is of the form:

/subscriptions/{subscription}/resourceGroups/{group}/providers/Microsoft.ClassicNetwork/virtualNetworks/{network}/subnets/{subnet}

  • Permissions: the Microsoft Azure Batch service principal must have the Classic Virtual Machine Contributor Azure role for the specified VNet.

Network security groups for Cloud Services Configuration pools

The subnet must allow inbound communication from the Batch service to be able to schedule tasks on the compute nodes, and outbound communication to communicate with Azure Storage or other resources.

You don't need to specify an NSG, because Batch configures inbound communication only from Batch IP addresses to the pool nodes. However, If the specified subnet has associated NSGs and/or a firewall, configure the inbound and outbound security rules as shown in the following tables. If communication to the compute nodes in the specified subnet is denied by an NSG, the Batch service sets the state of the compute nodes to unusable.

Configure inbound traffic on port 3389 for Windows if you need to permit RDP access to the pool nodes. This rule isn't required for the pool nodes to be usable.

Inbound security rules

Source IP addresses Source ports Destination Destination ports Protocol Action
Any

Although this rule effectively requires "allow all", the Batch service applies an ACL rule at the level of each node that filters out all non-Batch service IP addresses.		 * Any 10100, 20100, 30100 TCP Allow
Optional, to allow RDP access to compute nodes. * Any 3389 TCP Allow

Outbound security rules

Source Source ports Destination Destination ports Protocol Action
Any * Any 443 Any Allow

Create a pool with a VNet in the Azure portal

Once you've created your VNet and assigned a subnet to it, you can create a Batch pool with that VNet. Follow these steps to create a pool from the Azure portal:

  1. Navigate to your Batch account in the Azure portal. This account must be in the same subscription and region as the resource group containing the VNet you intend to use.

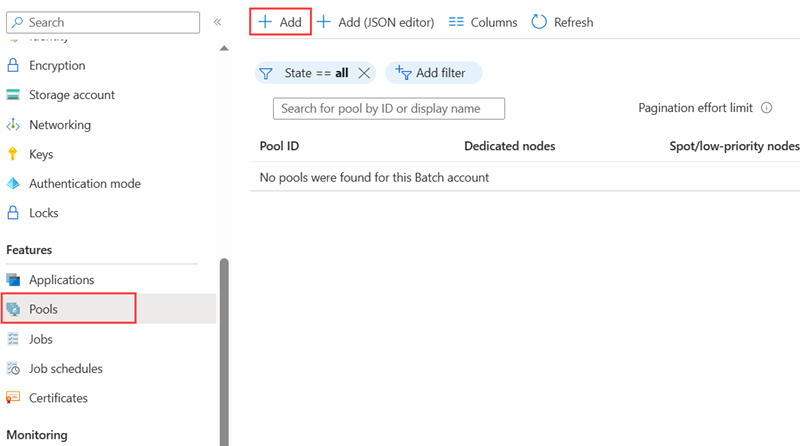

  2. In the Settings window on the left, select the Pools menu item.
  3. In the Pools window, select Add.
  4. On the Add Pool window, select the option you intend to use from the Image Type dropdown.
  5. Select the correct Publisher/Offer/Sku for your custom image.
  6. Specify the remaining required settings, including the Node size, Target dedicated nodes, and Target Spot/low-priority nodes, and any desired optional settings.
  7. In Virtual Network, select the virtual network and subnet you wish to use.
  8. Select OK to create your pool.

Important

If you try to delete a subnet which is being used by a pool, you will get an error message. All pools using a subnet must be deleted before you delete that subnet.

User-defined routes for forced tunneling

You might have requirements in your organization to redirect (force) internet-bound traffic from the subnet back to your on-premises location for inspection and logging. Additionally, you may have enabled forced tunneling for the subnets in your VNet.

To ensure that the nodes in your pool work in a VNet that has forced tunneling enabled, you must add the following user-defined routes (UDR) for that subnet.

For classic communication mode pools:

  • The Batch service needs to communicate with nodes for scheduling tasks. To enable this communication, add a UDR corresponding to the BatchNodeManagement.region service tag in the region where your Batch account exists. Set the Next hop type to Internet.

  • Ensure that outbound TCP traffic to Azure Storage on destination port 443 (specifically, URLs of the form *.table.core.windows.net, *.queue.core.windows.net, and *.blob.core.windows.net) isn't blocked by your on-premises network.

For simplified communication mode pools without using node management private endpoint:

  • Ensure that outbound TCP/UDP traffic to the Azure Batch BatchNodeManagement.region service tag on destination port 443 isn't blocked by your on-premises network. Currently only TCP protocol is used, but UDP may be required for future compatibility.

For all pools:

  • If you use virtual file mounts, review the networking requirements, and ensure that no required traffic is blocked.

Warning

Batch service IP addresses can change over time. To prevent outages due to Batch service IP address changes, do not directly specify IP addresses. Instead use the BatchNodeManagement.region service tag.
