Control Azure Content Delivery Network caching behavior with query strings - standard tier

  • Article

Important

Azure CDN Standard from Microsoft (classic) will be retired on September 30, 2027. To avoid any service disruption, it is important that you migrate your Azure CDN Standard from Microsoft (classic) profiles to Azure Front Door Standard or Premium tier by September 30, 2027. For more information, see Azure CDN Standard from Microsoft (classic) retirement.

Azure CDN from Edgio will be retired on November 4, 2025. You must migrate your workload to Azure Front Door before this date to avoid service disruption. For more information, see Azure CDN from Edgio retirement FAQ.

Overview

With Azure Content Delivery Network, you can control how files are cached for a web request that contains a query string. In a web request with a query string, the query string is that portion of the request that occurs after a question mark (?). A query string can contain one or more key-value pairs, in which the field name and its value are separated by an equals sign (=). Each key-value pair is separated by an ampersand (&). For example, HTTP://www.contoso.com/content.mov?field1=value1&field2=value2. If there's more than one key-value pair in a query string of a request, their order doesn't matter.

Important

The Azure Content Delivery Network standard and premium products provide the same query string caching functionality, but the user interface is different. This article describes the interface for Azure CDN Standard from Microsoft and Azure CDN Standard from Edgio. For query string caching with Azure CDN Premium from Edgio, see Control Azure Content Delivery Network caching behavior with query strings - premium tier.

Three query string modes are available:

  • Ignore query strings: Default mode. In this mode, the content delivery network point of presence (POP) node passes the query strings from the requestor to the origin server on the first request and caches the asset. All subsequent requests for the asset that are served from the POP ignore the query strings until the cached asset expires.

  • Bypass caching for query strings: In this mode, requests with query strings aren't cached at the content delivery network POP node. The POP node retrieves the asset directly from the origin server and passes it to the requestor with each request.

  • Cache every unique URL: In this mode, each request with a unique URL, including the query string, is treated as a unique asset with its own cache. For example, the response from the origin server for a request for example.ashx?q=test1 is cached at the POP node and returned for subsequent caches with the same query string. A request for example.ashx?q=test2 is cached as a separate asset with its own time to live setting.

    Important

    Do not use this mode when the query string contains parameters that will change with every request, such as a session ID or a user name, because it will result in a low cache-hit ratio.

Changing query string caching settings for standard content delivery network profiles

  1. Open a content delivery network profile, then select the content delivery network endpoint you want to manage.

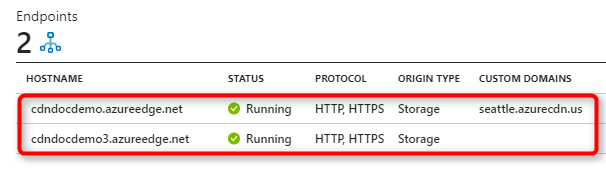

    Screenshot of the content delivery network profile endpoints.

  2. In the left pane under Settings, select Caching rules.

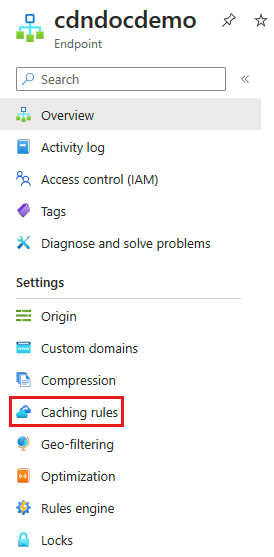

    Screenshot of the content delivery network caching rules button.

  3. In the Query string caching behavior list, select a query string mode, then select Save.

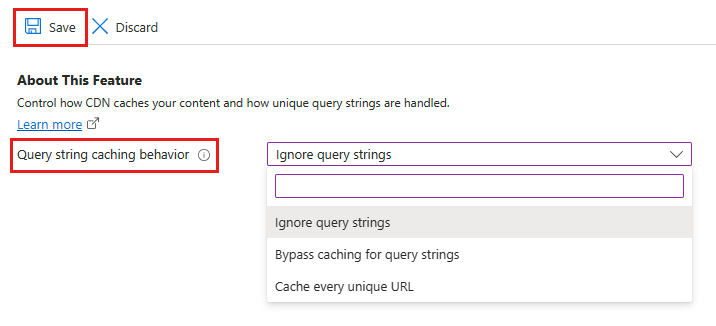

    Screenshot content delivery network query string caching options.

Important

Because it takes time for the registration to propagate through Azure Content Delivery Network, cache string settings changes might not be immediately visible:

  • For Azure CDN Standard from Microsoft profiles, propagation usually completes in 10 minutes.
  • For Azure CDN Standard from Edgio and Azure CDN Premium from Edgio profiles, propagation usually completes in 10 minutes.
