Troubleshooting in Azure Communication Services

Article
10/12/2023

This document helps you troubleshoot issues that you may experience within your Communication Services solution. If you're troubleshooting SMS, you can enable delivery reporting with Event Grid to capture SMS delivery details.

Getting help

We encourage developers to submit questions, suggest features, and report problems as issues. To aid in doing this, we have a dedicated support and help options page which lists your options for support.

To help you troubleshoot certain types of issues, you may be asked for any of the following pieces of information:

MS-CV ID: This ID is used to troubleshoot calls and messages.
Call ID: This ID is used to identify Communication Services calls.
SMS message ID: This ID is used to identify SMS messages.
Short Code Program Brief ID: This ID is used to identify a short code program brief application.
Toll-free verification campaign brief ID: This ID is used to identify a toll-free verification campaign brief application.
Email message ID: This ID is used to identify Send Email requests.
Correlation ID: This ID is used to identify requests made using Call Automation.
Call logs: These logs contain detailed information can be used to troubleshoot calling and network issues.

Also take a look at our service limits documentation for more information on throttling and limitations.

Access your MS-CV ID

The MS-CV ID can be accessed by configuring diagnostics in the clientOptions object instance when initializing your SDKs. Diagnostics can be configured for any of the Azure SDKs including Chat, Identity, and VoIP calling.

Client options example

The following code snippets demonstrate diagnostics configuration. When the SDKs are used with diagnostics enabled, diagnostics details can be emitted to the configured event listener:

C#
Python

// 1. Import Azure.Core.Diagnostics
using Azure.Core.Diagnostics;

// 2. Initialize an event source listener instance
using var listener = AzureEventSourceListener.CreateConsoleLogger();
Uri endpoint = new Uri("https://<RESOURCE-NAME>.communication.azure.net");
var (token, communicationUser) = await GetCommunicationUserAndToken();
CommunicationUserCredential communicationUserCredential = new CommunicationUserCredential(token);

// 3. Setup diagnostic settings
var clientOptions = new ChatClientOptions()
{
    Diagnostics =
    {
        LoggedHeaderNames = { "*" },
        LoggedQueryParameters = { "*" },
        IsLoggingContentEnabled = true,
    }
};

// 4. Initialize the ChatClient instance with the clientOptions
ChatClient chatClient = new ChatClient(endpoint, communicationUserCredential, clientOptions);
ChatThreadClient chatThreadClient = await chatClient.CreateChatThreadAsync("Thread Topic", new[] { new ChatThreadMember(communicationUser) });

from azure.communication.chat import ChatClient, CommunicationUserCredential
endpoint = "https://communication-services-sdk-live-tests-for-python.communication.azure.com"
chat_client = ChatClient(
    endpoint,
    CommunicationUserCredential(token),
    http_logging_policy=your_logging_policy)

Access IDs required for Call Automation

When troubleshooting issues with the Call Automation SDK, like call management or recording problems, you need to collect the IDs that help identify the failing call or operation. You can provide either of the two IDs mentioned here.

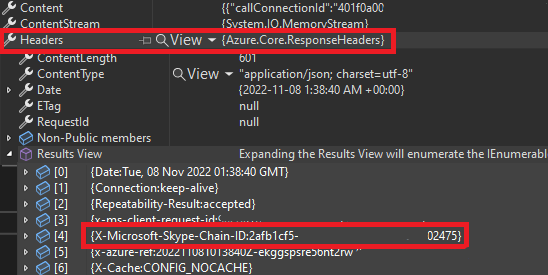

From the header of API response, locate the field X-Ms-Skype-Chain-Id.

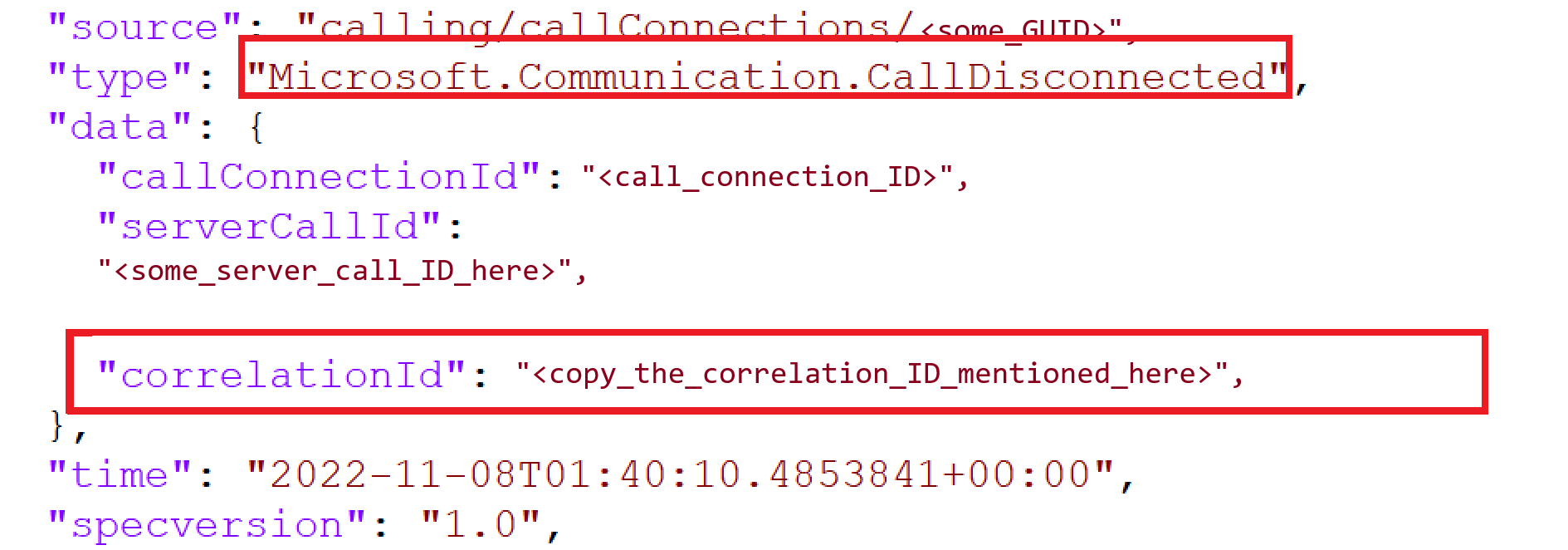

From the callback events your application receives after executing an action e.g. CallConnected or PlayFailed, locate the correlationID.

In addition to one of these IDs, please provide the details on the failing use case and the timestamp for when the failure was observed.

Access your client call ID

When troubleshooting voice or video calls, you may be asked to provide a call ID. This value can be accessed via the id property of the call object:

// `call` is an instance of a call created by `callAgent.startCall` or `callAgent.join` methods
console.log(call.id)

// The `call id` property can be retrieved by calling the `call.getCallId()` method on a call object after a call ends
// todo: the code snippet suggests it's a property while the comment suggests it's a method call
print(call.callId)

// The `call id` property can be retrieved by calling the `call.getCallId()` method on a call object after a call ends
// `call` is an instance of a call created by `callAgent.startCall(…)` or `callAgent.join(…)` methods
Log.d(call.getCallId())

Access your SMS message ID

For SMS issues, you can collect the message ID from the response object.

.NET

// Instantiate the SMS client
const smsClient = new SmsClient(connectionString);
async function main() {
  const result = await smsClient.send({
    from: "+18445792722",
    to: ["+1972xxxxxxx"],
    message: "Hello World 👋🏻 via Sms"
  }, {
    enableDeliveryReport: true // Optional parameter
  });
console.log(result); // your message ID is in the result
}

Access your short code program brief ID

The program brief ID can be found on the Azure portal in the Short Codes blade.

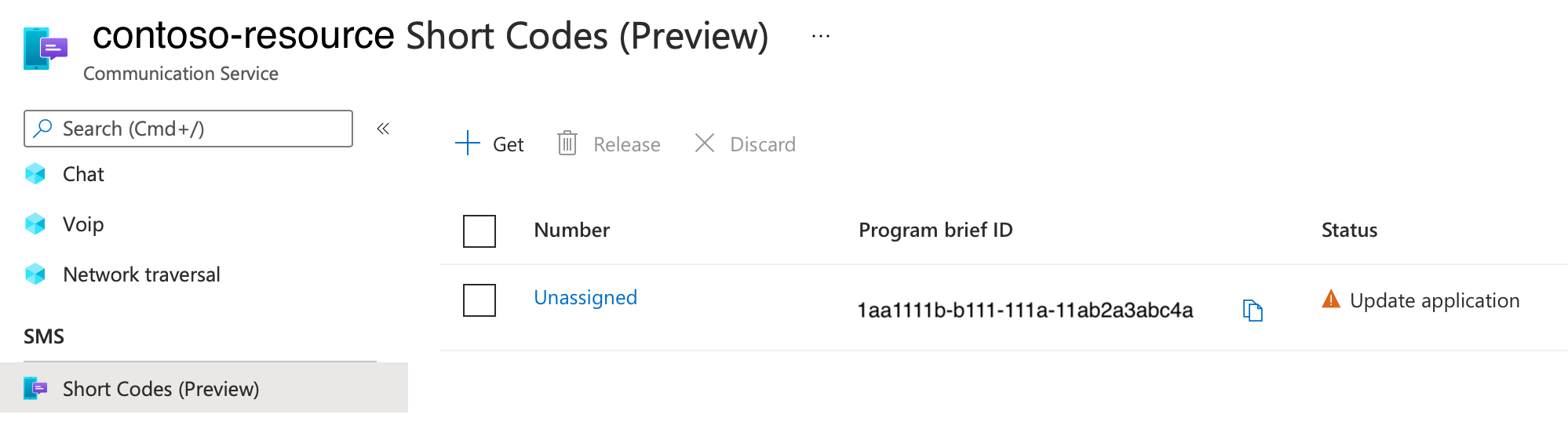

Screenshot showing a short code program brief ID.

Access your toll-free verification campaign brief ID

The program brief ID can be found on the Azure portal in the Regulatory Documents blade.

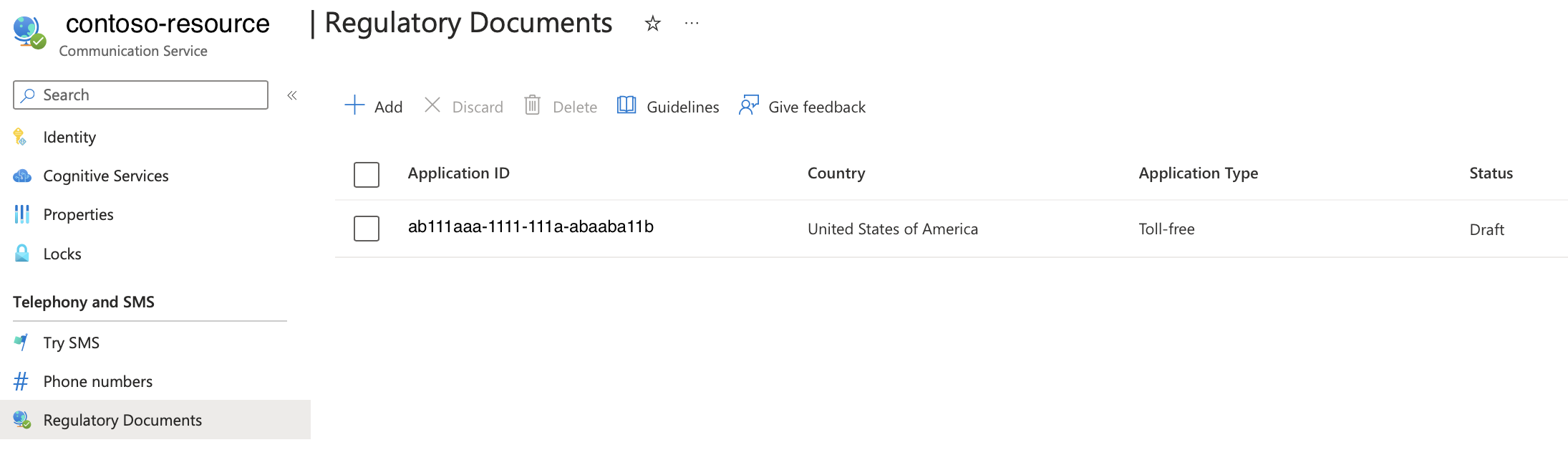

Screenshot showing a toll free verification campaign brief ID.

Access your email operation ID

When troubleshooting send email or email message status requests, you may be asked to provide an operation ID. This value can be accessed in the response:

.NET

var emailSendOperation = await emailClient.SendAsync(
    wait: WaitUntil.Completed,
    senderAddress: sender,
    recipientAddress: recipient,
    subject: subject,
    htmlContent: htmlContent);

/// Get the OperationId so that it can be used for tracking the message for troubleshooting
Console.WriteLine($"Email operation id = {emailSendOperation.Id}");

Accessing Support Files in the Calling SDK

Important

This feature of Azure Communication Services is currently in preview.

Preview APIs and SDKs are provided without a service-level agreement. We recommend that you don't use them for production workloads. Some features might not be supported, or they might have constrained capabilities.

For more information, review Supplemental Terms of Use for Microsoft Azure Previews.

Calling SDK provides convenience methods to get access to the Log Files. To actively collect, it is encouraged to pair this functionality with your applications support tooling.

Log File Access Conceptual Document Log File Access Tutorials

Enable and access call logs

The Azure Communication Services Calling SDK relies internally on @azure/logger library to control logging. Use the setLogLevel method from the @azure/logger package to configure the log output level. Create a logger and pass it into the CallClient constructor:

import { setLogLevel, createClientLogger, AzureLogger } from '@azure/logger';
setLogLevel('verbose');
let logger = createClientLogger('ACS');
const callClient = new CallClient({ logger });

You can use AzureLogger to redirect the logging output from Azure SDKs by overriding the AzureLogger.log method: You can log to the browser console, a file, buffer, send to our own service, etc. If you are going to send logs over the network to your own service, do not send a request per log line because this will affect browser performance. Instead, accumulate logs lines and send them in batches.

// Redirect log output
AzureLogger.log = (...args) => {
    // To console, file, buffer, REST API, etc...
    console.log(...args);
};

In an iOS Application, logs are stored in .blog files. Note that you can't view the logs directly because they're encrypted.

These can be accessed by opening Xcode. Go to Windows > Devices and Simulators > Devices. Select your device. Under Installed Apps, select your application and click on "Download container".

This process gives you a xcappdata file. Right-click on this file and select “Show package contents”. You'll then see the .blog files that you can then attach to your Azure support request.

In an Android application, logs are stored in .blog files. Note that you can't view the logs directly because they're encrypted.

On Android Studio, navigate to the Device File Explorer by selecting View > Tool Windows > Device File Explorer from both the simulator and the device. The .blog file is located within your application's directory, which should look something like /data/data/[app_name_space:com.contoso.com.acsquickstartapp]/files/acs_sdk.blog. You can attach this file to your support request.

Enable and access call logs (Windows)

In a Windows application, logs are stored in .blog files. Note that you can't view the logs directly because they're encrypted.

These are accessed by looking at where your app is keeping its local data. There are many ways to figure out where a UWP app keeps its local data, the following steps are just one of these ways:

Open a Windows Command Prompt (Windows Key + R)
Type cmd.exe
Type where /r %USERPROFILE%\AppData acs*.blog
Please check if the app ID of your application matches with the one returned by the previous command.
Open the folder with the logs by typing start followed by the path returned by the step 3. For example: start C:\Users\myuser\AppData\Local\Packages\e84000dd-df04-4bbc-bf22-64b8351a9cd9_k2q8b5fxpmbf6
Please attach all the *.blog and *.etl files to your Azure support request.

Finding Microsoft Entra information

Getting Directory ID
Getting Application ID
Getting User ID

Getting Directory ID

To find your Directory (tenant) ID, follow the steps listed below:

Navigate to Azure portal and sign in to the Azure portal using the credentials.
From the left-pane, select Microsoft Entra ID.

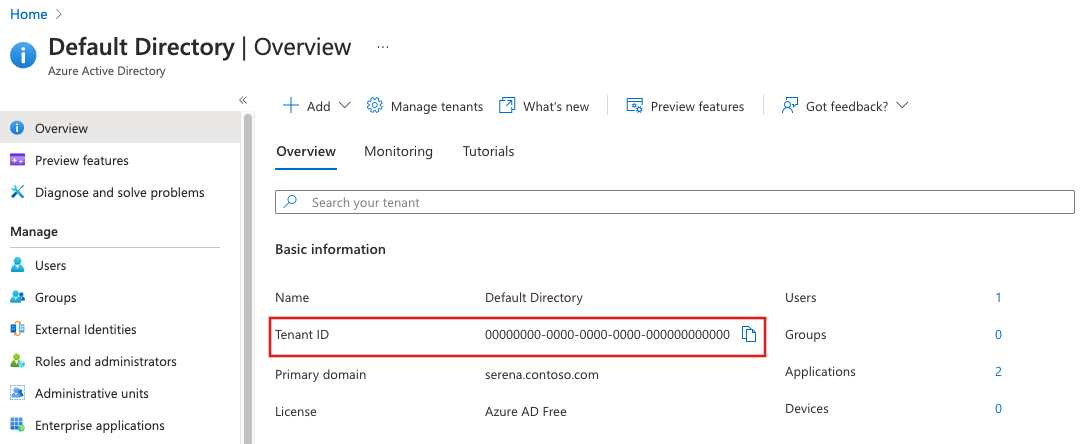

From Overview page in Microsoft Entra ID, copy the Directory (tenant) ID and store it in your application code.

Getting Application ID

To find your Application ID, follow the steps listed below:

Navigate to Azure portal and sign in to the Azure portal using the credentials.
From the left-pane, select Microsoft Entra ID.
From App registrations in Microsoft Entra ID, select your application.

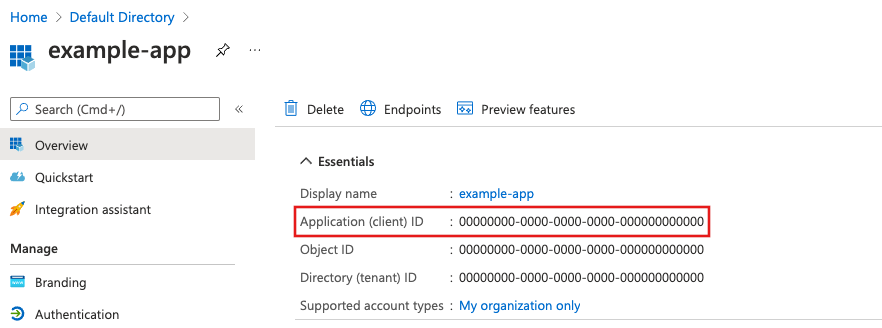

Copy the Application ID and store it in your application code.

The directory (tenant) ID can also be found in the application overview page.

Getting User ID

To find your User ID, follow the steps listed below:

Navigate to Azure portal and sign in to the Azure portal using the credentials.
From the left-pane, select Microsoft Entra ID.
From Users in Microsoft Entra ID, select your user.

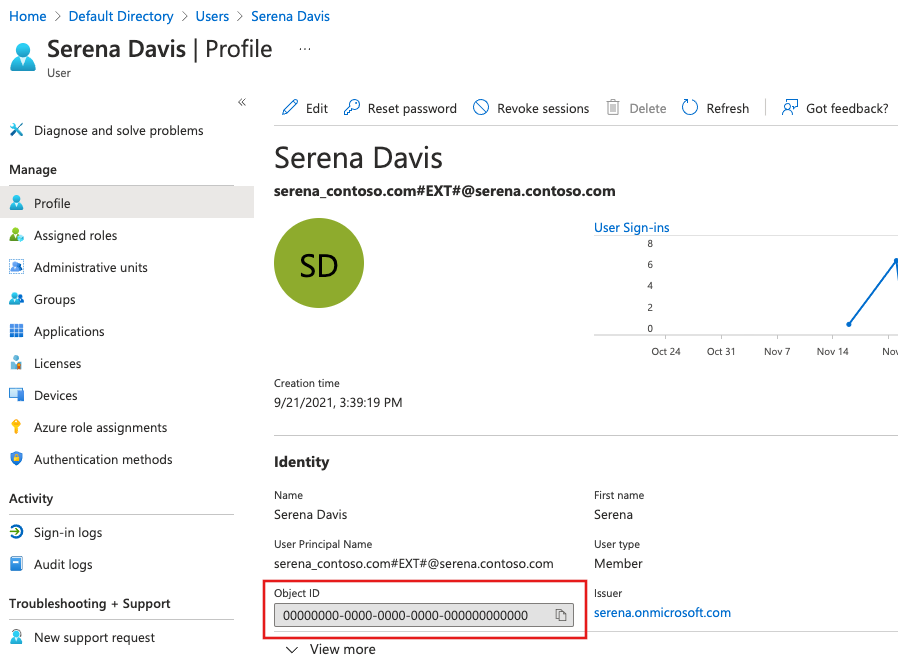

From Profile page in Microsoft Entra users, copy the Object ID and store it in your application code.

Getting immutable resource ID

Sometimes you also need to provide immutable resource ID of your Communication Service resource. To find it, follow the steps listed below:

Navigate to Azure portal and sign in to the Azure portal using the credentials.
Open your Communication Service resource.

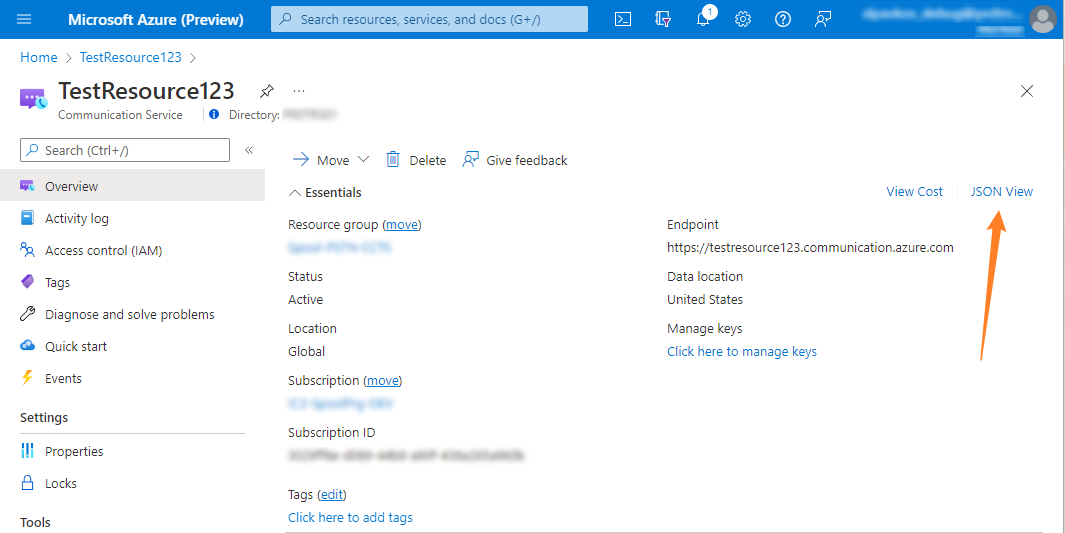

From the left-pane, select Overview, and switch to a JSON view

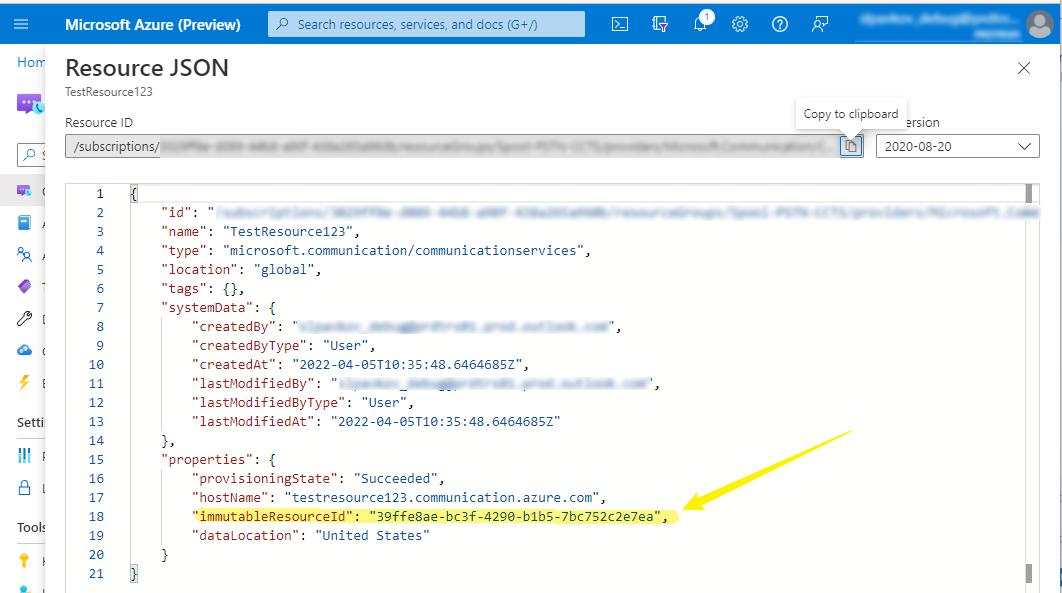

From Resource JSON page, copy the immutableResourceId value, and provide it to your support team.

Verification of Teams license eligibility to use Azure Communication Services support for Teams users

There are two ways to verify your Teams License eligibility to use Azure Communication Services support for Teams users:

Verification via Teams web client
Checking your current Teams license via Microsoft Graph API

Verification via Teams web client

To verify your Teams License eligibility via Teams web client, follow the steps listed below:

Open your browser and navigate to Teams web client.
Sign in with credentials that have a valid Teams license.
If the authentication is successful and you remain in the https://teams.microsoft.com/ domain, then your Teams License is eligible. If authentication fails or you're redirected to the https://teams.live.com/v2/ domain, then your Teams License isn't eligible to use Azure Communication Services support for Teams users.

Checking your current Teams license via Microsoft Graph API

You can find your current Teams license using licenseDetails Microsoft Graph API that returns the licenses assigned to a user. Follow the steps below to use the Graph Explorer tool to view licenses assigned to a user:

Open your browser and navigate to Graph Explorer

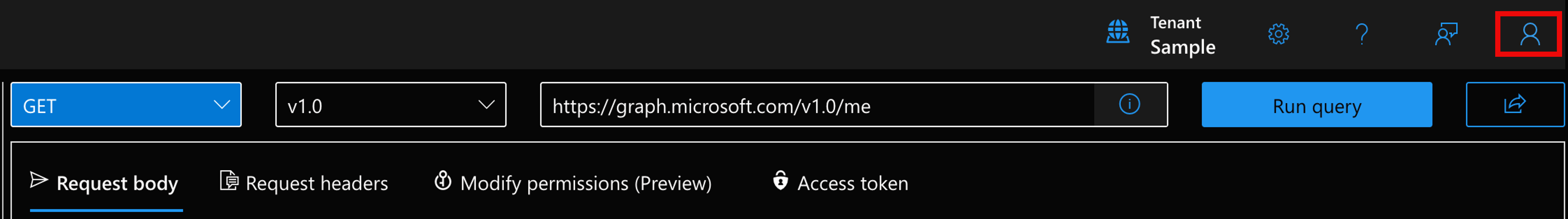

Sign in to Graph Explorer using the credentials.

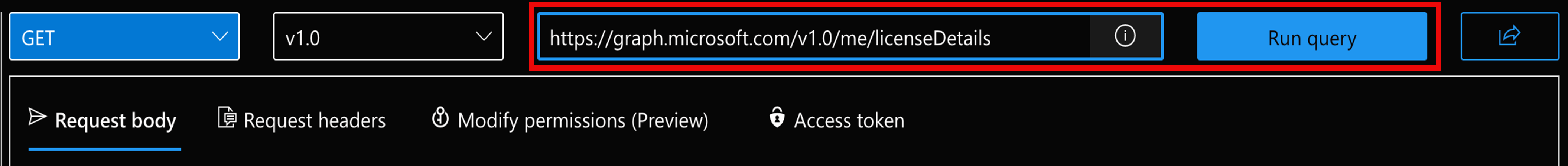

In the query box, enter the following API and click Run Query :
```
https://graph.microsoft.com/v1.0/me/licenseDetails
```
Or you can query for a particular user by providing the user ID using the following API:
```
https://graph.microsoft.com/v1.0/users/{id}/licenseDetails
```

The Response preview pane displays output as follows:

Note that the response object shown here might be shortened for readability.

{
    "@odata.context": "https://graph.microsoft.com/v1.0/$metadata#users('071cc716-8147-4397-a5ba-b2105951cc0b')/assignedLicenses",
    "value": [
        {
            "skuId": "b05e124f-c7cc-45a0-a6aa-8cf78c946968",
            "servicePlans":[
                {
                    "servicePlanId":"57ff2da0-773e-42df-b2af-ffb7a2317929",
                    "servicePlanName":"TEAMS1",
                    "provisioningStatus":"Success",
                    "appliesTo":"User"
                }
            ]
        }
    ]
}

Find license detail where property servicePlanName has one of the values in the Eligible Teams Licenses table

Calling SDK error codes

The Azure Communication Services Calling SDK uses the following error codes to help you troubleshoot calling issues. These error codes are exposed through the call.callEndReason property after a call ends.

Error code	Description	Action to take
403	Forbidden / Authentication failure.	Ensure that your Communication Services token is valid and not expired.
404	Call not found.	Ensure that the number you're calling (or call you're joining) exists.
408	Call controller timed out.	Call Controller timed out waiting for protocol messages from user endpoints. Ensure clients are connected and available.
410	Local media stack or media infrastructure error.	Ensure that you're using the latest SDK in a supported environment.
430	Unable to deliver message to client application.	Ensure that the client application is running and available.
480	Remote client endpoint not registered.	Ensure that the remote endpoint is available.
481	Failed to handle incoming call.	File a support request through the Azure portal.
487	Call canceled, locally declined, ended due to an endpoint mismatch issue, or failed to generate media offer.	Expected behavior.
490, 491, 496, 497, 498	Local endpoint network issues.	Check your network.
500, 503, 504	Communication Services infrastructure error.	File a support request through the Azure portal.
603	Call globally declined by remote Communication Services participant	Expected behavior.

Call Automation SDK error codes

The below error codes are exposed by Call Automation SDK.

Error Code	Description	Actions to take
400	Bad request	The input request is invalid. Look at the error message to determine which input is incorrect.
400	Play Failed	Ensure your audio file is WAV, 16KHz, Mono and make sure the file url is publicly accessible.
400	Recognize Failed	Check the error message. The message highlights if this failure is due to timeout being reached or if operation was canceled. For more information about the error codes and messages you can check our how-to guide for gathering user input.
401	Unauthorized	HMAC authentication failed. Verify whether the connection string used to create CallAutomationClient is correct.
403	Forbidden	Request is forbidden. Make sure that you can have access to the resource you are trying to access.
404	Resource not found	The call you are trying to act on doesn't exist. For example, transferring a call that has already disconnected.
429	Too many requests	Retry after a delay suggested in the Retry-After header, then exponentially backoff.
500	Internal server error	Retry after a delay. If it persists, raise a support ticket.
500	Play Failed	File a support request through the Azure portal.
500	Recognize Failed	Check error message and confirm the audio file format is valid (WAV, 16KHz, Mono), if the file format is valid then file a support request through Azure portal.
502	Bad gateway	Retry after a delay with a fresh http client.

Consider the below tips when troubleshooting certain issues.

Your application is not getting IncomingCall Event Grid event: Make sure the application endpoint has been validated with Event Grid at the time of creating event subscription. The provisioning status for your event subscription is marked as succeeded if the validation was successful.
Getting the error 'The field CallbackUri is invalid': Call Automation does not support HTTP endpoints. Make sure the callback url you provide supports HTTPS.
PlayAudio action does not play anything: Currently only Wave file (.wav) format is supported for audio files. The audio content in the wave file must be mono (single-channel), 16-bit samples with a 16,000 (16KHz) sampling rate.
Actions on PSTN endpoints aren't working: CreateCall, Transfer, AddParticipant and Redirect to phone numbers require you to set the SourceCallerId in the action request. Unless you are using Direct Routing, the source caller ID should be a phone number owned by your Communication Services resource for the action to succeed.

Refer to this article to learn about any known issues being tracked by the product team.

Chat SDK error codes

The Azure Communication Services Chat SDK uses the following error codes to help you troubleshoot chat issues. The error codes are exposed through the error.code property in the error response.

Error code	Description	Action to take
401	Unauthorized	Ensure that your Communication Services token is valid and not expired.
403	Forbidden	Ensure that the initiator of the request has access to the resource.
429	Too many requests	Ensure that your client-side application handles this scenario in a user-friendly manner. If the error persists, please file a support request.
503	Service Unavailable	File a support request through the Azure portal.

SMS error codes

The Azure Communication Services SMS SDK uses the following error codes to help you troubleshoot SMS issues. The error codes are exposed through the "DeliveryStatusDetails" field in the SMS delivery report.

Error code	Description	Action to take
2000	Message Delivered Successfully
4000	Message is rejected due to fraud detection	Ensure you aren't exceeding the maximum number of messages allowed for your number
4001	Message is rejected due to invalid Source/From number format	Ensure the To number is in E.164 format and From number format is in E.164 or Short code format
4002	Message is rejected due to invalid Destination/To number format	Ensure the To number is in E.164 format
4003	Message failed to deliver due to unsupported destination	Check if the destination you're trying to send to is supported
4004	Message failed to deliver since Destination/To number doesn't exist	Ensure the To number you're sending to is valid
4005	Message is blocked by Destination carrier
4006	The Destination/To number isn't reachable	Try resending the message at a later time
4007	The Destination/To number has opted out of receiving messages from you	Mark the Destination/To number as opted out so that no further message attempts are made to the number
4008	You've exceeded the maximum number of messages allowed for your profile	Ensure you aren't exceeding the maximum number of messages allowed for your number or use queues to batch the messages
4009	Message is rejected by Microsoft Entitlement System	Most often this happens if fraudulent activity is detected. Please contact support for more details
4010	Message was blocked due to the toll-free number not being verified	Review unverified sending limits and submit toll-free verification as soon as possible
5000	Message failed to deliver. Please reach out Microsoft support team for more details	File a support request through the Azure portal
5001	Message failed to deliver due to temporary unavailability of application/system
5002	Carrier does not support delivery report	Most often this happens if a carrier does not support delivery reports. No action required as message may have been delivered already.
9999	Message failed to deliver due to unknown error/failure	Try resending the message

Access logs for voice and video, chat, email, network traversal, recording, SMS and call automation.
Log Filename APIs for Calling SDK
Metrics
Service limits

Troubleshooting in Azure Communication Services

Getting help

Access your MS-CV ID

Client options example

Access IDs required for Call Automation

Access your client call ID

Access your SMS message ID

Access your short code program brief ID

Access your toll-free verification campaign brief ID

Access your email operation ID

Accessing Support Files in the Calling SDK

Enable and access call logs

Enable and access call logs (Windows)

Finding Microsoft Entra information

Getting Directory ID

Getting Application ID

Getting User ID

Getting immutable resource ID

Verification of Teams license eligibility to use Azure Communication Services support for Teams users

Verification via Teams web client

Checking your current Teams license via Microsoft Graph API

Calling SDK error codes

Call Automation SDK error codes

Chat SDK error codes

SMS error codes

Feedback

Additional resources

Additional resources

Troubleshooting in Azure Communication Services

Getting help

Access your MS-CV ID

Client options example

Access IDs required for Call Automation

Access your client call ID

Access your SMS message ID

Access your short code program brief ID

Access your toll-free verification campaign brief ID

Access your email operation ID

Accessing Support Files in the Calling SDK

Enable and access call logs

Enable and access call logs (Windows)

Finding Microsoft Entra information

Getting Directory ID

Getting Application ID

Getting User ID

Getting immutable resource ID

Verification of Teams license eligibility to use Azure Communication Services support for Teams users

Verification via Teams web client

Checking your current Teams license via Microsoft Graph API

Calling SDK error codes

Call Automation SDK error codes

Chat SDK error codes

SMS error codes

Related information

Feedback

Additional resources

Additional resources
