Access Teams Phone without going through the Teams client

Important

This feature of Azure Communication Services is currently in preview. Features in preview are publicly available and can be used by all new and existing Microsoft customers.

This preview version is provided without a service-level agreement, and we don't recommend it for production workloads. Certain features might not be supported or capabilities might be constrained.

For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

This article describes how to grant consent to a server to receive calls directed to a Teams Resource Account. Following sections also describe how to use a client to answer and place calls on behalf of Teams Resource Accounts.

Prerequisites

  • An Azure account with an active subscription. Create a free account.

  • A Communication Services resource, see Create a Communication Services resource.

  • A Microsoft Entra ID tenant with users that have a Teams license. For more information, see Teams license requirements.

  • Users must be enabled for Teams. To enable a user for Teams, open the Microsoft 365 admin center > Users > Active Users. Then search for the affected user account. Click on Edit to change their details. Go to License and Apps, then select the drop-down arrow from Apps and select Enable Microsoft Teams.

The Azure Communication Services Resource Owner needs to run the following API operations. The resource owner need to provide consent for authorizing calls to the Azure Communication Services Resource from the Teams Resource Account. You can call the API using any REST tool or programmatically. The API supports GET, PUT, PATCH, and DELETE operations.

  1. The {YOUR-ACS-RESOURCE-ENDPOINT} in the request URI (RURI) path is the Azure Communication Services Resource fully qualified domain name (FQDN) from Azure.
  2. The {YOUR-RESOURCE-ACCOUNT-GUID} parameter in the RURI is the oid value returned by the Graph API from the previous step. Alternatively for one off manual provisioning, the Get-CsOnlineApplicationInstance (MicrosoftTeamsPowerShell) cmdlet returns the ObjectId and that ID is the YOUR-RESOURCE-ACCOUNT-GUID.
  3. The {TENANT-GUID} in the RURI path is the Teams Tenant GUID.
  4. The {principalType} in the body is teamsResourceAccount because we're consenting to a Teams Resource Account for Teams Phone Extensibility.

This API supports Azure Communication Services hash-based message authentication code (HMAC) with a Connection String or Microsoft Entra ID Managed Identity.

Query definition:

https://{YOUR-ACS-RESOURCE-ENDPOINT}/access/teamsExtension/tenants/{TENANT-GUID}/assignments/{YOUR-RESOURCE-ACCOUNT-GUID}?api-version=2025-03-02-preview

Example to set consent:

PUT https://myacsresource.unitedstates.communication.azure.com/access/teamsExtension/tenants/zz123456-1234-1234-1234-zzz123456789/assignments/cc123456-5678-5678-1234-ccc123456789?api-version=2025-03-02-preview

{
   "principalType": "teamsResourceAccount"
}

Example response:

HTTP/1.1 201 Created
Content-type: application/json

Not allowed response:

If you receive a 403 Error with the following response, send the Azure Subscription GUID to your Azure Communication Services Product Manager (PM) to add you to the preview list.

{
   "error": {
   "code": "SubscriptionNotAllowed",
   "message": "API is not allowed to be accessed with your subscription."
}
}

Use the Azure Communication Services calling SDK to extend your Teams Phone system, enabling calls to be made and received independently of the Teams application.

Set up your application

Step 1: Create or select a Microsoft Entra ID application registration

Users must be authenticated through a Microsoft Entra ID application with the Azure Communication Service TeamsExtension.ManageCalls permission. If you don't have an existing application for this quickstart, you can create a new application registration.

Configure the following application setting:

  • The Supported account types property defines whether the application is single-tenant (Accounts in this organizational directory only) or multitenant (Accounts in any organizational directory). Choose the option that fits your scenario.

  • Redirect URI defines the URI where the authentication request is redirected after authentication. For our web app scenario, choose Single-page application and enter http://localhost as the URI.

For more detailed information, see Register an application with the Microsoft identity platform.

When the application is registered, look for the identifier in the overview. Use the identifier Application (client) ID in the next steps.

Step 2: Add the TeamsExtension.ManageCalls permission to your application

You must register your application for TeamsExtension.ManageCalls permission from the Azure Communication Services application. You need this permission for the Teams user to access the Teams Phone extensibility flows through Azure Communication Services.

  1. Navigate to your Microsoft Entra ID app in the Azure portal and select API permissions.

  2. Select Add Permissions.

  3. From the Add Permissions menu, select Azure Communication Services.

  4. Select the permission TeamsExtension.ManageCalls, then select Add permissions.

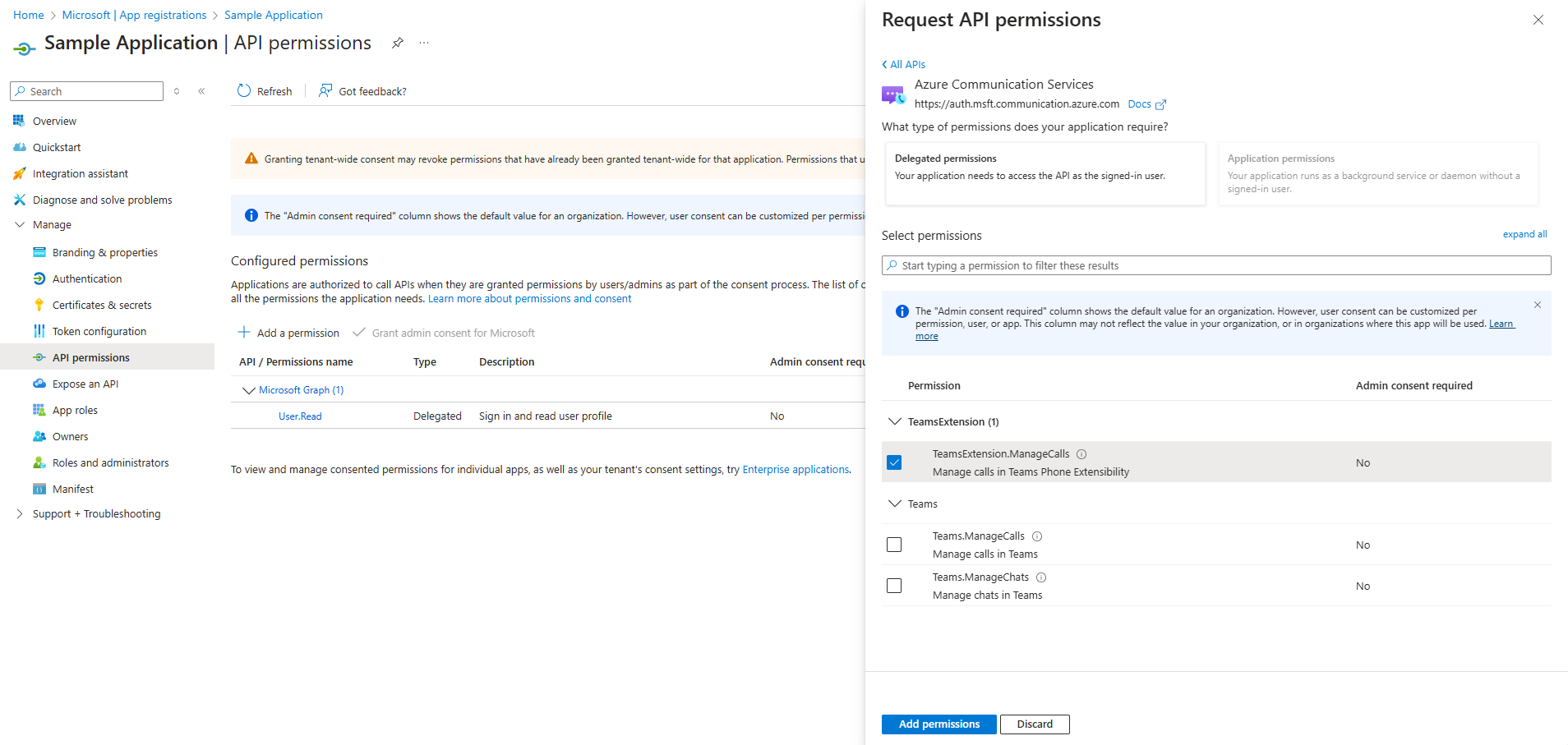

    Screen capture showing how to add TeamsExtension.ManageCalls permission to the Microsoft Entra ID application you just created.

  5. Grant admin consent for TeamsExtension.ManageCalls permission.

Grant a Teams user access to your Azure Communication Services resource

Send a request to the Microsoft Teams Phone access assignments API to give a Teams user access through Communication Services resource. For more information about how to authenticate the web request, see Authentication.

The following example shows a request for a user with identifier e5b7f628-ea94-4fdc-b3d9-1af1fe231111.

PUT {endpoint}/access/teamsExtension/tenants/87d349ed-44d7-43e1-9a83-5f2406dee5bd/assignments/e5b7f628-ea94-4fdc-b3d9-1af1fe231111?api-version=2025-03-02-preview

{
    "principalType" : "user",
    "clientIds" : ["1bfa671a-dc6b-47f3-8940-45c0f1af0fa6"]
}

Response

The following example shows the response.

HTTP/1.1 201 Created
Content-type: application/json

{
    "objectId": "e5b7f628-ea94-4fdc-b3d9-1af1fe231111",
    "tenantId": "87d349ed-44d7-43e1-9a83-5f2406dee5bd",
    "principalType" : "user",
    "clientIds" : ["1bfa671a-dc6b-47f3-8940-45c0f1af0fa6"]
}

Sign-in flow

Complete this section to set up a sign-in flow for your application.

Create a credential capable of obtaining a Microsoft Entra user token

To create a credential, use the @azure/communication-common SDK with version 2.3.2-beta.1. First, you need to initialize any implementation of TokenCredential interface and provide it to the EntraCommunicationTokenCredentialOptions.

Along with the token, you must provide the URI of the Azure Communication Services resource and the scopes required for the Microsoft Entra user token. These scopes determine the permissions granted to the token:

const entraTokenCredential = new InteractiveBrowserCredential({
  tenantId: "<your-tenant-id>",
  clientId: "<your-client-id>",
  redirectUri: "<your-redirect-uri>",
});

const entraTokenCredentialOptions = {
  resourceEndpoint: "https://<your-resource>.communication.azure.com",
  tokenCredential: entraTokenCredential,
  scopes: [
    "https://auth.msft.communication.azure.com/TeamsExtension.ManageCalls",
  ],
};

const credential = new AzureCommunicationTokenCredential(
  entraTokenCredentialOptions
);

Pass AzureCommunicationUserCredential into CallClient.CreateCallAgent

Once you have your credential ready, you can pass it to the CallingClient.

const client = new CallingClient();
const callAgent = await client.createCallAgent(credential);

Remove Teams user access

Send a request to the Microsoft Teams Phone access assignments API to delete the access for your Teams user to your Azure Communication Services resource.

DELETE {endpoint}/access/teamsExtension/tenants/87d349ed-44d7-43e1-9a83-5f2406dee5bd/assignments/e5b7f628-ea94-4fdc-b3d9-1af1fe231111?api-version=2025-03-02-preview

Response

HTTP/1.1 204 NoContent
Content-type: application/json

{}

To verify that the Teams user is no longer linked with the Communication Services resource, send a GET request to the Microsoft Teams Phone access assignments API. Verify that its response status code is 404.

GET {endpoint}/access/teamsExtension/tenants/87d349ed-44d7-43e1-9a83-5f2406dee5bd/assignments/e5b7f628-ea94-4fdc-b3d9-1af1fe231111?api-version=2025-03-02-preview

Next steps

REST API for Teams Phone extensibility
