Assert transformation in mapping data flow

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Data flows are available both in Azure Data Factory and Azure Synapse Pipelines. This article applies to mapping data flows. If you are new to transformations, please refer to the introductory article Transform data using a mapping data flow.

The assert transformation enables you to build custom rules inside your mapping data flows for data quality and data validation. You can build rules that will determine whether values meet an expected value domain. Additionally, you can build rules that check for row uniqueness. The assert transformation will help to determine if each row in your data meets a set of criteria. The assert transformation also allows you to set custom error messages when data validation rules are not met.

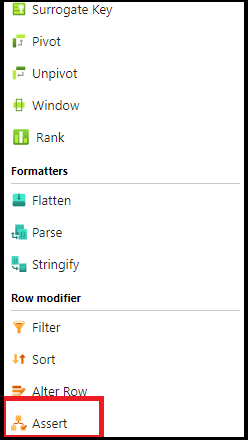

Assert type

Configuration

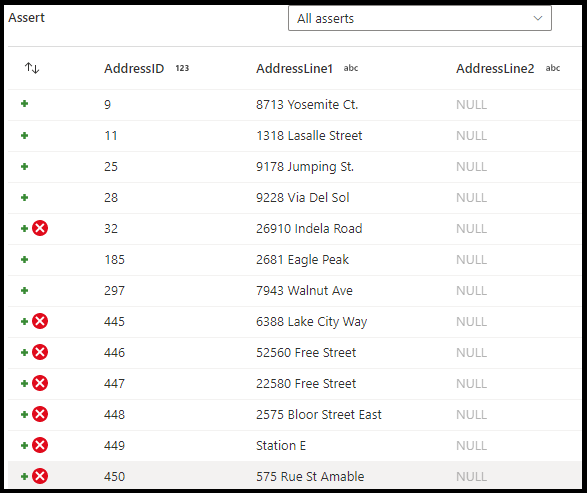

In the assert transformation configuration panel, you will choose the type of assert, provide a unique name for the assertion, optional description, and define the expression and optional filter. The data preview pane will indicate which rows failed your assertions. Additionally, you can test each row tag downstream using isError() and hasError() for rows that failed assertions.

Assert settings

Assert type

  1. Expect true: The result of your expression must evaluate to a boolean true result. Use this to validate domain value ranges in your data.
  2. Expect unique: Set a column or an expression as a uniqueness rule in your data. Use this to tag duplicate rows.
  3. Expect exists: This option is only available when you have selected a second incoming stream. Exists will look at both streams and determine if the rows exists in both streams based on the columns or the expressions that you have specified. To add the second stream for exists, select Additional streams.

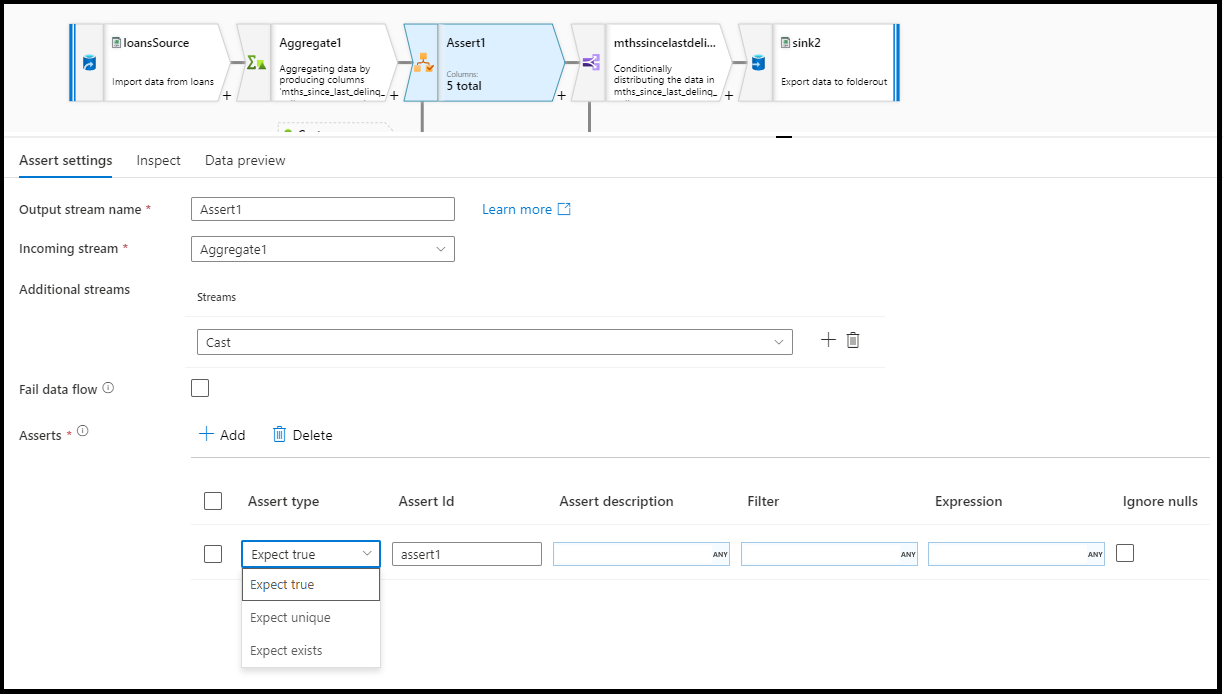

Assert configuration

Fail data flow

Select fail data flow if you wish to have your data flow activity fail immediately as soon as the assertion rule fails.

Assert ID

Assert ID is a property where you will enter a (string) name for your assertion. You will be able to use the identifier later downstream in your data flow using hasError() or to output the assertion failure code. Assert IDs must be unique within each dataflow.

Assert description

Enter a string description for your assertion here. You can use expressions and row-context column values here as well.

Filter

Filter is an optional property where you can filter the assertion to only a subset of rows based on your expression value.

Expression

Enter an expression for evaluation for each of your assertions. You can have multiple assertions for each assert transformation. Each type of assertion requires an expression that ADF will need to evaluation to test if the assertion passed.

Ignore NULLs

By default, the assert transformation will include NULLs in row assertion evaluation. You can choose to ignore NULLs with this property.

Direct assert row failures

When an assertion fails, you can optionally direct those error rows to a file in Azure by using the "Errors" tab on the sink transformation. You will also have an option on the sink transformation to not output rows with assertion failures at all by ignoring error rows.

Examples

source(output(
		AddressID as integer,
		AddressLine1 as string,
		AddressLine2 as string,
		City as string,
		StateProvince as string,
		CountryRegion as string,
		PostalCode as string,
		rowguid as string,
		ModifiedDate as timestamp
	),
	allowSchemaDrift: true,
	validateSchema: false,
	isolationLevel: 'READ_UNCOMMITTED',
	format: 'table') ~> source1
source(output(
		CustomerID as integer,
		AddressID as integer,
		AddressType as string,
		rowguid as string,
		ModifiedDate as timestamp
	),
	allowSchemaDrift: true,
	validateSchema: false,
	isolationLevel: 'READ_UNCOMMITTED',
	format: 'table') ~> source2
source1, source2 assert(expectExists(AddressLine1 == AddressLine1, false, 'nonUS', true(), 'only valid for U.S. addresses')) ~> Assert1

Data flow script

Examples

source1, source2 assert(expectTrue(CountryRegion == 'United States', false, 'nonUS', null, 'only valid for U.S. addresses'),
	expectExists(source1@AddressID == source2@AddressID, false, 'assertExist', StateProvince == 'Washington', toString(source1@AddressID) + ' already exists in Washington'),
	expectUnique(source1@AddressID, false, 'uniqueness', null, toString(source1@AddressID) + ' is not unqiue')) ~> Assert1
