This page describes how to run notebooks in clean rooms. Notebooks are the interface that collaborators use to run data analysis in collaboration.
To learn how to add a notebook to a clean room, see Create clean rooms.
Before you begin
To manage and run a notebook in a clean room, you must:
Task | Requirement | Required privileges | Description |
---|---|---|---|
Managing a notebook | No unique requirements | For the notebook's uploader:
|
General management tasks for a notebook in the clean room. |
Running a notebook | Every collaborator, except the uploader, must approve the notebook. A designated runner runs the notebook. | EXECUTE CLEAN ROOM TASK |
If the runner of the notebook did not upload it, they must approve the notebook before it can be run. This explicit approval can be automated through the default auto-approval rule. See Auto-approval rules. |
Approving or rejecting a notebook | None | MODIFY CLEAN ROOM |
Allows you to approve or reject notebooks before they can be run. |
Managing auto-approval rules | Auto-approvals can only be applied to notebooks authored by collaborators other than the runner. | Clean room owner or MANAGE privilege. |
Controls the automatic approval of notebooks. |
Collaborator capacity | A clean room can include up to 10 collaborators. | None | This includes the creator and up to 9 other collaborators. |
The creator is automatically assigned as the owner of the clean room in their Databricks account. The collaborator organization's metastore admin is automatically assigned ownership of the clean room in their Databricks account. You can transfer ownership. See Manage Unity Catalog object ownership.
Uploading a notebook and designating runners
When a collaborator adds a notebook to the clean room:
They are considered the uploader of that notebook in the clean room.
When adding a notebook, the uploader must designate which collaborator is the designated runner of the notebook. The designated runner is permitted to run the notebook.
There can only be one designated runner.
You can assign yourself as the designated runner of the notebook.
See Step 3. Add data assets and notebooks to the clean room
Approve a notebook in a clean room
Every notebook requires approval from all collaborators, except the uploader, before executing it.
To check the review status of a notebook:
In your Azure Databricks workspace, click
Catalog.
On the Quick access page, click the Clean Rooms > button.
Select the clean room from the list.
Select the notebook you want to run.
Click the People icon on the right to expand the collaborator section of the notebook details page.

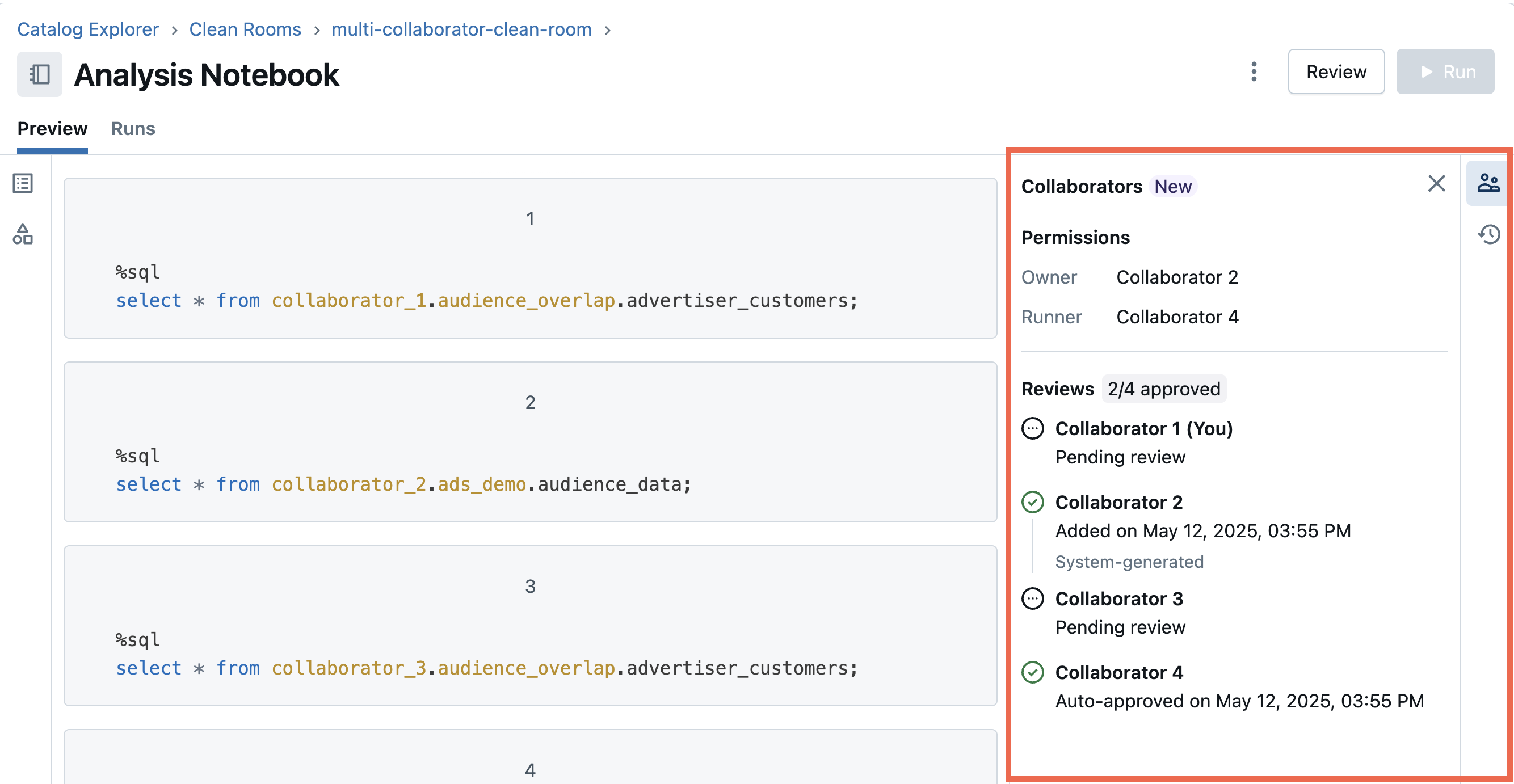

The Reviews section provides a clear overview of which collaborators have approved, rejected, or have yet to review the notebook.
A difference view is available when a notebook has been changed from a previous version.
When running a notebook version, the following is true:
- You can only run the latest version of a notebook.
- You can only approve or reject the latest version of a notebook.
- Modifying a notebook by adding new content or changing the runner designation creates a new version, which resets the review state for all collaborators.

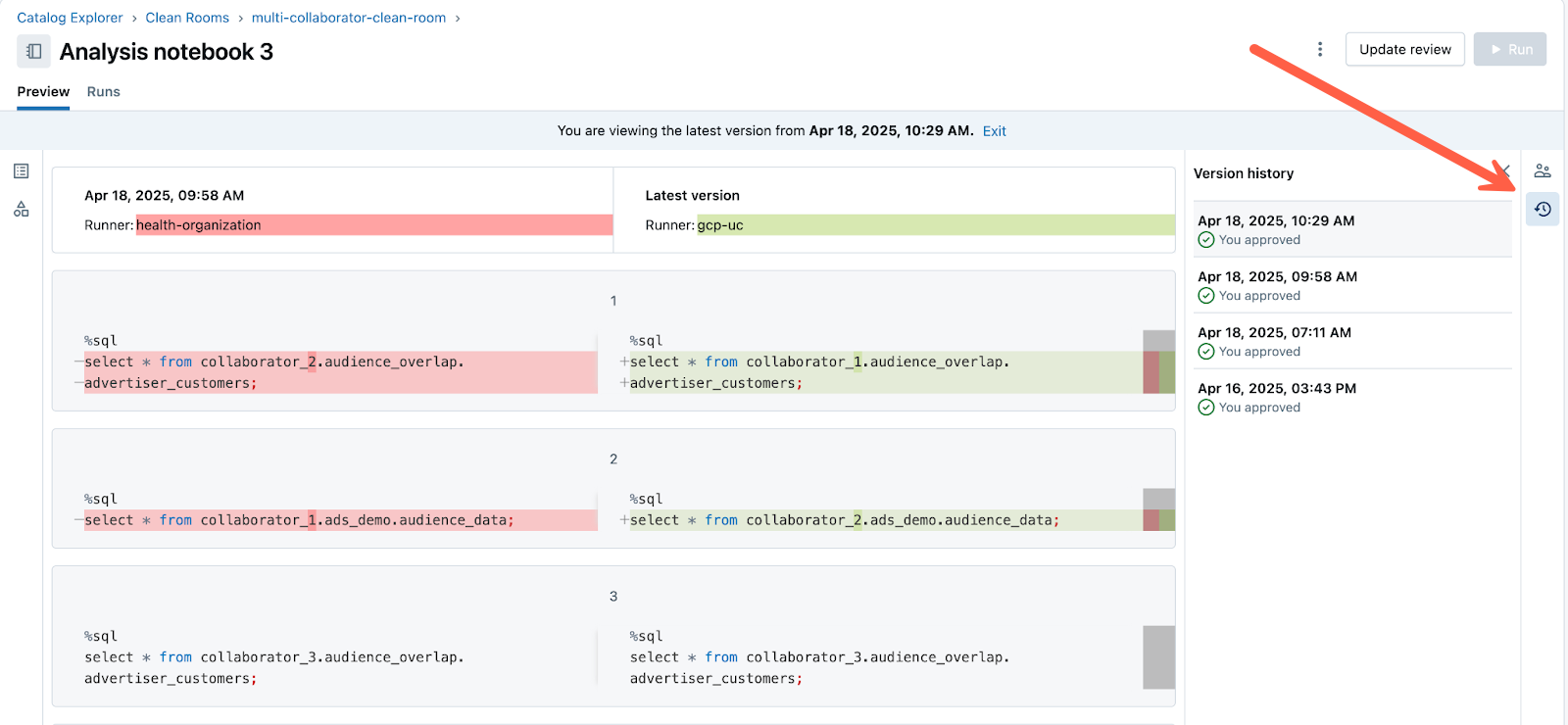

To access the difference view for a notebook:
Click the Clock icon on the right to expand the version history of the notebook details page.

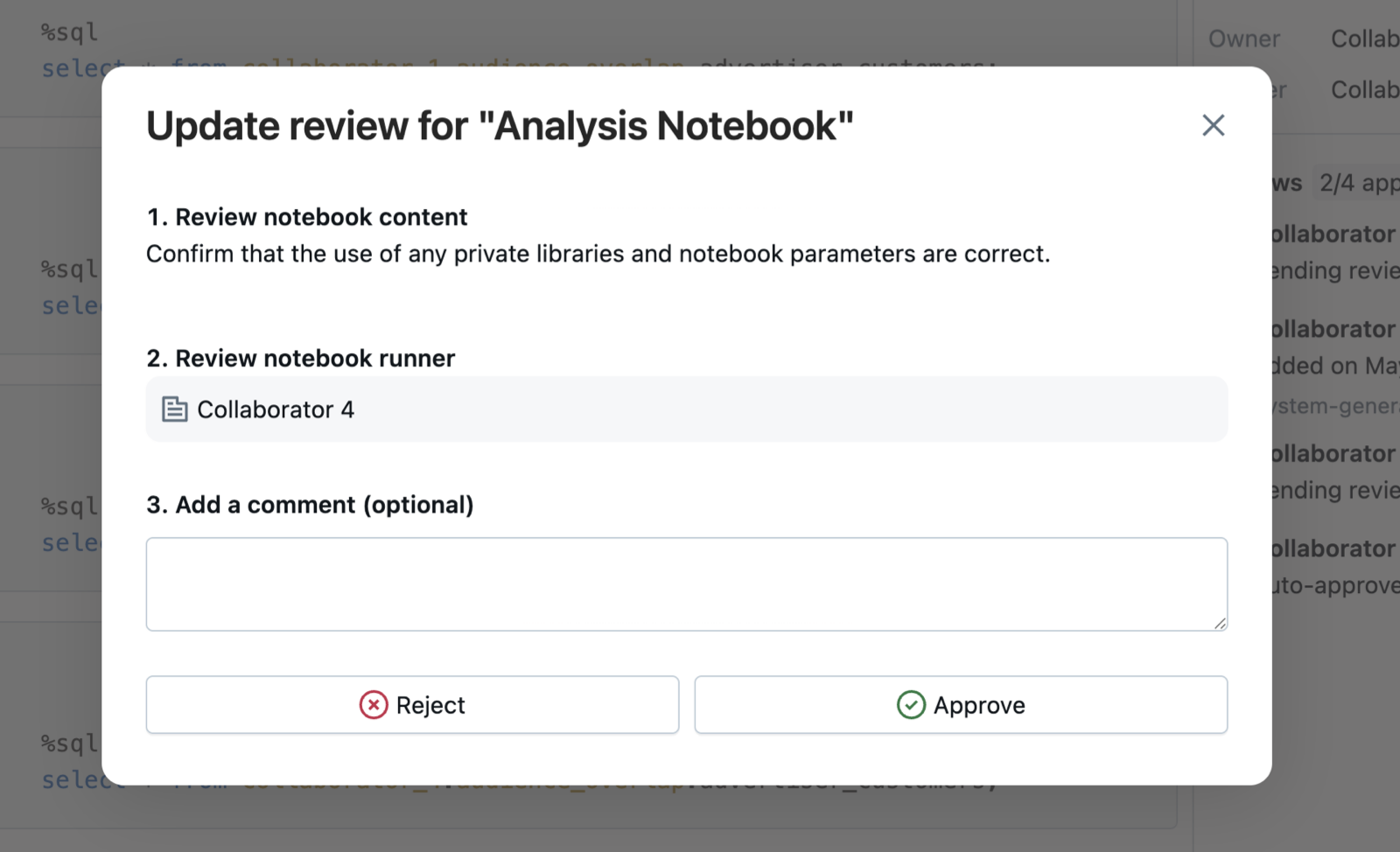

To approve or reject a notebook:
Click the Review button at the upper-right.
Choose to Approve or Reject the notebook.
You can update your review up to nine times, for a maximum of ten reviews per collaborator on each notebook version. However, you can always reject a notebook, even if the review limit has been reached.
Auto-approval rules
Collaborators can set up auto-approval rules for their clean room. With auto-approvals, the following is true:
- You can create auto-approval rules only for notebooks uploaded by other users, not your own. Self-authored notebooks do not require your own approval if you are the designated runner.
- In 2-person clean rooms, you can auto-approve notebooks authored by the other collaborator.
- In clean rooms with more than two collaborators, you can auto-approve notebooks authored by Anyone or a specific collaborator.
- Each auto-approval rule designates a single runner for the approved notebook.
- Auto-approval is the default for notebooks uploaded by another collaborator when you are the designated runner.
- Auto-approvals are optional for clean rooms where the designated runner is another collaborator.
- You can add, update, or remove auto-approvals at any time.
To manage auto-approvals:
In your Azure Databricks workspace, click
Catalog.
On the Quick access page, click the Clean Rooms > button.

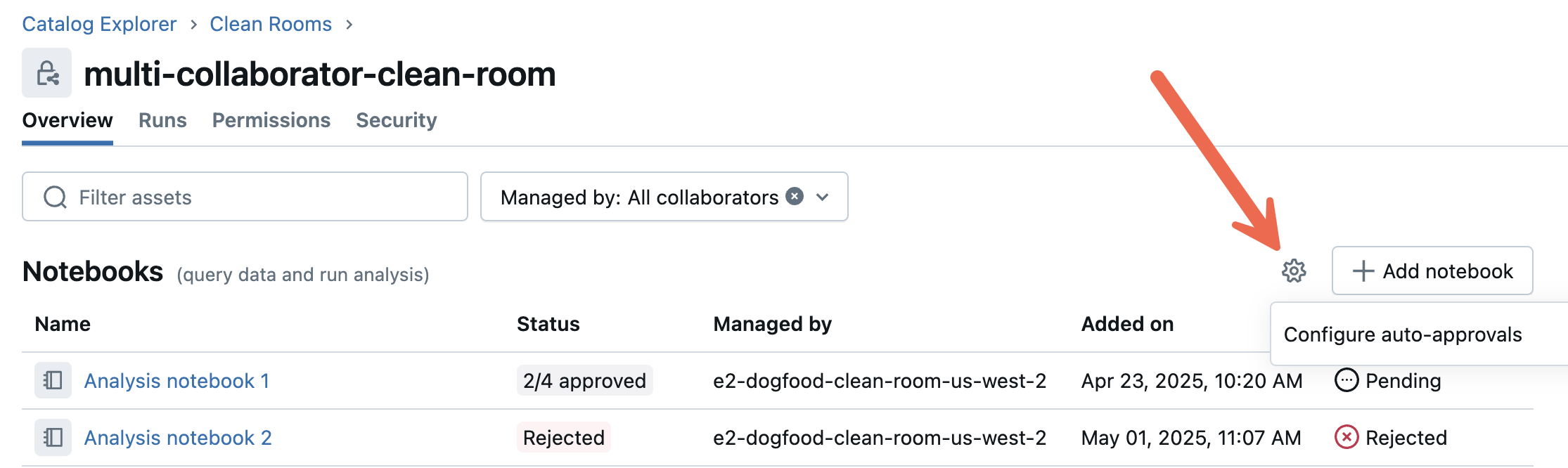

On the Clean Rooms page click the Gear icon
Select Configure auto-approvals.

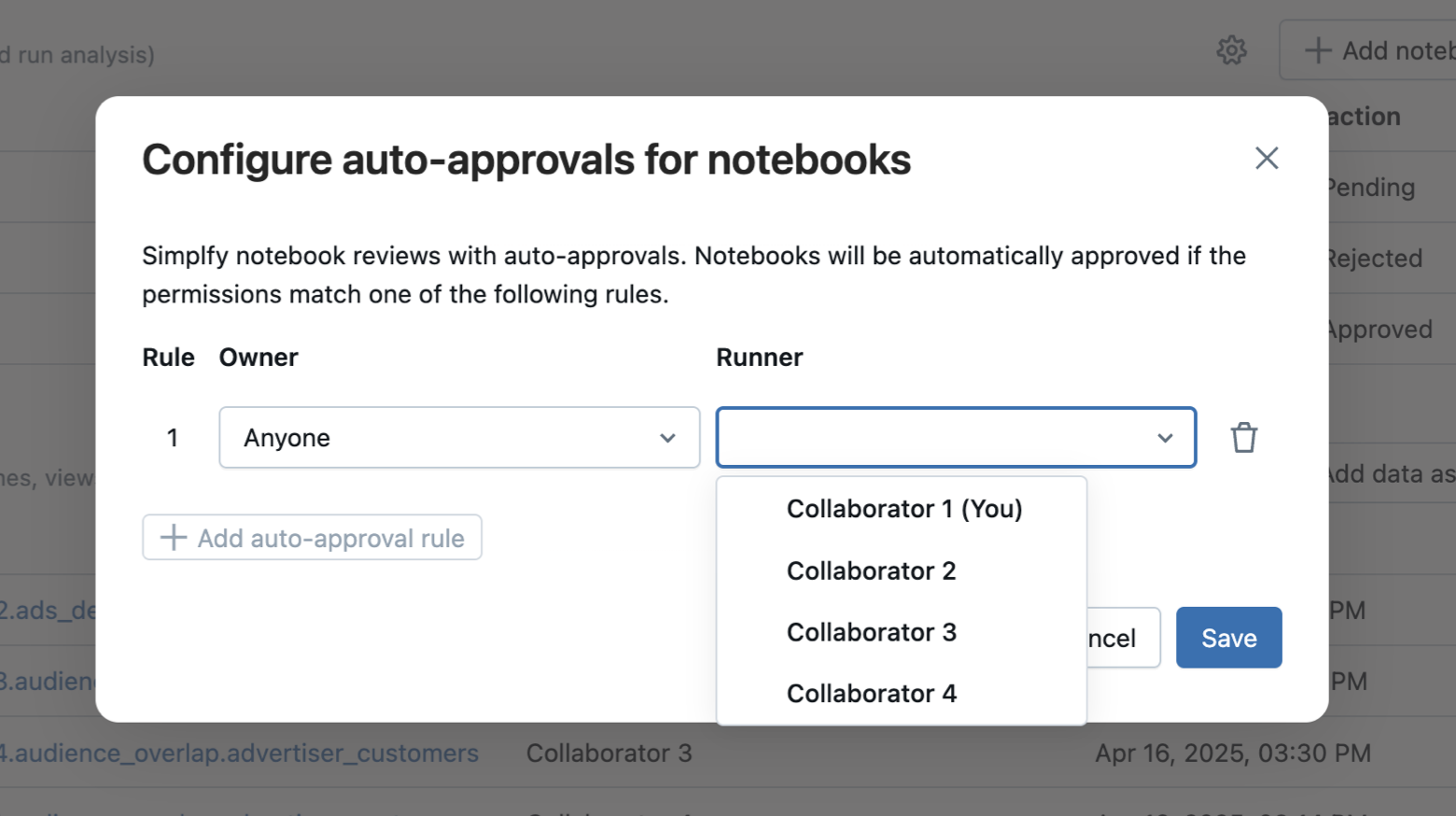

Configure automatic notebook approval based on matching permission rules.
Run a notebook in a clean room
To run a notebook, check all necessary approvals are in place and that you are the designated runner. Then:
- Under Notebooks, click the notebook to open it in preview mode.
- Click the Run button.
- You can only run notebooks for which you are the designated runner and which have been approved.
- It is not necessary to manually approve notebooks that you authored yourself to run them.
- You can reject a notebook you authored. You must re-approve it before it can be run.
- You can manage auto-approvals for each notebook. See Auto-approval rules.
- (Optional) On the Run notebook with parameters dialog, click + Add to pass parameter values to the notebook job task.
- Review the notebook.
- Click Run.
- Click See details to view the progress of the run. Alternatively, you can view run progress by going to Runs on this page or by clicking Workflows in the workspace sidebar and going to the Job runs tab.
- View the results of the notebook run. The notebook results appear after the run is complete. To view past runs, go to Runs and click the link in the Start time column.
Even when all collaborators approve a notebook, only the collaborator designated by the uploader as the runner can run it.
Note
The cr_creator_input_catalog
and cr_collaborator_input_catalog
parameters are automatically passed into the clean room notebook at runtime. You can use these parameters for local tests with sample tables. For more information about parameters for job tasks, see Parameterize jobs.
Share notebook output using output tables
Output tables are temporary read-only tables generated by a notebook run and shared to the notebook runner's metastore. If the notebook creates an output table, the notebook runner can access it in an output catalog and share it with other users in their workspace. See Create and work with output tables in Databricks Clean Rooms.
Use Databricks Workflows to run clean room notebooks
You can use Azure Databricks jobs to run notebooks and perform tasks on output tables, enabling you to build complex workflows that involve your clean room assets. You can only create tasks with clean room notebooks that are both runnable by you and fully approved. These features in particular make such workflows possible:
- The Clean Room notebook task type lets you select and run a clean room notebook as a Workflows task. See Clean Room notebook task for jobs.
- Workflow-initiated notebook runs can generate output tables that can be referenced by other workflow tasks. See Create and work with output tables in Databricks Clean Rooms.
- Workflows can use Task values that pass job parameter values to clean room notebooks or capture clean room notebook output and pass that output to other workflow tasks. See Use task values to pass information between tasks.
- The clean room output schema name is automatically generated. If you include
{{tasks.<your_task_name>.output.schema_name}}
and{{tasks.<your_task_name>.output.catalog_name}}
in the parameters, you can reference those values from a clean room when it's run in a downstream notebook task. Go to a notebook task, and under Parameters, select your values.
For example, you can create a workflow that propagates the dynamically-generated output schema name across tasks by doing the following:
Create a task of task type Clean Rooms notebook that runs a notebook that includes the following task value setting:
dbutils.jobs.taskValues.set(key="output_schema", value=dbutils.widgets.get("cr_output_schema"))
Create a subsequent task referencing the
output_schema
value to process the output.
