This tutorial shows you how to create a playbook in Microsoft Sentinel that automatically sends an email notification when a sensor disconnects from the cloud.
In this tutorial, you:
- Create a playbook to send automatic sensor disconnection notifications
- Paste the playbook code into the editor and modify fields
- Set up managed identity for your subscription
- Run a query to confirm that the sensor is offline
Prerequisites
Before you start, make sure you have:
Completed Tutorial: Connect Microsoft Defender for IoT with Microsoft Sentinel.
The subscription ID for the relevant subscription. In the Azure portal Subscriptions page, copy the subscription ID and save it for a later stage.
The resource group for the relevant subscription. Learn more about resource groups.
Create the playbook
In Microsoft Sentinel, select Automation.

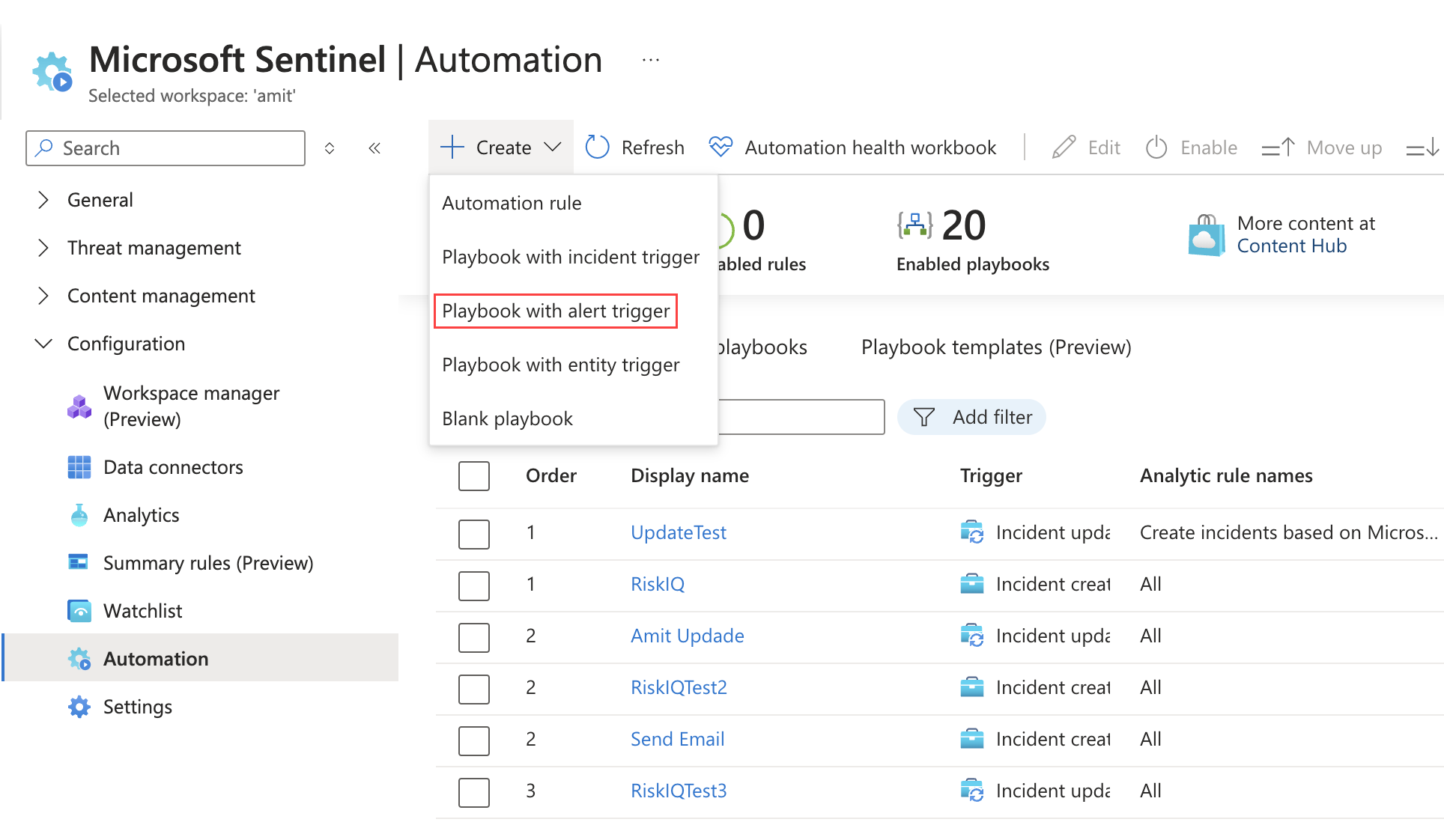

In the Automation page, select Create > Playbook with alert trigger.
In the Create playbook page Basics tab, select the subscription and resource group running Microsoft Sentinel, and give the playbook a name.
Select Next: Connections.
In the Connections tab, select Microsoft Sentinel > Connect with managed identity.

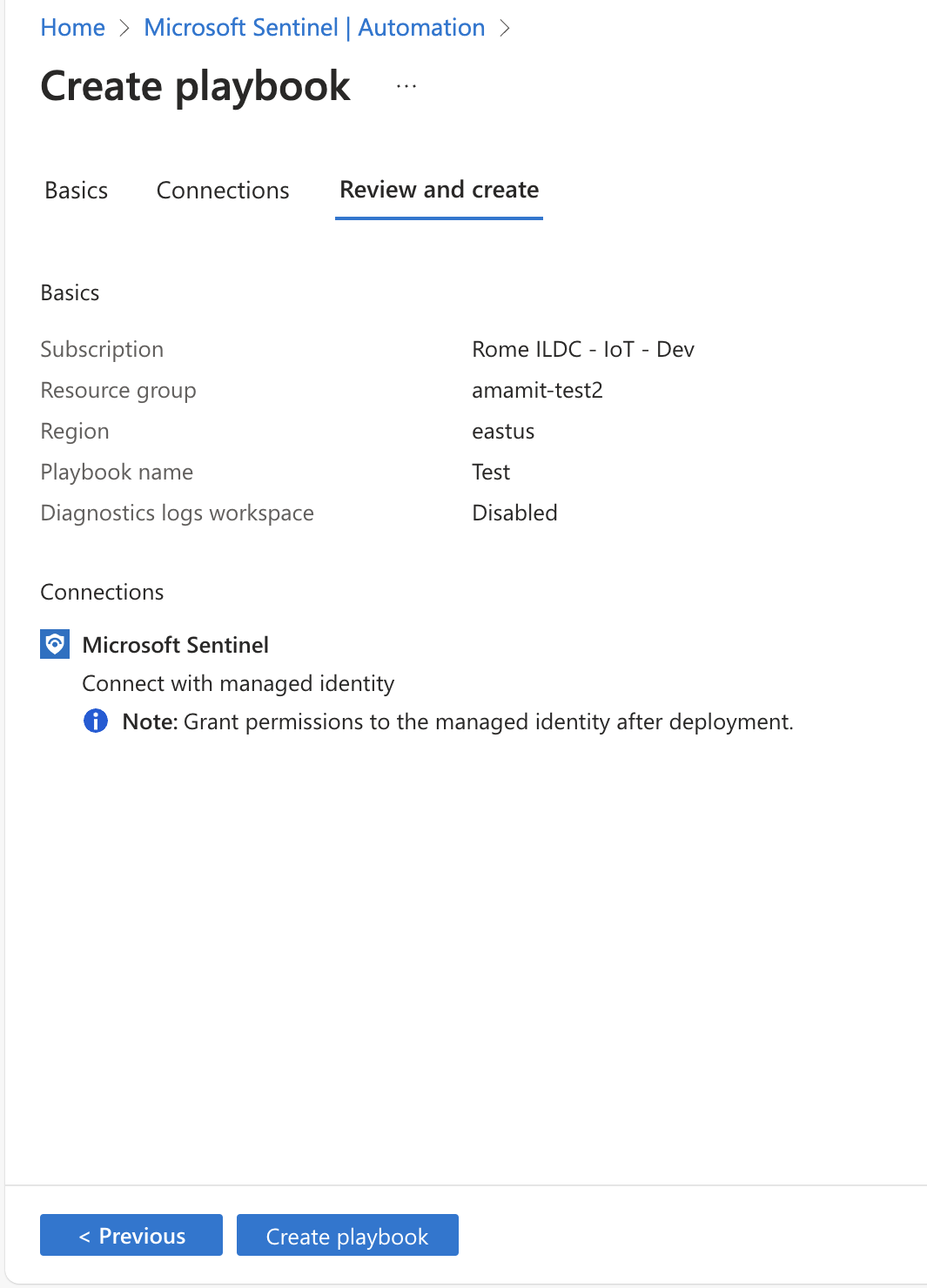

Review the playbook information and select Create playbook.

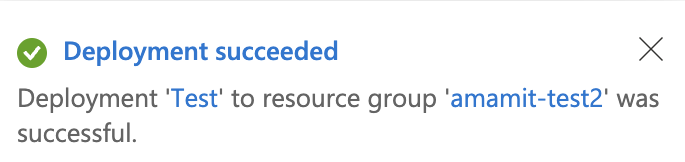

When the playbook is ready, Microsoft Sentinel displays a Deployment successful message and navigates to the Logic app designer page.
Paste the playbook code and modify fields
Select Logic app code view, and paste the playbook code into the editor.
Modify these fields in the code:
Under the
postbody, in theTofield, type the email to which you want to receive the notifications.Under the
office365parameter:- Under the
idfield, replaceReplace with subscriptionwith the ID of the subscription running Microsoft Sentinel, for example:
"id": "/subscriptions/exampleID/providers/Microsoft.Web/locations/eastus/managedApis/office365"- Under the
connectionIdfield, replaceReplace with subscriptionwith your subscription ID, and replaceReplace with RG namewith your resource group name, for example:
"connectionId": "/subscriptions/exampleID/resourceGroups/ExampleResourceGroup/providers/Microsoft.Web/connections/office365"- Under the
Select Save.
Go back to the Logic app designer to view the logic that the playbook follows.
Set up a managed identity for your subscription
To give the playbook permission to run Keyword Query Language (KQL) queries and get relevant sensor data:
In the Azure portal, select Subscriptions.
Select the subscription running Microsoft Sentinel and select Access Control (IAM).
Select Add > Add Role Assignment.
Search for the Reader role.
In the Role tab, select Next.

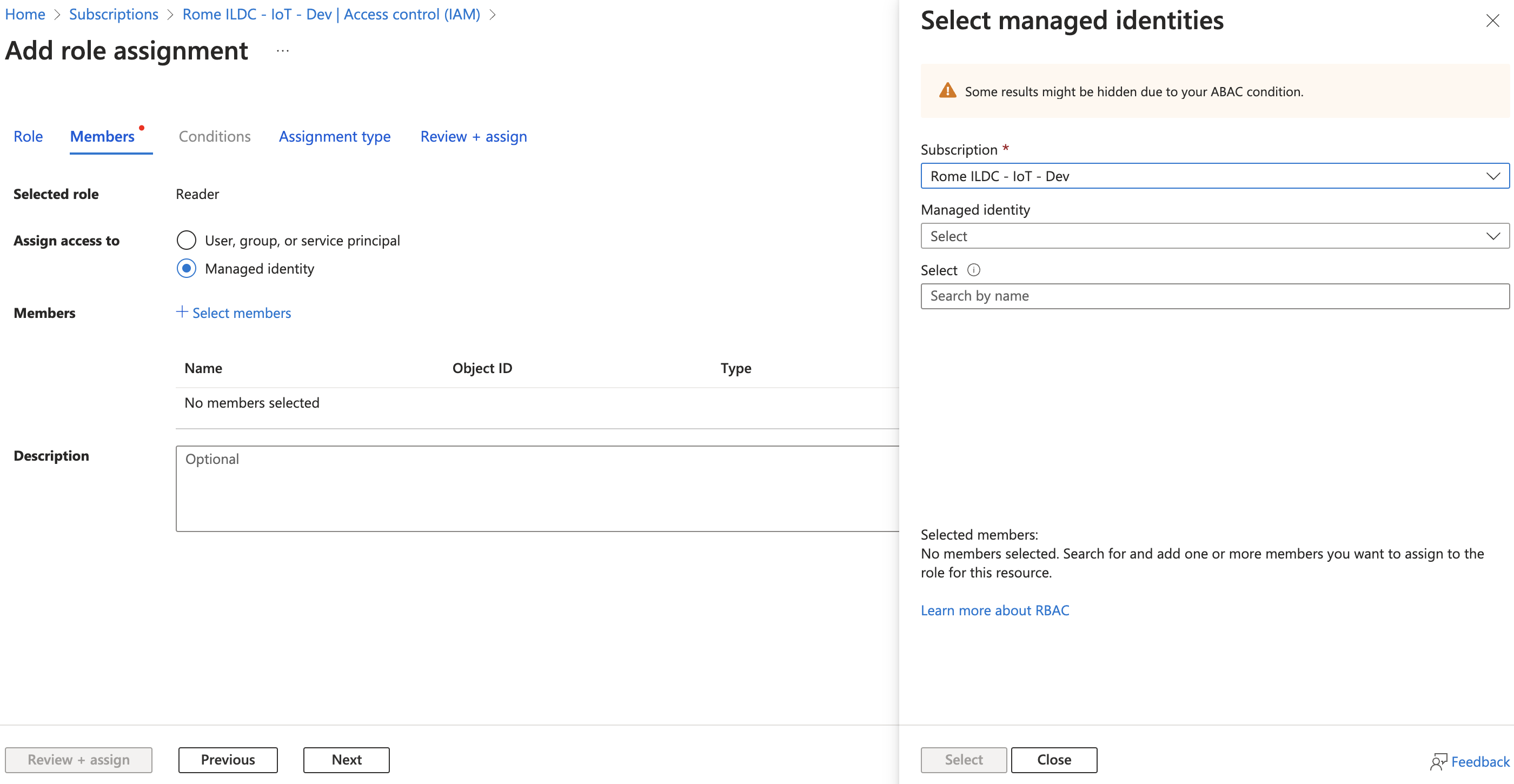

In the Members tab, under Assign access to, select Managed Identity.
In the Select Managed identities window:
- Under Subscription, select the subscription running Microsoft Sentinel.
- The Managed identity field is automatically selected.
- Under Select, select the name of the playbook you created.
In the editor, select HTTP2 and verify that the Authentication Type is set to Managed Identity.
Run a query to confirm that the sensor is offline
If you can't create the playbook successfully, run a KQL query in Azure Resource Graph to confirm that the sensor is offline.
In the Azure portal, search for Azure resource graph explorer.
Run the following query:
iotsecurityresources | where type =='microsoft.iotsecurity/locations/sites/sensors' |extend Status=properties.sensorStatus |extend LastConnectivityTime=properties.connectivityTime |extend Status=iif(LastConnectivityTime<ago(5m),'Disconnected',Status) |project SensorName=name, Status, LastConnectivityTime |where Status == 'Disconnected'
If the sensor has been offline for at least five minutes, the sensor status is Disconnected.
Note
It takes up to 15 minutes for the sensor to synchronize the status update with the cloud. This means that the sensor needs to be offline for at least 15 minutes before the status is updated.
Playbook code
Copy this code and return to the paste the playbook code step.
{
"definition": {
"$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
"contentVersion": "1.0.0.0",
"triggers": {
"Recurrence": {
"type": "Recurrence",
"recurrence": {
"frequency": "Minute",
"interval": 5,
"startTime": "2024-11-12T19:00:00Z"
}
}
},
"actions": {
"For_each": {
"type": "Foreach",
"foreach": "@body('Parse_JSON_2')",
"actions": {
"Condition": {
"type": "If",
"expression": {
"and": [
{
"equals": [
"@items('For_each')['Status']",
"Disconnected"
]
},
{
"less": [
"@items('For_each')['LastConnectivityTime']",
"@getPastTime(5, 'Minute')"
]
}
]
},
"actions": {
"Send_an_email_(V2)-copy": {
"type": "ApiConnection",
"inputs": {
"host": {
"connection": {
"name": "@parameters('$connections')['office365']['connectionId']"
}
},
"method": "post",
"body": {
"To": [Please add your email],
"Subject": "Sensor disconnected - True",
"Body": "<p class=\"editor-paragraph\"><br>True</p>",
"Importance": "Normal"
},
"path": "/v2/Mail"
}
}
},
"else": {
"actions": {}
}
}
},
"runAfter": {
"Parse_JSON_2": [
"Succeeded"
]
}
},
"HTTP_2": {
"type": "Http",
"inputs": {
"uri": "https://management.azure.com/providers/Microsoft.ResourceGraph/resources",
"method": "POST",
"headers": {
"Content-Type": "application/json"
},
"queries": {
"api-version": "2021-03-01"
},
"body": {
"query": "iotsecurityresources | where type =='microsoft.iotsecurity/locations/sites/sensors' |extend Status=properties.sensorStatus |extend LastConnectivityTime=properties.connectivityTime |extend Status=iif(LastConnectivityTime<ago(5m),'Disconnected',Status) |project SensorName=name, Status, LastConnectivityTime | where Status == 'Disconnected'"
},
"authentication": {
"type": "ManagedServiceIdentity"
}
},
"runAfter": {}
},
"Parse_JSON": {
"type": "ParseJson",
"inputs": {
"content": "@body('HTTP_2')",
"schema": {
"properties": {
"count": {
"type": "integer"
},
"data": {
"items": {
"properties": {
"LastConnectivityTime": {
"type": "string"
},
"SensorName": {
"type": "string"
},
"Status": {
"type": "string"
}
},
"required": [
"SensorName",
"Status",
"LastConnectivityTime"
],
"type": "object"
},
"type": "array"
},
"facets": {
"type": "array"
},
"resultTruncated": {
"type": "string"
},
"totalRecords": {
"type": "integer"
}
},
"type": "object"
}
},
"runAfter": {
"HTTP_2": [
"Succeeded"
]
}
},
"Parse_JSON_2": {
"type": "ParseJson",
"inputs": {
"content": "@body('Parse_JSON')?['data']",
"schema": {
"items": {
"properties": {
"LastConnectivityTime": {
"type": "string"
},
"SensorName": {
"type": "string"
},
"Status": {
"type": "string"
}
},
"required": [
"SensorName",
"Status",
"LastConnectivityTime"
],
"type": "object"
},
"type": "array"
}
},
"runAfter": {
"Parse_JSON": [
"Succeeded"
]
}
}
},
"outputs": {},
"parameters": {
"$connections": {
"type": "Object",
"defaultValue": {}
}
}
},
"parameters": {
"$connections": {
"value": {
"office365": {
"id": "/subscriptions/[Replace with Subscription ID]/providers/Microsoft.Web/locations/eastus/managedApis/office365",
"connectionId": "/subscriptions/[Replace with Subscription ID]/resourceGroups/[replace with RG name]/providers/Microsoft.Web/connections/office365",
"connectionName": "office365"
}
}
}
}
}
Next steps
For more information, see our blog: Defending Critical Infrastructure with the Microsoft Sentinel: IT/OT Threat Monitoring Solution
