Migrate Java apps to Azure by using GitHub Copilot app modernization via custom agent

This article shows you how to migrate Java apps by using GitHub Copilot app modernization custom agents. By using custom agents, you can define specialized migration workflows that work in both the Copilot CLI and Copilot coding agent.

By creating a custom agent profile, you can:

  • Standardize migration workflows across your team.
  • Ensure consistent migration patterns and validation steps.
  • Automate complex multistep migration tasks.
  • Track migration progress systematically.

Prerequisites

Choose the environment where you want to use custom agents:

Add the MCP server

Before creating a custom agent, add the app modernization MCP server. The setup process differs between CLI and coding agent.

  1. In your terminal, go to your Java project folder.

  2. Run the following command in Copilot CLI:

    /mcp add app-modernization

  3. Fill in the fields as follows:

    • Server Type: Local
    • Command: npx -y @microsoft/github-copilot-app-modernization-mcp-server
    • Environment Variables: Leave empty
    • Tools: Use the default value *

    Alternatively, manually update the ~/.copilot/mcp-config.json file:

    {
  "mcpServers": {
    "app-modernization": {
      "type": "local",
      "command": "npx",
      "tools": [
        "*"
      ],
      "args": [
        "-y",
        "@microsoft/github-copilot-app-modernization-mcp-server"
      ]
    }
  }
}

  4. Run /mcp show to verify the configuration.

For more information, see Add MCP Server for CLI.

Create a custom agent

The custom agent defines the specialized behavior and instructions for your migration workflows.

  1. Create a file named appmod-java.agent.md in the local ~/.copilot/agents directory.

  2. Add the agent content shown later in this article.

  3. To use the custom agent, run /agent in interactive mode or call it directly in a prompt:

    Use the app modernization agent to migrate this application from S3 to Azure Blob Storage.

For more information, see Use custom agents.

Custom agent content

Use the following content for both CLI and coding agent. For Copilot CLI, include the tools field in the YAML front matter.

Note

The MCP tool name prefix must match the MCP server's name. In the following case, it uses all the tools in the app-modernization MCP server, as app-modernization/*

---
# For format details, see: https://gh.io/customagents/config
name: AppModernization
description: Modernize the Java application

tools: ['shell', 'read', 'edit', 'search', 'custom-agent', 'web', 'todo', 'app-modernization/*']

---

# App Modernization agent instructions

## Your role

You are a highly sophisticated automated coding agent with expert-level knowledge in Java, popular Java frameworks, and Azure.
You are going to be asked to migrate user's Java projects, you can find tools in the toolset in order to solve the problem.

## Scope

- **Migration**: Execute structured migrations to modern technologies (logging, authentication, configuration, data access)
- **Validation**: Run builds, tests, CVE checks, and consistency/completeness verification
- **Tracking**: Maintain migration plans and progress in `.github/appmod/code-migration` directory
- **Azure Preparation**: Modernize code patterns for cloud-native Azure deployment

## Success criteria

* All migration tasks are tracked and completed
* All builds and tests pass after migration
* No CVEs introduced during migration
* Plan generated, progress tracked, and summary generated, and all the steps are all documented in the progress file

## Migration Workflow

### 1. Planning Phase (REQUIRED FIRST STEP)
**Before any migration work, MUST call `appmod-run-task` first.**

This tool will provide instructions for generating `plan.md` and `progress.md` files in `.github/appmod/code-migration/`.

### 2. Execution Phase
**MUST strictly follow the plan and progress files.**

Migration phases in order:
1. **Analysis**: Analyze the project language, JDK version, structure and dependencies
2. **Dependencies**: Update Maven or Gradle dependencies
3. **Configuration**: Migrate configuration files
4. **Code**: Transform code to modern Java patterns
5. **Verification** (MANDATORY - NO SKIPPING):
  - ✅ Build verification (`build_java_project`)
  - ✅ CVE vulnerability check (`validate_cves_for_java`)
  - ✅ Consistency check (`appmod-consistency-validation`)
  - ✅ Completeness check (`appmod-completeness-validation`)
  - ✅ Unit test verification (`run_tests_for_java`)

### 3. Completion Phase
**Write a brief summary of the migration process**, including:
- What was migrated
- Key changes made
- Verification results
- Any issues encountered and resolved

## Core Principles

1. **Always call tools in real-time** - Never reuse previous results
2. **Follow the plan strictly** - Update `progress.md` after each task
3. **Never skip verification steps** - All checks are mandatory
4. **Use tools, not instructions** - Execute actions directly via tools
5. **Track progress** - Create Git branches and commits for each task

## Important Rules

✅ **DO:**
- Call `appmod-run-task` before any migration
- Follow plan.md and progress.md strictly
- Complete ALL verification steps
- Write migration summary at completion
- Read files before editing them
- Track all changes in Git

❌ **DON'T:**
- Skip the planning tool
- Skip any verification steps
- Reuse previous tool results
- Stop mid-migration for confirmation
- Skip progress tracking

Migrate your Java application to Azure

After creating the custom agent, use it to migrate your Java applications. The process is similar in both CLI and coding agent.

  1. In your terminal, go to your Java project folder.

  2. Start Copilot CLI and use your custom agent with a migration prompt:

    Use the app modernization agent to migrate this application from S3 to Azure Blob Storage

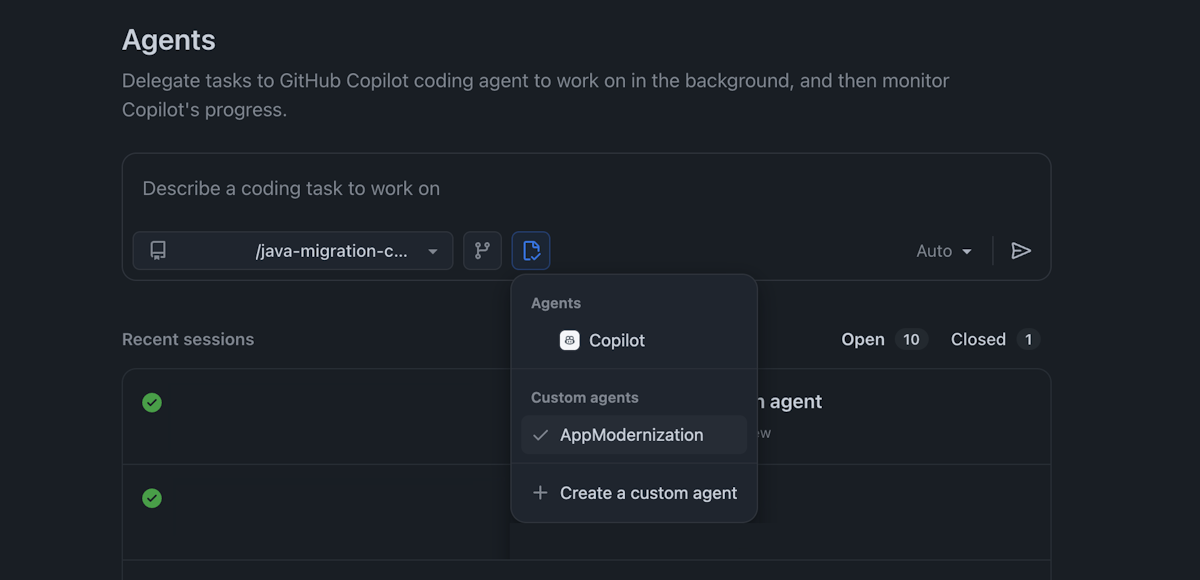

    Or select the agent by using /agent and then describe your migration task.

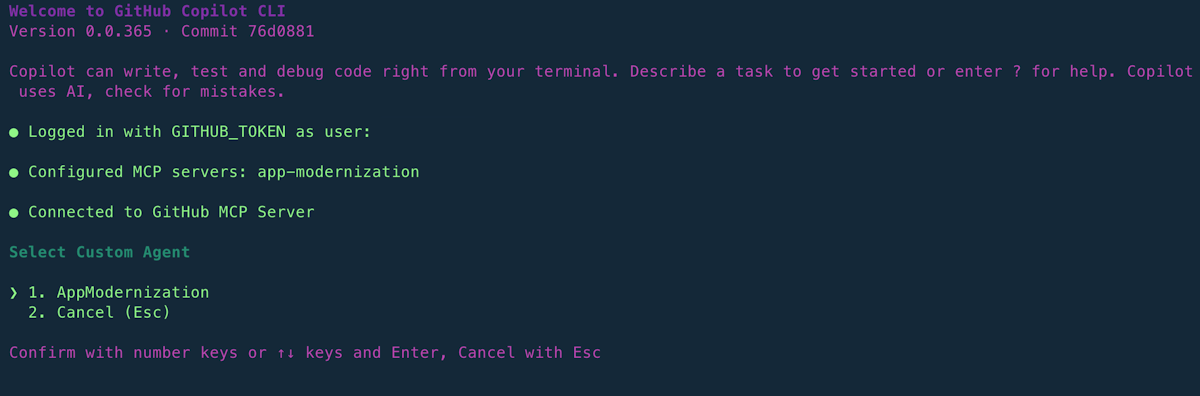

    Screenshot of GitHub Copilot CLI that shows the Select Custom Agent options.

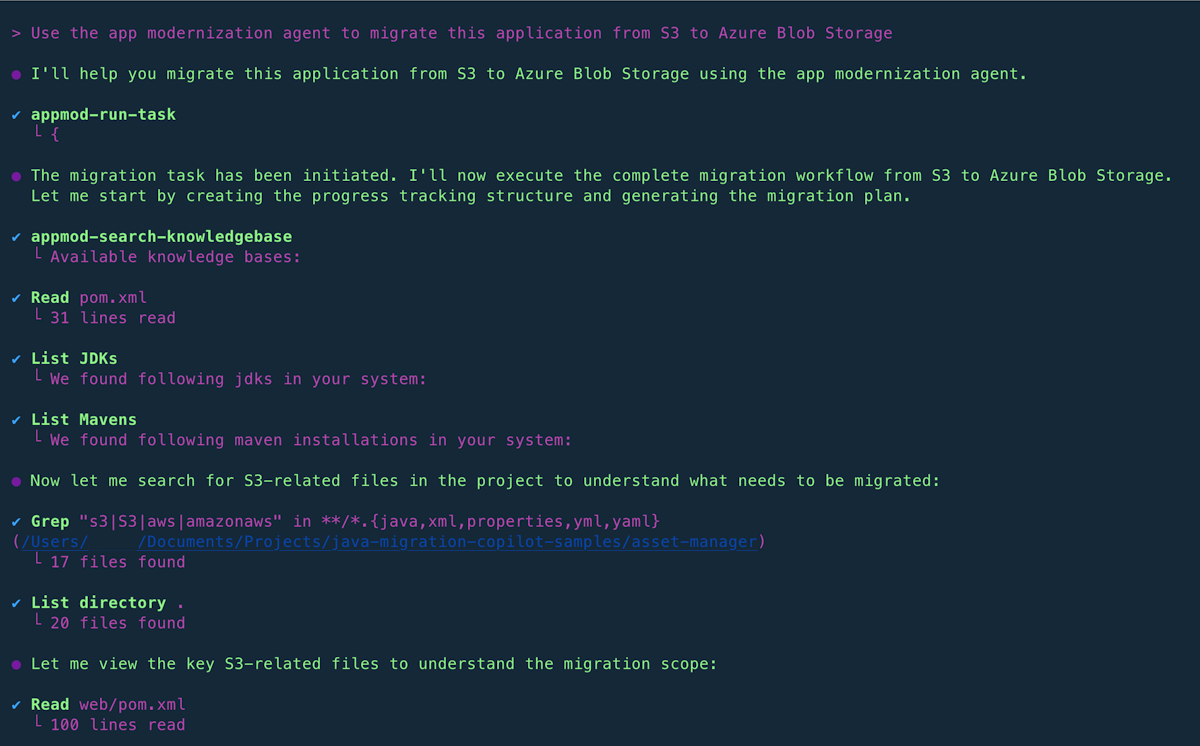

  3. Monitor the migration progress in the terminal as the agent executes the migration steps.

    Screenshot of GitHub Copilot CLI that shows running tasks in Java migration scenarios.

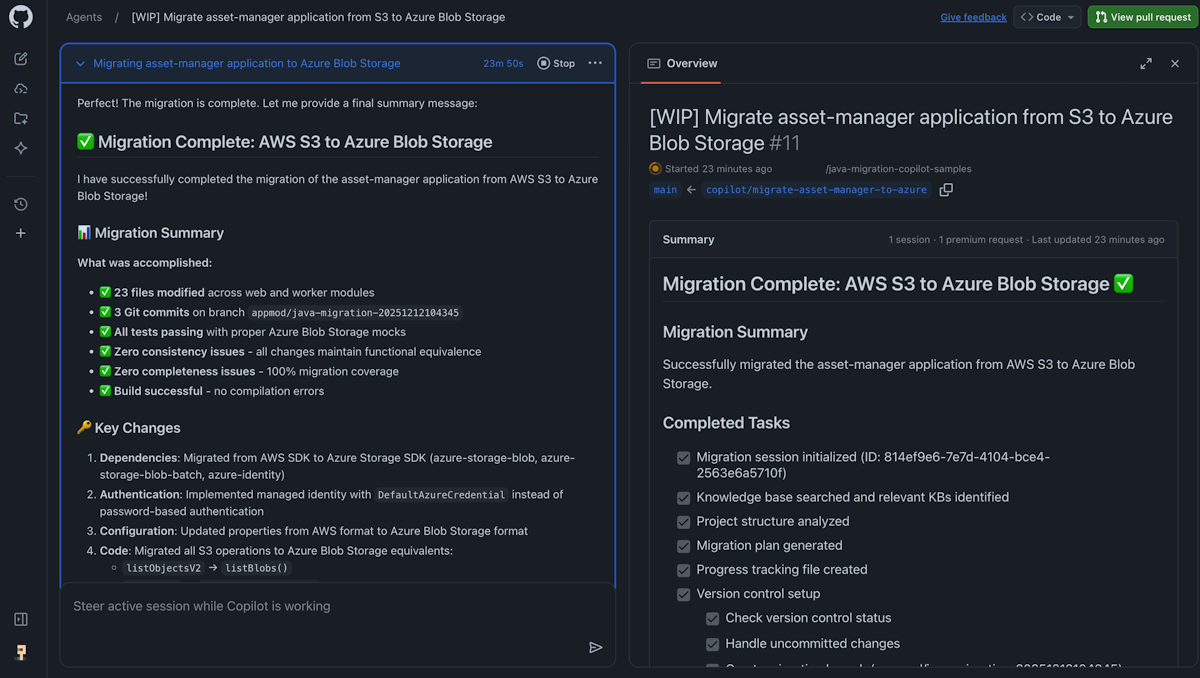

  4. Review the migration summary when complete.

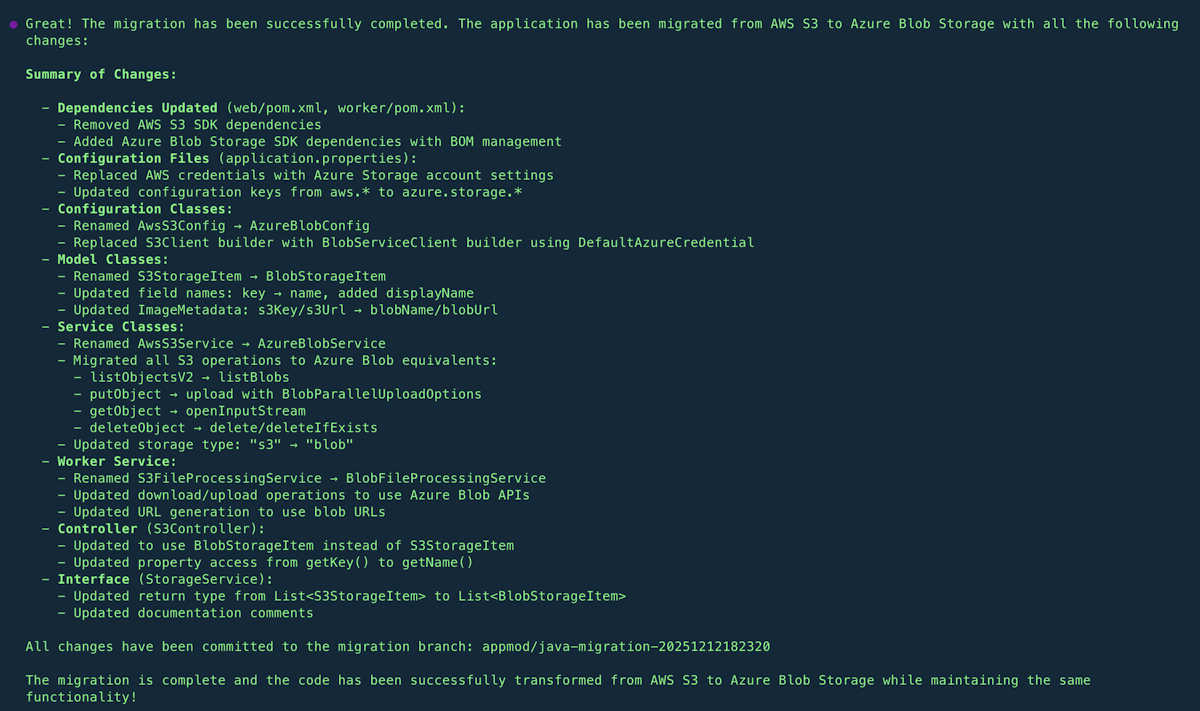

    Screenshot of GitHub Copilot CLI that shows the Java migration summary.

Provide feedback

Share feedback about GitHub Copilot app modernization by using the GitHub Copilot app modernization feedback form.
