Spring Cloud Azure PostgreSQL support

  • Applies to: ✅ Version 4.20.0, ✅ Version 5.22.0

Azure Database for PostgreSQL is a relational database service based on the open-source Postgres database engine. It's a fully managed database-as-a-service that can handle mission-critical workloads with predictable performance, security, high availability, and dynamic scalability.

From version 4.5.0, Spring Cloud Azure supports various types of credentials for authentication to Azure Database for PostgreSQL Flexible Server.

Supported PostgreSQL version

For supported versions, see Supported PostgreSQL major versions in Azure Database for PostgreSQL - Flexible Server.

Core features

Passwordless connection

Passwordless connection uses Microsoft Entra authentication for connecting to Azure services without storing any credentials in the application, its configuration files, or in environment variables. Microsoft Entra authentication is a mechanism for connecting to Azure Database for PostgreSQL using identities defined in Microsoft Entra ID. With Microsoft Entra authentication, you can manage database user identities and other Microsoft services in a central location, which simplifies permission management.

How it works

Spring Cloud Azure will first build one of the following types of credentials depending on the application authentication configuration:

  • ClientSecretCredential
  • ClientCertificateCredential
  • UsernamePasswordCredential
  • ManagedIdentityCredential
  • DefaultAzureCredential

If none of these types of credentials are found, the DefaultAzureCredential credentials will be obtained from application properties, environment variables, managed identities, or the IDE. For more information, see Spring Cloud Azure authentication.

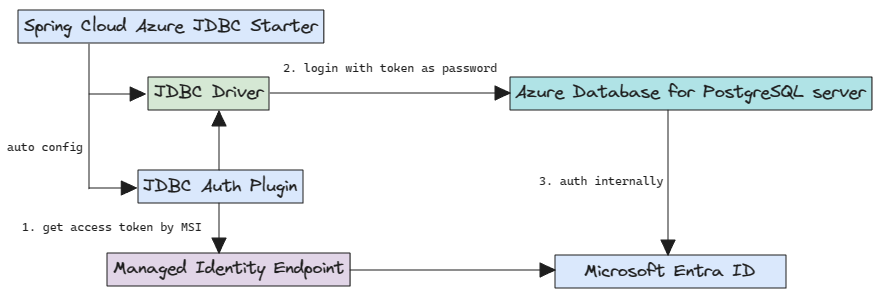

The following high-level diagram summarizes how authentication works using OAuth credential authentication with Azure Database for PostgreSQL. The arrows indicate communication pathways.

Diagram showing Microsoft Entra authentication for PostgreSQL .

Configuration

Spring Cloud Azure for PostgreSQL supports the following two levels of configuration options:

  1. The global authentication configuration options of credential and profile with prefixes of spring.cloud.azure.

  2. Spring Cloud Azure for PostgreSQL common configuration options.

The following table shows the Spring Cloud Azure for PostgreSQL common configuration options:

Name Description
spring.datasource.azure.passwordless-enabled Whether to enable passwordless connections to Azure databases by using OAuth2 Microsoft Entra token credentials.
spring.datasource.azure.credential.client-certificate-password Password of the certificate file.
spring.datasource.azure.credential.client-certificate-path Path of a PEM certificate file to use when performing service principal authentication with Azure.
spring.datasource.azure.credential.client-id Client ID to use when performing service principal authentication with Azure. This is a legacy property.
spring.datasource.azure.credential.client-secret Client secret to use when performing service principal authentication with Azure. This is a legacy property.
spring.datasource.azure.credential.managed-identity-enabled Whether to enable managed identity to authenticate with Azure. If true and the client-id is set, will use the client ID as user assigned managed identity client ID. The default value is false.
spring.datasource.azure.credential.password Password to use when performing username/password authentication with Azure.
spring.datasource.azure.credential.username Username to use when performing username/password authentication with Azure.
spring.datasource.azure.profile.cloud-type Name of the Azure cloud to connect to.
spring.datasource.azure.profile.environment.active-directory-endpoint The Microsoft Entra endpoint to connect to.
spring.datasource.azure.profile.tenant-id Tenant ID for Azure resources. The values allowed for tenant-id are: common, organizations, consumers, or the tenant ID.

Dependency setup

Add the following dependency to your project. This will automatically include the spring-boot-starter dependency in your project transitively.

<dependency>
    <groupId>com.azure.spring</groupId>
    <artifactId>spring-cloud-azure-starter-jdbc-postgresql</artifactId>
</dependency>

Note

Passwordless connections have been supported since version 4.5.0.

Remember to add the BOM spring-cloud-azure-dependencies along with the above dependency. For more information, see the Getting started section of the Spring Cloud Azure developer guide.

Basic usage

The following sections show the classic Spring Boot application usage scenarios.

Important

Passwordless connection uses Microsoft Entra authentication. To use Microsoft Entra authentication, you should set the Microsoft Entra admin user first. Only a Microsoft Entra admin user can create and enable users for Microsoft Entra ID-based authentication. For more information, see Use Spring Data JDBC with Azure Database for PostgreSQL.

Connect to Azure PostgreSQL locally without password

  1. To create users and grant permission, see the Create a PostgreSQL non-admin user and grant permission section of Use Spring Data JDBC with Azure Database for PostgreSQL.

  2. Configure the following properties in your application.yml file:

    spring:
  datasource:
    url: jdbc:postgresql://${AZ_DATABASE_SERVER_NAME}.postgres.database.azure.com:5432/${AZ_DATABASE_NAME}?sslmode=require
    username: ${AZ_POSTGRESQL_AD_NON_ADMIN_USERNAME}
    azure:
      passwordless-enabled: true

Connect to Azure PostgreSQL using a service principal

  1. Assign role to service principal:

    1. Create a SQL script called create_ad_user_sp.sql for creating a non-admin user. Add the following contents and save it locally:

      Important

      Make sure <service-principal-name> already exists in your Microsoft Entra tenant, or you won't be able to create the non-admin user.

      cat << EOF > create_ad_user_sp.sql
select * from pgaadauth_create_principal('<service-principal-name>', false, false);
EOF

    2. Use the following command to run the SQL script to create the Microsoft Entra non-admin user:

      psql "host=$AZ_DATABASE_SERVER_NAME.postgres.database.azure.com user=$CURRENT_USERNAME@$AZ_DATABASE_SERVER_NAME dbname=postgres port=5432 password=$(az account get-access-token --resource-type oss-rdbms --output tsv --query accessToken) sslmode=require" < create_ad_user_sp.sql

    3. Now use the following command to remove the temporary SQL script file:

      rm create_ad_user_sp.sql

  2. Configure the following properties in your application.yml file:

    spring:
  cloud:
    azure:
      credential:
        client-id: ${AZURE_CLIENT_ID}
        client-secret: ${AZURE_CLIENT_SECRET}
      profile:
        tenant-id: <tenant>
  datasource:
    url: jdbc:postgresql://${AZ_DATABASE_SERVER_NAME}.postgres.database.azure.com:5432/${AZ_DATABASE_NAME}?sslmode=require
    username: ${AZ_POSTGRESQL_AD_SP_USERNAME}
    azure:
      passwordless-enabled: true

Note

The values allowed for tenant-id are: common, organizations, consumers, or the tenant ID. For more information about these values, see the Used the wrong endpoint (personal and organization accounts) section of Error AADSTS50020 - User account from identity provider does not exist in tenant. For information on converting your single-tenant app, see Convert single-tenant app to multitenant on Microsoft Entra ID.

Connect to Azure PostgreSQL with Managed Identity in Azure Spring Apps

  1. To enable managed identity, see the Assign the managed identity using the Azure portal section of Migrate an application to use passwordless connections with Azure Database for PostgreSQL.

  2. To grant permissions, see the Assign roles to the managed identity section of Migrate an application to use passwordless connections with Azure Database for PostgreSQL.

  3. Configure the following properties in your application.yml file:

    spring:
  cloud:
    azure:
      credential:
        managed-identity-enabled: true
        client-id: ${AZURE_CLIENT_ID}
  datasource:
    url: jdbc:postgresql://${AZ_DATABASE_SERVER_NAME}.postgres.database.azure.com:5432/${AZ_DATABASE_NAME}?sslmode=require
    username: ${AZ_POSTGRESQL_AD_MI_USERNAME}
    azure:
      passwordless-enabled: true

Note

For more information, see Tutorial: Deploy a Spring application to Azure Spring Apps with a passwordless connection to an Azure database

Samples

See the azure-spring-boot-samples repository on GitHub.
