Troubleshoot issues applying artifacts on DevTest Labs virtual machines

This article guides you through possible causes and troubleshooting steps for artifact failures on Azure DevTest Labs virtual machines (VMs).

Artifacts are tools, actions, or software you can install on lab VMs during or after VM creation. Lab owners can preselect mandatory artifacts to apply to all lab VMs at creation, and lab users can apply artifacts to VMs that they own.

There are several possible causes for artifacts failing to install or run correctly. When an artifact appears to stop responding, first try to determine where it's stuck. Artifact installation can be blocked during the initial request, or fail during request execution.

You can troubleshoot artifact failures from the Azure portal or from the VM where the artifact failed.

Troubleshoot artifact failures from the Azure portal

If you can't apply an artifact to a VM, first check the following in the Azure portal:

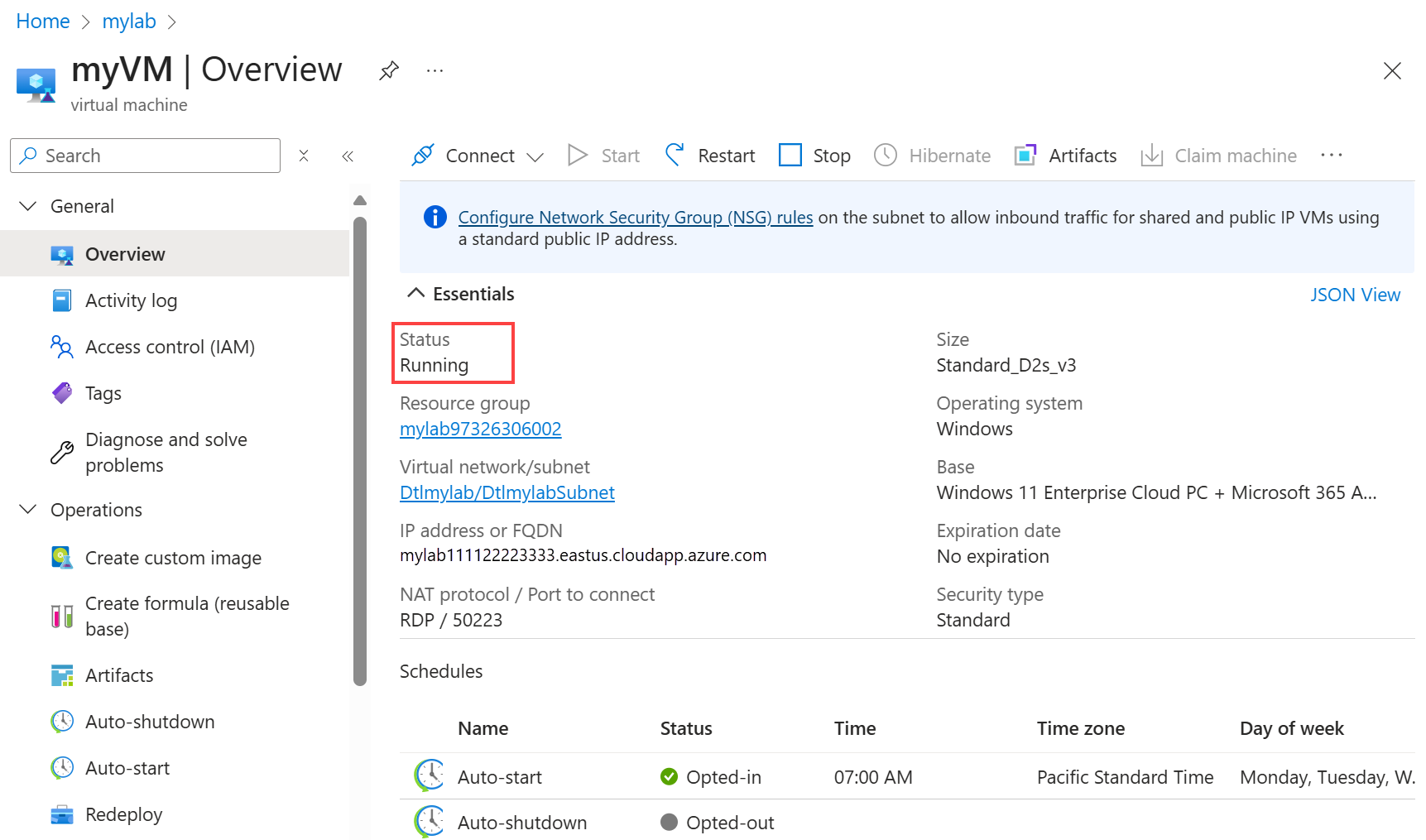

  • Make sure that the VM is running.

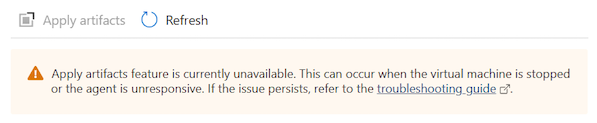

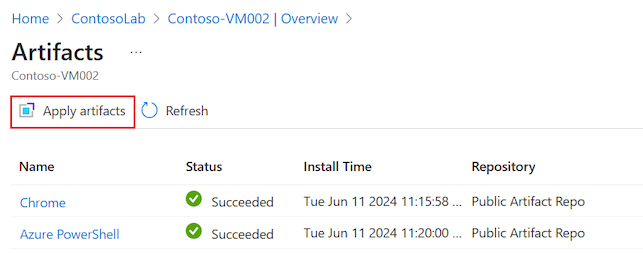

  • Navigate to the Artifacts page for the lab VM to make sure the VM is ready for applying artifacts. If the Apply artifacts feature isn't available, you see a message at the top of the page.

Use a PowerShell command

You can also use Azure PowerShell to determine whether the VM can apply artifacts. Inspect the flag canApplyArtifacts, which is returned when you expand on a GET operation. For example:

Select-AzSubscription -SubscriptionId $SubscriptionId | Out-Null
$vm = Get-AzResource `
        -Name "$LabName/$VmName" `
        -ResourceGroupName $LabRgName `
        -ResourceType 'microsoft.devtestlab/labs/virtualmachines' `
        -ApiVersion '2018-10-15-preview' `
        -ODataQuery '$expand=Properties($expand=ComputeVm)'
$vm.Properties.canApplyArtifacts

Investigate the failed artifact

An artifact can stop responding, and finally appear as Failed. To investigate failed artifacts:

  1. On your lab Overview page, from the list under My virtual machines, select the VM that has the artifact you want to investigate.

  2. On the VM Overview page, select Artifacts in the left navigation. The Artifacts page lists artifacts associated with the VM, and their status.

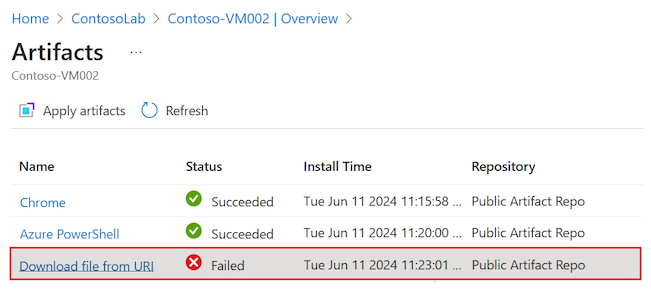

    Screenshot showing the list of artifacts and their status.

  3. Select the artifact that shows a Failed status. The artifact opens with an extension message that includes details about the artifact failure.

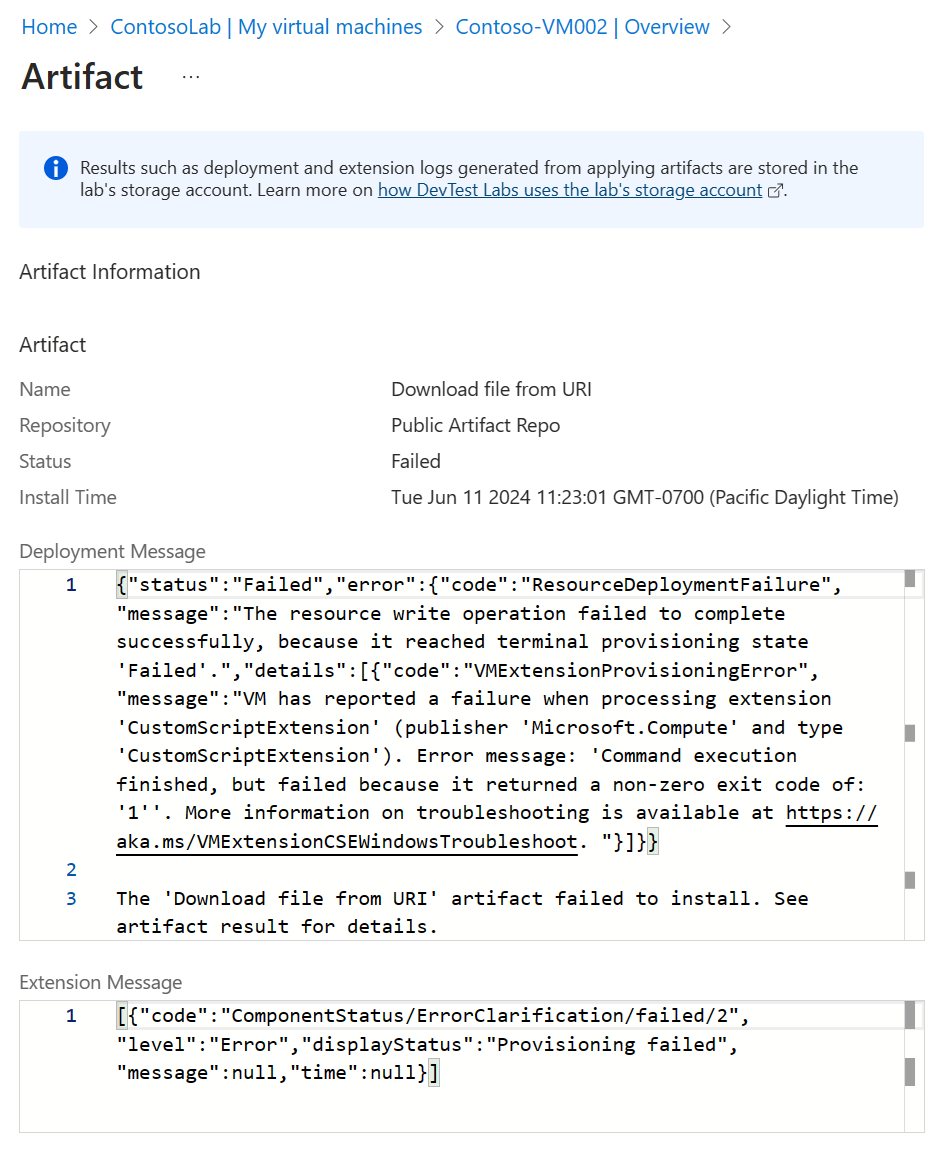

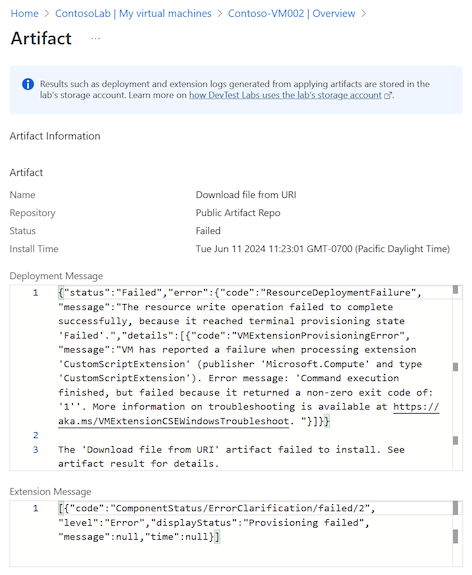

    Screenshot of the error message for a failed artifact.

Inspect the Activity logs

To install artifacts, DevTest Labs creates and deploys an Azure Resource Manager (ARM) template that requests use of the Custom Script Extension (CSE). An error at this level shows up in the Activity logs for the subscription and for the VM's resource group.

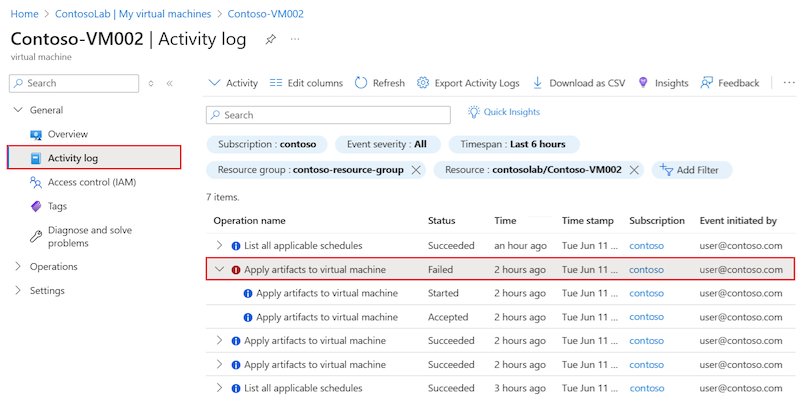

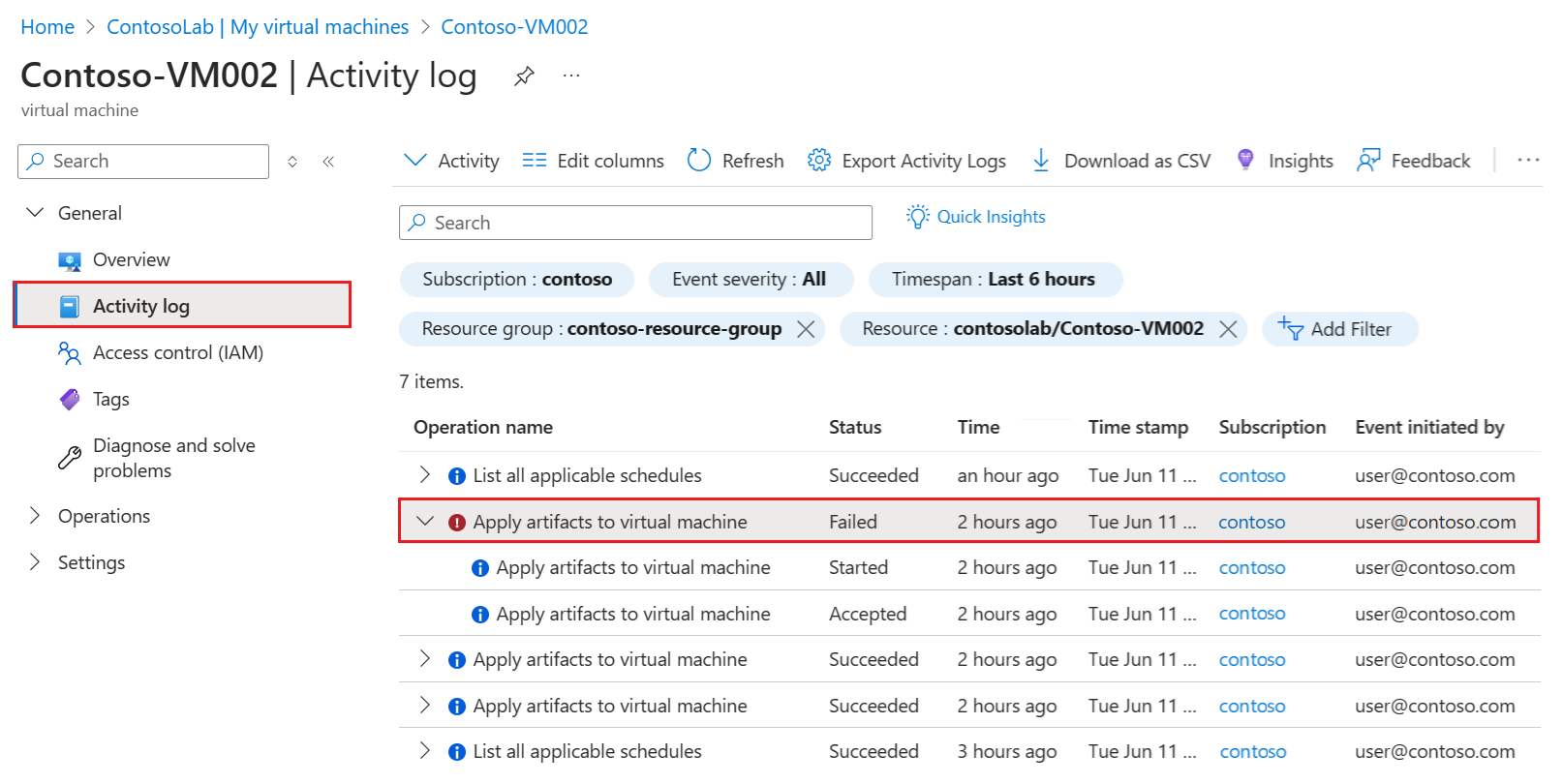

If an artifact failed to install, inspect the Activity log entries for either Create or Update Virtual Machine Extension, if you applied the artifact directly, or Create or Update Virtual Machine, if the artifact was being applied as part of VM creation. Look for failures under these entries. Sometimes you have to expand the entry to see the failure.

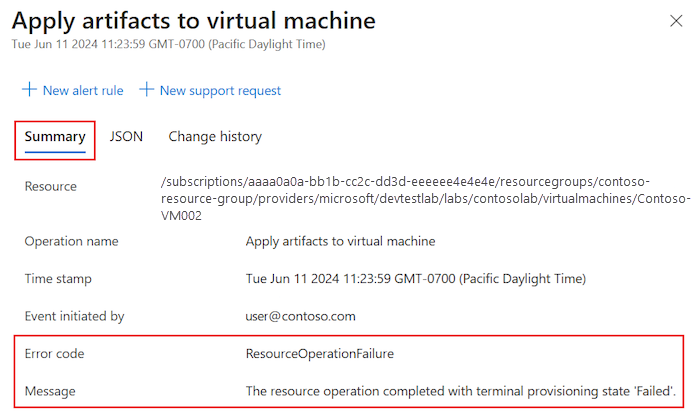

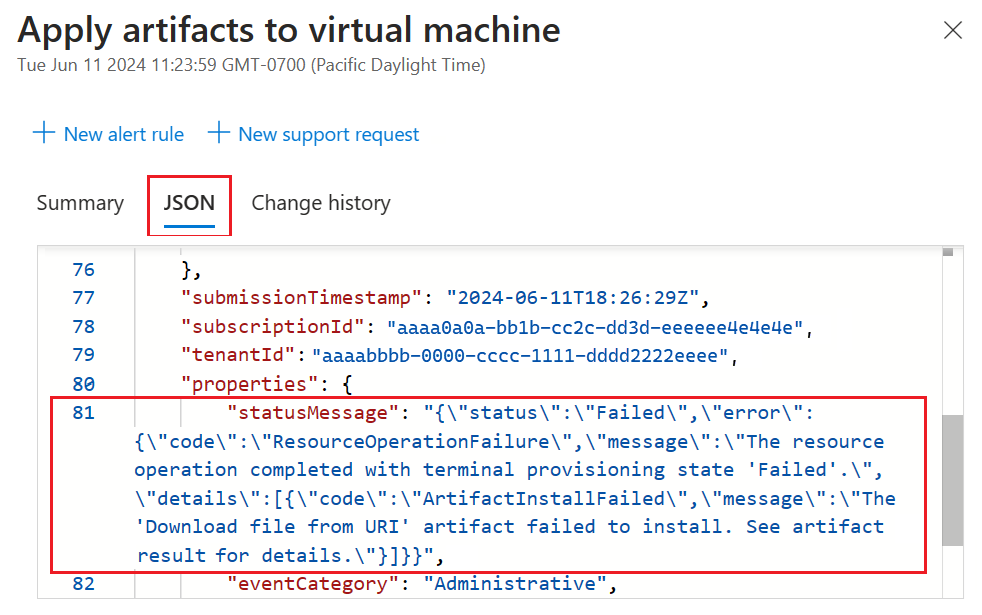

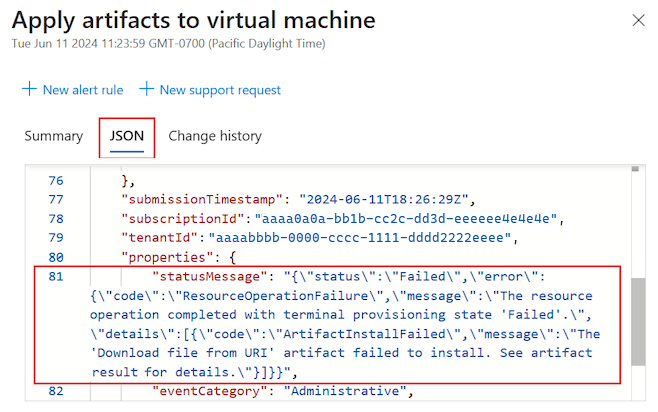

Select the failed entry to see the error details. On the failure page, select JSON to review the contents of the JSON payload. You can see the error at the end of the JSON document.

Investigate the private artifact repository and lab storage account

When DevTest Labs applies an artifact, it reads the artifact configuration and files from connected repositories. By default, DevTest Labs has access to the DevTest Labs public Artifact repository. You can also connect a lab to a private repository to access custom artifacts. If a custom artifact fails to install, make sure the personal access token (PAT) for the private repository hasn't expired. If the PAT is expired, the artifact won't be listed, and any scripts that refer to artifacts from that repository will fail.

Depending on configuration, lab VMs might not have direct access to the artifact repository. DevTest Labs caches the artifacts in a lab storage account that's created when the lab first initializes. If access to this storage account is blocked, such as when traffic is blocked from the VM to the Azure Storage service, you might see an error similar to this:

CSE Error: Failed to download all specified files. Exiting. Exception: Microsoft.WindowsAzure.Storage.StorageException: The remote server returned an error: (403) Forbidden. ---> System.Net.WebException: The remote server returned an error: (403) Forbidden.

This error appears in the Activity log of the VM's resource group.

To troubleshoot connectivity issues to the Azure Storage account:

  • Check for added network security groups (NSGs). If a subscription policy was added to automatically configure NSGs in all virtual networks, it would affect the virtual network used for creating lab VMs.

  • Verify NSG rules. Use IP flow verify to determine whether an NSG rule is blocking traffic to or from a VM. You can also review effective security group rules to ensure that an inbound Allow NSG rule exists. For more information, see Using effective security rules to troubleshoot VM traffic flow.

  • Check the lab's default storage account. The default storage account is the first storage account created when the lab was created. The name usually starts with the letter "a" and ends with a multi-digit number, such as a<labname>#.

    1. Navigate to the lab's resource group.

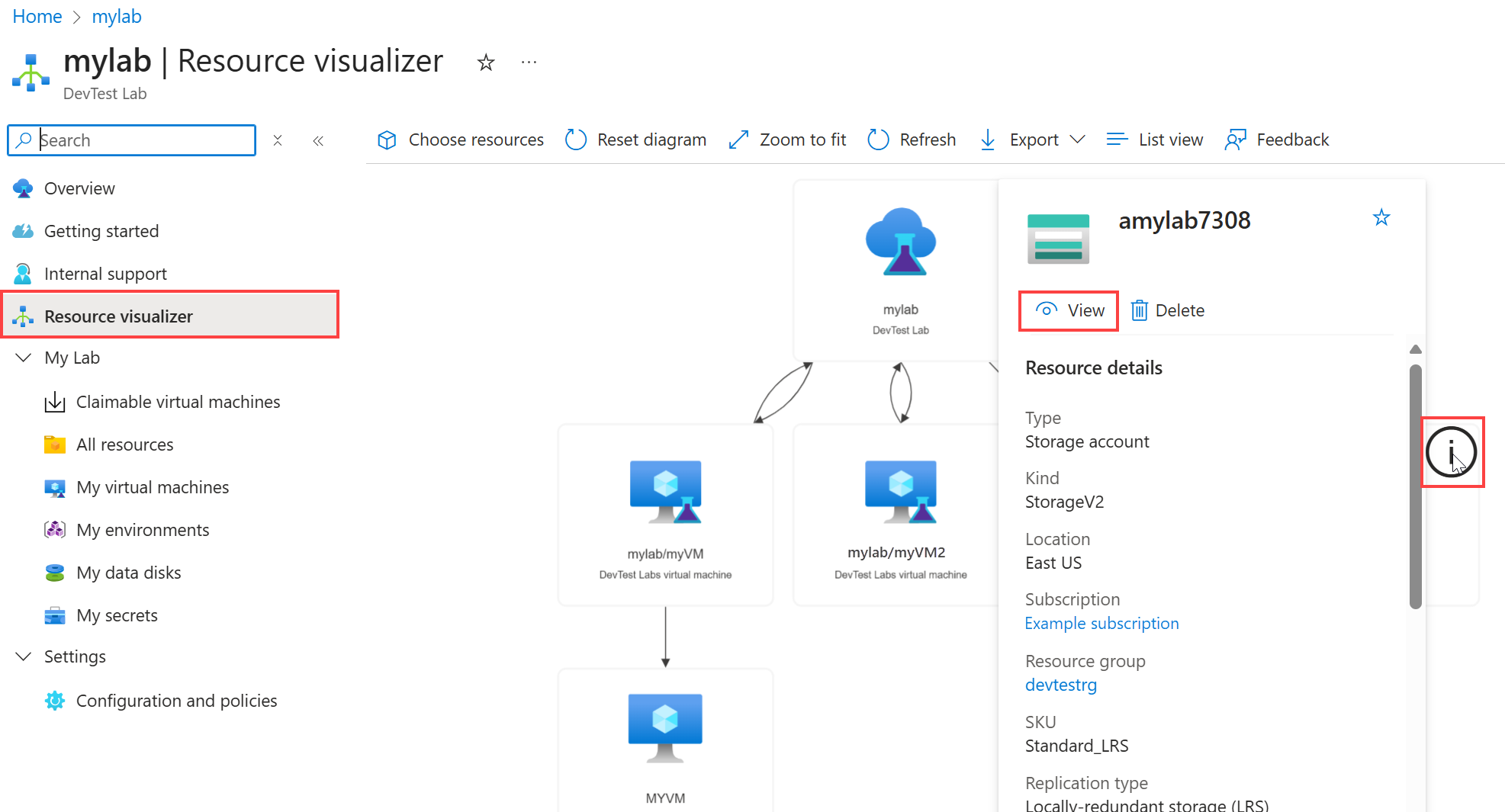

    2. Locate the resource of type Storage account whose name matches the convention.

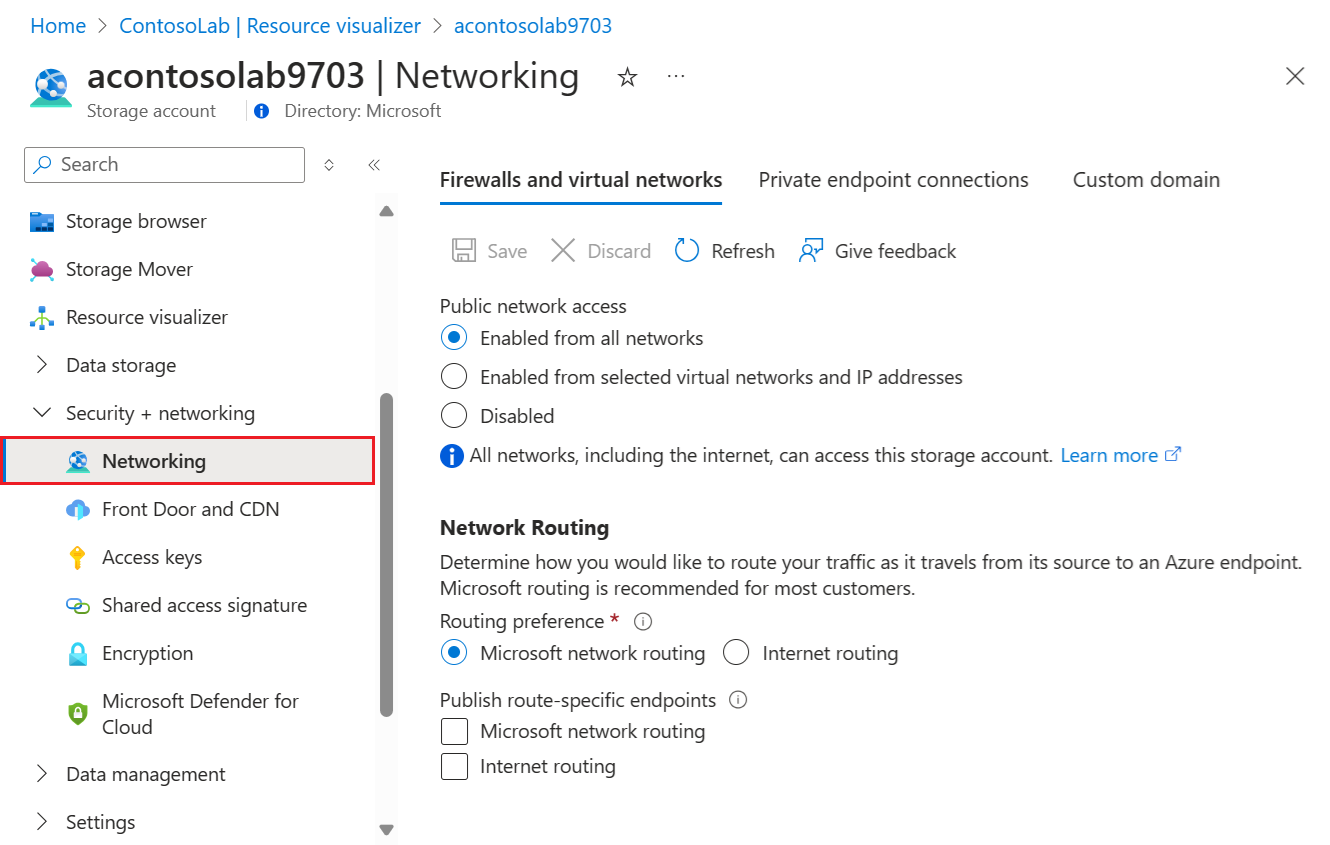

    3. On the storage account Overview page, select Firewalls and virtual networks in the left navigation.

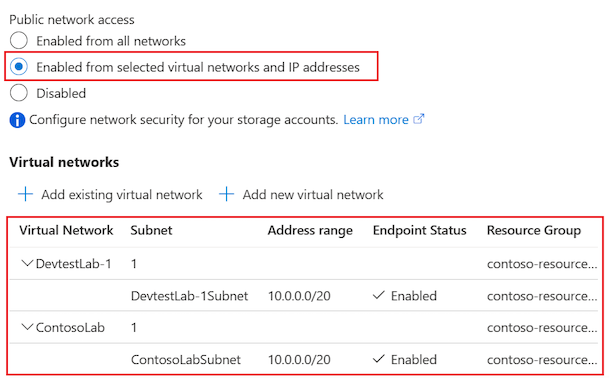

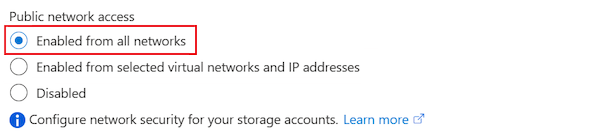

    4. Ensure that Firewalls and virtual networks is set to All networks. Or, if the Selected networks option is selected, make sure the lab's virtual networks used to create VMs are added to the list.

For in-depth troubleshooting, see Configure Azure Storage firewalls and virtual networks.

Troubleshoot artifact failures from the lab VM

You can connect to the lab VM where the artifact failed, and investigate the issue there.

Inspect the Custom Script Extension log file

  1. On the lab VM, go to C:\Packages\Plugins\Microsoft.Compute.CustomScriptExtension\*1.10.12*\Status\, where *1.10.12* is the CSE version number.

    Screenshot of the Status folder on the lab V M.

  2. Open and inspect the STATUS file to view the error.

For instructions on finding the log files on a Linux VM, see Use the Azure Custom Script Extension Version 2 with Linux virtual machines.

Check the VM Agent

Ensure that the Azure Virtual Machine Agent (VM Agent) is installed and ready.

When the VM first starts, or when the CSE first installs to serve the request to apply artifacts, the VM might need to either upgrade the VM Agent or wait for the VM Agent to initialize. The VM Agent might depend on services that take a long time to initialize. For further troubleshooting, see Azure Virtual Machine Agent overview.

To verify if the artifact appeared to stop responding because of the VM Agent:

  1. On the lab VM, navigate to C:\WindowsAzure\logs.

  2. Open the file WaAppAgent.log.

  3. Look for entries that show the VM Agent starting, finishing initialization, and the first sent heartbeat, around the time you experienced the artifact issue.

    [00000006] [11/14/2019 05:52:13.44] [INFO]  WindowsAzureGuestAgent starting. Version 2.7.41491.949
    ...
    [00000006] [11/14/2019 05:52:31.77] [WARN]  Waiting for OOBE to Complete ...
    ...
    [00000006] [11/14/2019 06:02:30.43] [WARN]  Waiting for OOBE to Complete ...
    [00000006] [11/14/2019 06:02:33.43] [INFO]  StateExecutor initialization completed.
    [00000020] [11/14/2019 06:02:33.43] [HEART] WindowsAzureGuestAgent Heartbeat.


In the previous example, the VM Agent took 10 minutes and 20 seconds to start. The cause was the OOBE service taking a long time to start.

For general information about Azure extensions, see Azure virtual machine extensions and features.

Investigate script issues

The artifact installation could fail because of the way the artifact installation script is authored. For example:

  • The script has mandatory parameters, but fails to pass a value, either by allowing the user to leave it blank, or because there's no default value in the artifactfile.json definition file. The script stops responding because it's awaiting user input.

  • The script requires user input as part of execution. Scripts should work silently without requiring user intervention.

To troubleshoot whether the script is causing the artifact to appear to stop responding:

  1. Copy the script to the VM, or locate it on the VM in the artifact script download location, C:\Packages\Plugins\Microsoft.Compute.CustomScriptExtension\1.10.12\Downloads.
  2. Using an administrative command prompt, run the script on the VM, providing the same parameter values that caused the issue.
  3. Determine if the script shows any unwanted behavior. If so, request an update, or correct the script.

Tip

You can submit proposed script corrections for artifacts hosted in the DevTest Labs public repository. For details, see the Contributions section in the README document.

Note

A custom artifact needs to have the proper structure. For information about how to correctly construct an artifact, see Create custom artifacts. For an example of a properly structured artifact, see the Test parameter types artifact.

For more information about writing and correcting artifact scripts, see AUTHORING.

Next steps

If you need more help, try one of the following support channels:

  • Contact the Azure DevTest Labs experts on the MSDN Azure and Stack Overflow forums.
  • Get answers from Azure experts through Azure Forums.
  • Connect with @AzureSupport, the official Microsoft Azure account for improving customer experience. Azure Support connects the Azure community to answers, support, and experts.
  • Go to the Azure support site and select Get Support to file an Azure support incident.
