Azure Front Door logs

Azure Front Door provides different logging to help you track, monitor, and debug your Front Door.

  • Access logs have detailed information about every request that AFD receives and help you analyze and monitor access patterns, and debug issues.
  • Activity logs provide visibility into the operations done on Azure resources.
  • Health Probe logs provides the logs for every failed probe to your origin.
  • Web Application Firewall (WAF) logs provide detailed information of requests that gets logged through either detection or prevention mode of an Azure Front Door endpoint. A custom domain that gets configured with WAF can also be viewed through these logs.

Access Logs, health probe logs and WAF logs aren't enabled by default. Use the steps below to enable logging. Activity log entries are collected by default, and you can view them in the Azure portal. Logs can have delays up to a few minutes.

You have three options for storing your logs:

  • Storage account: Storage accounts are best used for scenarios when logs are stored for a longer duration and reviewed when needed.
  • Event hubs: Event hubs are a great option for integrating with other security information and event management (SIEM) tools or external data stores. For example: Splunk/DataDog/Sumo.
  • Azure Log Analytics: Azure Log Analytics in Azure Monitor is best used for general real-time monitoring and analysis of Azure Front Door performance.

Configure Logs

  1. Sign in to the Azure portal.

  2. Search for Azure Front Door and select the Azure Front Door profile.

  3. In the profile, go to Monitoring, select Diagnostic Setting. Select Add diagnostic setting.

    Screenshot of diagnostic settings landing page.

  4. Under Diagnostic settings, enter a name for Diagnostic settings name.

  5. Select the log from FrontDoorAccessLog, FrontDoorHealthProbeLog, and FrontDoorWebApplicationFirewallLog.

  6. Select the Destination details. Destination options are:

    • Send to Log Analytics
      • Select the Subscription and Log Analytics workspace.
    • Archive to a storage account
      • Select the Subscription and the Storage Account. and set Retention (days).
    • Stream to an event hub
      • Select the Subscription, Event hub namespace, Event hub name (optional), and Event hub policy name.

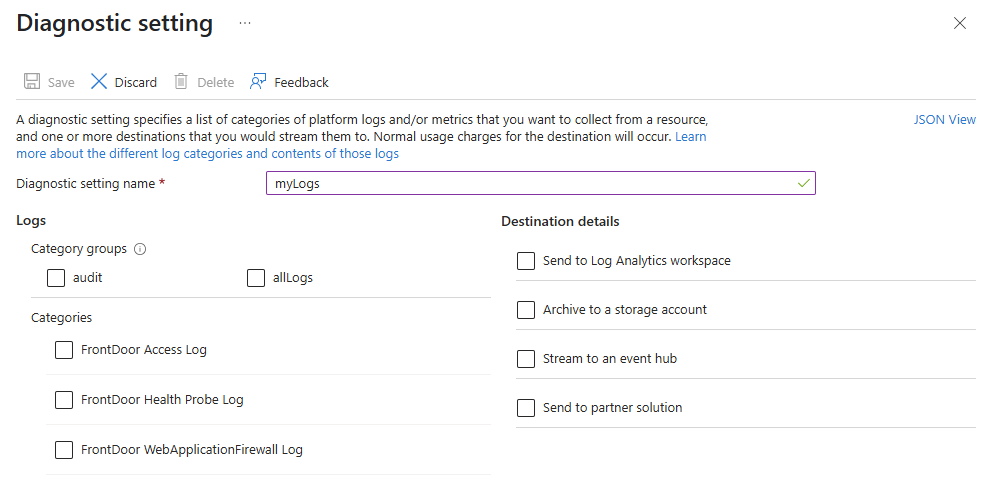

    Screenshot of diagnostic settings page.

  7. Click on Save.

Access Log

Azure Front Door currently provides individual API requests with each entry having the following schema and logged in JSON format as shown below.

Property Description
TrackingReference The unique reference string that identifies a request served by AFD, also sent as X-Azure-Ref header to the client. Required for searching details in the access logs for a specific request.
Time The date and time when the AFD edge delivered requested contents to client (in UTC).
HttpMethod HTTP method used by the request: DELETE, GET, HEAD, OPTIONS, PATCH, POST, or PUT.
HttpVersion The HTTP version that the viewer specified in the request.
RequestUri URI of the received request. This field is a full scheme, port, domain, path, and query string
HostName The host name in the request from client. If you enable custom domains and have wildcard domain (*.contoso.com), hostname is a.contoso.com. if you use Azure Front Door domain (contoso.azurefd.net), hostname is contoso.azurefd.net.
RequestBytes The size of the HTTP request message in bytes, including the request headers and the request body. The number of bytes of data that the viewer included in the request, including headers.
ResponseBytes Bytes sent by the backend server as the response.
UserAgent The browser type that the client used.
ClientIp The IP address of the client that made the original request. If there was an X-Forwarded-For header in the request, then the Client IP is picked from the same.
SocketIp The IP address of the direct connection to AFD edge. If the client used an HTTP proxy or a load balancer to send the request, the value of SocketIp is the IP address of the proxy or load balancer.
timeTaken The length of time from the time AFD edge server receives a client's request to the time that AFD sends the last byte of response to client, in milliseconds. This field doesn't take into account network latency and TCP buffering.
RequestProtocol The protocol that the client specified in the request: HTTP, HTTPS.
SecurityProtocol The TLS/SSL protocol version used by the request or null if no encryption. Possible values include: SSLv3, TLSv1, TLSv1.1, TLSv1.2
SecurityCipher When the value for Request Protocol is HTTPS, this field indicates the TLS/SSL cipher negotiated by the client and AFD for encryption.
Endpoint The domain name of AFD endpoint, for example, contoso.z01.azurefd.net
HttpStatusCode The HTTP status code returned from Azure Front Door. If a request to the the origin timeout, the value for HttpStatusCode is set to 0.
Pop The edge pop, which responded to the user request.
Cache Status Provides the status code of how the request gets handled by the CDN service when it comes to caching. Possible values are HIT: The HTTP request was served from AFD edge POP cache.
MISS: The HTTP request was served from origin.
PARTIAL_HIT: Some of the bytes from a request got served from AFD edge POP cache while some of the bytes got served from origin for object chunking scenarios.
CACHE_NOCONFIG: Forwarding requests without caching settings, including bypass scenario.
PRIVATE_NOSTORE: No cache configured in caching settings by customers.
REMOTE_HIT: The request was served by parent node cache.
N/A:** Request that was denied by Signed URL and Rules Set.
MatchedRulesSetName The names of the rules that were processed.
RouteName  The name of the route that the request matched.
ClientPort The IP port of the client that made the request.
Referrer The URL of the site that originated the request.
TimetoFirstByte The length of time in milliseconds from AFD receives the request to the time the first byte gets sent to client, as measured on Azure Front Door. This property doesn't measure the client data.
ErrorInfo This field provides detailed info of the error token for each response.
NoError: Indicates no error was found.
CertificateError: Generic SSL certificate error.
CertificateNameCheckFailed: The host name in the SSL certificate is invalid or doesn't match.
ClientDisconnected: Request failure because of client network connection.
ClientGeoBlocked: The client was blocked due geographical location of the IP.
UnspecifiedClientError: Generic client error.
InvalidRequest: Invalid request. It might occur because of malformed header, body, and URL.
DNSFailure: DNS Failure.
DNSTimeout: The DNS query to resolve the backend timed out.
DNSNameNotResolved: The server name or address couldn't be resolved.
OriginConnectionAborted: The connection with the origin was disconnected abnormally.
OriginConnectionError: Generic origin connection error.
OriginConnectionRefused: The connection with the origin wasn't established.
OriginError: Generic origin error.
OriginInvalidRequest: An invalid request was sent to the origin.
ResponseHeaderTooBig: The origin returned a too large of a response header.
OriginInvalidResponse:** Origin returned an invalid or unrecognized response.
OriginTimeout: The timeout period for origin request expired.
ResponseHeaderTooBig: The origin returned a too large of a response header.
RestrictedIP: The request was blocked because of restricted IP.
SSLHandshakeError: Unable to establish connection with origin because of SSL hand shake failure.
SSLInvalidRootCA: The RootCA was invalid.
SSLInvalidCipher: Cipher was invalid for which the HTTPS connection was established.
OriginConnectionAborted: The connection with the origin was disconnected abnormally.
OriginConnectionRefused: The connection with the origin wasn't established.
UnspecifiedError: An error occurred that didn’t fit in any of the errors in the table.
OriginURL The full URL of the origin where requests are being sent. Composed of the scheme, host header, port, path, and query string.
URL rewrite: If there's a URL rewrite rule in Rule Set, path refers to rewritten path.
Cache on edge POP If it's a cache hit on edge POP, the origin is N/A.
Large request If the requested content is large with multiple chunked requests going back to the origin, this field will correspond to the first request to the origin. For more information, see Object Chunking for more details.
OriginIP The origin IP that served the request.
Cache hit on edge POP If it's a cache hit on edge POP, the origin is N/A.
Large request If the requested content is large with multiple chunked requests going back to the origin, this field will correspond to the first request to the origin. For more information, see Object Chunking for more details.
OriginName The full DNS name (hostname in origin URL) to the origin.
Cache hit on edge POP If it's a cache hit on edge POP, the origin is N/A.
Large request If the requested content is large with multiple chunked requests going back to the origin, this field will correspond to the first request to the origin. For more information, see Object Chunking for more details.

Health Probe Log

Health probe logs provide logging for every failed probe to help you diagnose your origin. The logs will provide you information that you can use to bring the origin back to service. Some scenarios this log can be useful for are:

  • You noticed Azure Front Door traffic was sent to some of the origins. For example, only three out of four origins receiving traffic. You want to know if the origins are receiving probes and if not the reason for the failure. 

  • You noticed the origin health % is lower than expected and want to know which origin failed and the reason of the failure.

Health Probe Log Properties

Each health probe log has the following schema.

Property Description
HealthProbeId A unique ID to identify the request.
Time Probe complete time
HttpMethod HTTP method used by the health probe request. Values include GET and HEAD, based on health probe configurations.
Result Status of health probe to origin, value includes success, and other error text.
HttpStatusCode The HTTP status code returned from the origin.
ProbeURL (target) The full URL of the origin where requests are being sent. Composed of the scheme, host header, path, and query string.
OriginName The origin where requests are being sent. This field helps locate origins of interest if origin is configured to FDQN.
POP The edge pop, which sent out the probe request.
Origin IP Target origin IP. This field is useful in locating origins of interest if you configure origin using FDQN.
TotalLatency The time from AFDX edge sends the request to origin to the time origin sends the last response to AFDX edge.
ConnectionLatency Duration Time spent on setting up the TCP connection to send the HTTP Probe request to origin.
DNSResolution Latency Duration Time spent on DNS resolution if the origin is configured to be an FDQN instead of IP. N/A if the origin is configured to IP.

Health Probe Log Sample in JSON

{ "records": [ { "time": "2021-02-02T07:15:37.3640748Z", "resourceId": "/SUBSCRIPTIONS/27CAFCA8-B9A4-4264-B399-45D0C9CCA1AB/RESOURCEGROUPS/AFDXPRIVATEPREVIEW/PROVIDERS/MICROSOFT.CDN/PROFILES/AFDXPRIVATEPREVIEW-JESSIE", "category": "FrontDoorHealthProbeLog", "operationName": "Microsoft.Cdn/Profiles/FrontDoorHealthProbeLog/Write", "properties": { "healthProbeId": "9642AEA07BA64675A0A7AD214ACF746E", "POP": "MAA", "httpVerb": "HEAD", "result": "OriginError", "httpStatusCode": "400", "probeURL": "http://afdxprivatepreview.blob.core.windows.net:80/", "originName": "afdxprivatepreview.blob.core.windows.net", "originIP": "52.239.224.228:80", "totalLatencyMilliseconds": "141", "connectionLatencyMilliseconds": "68", "DNSLatencyMicroseconds": "1814" } } ] }

Activity Logs

Activity logs provide information about the operations done on Azure Front Door Standard/Premium. The logs include details about what, who and when a write operation was done on Azure Front Door.

Note

Activity logs don't include GET operations. They also don't include operations that you perform by using either the Azure portal or the original Management API.

Access activity logs in your Front Door or all the logs of your Azure resources in Azure Monitor.

To view activity logs:

  1. Select your Front Door profile.

  2. Select Activity log.

  3. Choose a filtering scope and then select Apply.
