Set up DNS load balancing across Azure Kubernetes Fleet Manager member clusters (preview)

2025-05-12

Azure Kubernetes Fleet Manager DNS load balancing can help increase availability and spread load across a workload deployed across multiple member clusters. As this capability is delivered via DNS, it can be used to provide layer 4 and 7 load balancing as required.

Follow the steps in this document to set up DNS-based load balancing for multi-cluster applications hosted in your fleet.

Important

Azure Kubernetes Fleet Manager preview features are available on a self-service, opt-in basis. Previews are provided "as is" and "as available," and they're excluded from the service-level agreements and limited warranty. Azure Kubernetes Fleet Manager previews are partially covered by customer support on a best-effort basis. As such, these features aren't meant for production use.

Our data plane networking previews are released via our networking.fleet.azure.com/v1beta1 API. If you don't see preview objects, check that you're requesting the networking.fleet.azure.com/v1beta1 API when you interact with the Fleet Manager hub cluster.

Prerequisites

If you don't have an Azure account, create a free account before you begin.

Read the conceptual overview of this feature, which provides an explanation of TrafficManagerProfile and TrafficManagerBackend objects referenced in this document.
A Kubernetes Fleet Manager with a hub cluster and managed identity. If you don't have one, see Create an Azure Kubernetes Fleet Manager and join member clusters by using the Azure CLI.
Two member clusters aks-member-1 and aks-member-2 onto which you deploy the same workload using Fleet Manager's cluster resource placement (CRP).
The user completing the configuration has permissions to perform Azure role assignments and to access the Fleet Manager hub cluster Kubernetes API. For more information, see Access the Kubernetes API for more details.
An existing Azure resource group which will host the provisioned Azure Traffic Manager resource.

Set the following environment variables:

export SUBSCRIPTION_ID=<subscription>
export GROUP=<resource-group>
export FLEET=<fleet-name>
export MEMBER_CLUSTER_1=aks-member-1
export MEMBER_CLUSTER_2=aks-member-2
export TRAFFIC_MANAGER_GROUP=rg-flt-tm-demo
export TRAFFIC_MANAGER_RG_ID="/subscriptions/${SUBSCRIPTION_ID}/resourceGroups/${TRAFFIC_MANAGER_GROUP}

Obtain the credentials to access the Fleet Manager hub cluster Kubernetes API:

az fleet get-credentials \
    --resource-group ${GROUP} \
    --name ${FLEET}

Configure Fleet Manager permissions

During preview, you need to perform extra steps to enable Fleet Manager to create and manage Azure Traffic Manager resources and to obtain public IP addresses of services exposed on member clusters.

In order to complete this step, you must create your Fleet Manager with managed identity enabled. Your user must have Azure RBAC role assignment permissions.

Obtain the identity information of your Fleet Manager resource.

az fleet show \
    --resource-group ${GROUP} \
    --name ${FLEET} \
    --query identity

Your output should look similar to the example output:

{
  "principalId": "<FLEET-PRINCIPAL-ID>",
  "tenantId": "<ENTRA-ID-TENANT>",
  "type": "SystemAssigned",
  "userAssignedIdentities": null
}

Assign the Traffic Manager Contributor role to the Fleet Manager hub cluster identity, limiting the scope to the existing resource group where the Traffic Manager resource is created.
```
az role assignment create \
    --assignee "<FLEET-PRINCIPAL-ID>" \
    --role "Traffic Manager Contributor" \
    --scope ${TRAFFIC_MANAGER_RG_ID}
```
The Fleet Manager hub cluster identity also needs the Azure Reader role for any member cluster so Fleet Manager can read the public IP address for member clusters when they're added to a TrafficMangerBackend via a ServiceExport.
```
az role assignment create \
    --assignee "<FLEET-PRINCIPAL-ID>" \
    --role "Reader" \
    --scope /full/path/to/member-cluster
```

Deploy a workload across member clusters of the Fleet resource

Note

The steps in this how-to guide refer to a sample application for demonstration purposes only. You can substitute this workload for any of your own existing Deployment and Service objects.
These steps deploy the sample workload from the Fleet Manager hub cluster to member clusters using Fleet Manager's cluster resource placement (CRP). Alternatively, you can choose to deploy these Kubernetes configurations to each member cluster separately, one at a time.

Create a namespace on the Fleet Manager hub cluster.
```
kubectl create namespace kuard-demo
```
Output looks similar to:
```
namespace/kuard-demo created
```

Stage the Deployment, Service, ServiceExport objects to the Fleet Manager hub cluster by saving the following into a file called kuard-export-service.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kuard
  namespace: kuard-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: kuard
  template:
    metadata:
      labels:
        app: kuard
    spec:
      containers:
        - name: kuard
          image: gcr.io/kuar-demo/kuard-amd64:blue
          resources:
            requests:
              cpu: 100m
              memory: 128Mi
            limits:
              cpu: 250m
              memory: 256Mi
---
apiVersion: v1
kind: Service
metadata:
  name: kuard-svc
  namespace: kuard-demo
  labels:
    app: kuard
spec:
  selector:
    app: kuard
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
  type: LoadBalancer
---
apiVersion: networking.fleet.azure.com/v1alpha1
kind: ServiceExport
metadata:
  name: kuard-export
  namespace: kuard-demo
  annotations:
    networking.fleet.azure.com/weight: "50"

Stage the objects on the Fleet Manager hub cluster:

kubectl apply -f kuard-export-service.yaml

The ServiceExport specification in the sample allows you to export a service from member clusters to the Fleet Manager hub cluster. We want to split the traffic evenly between the two clusters so we set the ServiceExport weight annotation to 50. Once successfully exported, the service and all its endpoints are synced to the Fleet Manager hub cluster and can then be used to set up DNS load balancing across these endpoints. The output looks similar to the following example:

deployment.apps/kuard created
service/kuard-svc created
serviceexport.networking.fleet.azure.com/kuard-export created

Each service needs a unique DNS label so that it can be exposed via Azure Traffic Manager. Use a Fleet Manager cluster resource placement ResourceOverride to modify the service definition per member cluster to create a unique name based on the Azure region and cluster name. You need to create an override per cluster selector (in our example, per Azure region).

apiVersion: placement.kubernetes-fleet.io/v1alpha1
kind: ResourceOverride
metadata:
 name: ro-kuard-demo-eastus
 namespace: kuard-demo
spec:
 placement:
   name: crp-kuard-demo
 resourceSelectors:
   -  group: ""
      kind: Service
      version: v1
      name: kuard-svc
 policy:
   overrideRules:
     - clusterSelector:
         clusterSelectorTerms:
           - labelSelector:
               matchLabels:
                 fleet.azure.com/location: eastus
       jsonPatchOverrides:
         - op: add
           path: /metadata/annotations
           value:
             {"service.beta.kubernetes.io/azure-dns-label-name":"fleet-${MEMBER-CLUSTER-NAME}-eastus"}

Note

"${MEMBER-CLUSTER-NAME}" is a resource placement override reserved variable which is replaced with the name of the member cluster at run time.

kubectl apply -f ro-kuard-demo-eastus.yaml

Create the following Fleet Manager cluster resource placement (CRP) in a file called crp-dns-demo.yaml. Notice we're selecting a maximum of two clusters in the eastus region:

apiVersion: placement.kubernetes-fleet.io/v1
kind: ClusterResourcePlacement
metadata:
  name: crp-dns-demo
spec:
  resourceSelectors:
    - group: ""
      version: v1
      kind: Namespace
      name: kuard-demo
  policy:
    placementType: PickN
    numberOfClusters: 2
    affinity:
      clusterAffinity:
        requiredDuringSchedulingIgnoredDuringExecution:
          clusterSelectorTerms:
            - labelSelector:
                matchLabels:
                  fleet.azure.com/location: eastus

Apply the CRP:

kubectl apply -f crp-dns-demo.yaml

If successful, the output looks similar to:

clusterresourceplacement.placement.kubernetes-fleet.io/crp-dns-demo created

Configure DNS load balancing with Azure Traffic Manager

Define the TrafficManagerProfile to define the parameters to be used by Traffic Manager and save it to the file kuard-atm-demo.yaml.

apiVersion: networking.fleet.azure.com/v1beta1
kind: TrafficManagerProfile
metadata:
  name: kuard-atm-demo
  namespace: kuard-demo
spec:
  resourceGroup: "rg-flt-tm-demo"
  monitorConfig:
    port: 80

Apply the configuration:

kubectl apply -f kuard-atm-demo.yaml

Define a corresponding TrafficManagerBackend that is used to group together exported Service entries from member clusters.

apiVersion: networking.fleet.azure.com/v1beta1
kind: TrafficManagerBackend
metadata:
  name: kuard-atm-demo-backend
  namespace: kuard-demo
spec:
  profile:
    name: "kuard-atm-demo"
  backend:
    name: "kuard-svc"
  weight: 100

Apply the configuration:

kubectl apply -f kuard-atm-demo-backend.yaml

Verify the service is available via Azure Traffic Manager by running the following command:

nslookup kuard-atm-demo.trafficmanager.net

The output should look similar to the following example:

Server:         10.X.X.254
Address:        10.X.X.254#53

Non-authoritative answer:
Name:   kuard-atm-demo.trafficmanger.net
Address: 123.X.X.16
Name:   kuard-atm-demo.trafficmanger.net
Address: 74.X.X.78
Name:   kuard-atm-demo.trafficmanger.net
Address: 173.X.X.164

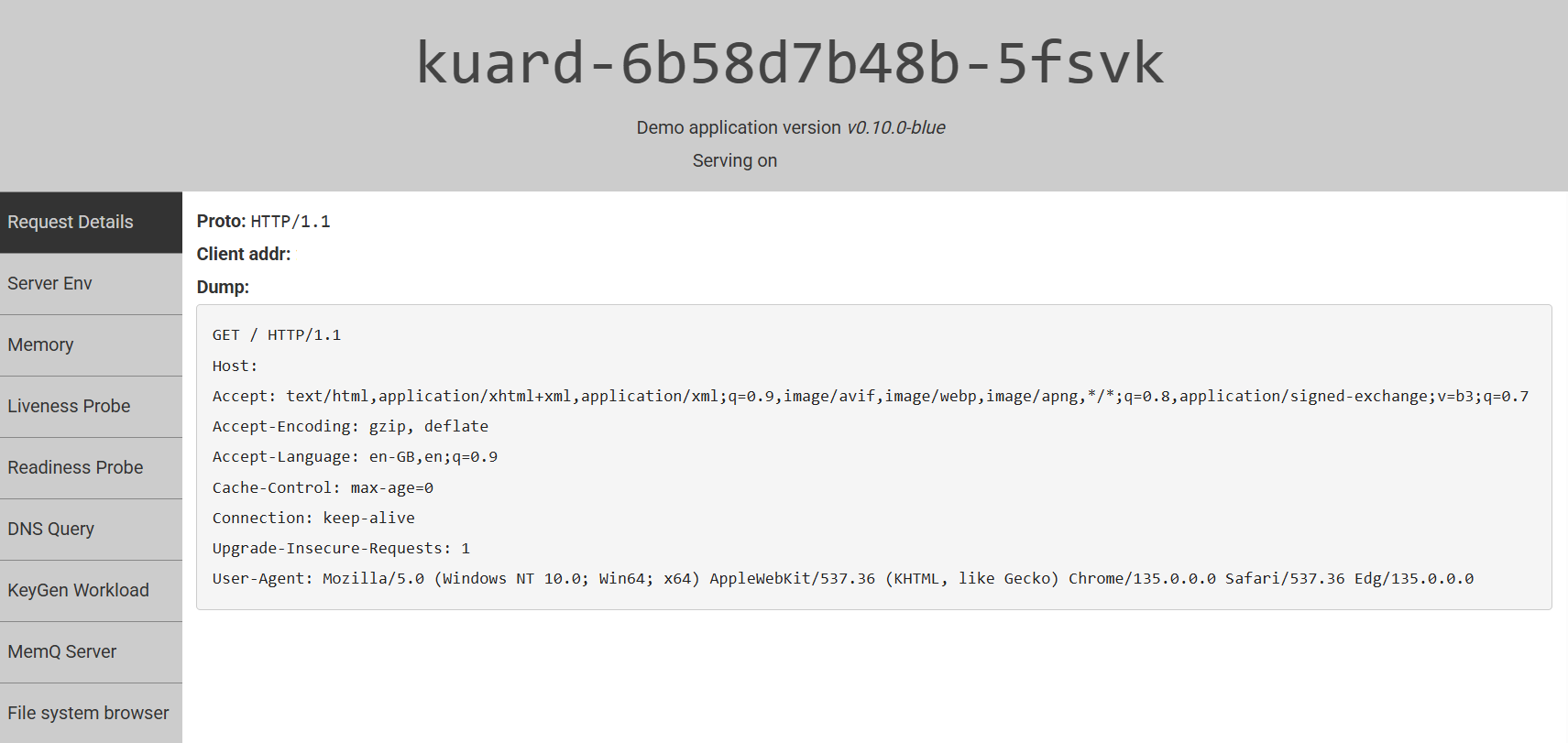

Use a web browser to visit the URL and see how Kuard responds. Try flushing your DNS and retrying to see if you're served another service instance from another cluster.
