Outbound-only load balancer configuration

Use a combination of internal and external standard load balancers to create outbound connectivity for VMs behind an internal load balancer.

This configuration provides outbound NAT for an internal load balancer scenario, producing an "egress only" setup for your backend pool.

Note

Azure Virtual Network NAT is the recommended configuration for outbound connectivity in production deployments. For more information about Virtual Network NAT and the NAT gateway resource, see What is Azure Virtual Network NAT?.

To deploy an outbound only load balancer configuration with Azure Virtual Network NAT and a NAT gateway, see Tutorial: Integrate NAT gateway with an internal load balancer - Azure portal.

For more information about outbound connections in Azure and default outbound access, see Source Network Address Translation (SNAT) for outbound connections and Default outbound access.

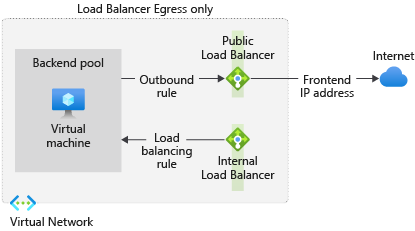

Figure depicts a egress only load balancer configuration

Figure: Egress only load balancer configuration

Prerequisites

Create virtual network and load balancers

In this section, you'll create a virtual network and subnet for the load balancers and the virtual machine. You'll next create the load balancers.

Create the virtual network

In this section, you'll create the virtual network and subnets for the virtual machine, load balancer, and bastion host.

  1. In the search box at the top of the portal, enter Virtual network. Select Virtual Networks in the search results.

  2. In Virtual networks, select + Create.

  3. In Create virtual network, enter or select this information in the Basics tab:

    Setting Value
    Project Details
    Subscription Select your Azure subscription
    Resource Group Select Create new.
    In Name enter myResourceGroupLB.
    Select OK.
    Instance details
    Name Enter myVNet
    Region Select (US) East US 2
  4. Select the IP Addresses tab or select the Next: IP Addresses button at the bottom of the page.

  5. In the IP Addresses tab, enter this information:

    Setting Value
    IPv4 address space Enter 10.1.0.0/16
  6. Under Subnet name, select the word default.

  7. In Edit subnet, enter this information:

    Setting Value
    Subnet name Enter myBackendSubnet
    Subnet address range Enter 10.1.0.0/24
  8. Select Save.

  9. Select the Security tab.

  10. Under BastionHost, select Enable. Enter this information:

    Setting Value
    Bastion name Enter myBastionHost
    AzureBastionSubnet address space Enter 10.1.1.0/27
    Public IP Address Select Create new.
    For Name, enter myBastionIP.
    Select OK.
  11. Select the Review + create tab or select the Review + create button.

  12. Select Create.

Create internal load balancer

In this section, you'll create the internal load balancer.

  1. In the search box at the top of the portal, enter Load balancer. Select Load balancers in the search results.

  2. In the Load balancer page, select Create.

  3. In the Basics tab of the Create load balancer page, enter, or select the following information:

    Setting Value
    Project details
    Subscription Select your subscription.
    Resource group Select myResourceGroupLB.
    Instance details
    Name Enter myInternalLoadBalancer
    Region Select (US) East US 2.
    Type Select Internal.
    SKU Leave the default Standard.
  4. Select Next: Frontend IP configuration at the bottom of the page.

  5. In Frontend IP configuration, select + Add a frontend IP.

  6. Enter LoadBalancerFrontend in Name.

  7. Select myBackendSubnet in Subnet.

  8. Select Dynamic for Assignment.

  9. Select Zone-redundant in Availability zone.

    Note

    In regions with Availability Zones, you have the option to select no-zone (default option), a specific zone, or zone-redundant. The choice will depend on your specific domain failure requirements. In regions without Availability Zones, this field won't appear.
    For more information on availability zones, see Availability zones overview.

  10. Select Add.

  11. Select Next: Backend pools at the bottom of the page.

  12. In the Backend pools tab, select + Add a backend pool.

  13. Enter myInternalBackendPool for Name in Add backend pool.

  14. Select NIC or IP Address for Backend Pool Configuration.

  15. Select IPv4 or IPv6 for IP version.

  16. Select Add.

  17. Select the blue Review + create button at the bottom of the page.

  18. Select Create.

Create public load balancer

In this section, you'll create the public load balancer.

  1. In the search box at the top of the portal, enter Load balancer. Select Load balancers in the search results.

  2. In the Load balancer page, select Create.

  3. In the Basics tab of the Create load balancer page, enter, or select the following information:

    Setting Value
    Project details
    Subscription Select your subscription.
    Resource group Select myResourceGroupLB.
    Instance details
    Name Enter myPublicLoadBalancer
    Region Select (US) East US 2.
    Type Select Public.
    SKU Leave the default Standard.
    Tier Leave the default Regional.
  4. Select Next: Frontend IP configuration at the bottom of the page.

  5. In Frontend IP configuration, select + Add a frontend IP.

  6. Enter LoadBalancerFrontend in Name.

  7. Select IPv4 or IPv6 for the IP version.

    Note

    IPv6 isn't currently supported with Routing Preference or Cross-region load-balancing (Global Tier).

  8. Select IP address for the IP type.

    Note

    For more information on IP prefixes, see Azure Public IP address prefix.

  9. Select Create new in Public IP address.

  10. In Add a public IP address, enter myPublicIP for Name.

  11. Select Zone-redundant in Availability zone.

    Note

    In regions with Availability Zones, you have the option to select no-zone (default option), a specific zone, or zone-redundant. The choice will depend on your specific domain failure requirements. In regions without Availability Zones, this field won't appear.
    For more information on availability zones, see Availability zones overview.

  12. Leave the default of Microsoft Network for Routing preference.

  13. Select OK.

  14. Select Add.

  15. Select Next: Backend pools at the bottom of the page.

  16. In the Backend pools tab, select + Add a backend pool.

  17. Enter myPublicBackendPool for Name in Add backend pool.

  18. Select myVNet in Virtual network.

  19. Select NIC or IP Address for Backend Pool Configuration.

  20. Select IPv4 or IPv6 for IP version.

  21. Select Add.

  22. Select the blue Review + create button at the bottom of the page.

  23. Select Create.

Create virtual machine

You'll create a virtual machine in this section. During creation, you'll add it to the backend pool of the internal load balancer. After the virtual machine is created, you'll add the virtual machine to the backend pool of the public load balancer.

  1. In the search box at the top of the portal, enter Virtual machine. Select Virtual machines in the search results.

  2. In Virtual machines, select + Create > Virtual machine.

  3. In Create a virtual machine, enter or select the values in the Basics tab:

    Setting Value
    Project Details
    Subscription Select your Azure subscription
    Resource Group Select myResourceGroupLB
    Instance details
    Virtual machine name Enter myVM
    Region Select (US) East US 2
    Availability Options Select No infrastructure redundancy required
    Image Select Windows Server 2019 Datacenter - Gen1
    Azure Spot instance Leave the default of unchecked.
    Size Choose VM size or take default setting
    Administrator account
    Username Enter a username
    Password Enter a password
    Confirm password Reenter password
    Inbound port rules
    Public inbound ports Select None
  4. Select the Networking tab, or select Next: Disks, then Next: Networking.

  5. In the Networking tab, select or enter:

    Setting Value
    Network interface
    Virtual network myVNet
    Subnet myBackendSubnet
    Public IP Select None.
    NIC network security group Select Advanced
    Configure network security group Leave the default of Basic.
    Load balancing
    Place this virtual machine behind an existing load-balancing solution? Select the box.
    Load balancing settings
    Load-balancing options Select Azure load balancing
    Select a load balancer Select myInternalLoadBalancer
    Select a backend pool Select myInternalBackendPool
  6. Select Review + create.

  7. Review the settings, and then select Create.

Add VM to backend pool of public load balancer

In this section, you'll add the virtual machine you created previously to the backend pool of the public load balancer.

  1. In the search box at the top of the portal, enter Load balancer. Select Load balancers in the search results.

  2. Select myPublicLoadBalancer.

  3. Select Backend pools in Settings in myPublicLoadBalancer.

  4. Select myPublicBackendPool under Backend pool in the Backend pools page.

  5. In myPublicBackendPool, select myVNet in Virtual network.

  6. In Virtual machines, select the blue + Add button.

  7. Select the box next to myVM in Add virtual machines to backend pool.

  8. Select Add.

  9. Select Save.

Test connectivity before outbound rule

  1. In the search box at the top of the portal, enter Virtual machine. Select Virtual machines in the search results.

  2. Select myVM.

  3. In the Overview page, select Connect, then Bastion.

  4. Enter the username and password entered during VM creation.

  5. Select Connect.

  6. Open Internet Explorer.

  7. Enter https://whatsmyip.org in the address bar.

  8. The connection should fail. By default, standard public load balancer doesn't allow outbound traffic without a defined outbound rule.

Create a public load balancer outbound rule

  1. In the search box at the top of the portal, enter Load balancer. Select Load balancers in the search results.

  2. Select myPublicLoadBalancer.

  3. Select Outbound rules in Settings in myPublicLoadBalancer.

  4. Select + Add in Outbound rules.

  5. Enter or select the following information to configure the outbound rule.

    Setting Value
    Name Enter myOutboundRule.
    Frontend IP address Select LoadBalancerFrontEnd.
    Protocol Leave the default of All.
    Idle timeout (minutes) Move slider to 15 minutes.
    TCP Reset Select Enabled.
    Backend pool Select myPublicBackendPool.
    Port allocation
    Port allocation Select Manually choose number of outbound ports.
    Outbound ports
    Choose by Select Ports per instance.
    Ports per instance Enter 10000
  6. Select Add.

Test connectivity after outbound rule

  1. In the search box at the top of the portal, enter Virtual machine. Select Virtual machines in the search results.

  2. Select myVM.

  3. On the Overview page, select Connect, then Bastion.

  4. Enter the username and password entered during VM creation.

  5. Select Connect.

  6. Open Internet Explorer.

  7. Enter https://whatsmyip.org in the address bar.

  8. The connection should succeed.

  9. The IP address displayed should be the frontend IP address of myPublicLoadBalancer.

Clean up resources

When no longer needed, delete the resource group, load balancers, VM, and all related resources.

To do so, select the resource group myResourceGroupLB and then select Delete.

Next steps

In this article, you created an "egress only" configuration with a combination of public and internal load balancers.

This configuration allows you to load balance incoming internal traffic to your backend pool while still preventing any public inbound connections.

For more information about Azure Load Balancer and Azure Bastion, see What is Azure Load Balancer? and What is Azure Bastion?.
