Manage Azure resources and monitor costs by creating automation tasks (preview)

Important

This capability is in preview and is subject to the Supplemental Terms of Use for Microsoft Azure Previews.

To help you manage Azure resources more easily, you can create automated management tasks for a specific resource or resource group. These tasks vary in number and availability, based on the resource type. For example, for an Azure storage account, you can set up an automation task that sends the monthly cost for that storage account. For an Azure virtual machine, you can create an automation task that turns on or turns off that virtual machine on a predefined schedule.

You can create an automation task from a specific automation task template. The following table lists the currently supported resource types and available task templates in this preview:

Resource type Automation task templates
All Azure resources Send monthly cost for resource
Azure virtual machines Additionally:

- Power off Virtual Machine
- Start Virtual Machine
- Deallocate Virtual Machine
Azure storage accounts Additionally:

- Delete old blobs
Azure Cosmos DB Additionally,

- Send query result via email

This article shows you how to complete the following tasks:

How do automation tasks differ from Azure Automation?

Automation tasks are more basic and lightweight than Azure Automation. Currently, you can create an automation task only at the Azure resource level. Behind the scenes, an automation task is actually a logic app resource that runs a workflow. This logic app workflow is powered by the multi-tenant Azure Logic Apps service. After you create the automation task, you can view and edit the underlying workflow by opening the task in the workflow designer. After a task finishes at least one run, you can review the run's status, history, inputs, and outputs.

By comparison, Azure Automation is a cloud-based automation and configuration service that supports consistent management across your Azure and non-Azure environments. The service comprises process automation for orchestrating processes that uses runbooks, configuration management with change tracking and inventory, update management, shared capabilities, and heterogeneous features. Automation gives you complete control during deployment, operations, and decommissioning of workloads and resources.

Pricing

When you create an automation task, charges don't start automatically incurring. Underneath, an automation task is powered by a workflow in a logic app resource that's hosted in multi-tenant Azure Logic Apps. So, the Consumption pricing model applies to automation tasks. Metering and billing are based on the trigger and action executions in the underlying logic app workflow.

Executions are metered and billed, regardless whether the workflow runs successfully or whether the workflow is even instantiated. For example, suppose your automation task uses a polling trigger that regularly makes an outgoing call to an endpoint. This outbound request is metered and billed as an execution, regardless whether the trigger fires or is skipped, which affects whether a workflow instance is created.

Triggers and actions follow Consumption plan rates, which differ based on whether these operations are "built-in" or "managed" (Standard or Enterprise). Triggers and actions also make storage transactions, which use the Consumption plan data rate.

Note

As a monthly bonus, the Consumption plan includes several thousand built-in executions free of charge. For specific information, review the Consumption plan rates.

Prerequisites

  • An Azure account and subscription. If you don't have a subscription, sign up for a free Azure account.

  • The Azure resource that you want to manage. This article uses an Azure storage account as the example.

  • An Office 365 account if you want to follow along with the example, which sends email by using Office 365 Outlook.

Create an automation task

  1. In the Azure portal, find the resource that you want to manage.

  2. On the resource navigation menu, in the Automation section, and select Tasks (preview).

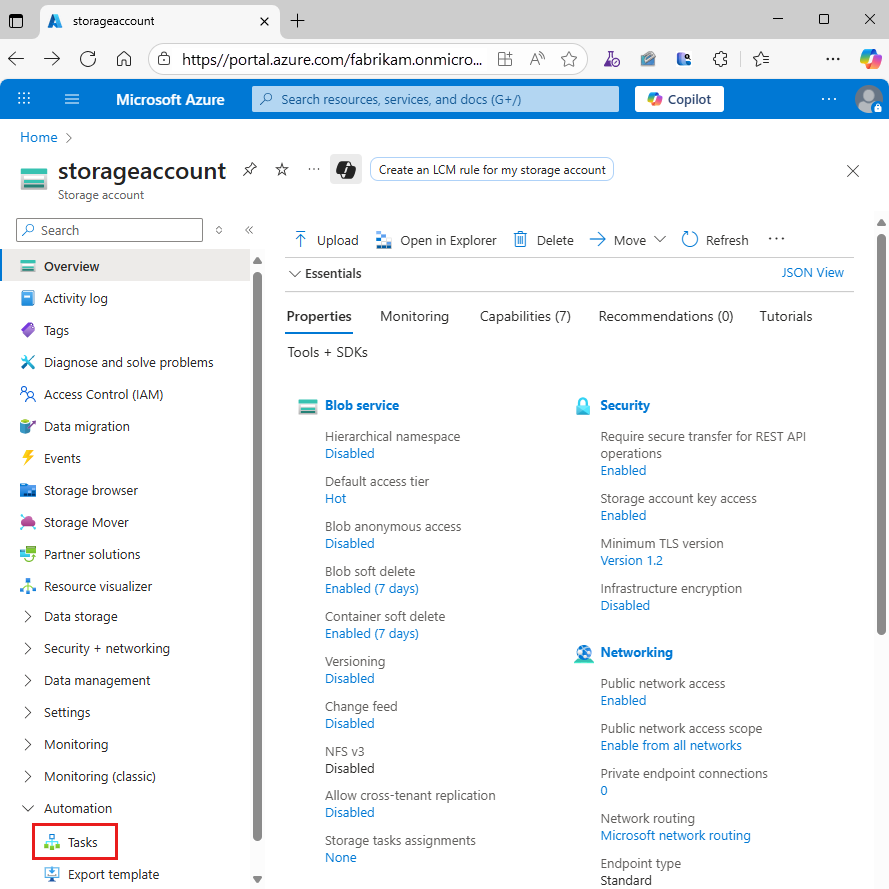

    Screenshot that shows the Azure portal and storage account resource menu with "Tasks (preview)" selected.

  3. On the Tasks pane, select Add a task so that you can select a task template.

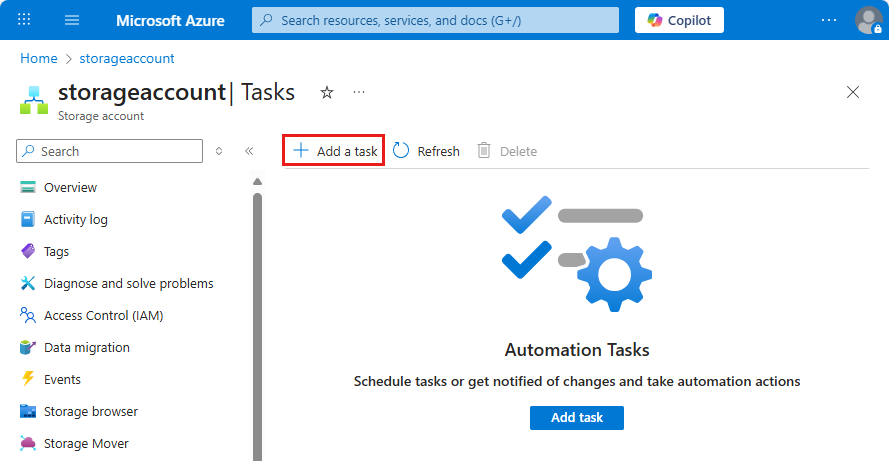

    Screenshot that shows the "Tasks (preview)" pane with "Add a task" selected.

  4. On the Add a task pane, under Select a template, in the template for the replication task that you want to create, select Select. If the next page doesn't appear, select Next: Authenticate.

    This example continues by selecting the Send monthly cost for resource task template.

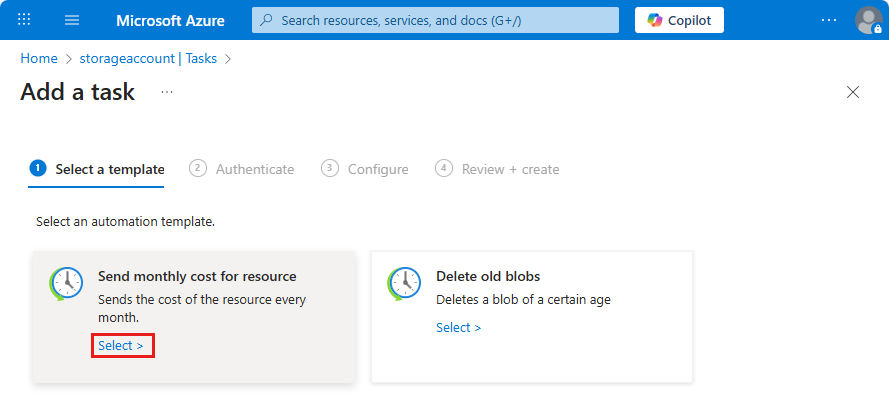

    Screenshot that shows the "Add a task" pane with "Send monthly cost for resource" template selected.

  5. Under Authenticate, in the Connections section, select Create for every connection that appears in the task so that you can provide authentication credentials for all the connections. The types of connections in each task vary based on the task.

    This example shows only one of the connections that's required by this task.

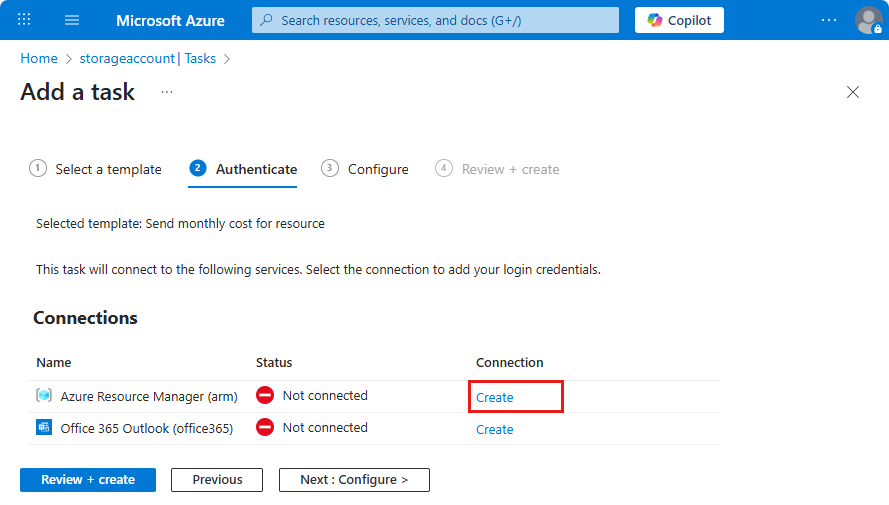

    Screenshot that shows the selected "Create" option for the Azure Resource Manager connection.

  6. When you're prompted, sign in with your Azure account credentials.

    Screenshot that shows the selection, "Sign in".

    Each successfully authenticated connection looks similar to this example:

    Screenshot that shows successfully created connection.

  7. After you authenticate all the connections, select Next: Configure if the next page doesn't appear.

  8. Under Configure, provide a name for the task and any other information required for the task. When you're done, select Review + create.

    Note

    You can't change the task name after creation, so consider a name that still applies if you edit the underlying workflow. Changes that you make to the underlying workflow apply only to the task that you created, not the task template.

    For example, if you name your task SendMonthlyCost, but you later edit the underlying workflow to run weekly, you can't change your task's name to SendWeeklyCost.

    Tasks that send email notifications require an email address.

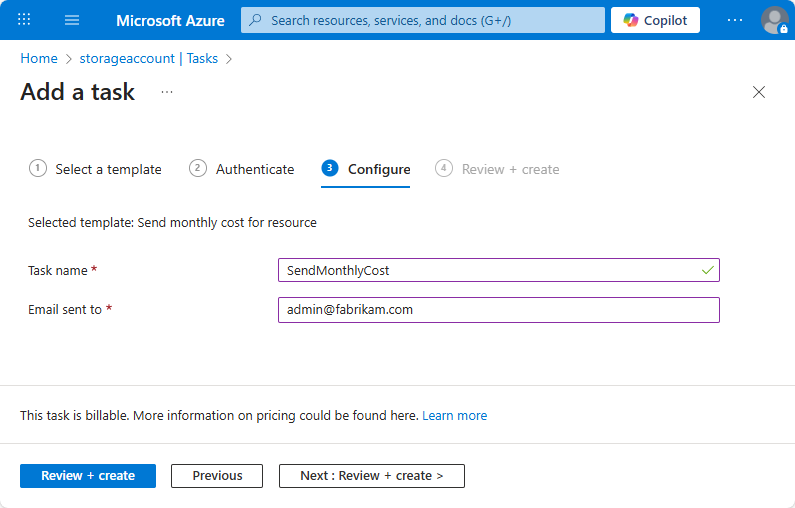

    Screenshot that shows the required information for the selected task.

    The task that you created, which is automatically live and running, now appears on the Tasks list.

    Screenshot that shows the automation tasks list

    Tip

    If the task doesn't appear immediately, try refreshing the tasks list or wait a little before you refresh. On the toolbar, select Refresh.

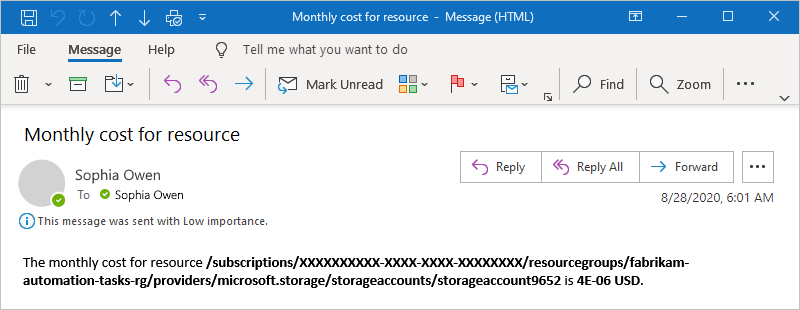

    After the selected task runs, you get an email that looks like this example:

    Screenshot that shows email notification sent by task.

Review task history

To view a task's history of runs along with their statuses, inputs, outputs, and other information, follow these steps:

  1. In the Azure portal, find the resource that has the task history that you want to review.

  2. On the resource's menu, under Settings, in the Automation section, select Tasks (preview).

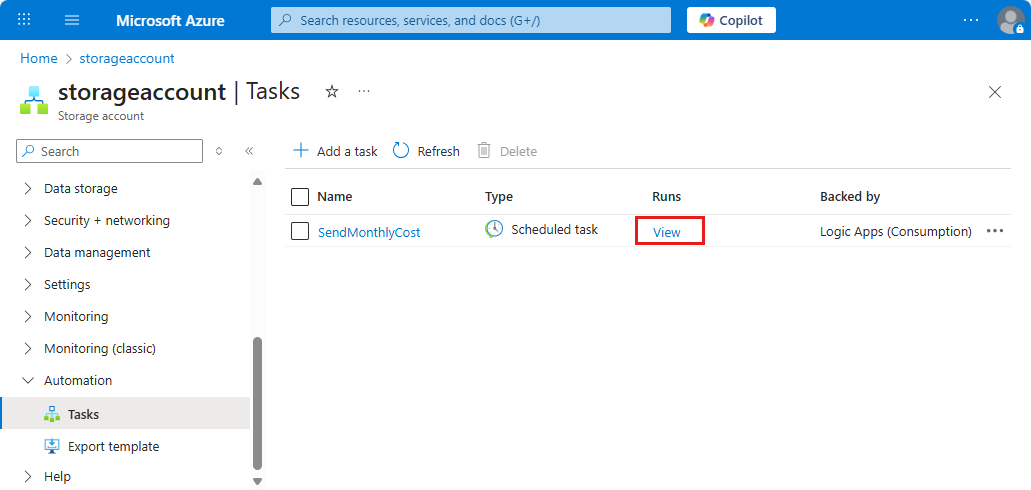

  3. In the tasks list, find the task that you want to review. In that task's Runs column, select View.

    Screenshot that shows a task and the selected "View" option.

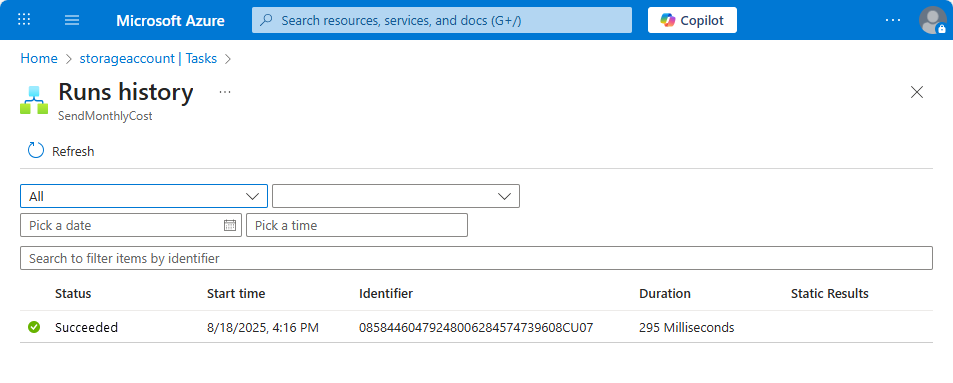

    The Runs history pane shows all the runs for the task along with their statuses, start times, identifiers, and run durations.

    Screenshot that shows a task's runs, their statuses, and other information.

    Here the possible statuses for a run:

    Status Description
    Cancelled The task was canceled while running.
    Failed The task has at least one failed action, but no subsequent actions existed to handle the failure.
    Running The task is currently running.
    Succeeded All actions succeeded. A task can still finish successfully if an action failed, but a subsequent action existed to handle the failure.
    Waiting The run hasn't started yet and is paused because an earlier instance of the task is still running.

    For more information, see Review runs history in monitoring view.

  4. To view the statuses and other information for each step in a run, select that run.

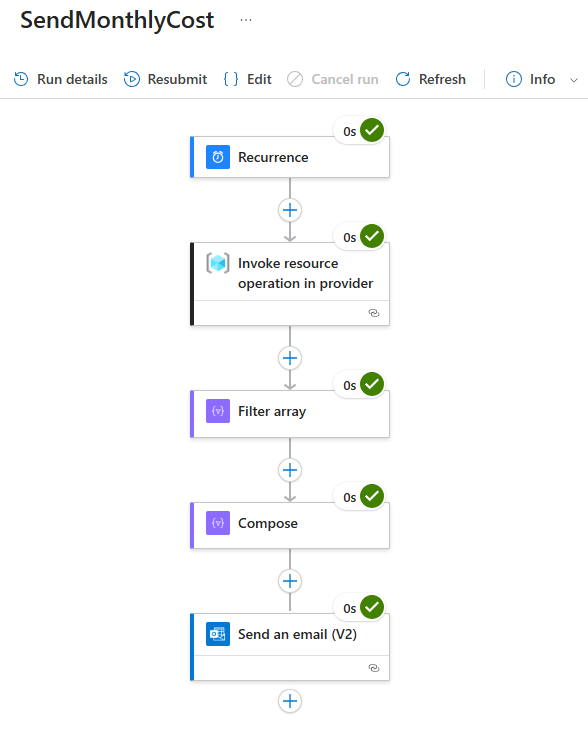

    The Logic app run pane opens and shows the underlying workflow that ran.

    • A workflow always starts with a trigger. For this task, the workflow starts with the Recurrence trigger.

    • Each step shows its status and run duration. Steps that have 0-second durations took less than 1 second to run.

    Screenshot that shows each step in the run, status, and run duration.

  5. To review the inputs and outputs for each step, select the step, which expands.

    This example shows the inputs for the Recurrence trigger, which has no outputs because the trigger only specifies when the workflow runs and provides no outputs for the subsequent actions to process.

    Screenshot that shows the expanded trigger and inputs.

    In contrast, the Send an email action has inputs from earlier actions in the workflow and outputs.

    Screenshot that shows an expanded action, inputs, and outputs.

To learn how you can build your own automated workflows so that you can integrate apps, data, services, and systems apart from the context of automation tasks for Azure resources, see Quickstart: Create your first integration workflow by using Azure Logic Apps - Azure portal.

Edit the task

To change a task, you have these options:

Edit the task inline

  1. In the Azure portal, find the resource that has the task that you want to update.

  2. On the resource navigation menu, in the Automation section, select Tasks (preview).

  3. In the tasks list, find the task that you want to update. Open the task's ellipses (...) menu, and select Edit in-line.

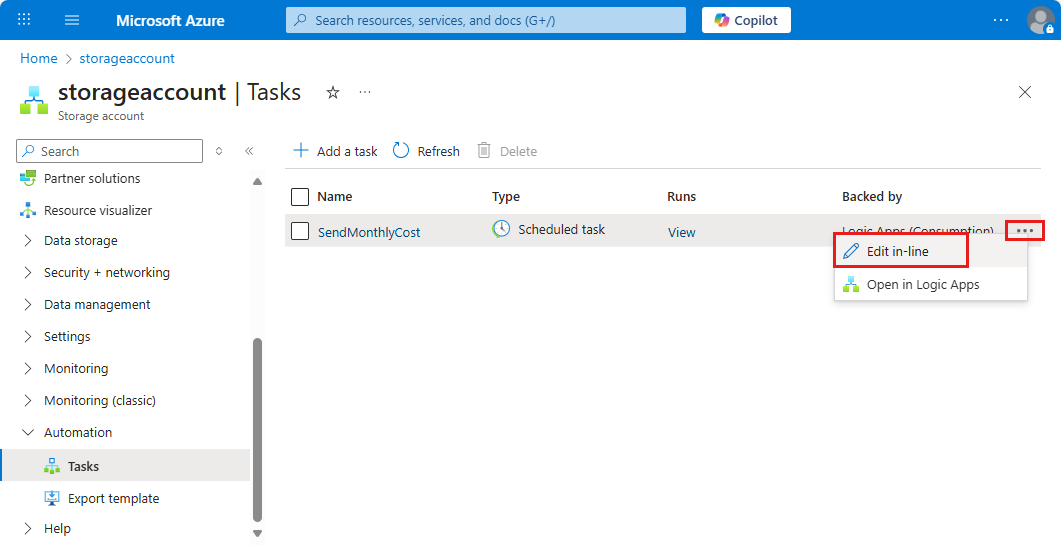

    Screenshot that shows the opened ellipses menu and the selected option, "Edit in-line".

    By default, the Authenticate tab appears and shows the existing connections.

  4. To add new authentication credentials or select different existing authentication credentials for a connection, open the connection's ellipses (...) menu, and select either Add new connection or if available, different authentication credentials.

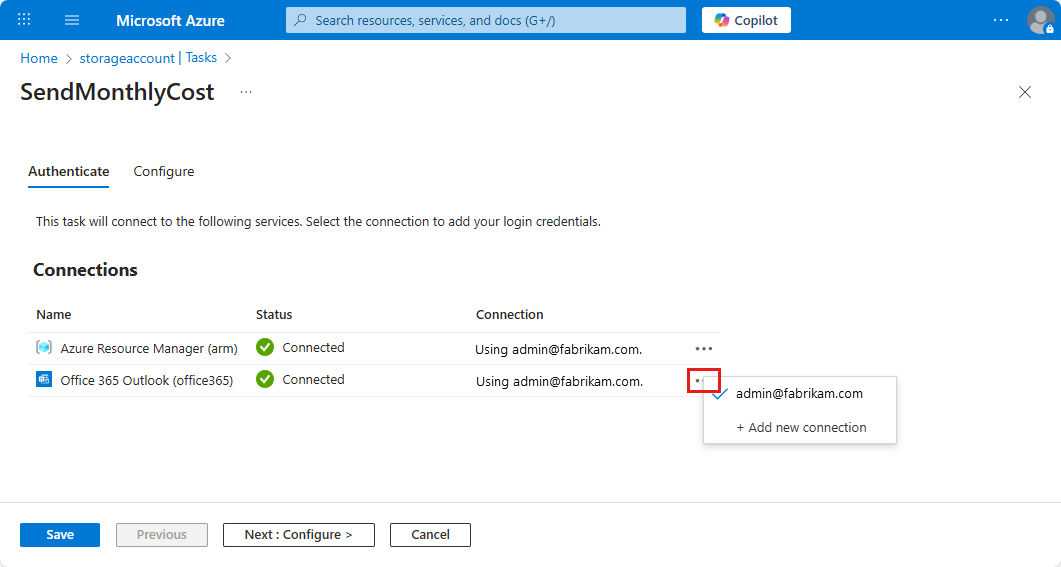

    Screenshot that shows the Authentication tab, existing connections, and the selected ellipses menu.

  5. To update other task properties, select Next: Configure.

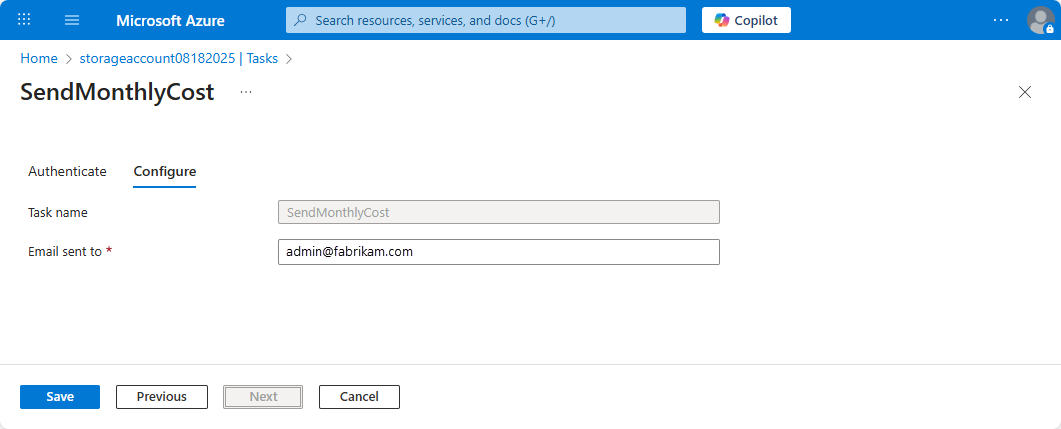

    For the task in this example, the only property available for edit is the email address.

    Screenshot that shows the "Configure" tab.

  6. When you're done, select Save.

Edit the task's underlying workflow

When you change the underlying workflow for an automation task, your changes affect only the task instance that you created, and not the template that creates the task. After you make and save your changes, the name that you provided for your original task might not accurately describe the task anymore, so you might have to recreate the task with a different name.

Tip

As a best practice, clone the underlying workflow so that you can edit the copied version instead. That way, you can make and test your changes on the copy while the original automation task continues to work and run without risking disruption or breaking existing functionality. After you finish your changes and are satisfied that the new version runs successfully, you can disable or delete the original automation task and use the cloned version for your automation task. The following steps include information about how to clone your workflow.

  1. In the Azure portal, find the resource that has the task that you want to update.

  2. On the resource navigation menu, in the Automation section, select Tasks.

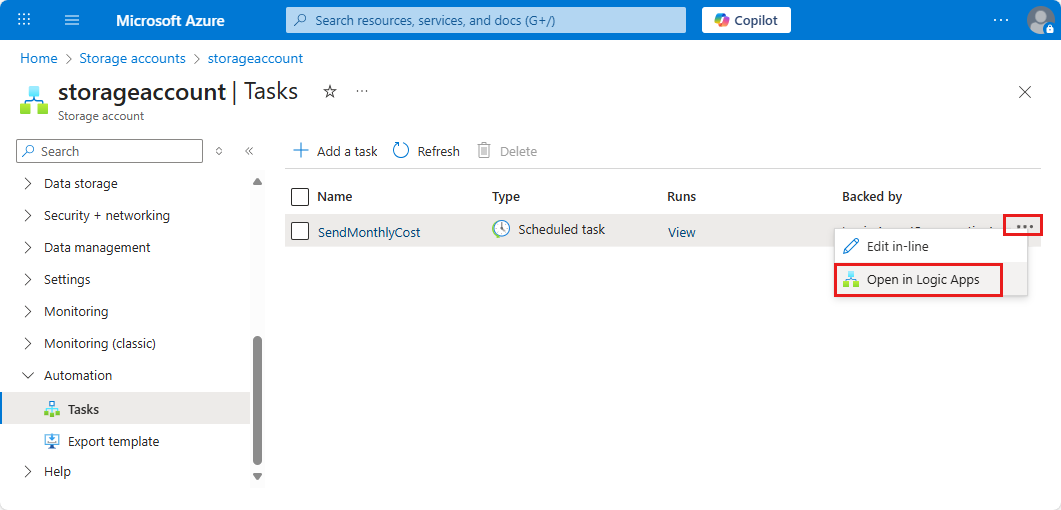

  3. In the tasks list, find the task that you want to update. Open the task's ellipses (...) menu, and select Open in Logic Apps.

    Screenshot that shows the opened ellipses menu and the selected option, "Open in Logic Apps".

    The task's underlying workflow opens in the Azure Logic Apps service and shows the Overview pane where you can view the same runs history that's available for the task.

    Screenshot that shows the task in Azure Logic Apps view with Overview pane selected.

  4. To open the underlying workflow in the designer, on the logic app navigation menu, select Logic app designer.

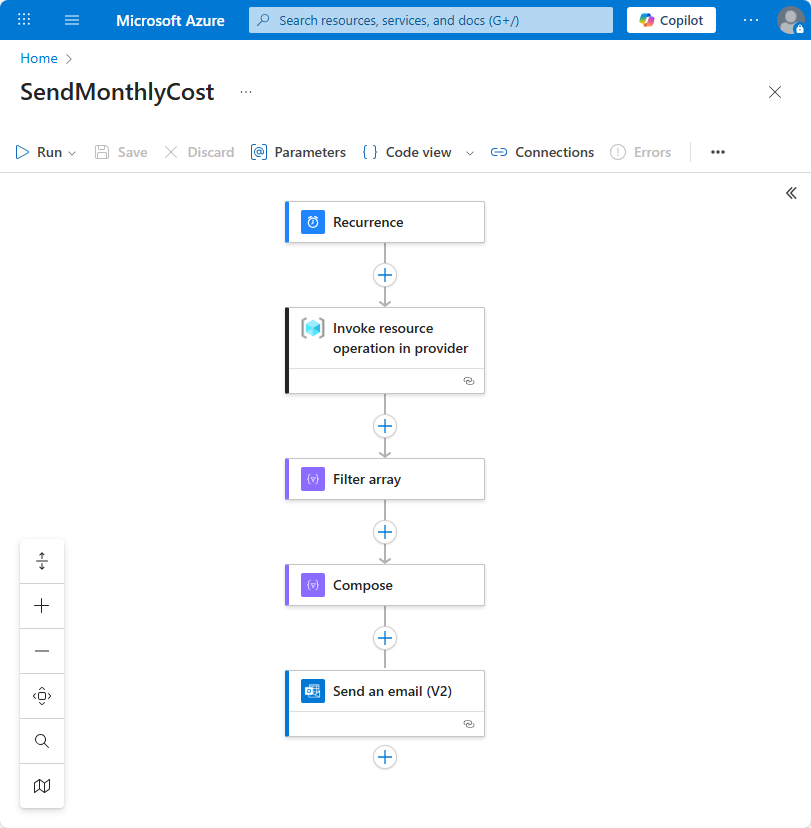

    Screenshot that shows the "Logic app designer" menu option selected and designer surface with the underlying workflow.

    You can now edit the properties for the workflow's trigger and actions as well as edit the trigger and actions that define the workflow itself. However, as best practice, follow the steps to clone your workflow so that you can make your changes on a copy while the original workflow continues to work and run.

  5. To clone your workflow and edit the copied version instead, follow these steps:

    1. On the logic app workflow menu, select Overview.

    2. On the overview pane's toolbar, select Clone.

    3. On the logic app creation pane, under Name, enter a new name for your copied logic app workflow.

      Except for Logic App Status, the other properties aren't available for editing.

    4. Under Logic App Status, select Disabled so that the cloned workflow doesn't run while you make your changes. You can enable the workflow when you're ready to test your changes.

    5. After Azure finishes provisioning your cloned workflow, find and open that workflow in the designer.

  6. To view the properties for the trigger or an action, expand that trigger or action.

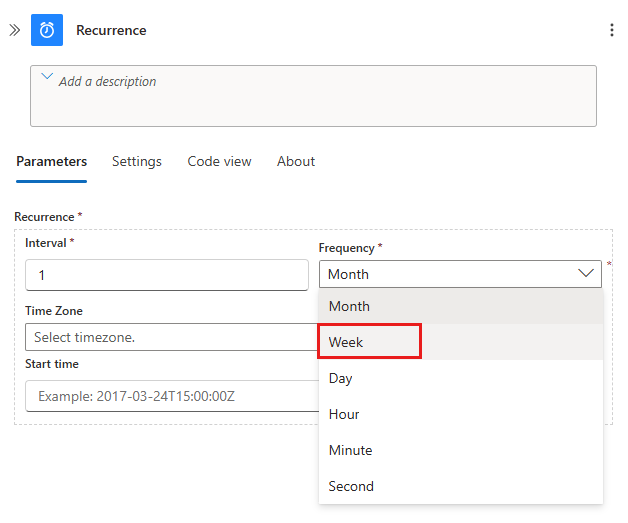

    For example, you can change the Recurrence trigger to run weekly, rather than monthly.

    Screenshot that shows the expanded Recurrence trigger with the Frequency list open to show available frequency options.

    For more information about the Recurrence trigger, see Create, schedule, and run recurring tasks and workflows with the Recurrence trigger.. For more information about other triggers and actions that you can use, see Connectors for Azure Logic Apps.

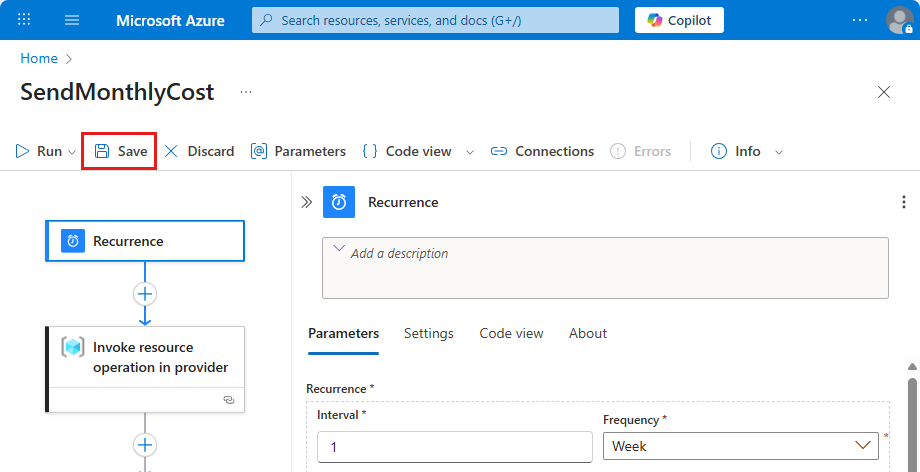

  7. To save your changes, on the designer toolbar, select Save.

    Screenshot that shows the designer toolbar and the selected "Save" command.

  8. To test and run the updated workflow, on the designer toolbar, select Run.

    After the run finishes, the designer shows the workflow's run details.

    Screenshot that shows the workflow's run details on the designer.

  9. To disable the workflow so that the task doesn't continue running, see Manage logic apps in the Azure portal.

Create automation task template from workflow

You can create your own automation task template by using any Consumption logic app workflow that starts with a recurring or event-based trigger, but not HTTP-based triggers or HTTP-based webhook triggers. For this task, you'll need the following items:

To create the template and make the template available for use in Azure, here are the high-level steps:

  1. Export the workflow to an automation task template.
  2. Upload your template to your working branch in your forked repository.
  3. Test your template by using your web debugging tool or Fiddler.
  4. Create a pull request (PR) for your working branch against the default branch in the Azure automation task templates GitHub repository.

After the Azure Logic Apps team reviews and approves your PR for merging to the default branch, your template is live and available to all Azure customers.

Export workflow to automation task template

  1. In the Azure portal, open the logic app workflow that you want to export. Make sure that the workflow starts with a recurring or event-based trigger, not an HTTP-based trigger or HTTP-based webhook trigger.

  2. On the logic app resource menu, select Overview.

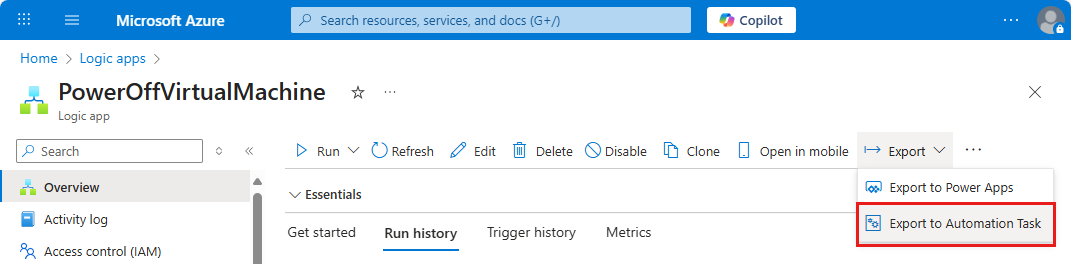

  3. On the Overview pane toolbar, select Export > Export to Automation Task.

    Screenshot showing the 'Overview' pane toolbar with 'Export' menu open and 'Export to Automation Task' selected.

  4. On the Export to Automation Task pane that opens, provide the following information:

    Property Required Value Description
    Template Name Yes <template-name> The friendly display name for the automation task template.

    Important: Make sure that you use a concise and easy-to-understand name, for example, List stale virtual machines.

    Template Description Yes <template-description> A description for the template's task or purpose
    Supported Resource Types No Empty or <supported-Azure-resource-type-list> The first-class Azure resource types where you want to make the template available. Sub-resource types are currently unsupported. To include all first-class Azure resource types, leave this property empty. To specify multiple resource types, separate each name with a comma and use the following syntax:

    Microsoft.<service-provider>/<entity>

    For example, to make the template available for Azure resource groups, specify Microsoft.Resources/resourceGroups. For more information, review Resource providers for Azure services.

    Unsupported Resource Types No Empty or <unsupported-Azure-resource-type-list> If any, the Azure resource types where you specifically don't want to make the template available. To specify multiple resource types, separate each name with a comma and use the following syntax:

    Microsoft.<service-provider>/<entity>

    For example, to make the template unavailable for Azure resource groups, specify Microsoft.Resources/resourceGroups. For more information, review Resource providers for Azure services.

    Configure Parameters No Varies If your workflow includes cross-environment parameter definitions, those parameters appear in this section for you to configure further. You can select whether each parameter value is provided either from the resource or the task creator.

    - If you select From Resource, select a Source Parameter property value to use from that resource:

    -- Resource Name
    -- Resource Type
    -- Resource Id
    -- Subscription Id
    -- Resource Group
    -- Resource Location.

    - If you select User Provided, select a Template format that determines how the task creator provides the parameter value:

    -- Default: The parameter value is anything other than an interval, frequency, or time zone.

    ---- Specify the parameter's display name, default value, and description.

    ---- If the value is a timestamp (hh:mm:ss), set the Format property to Time Format.

    ---- To mark the parameter as required, change the Optional to Required.

    -- Interval: The parameter value is an interval, such as 1 or 12.

    -- Frequency: The parameter value is a frequency, such as Hour, Day or Month.

    -- Timezone: The parameter value is a timezone, such as (UTC-08:00) Pacific Time (US & Canada).

    The following example shows the properties for a sample automation task template that works only on an Azure resource group:

    Screenshot showing the 'Export to Automation Task' pane with example properties for an automation task template.

    In this example, the task's underlying workflow includes the following parameter definitions and specifies that these parameter values are provided by the task creator:

    Parameter Description
    emailAddress Specifies the email address for where to send the report. This parameter uses the Default template, which lets you specify the parameter's information, the expected format, and whether the parameter is optional or not. For this example parameter, the expected format is None, and the parameter is Required.
    numberOf Specifies the maximum number of time units that a virtual machine can stay idle. This parameter uses the Default template.
    timeUnit Specifies the time unit to use for the parameter value. This parameter uses the Frequency template, which shows the time units that the task creator can select, for example, Hour, Day, or Month.
  5. When you're done, select Download Template, and save the template using the .json file name extension. For a consistent template name, use only lowercase, hyphens between words, and the following syntax:

    <action-verb>-<Azure-resource>

    For example, based on the earlier example template name, you might name the template file as list-stale-virtual-machines.json.

Upload template to GitHub

  1. Go to GitHub, and sign in with your GitHub account.

  2. Go to the Azure automation task templates GitHub repository, which takes you to the default branch in the repository.

  3. From the branch list, switch to your working branch.

  4. Above the files list, select Add file > Upload files.

  5. Either drag your workflow definition file to the specified area on the page, or select choose your files.

  6. After you add your template, in the same folder, open the manifest.json file, and add an entry for your <template-name>.json file.

Test your template

You can use your favorite web debugging tool to test the template you uploaded to your working directory. This example continues by using Fiddler with the script that modifies web requests. If you use a different tool, use the equivalent steps and script for your tool.

  1. In the Fiddler script, find the onBeforeRequest() function, and add the following code to the function, for example:

    static function OnBeforeRequest(oSession: Session)
    {
       if (oSession.url == "raw.githubusercontent.com/azure/automation-task-template/master/templates/manifest.json") {
          oSession.url = "raw.githubusercontent.com/<GitHub-username>/automation-task-template/<working-branch>/templates/manifest.json";
       }

       if (oSession.url == "raw.githubusercontent.com/azure/automation-task-template/master/templates/<template-name>") {
          oSession.url = "raw.githubusercontent.com/<GitHub-username>/automation-task-template/<working-branch>/templates/<template-name>";
       }

       {...}
    }


    This code gets the manifest.json and <template-name>.json files from your forked repository, rather than from the main Azure GitHub repository.

    So, based on the example, the file redirection code looks like the following version:

    static function OnBeforeRequest(oSession: Session)
    {
       if (oSession.url == "raw.githubusercontent.com/azure/automation-task-template/master/templates/manifest.json") {
          oSession.url = "raw.githubusercontent.com/sophowe/automation-task-template/upload-auto-template/templates/manifest.json";
       }

       if (oSession.url == "raw.githubusercontent.com/azure/automation-task-template/master/templates/list-stale-virtual-machines.json") {
          oSession.url = "raw.githubusercontent.com/sophowe/automation-task-template/upload-auto-template/templates/list-stale-virtual-machines.json";
       }

       {...}
    }

  2. Before you run your test, make sure to close all browser windows, and clear your browser cache in Fiddler.

  3. Open a new browser window, and sign in to the Azure portal.

  4. Open the Azure resource where you expect to find your automation task. Create an automation task with your exported template. Run the task.

If your task runs successfully, continue by creating a pull request from your working branch to the default branch.

Create your pull request

  1. Under Commit changes, enter a concise but descriptive title for your update. You can provide more information in the description box.

  2. Select Create a new branch for this commit and start a pull request. At the prompt, provide a name for your working branch, for example:

    <your-GitHub-alias>-<automation-task-name>-template

  3. When you're ready, select Propose changes. On the next page, select Create pull request.

  4. Provide a name and description for your pull request. In the lower-right corner, select Create pull request.

  5. Wait for the Azure Logic Apps team to review your pull request.

Provide feedback

We'd like to hear from you! To report bugs, provide feedback, or ask questions about this preview capability, contact the Azure Logic Apps team.

Next steps
