Applies to: Azure Logic Apps (Consumption + Standard)
When you need AI-powered automation that interacts with humans, create conversational agent workflows in Azure Logic Apps. These workflows use natural language, agent loops, and large language models (LLMs) to make decisions and complete tasks based on human-provided inputs and questions, known as prompts. These workflows work best for automation that's user-driven, short-lived, or session-based.

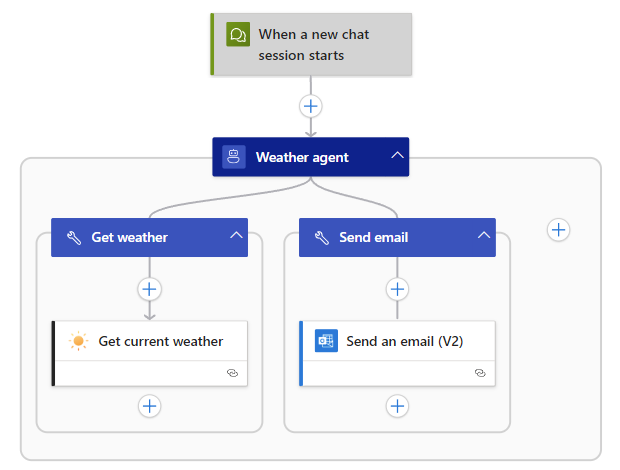

The following example workflow uses a conversational agent to get the current weather and send email notifications:
This guide shows how to create a Consumption or Standard logic app using the Conversational Agents workflow type. This workflow runs using human-provided prompts and tools that you build to complete tasks. For a high-level overview about agent workflows, see AI agent workflows in Azure Logic Apps.
Important
Consumption conversational agent workflows are in preview and subject to the Supplemental Terms of Use for Microsoft Azure Previews.
Prerequisites
Based on whether you want to create a Consumption or Standard logic app, the following prerequisites apply:
- An Azure account and subscription. Get a free Azure account.
A Consumption logic app resource that uses the workflow type named Conversational Agents. See Create Consumption logic app workflows in the Azure portal.
Consumption conversational agent workflows don't require that you manually set up a separate AI model. Your workflow automatically includes an agent action that uses an Azure OpenAI Service model hosted in Azure AI Foundry. Agent workflows support only specific models. See Supported models.
Note
You can use only the Azure portal to build conversational agent workflows, not Visual Studio Code.
For external chat authentication and authorization, Consumption conversational agent workflows use OAuth 2.0 with Microsoft Entra ID.
To follow along with the examples, you need an email account to send email.
The examples in this guide use an Outlook.com account. For your own scenarios, you can use any supported email service or messaging app in Azure Logic Apps, such as Office 365 Outlook, Microsoft Teams, Slack, and so on. The setup for other email services or apps are similar to the examples, but have minor differences.
Limitations and known issues
The following table describes the current limitations and any known issues in this release.
| Logic app | Limitations or known issues |
|---|---|
| Both | To create tools for your agent, the following limitations apply: - You can add only actions, not triggers. - A tool must start with an action and always contains at least one action. - A tool works only inside the agent where that tool exists. - Control flow actions are unsupported. |
| Consumption | - You can create Consumption agent workflows only in the Azure portal, not Visual Studio Code. - The AI model that your agent uses can originate from any region, so data residency for a specific region isn't guaranteed for data that the model handles. - The Agent action is throttled based on the number of tokens used. |
| Standard | - Unsupported workflow types: Stateless For general limits in Azure OpenAI Service and Azure Logic Apps, see: - Azure OpenAI Service quotas and limits - Azure Logic Apps limits and configuration |
Supported Azure OpenAI Service models for agent workflows
The following list specifies the AI models that you can use with agent workflows:
Your agent automatically uses one of the following Azure OpenAI Service models:
- gpt-4o-mini
- gpt-5o-mini
Important
The AI model that your agent uses can originate from any region, so data residency for a specific region isn't guaranteed for data that the model handles.
Billing
Consumption: Billing uses the pay-as-you-go model. Agent loop pricing is based on the number of tokens that each agent action uses and appears as Enterprise Units on your bill. For specific pricing information see Azure Logic Apps pricing.
Standard: Although agent workflows don't incur extra charges, AI model usage incurs charges. For more information, see the Azure Pricing calculator.
Create a conversational agent workflow
The following section shows how to start creating your conversational agent workflow.

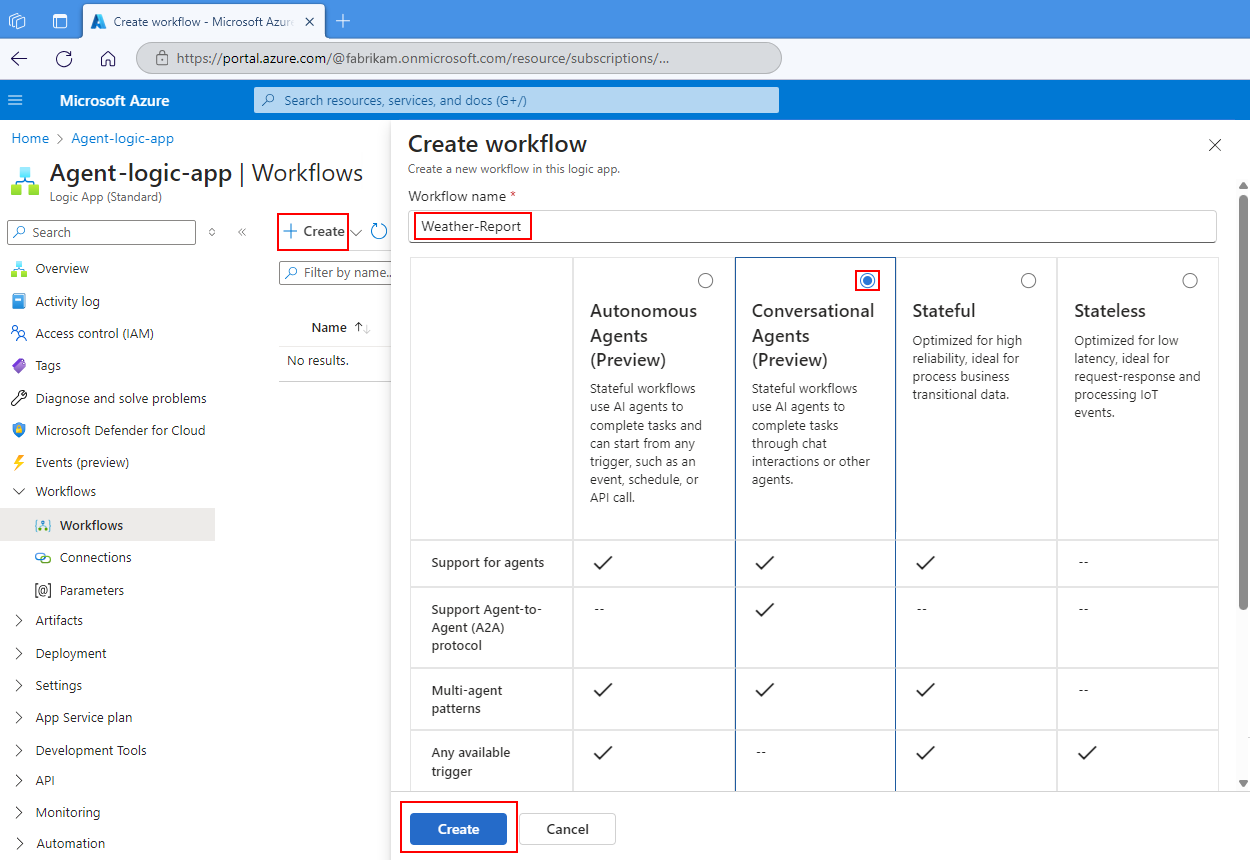

The Conversational Agents workflow type creates a partial workflow that starts with the required trigger named When a new chat session starts. The workflow also includes an empty Default Agent action.
To open this partial workflow, follow these steps:
In the Azure portal, open your Consumption logic app resource.
On the resource sidebar, under Development Tools, select the designer to open the partial agentic workflow.

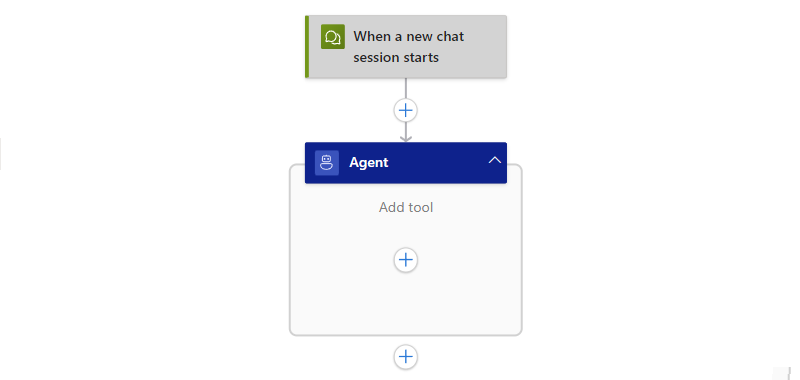

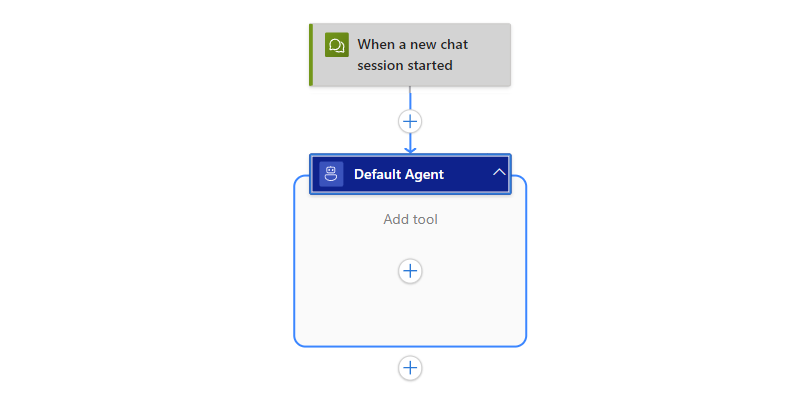

The designer shows a partial workflow that starts with the required trigger named When a new chat session starts. Under the trigger, an empty Agent action named Default Agent appears. For this scenario, you don't need any other trigger setup.
Continue to the next section to set up your agent.
Note

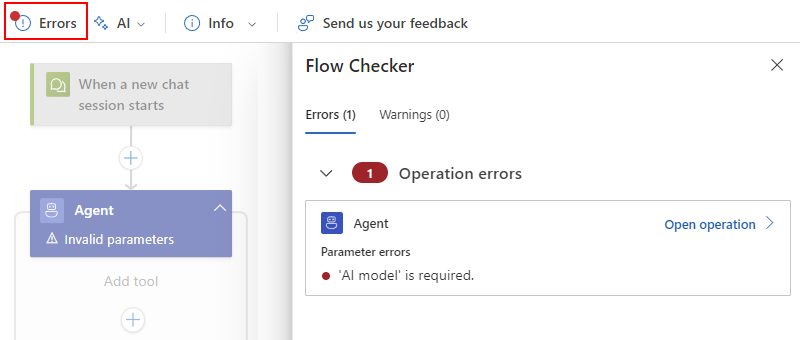

If you try to save the workflow now, the designer toolbar shows a red dot on the Errors button. The designer alerts you to this error condition because the agent requires setup before you can save any changes. However, you don't have to set up the agent now. You can continue to create your workflow. Just remember to set up the agent before you save your workflow.
Set up or view the AI model

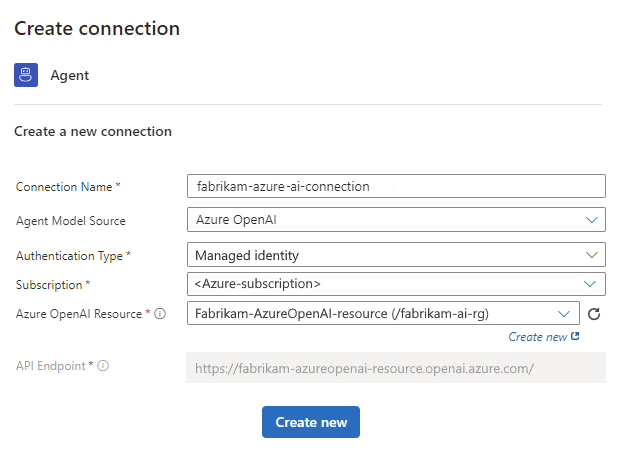

To set up or view the AI model for your agent, follow the steps based on your logic app type:
By default, your agent automatically uses the Azure OpenAI model available in your logic app's region. Some regions support gpt-4o-mini, while others support gpt-5o-mini.

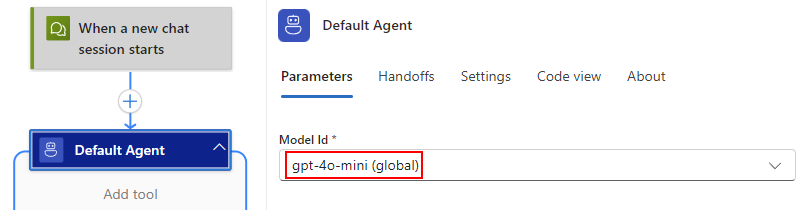

To view the model that your agent uses, follow these steps:
On the designer, select the title bar on the Default Agent action to open the information pane.
On the Parameters tab, the Model Id parameter shows the Azure OpenAI model that the workflow uses, for example:
Continue to the next section to rename the agent.
Rename the agent
Update the agent name to clearly identify the agent's purpose by following these steps:
On the designer, select the agent title bar to open the agent information pane.
On the information pane, select the agent name, and enter the new name, for example,
Weather agent.
Continue to the next section to provide instructions for the agent.
Set up agent instructions
The agent requires instructions that describe the roles that the agent can play and the tasks that the agent can perform. To help the agent learn and understand these responsibilities, you can also include the following information:
- Workflow structure
- Available actions
- Any restrictions or limitations
- Interactions for specific scenarios or special cases
For the best results, provide prescriptive instructions and be prepared to iteratively refine your instructions.
In the Instructions for agent box, enter the instructions that the agent needs to understand its role and tasks.

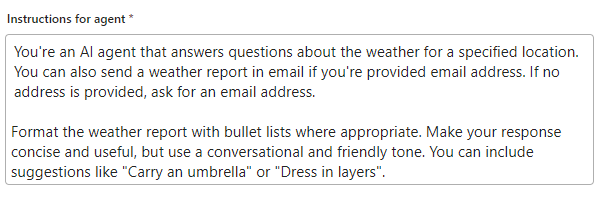

For this example, the weather agent example uses the following sample instructions where you later ask questions and provide your own email address for testing:
You're an AI agent that answers questions about the weather for a specified location. You can also send a weather report in email if you're provided email address. If no address is provided, ask for an email address. Format the weather report with bullet lists where appropriate. Make your response concise and useful, but use a conversational and friendly tone. You can include suggestions like "Carry an umbrella" or "Dress in layers".Here's an example:
Now, you can save your workflow. On the designer toolbar, select Save.
Check for errors
To make sure your workflow doesn't have errors at this stage, follow these steps, based on your logic app and development environment.

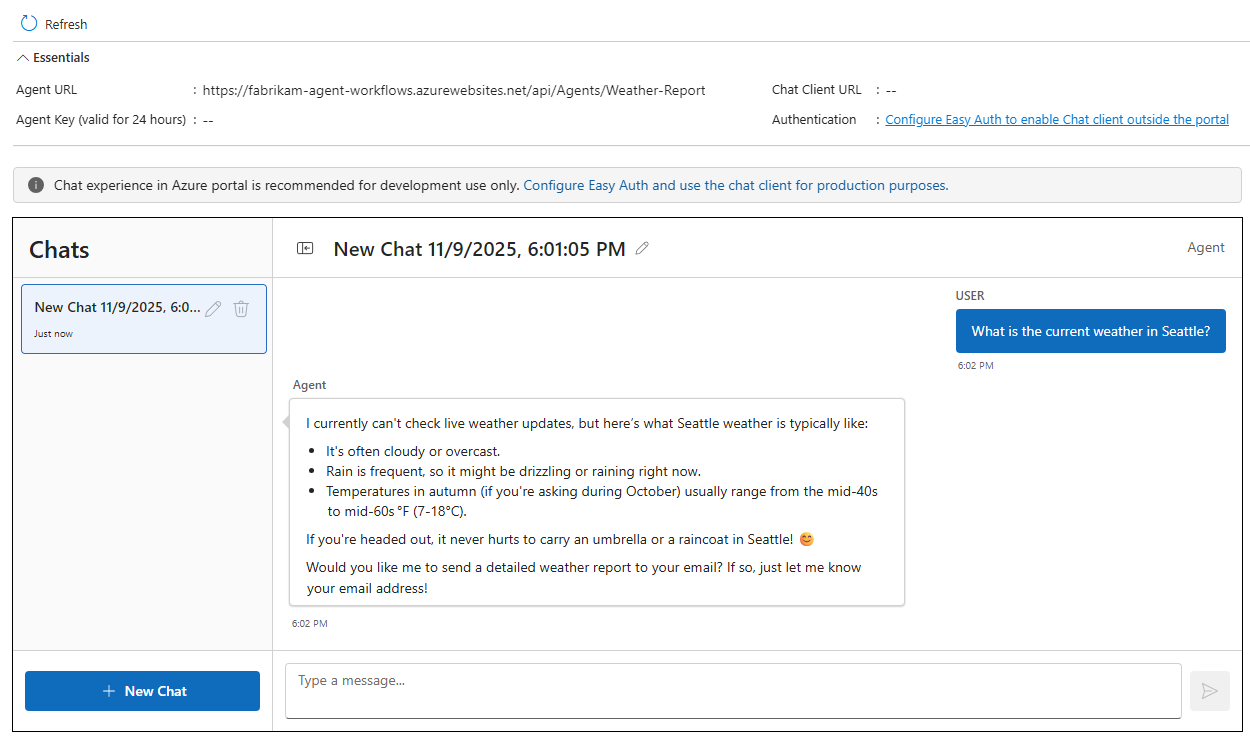

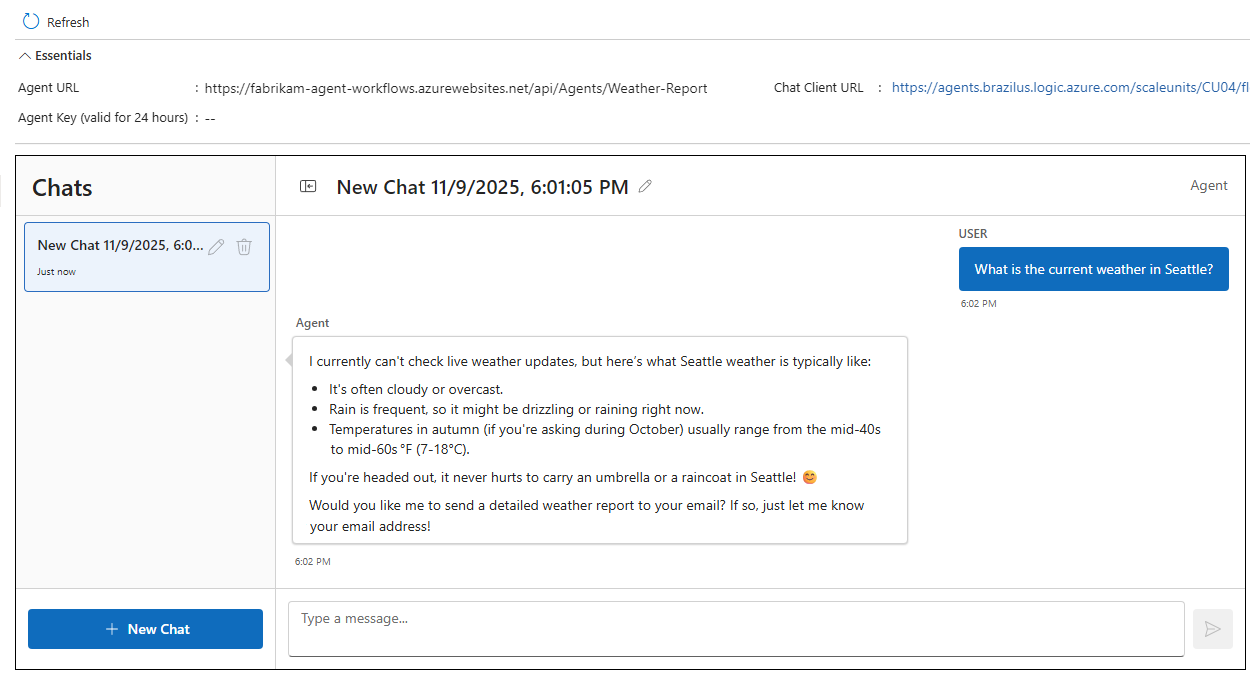

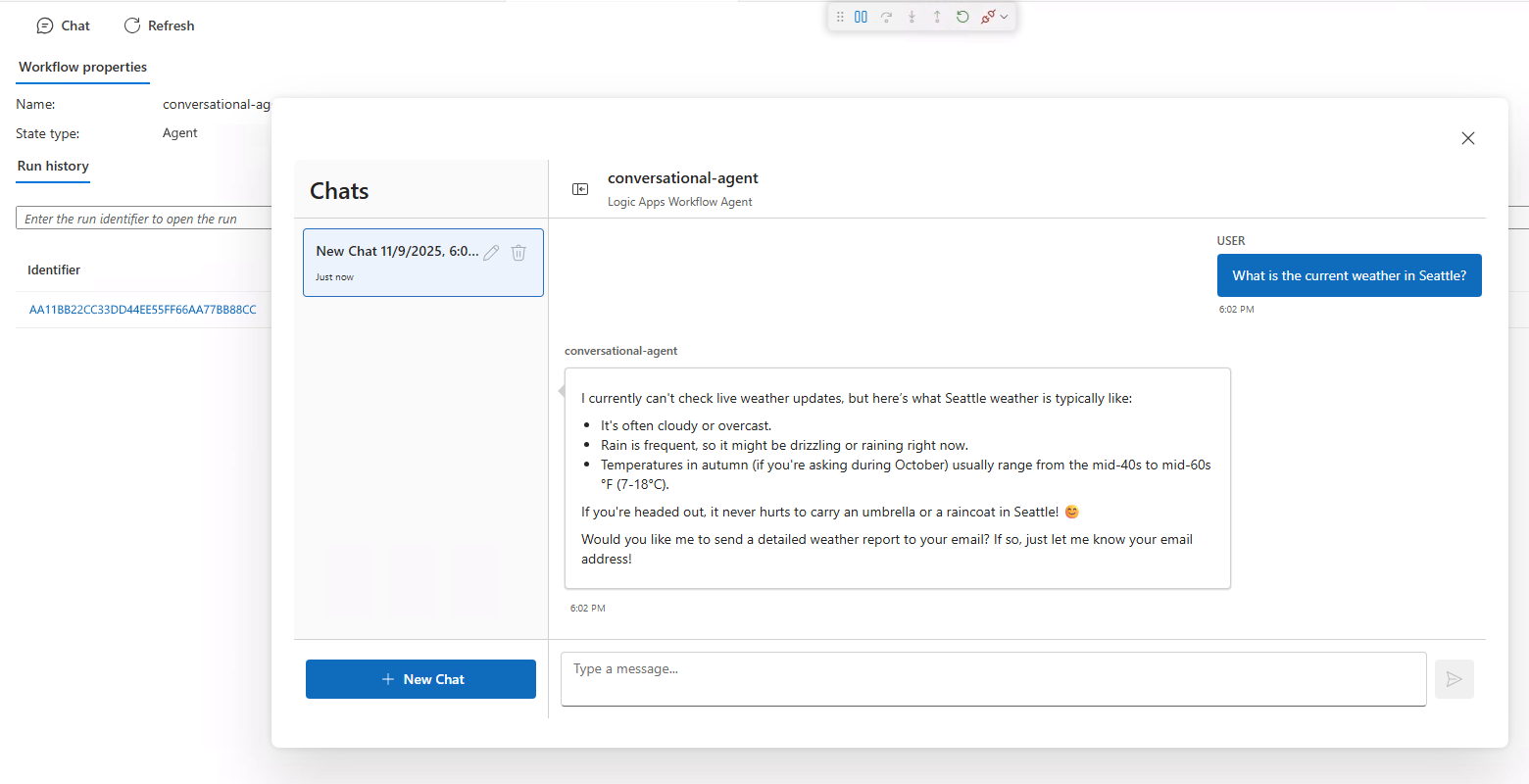

On the designer toolbar, select Chat.
In the chat client interface, ask the following question:
What is the current weather in Seattle?Check that the response is what you expect, for example:
Return to your workflow in the designer.
On the workflow sidebar, under Development Tools, select Run history.
On the Run history page, in the runs table, select the latest workflow run.
Note
If the page doesn't show any runs, on the toolbar, select Refresh.
If the Status column shows a Running status, the agent workflow is still working.

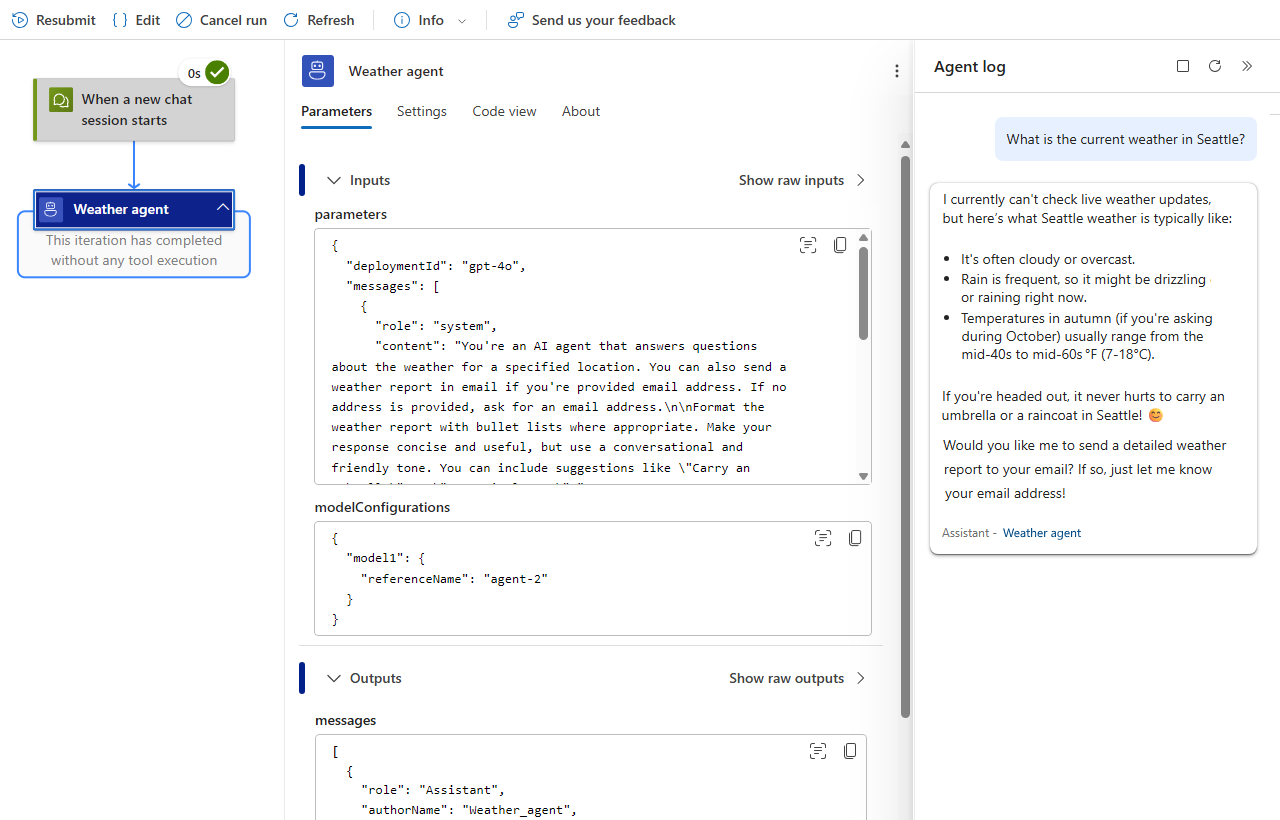

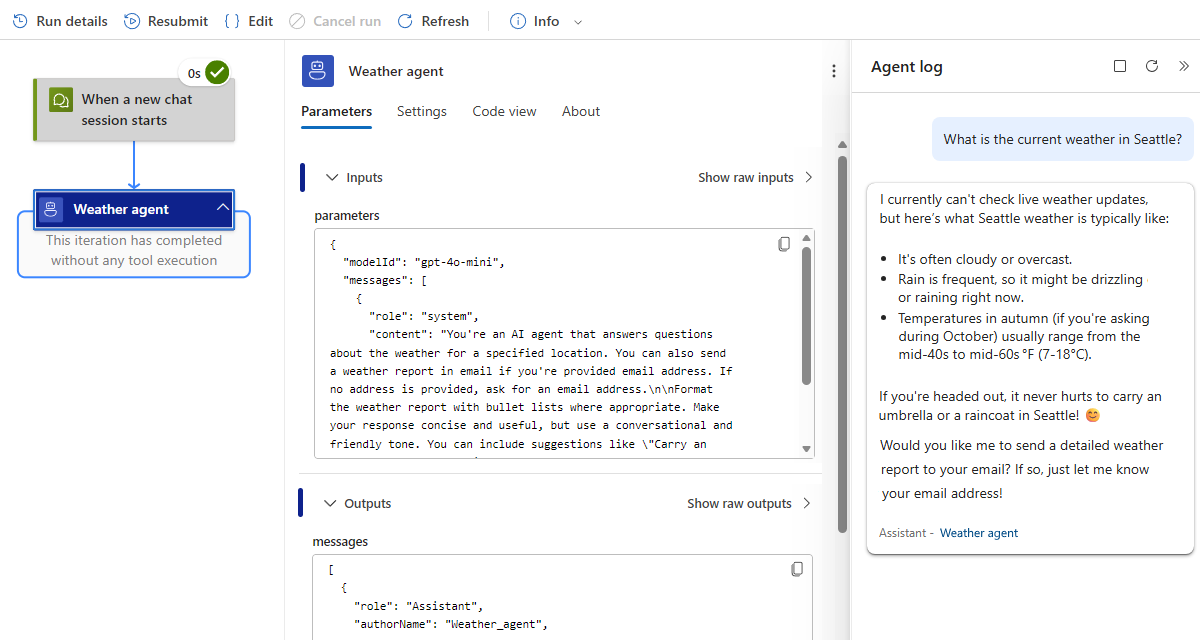

The monitoring view opens and shows the workflow operations with their status. The Agent log pane is open and shows the agent instructions that you provided earlier. The pane also shows the agent's response.
The agent doesn't have any tools to use at this time, which means that the agent can't actually take any specific actions, such as send email to a subscriber list, until you create tools that the agent needs to complete tasks.
Return to the designer. On the monitoring view toolbar, select Edit.
Create a 'Get weather' tool
For an agent to run prebuilt actions available in Azure Logic Apps, you must create one or more tools for the agent to use. A tool must contain at least one action and only actions. The agent calls the tool by using specific arguments.
In this example, the agent needs a tool that gets the weather forecast. You can build this tool by following these steps:
On the designer, inside the agent and under Add tool, select the plus sign (+) to open the pane where you can browse available actions.
On the Add an action pane, follow the general steps for your logic app to add an action that's best for your scenario.
This example uses the MSN Weather action named Get current weather.

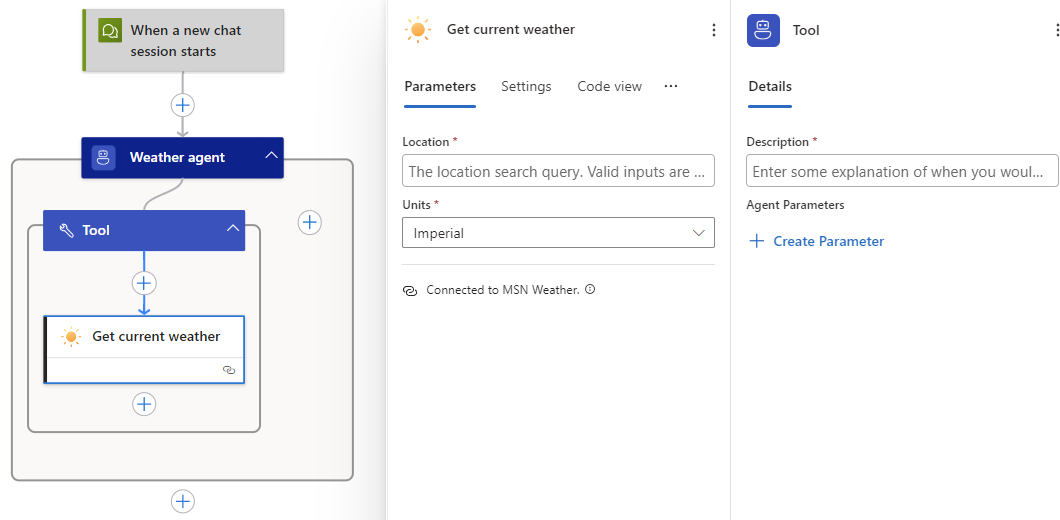

After you select the action, both the Tool container and the selected action appear in the agent on the designer. Both information panes also open at the same time.
On the tool information pane, rename the tool to describe its purpose. For this example, use
Get weather.On the Details tab, for Description, enter the tool description. For this example, use
Get the weather for the specified location.
Under Description, the Agent Parameters section applies only for specific use cases. For more information, see Create agent parameters.
Continue to the next section to learn more about agent parameters, their use cases, and how to create them, based on these use cases.
Create agent parameters for 'Get current weather' action
Actions usually have parameters that require you to specify the values to use. Actions in tools are almost the same except for one difference. You can create agent parameters that the agent uses to specify the parameter values for actions in tools. You can specify model-generated outputs, values from nonmodel sources, or a combination. For more information, see Agent parameters.
The following table describes the use cases for creating agent parameters and where to create them, based on the use case:
| To | Where to create agent parameter |
|---|---|
| Use model-generated outputs only. Share with other actions in the same tool. |
Start from the action parameter. For detailed steps, see Use model-generated outputs only. |
| Use nonmodel values. | No agent parameters needed. This experience is the same as the usual action setup experience in Azure Logic Apps but is repeated for convenience in Use values from nonmodel sources. |
| Use model-generated outputs with nonmodel values. Share with other actions in the same tool. |
Start from the tool, in the Agent Parameters section. For detailed steps, see Use model outputs and nonmodel values. |
Use model-generated outputs only
For an action parameter that uses only model-generated outputs, create an agent parameter by following these steps:
In the tool, select the action to open the information pane.
For this example, the action is Get current weather.
On the Parameters tab, select inside the parameter box to show the parameter options.

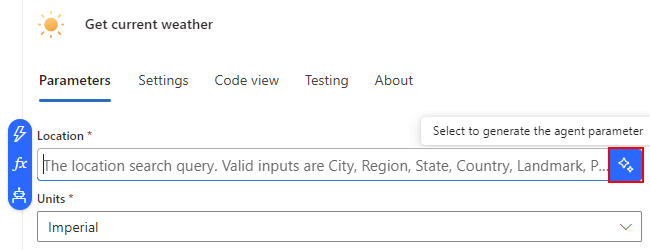

On the right edge of the Location box, select the stars button.
This button has the following tooltip: Select to generate the agent parameter.
The Create agent parameter window shows the Name, Type, and Description fields, which are prepopulated from the source action parameter.
The following table describes the fields that define the agent parameter:
Parameter Value Description Name <agent-parameter-name> The agent parameter name. Type <agent-parameter-data-type> The agent parameter data type. Description <agent-parameter-description> The agent parameter description that easily identifies the parameter's purpose. Note
Microsoft recommends that you follow the action's Swagger definition. For example, for the Get current weather action, which is from the MSN Weather "shared" connector hosted and managed by global, multitenant Azure, see the MSN Weather connector technical reference article.
When you're ready, select Create.

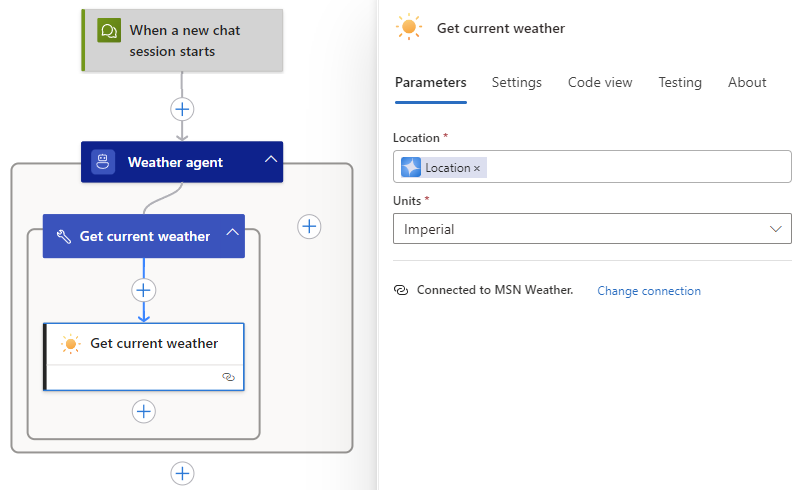

The following example shows the Get current weather action with the Location agent parameter:
Save your workflow.
Use values from nonmodel sources
For an action parameter value that uses only nonmodel values, choose the option that best fits your use case:
Use outputs from earlier operations in the workflow
To browse and select from these outputs, follow these steps:
Select inside the parameter box, and then select the lightning icon to open the dynamic content list.
From the list, in the trigger or action section, select the output that you want.
Save your workflow.
Use results from expressions
To create an expression, follow these steps:
Select inside the parameter box, and then select the function icon to open the expression editor.
Select from available functions to create the expression.
Save your workflow.
For more information, see Reference guide to workflow expression functions in Azure Logic Apps.
Use model outputs and nonmodel values
Some scenarios might need to specify an action parameter value that uses both model-generated outputs with nonmodel values. For example, you might want to create an email body that uses static text, nonmodel outputs from earlier operations in the workflow, and model-generated outputs.
For these scenarios, create the agent parameter on the tool by following these steps:
On the designer, select the tool where you want to create the agent parameter.
On the Details tab, under Agent Parameters, select Create Parameter.
Expand New agent parameter, and provide the following information, but match the action parameter details.
For this example, the example action is Get current weather.
Note
Microsoft recommends that you follow the action's Swagger definition. For example, to find this information for the Get current weather action, see the MSN Weather connector technical reference article. The example action is provided by the MSN Weather managed connector, which is hosted and run in a shared cluster on multitenant Azure.
Parameter Value Description Name <agent-parameter-name> The agent parameter name. Type <agent-parameter-data-type> The agent parameter data type. Description <agent-parameter-description> The agent parameter description that easily identifies the parameter's purpose. You can choose from the following options or combine them to provide a description:
- Plain literal text with details such as the parameter's purpose, permitted values, restrictions, or limits.
- Outputs from earlier operations in the workflow. To browse and choose these outputs, select inside the Description box, and then select the lightning icon to open the dynamic content list. From the list, select the output that you want.
- Results from expressions. To create an expression, select inside the Description box, and then select the function icon to open the expression editor. Select from available functions to create the expression.When you're done, under Agent Parameters, the new agent parameter appears.
On the designer, in the tool, select the action to open the action information pane.
On the Parameters tab, select inside the parameter box to show the parameter options, and then select the robot icon.
From the Agent parameters list, select the agent parameter that you defined earlier.

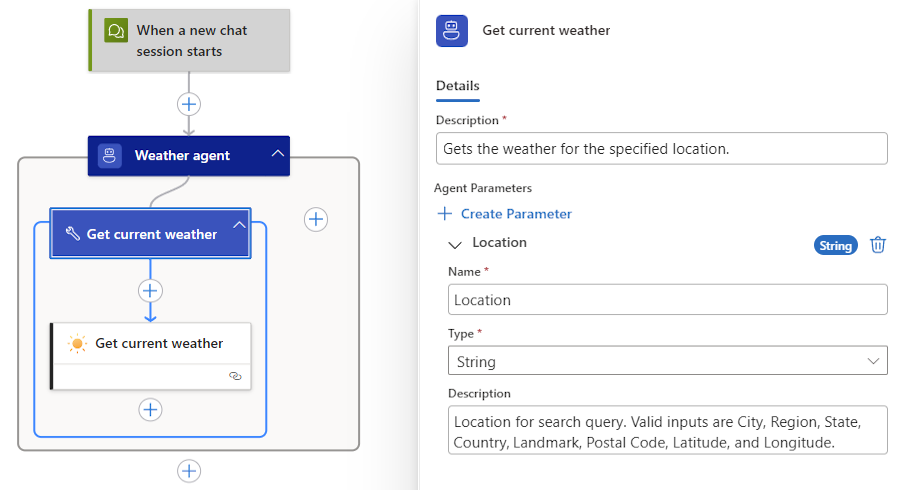

The finished Get current weather tool looks like the following example:
Save your workflow.
Create a 'Send email' tool
For many scenarios, an agent usually needs more than one tool. In this example, the agent needs a tool that sends the weather report in email.
To build this tool, follow these steps:
On the designer, in the agent, next to the existing tool, select the plus sign (+) to add an action.
On the Add an action pane, follow these general steps to select another action for your new tool.
The examples use the Outlook.com action named Send an email (V2).

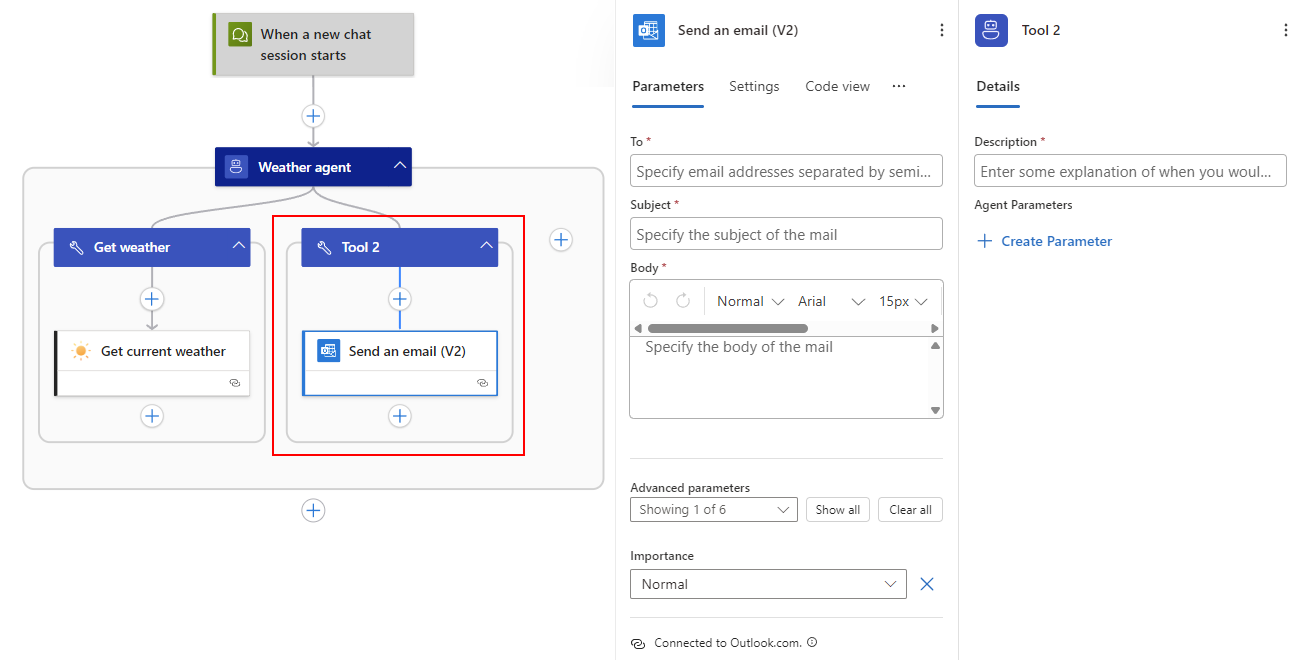

Like before, after you select the action, both the new Tool and action appear inside the agent on the designer at the same time. Both information panes open at the same time.
On the tool information pane, rename the tool to describe its purpose. For this example, use
Send email.On the Details tab, for Description, enter the tool description. For this example, use
Send current weather by email.
Create agent parameters for 'Send an email (V2)' action
Except for the different agent parameters to set up for the Send an email (V2) action, the steps in this section are nearly the same as Create agent parameters for the 'Get current weather' action.
Follow the earlier general steps to create agent parameters for the parameter values in the Send an email (V2) action.
The action needs three agent parameters named To, Subject, and Body. For the action's Swagger definition, see Send an email (V2).

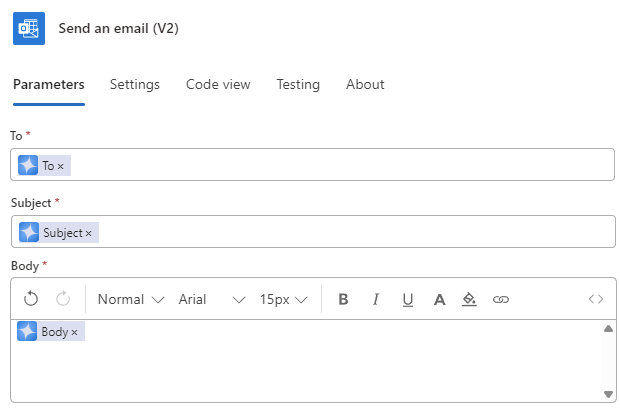

When you're done, the example action uses the previously defined agent parameters as shown here:

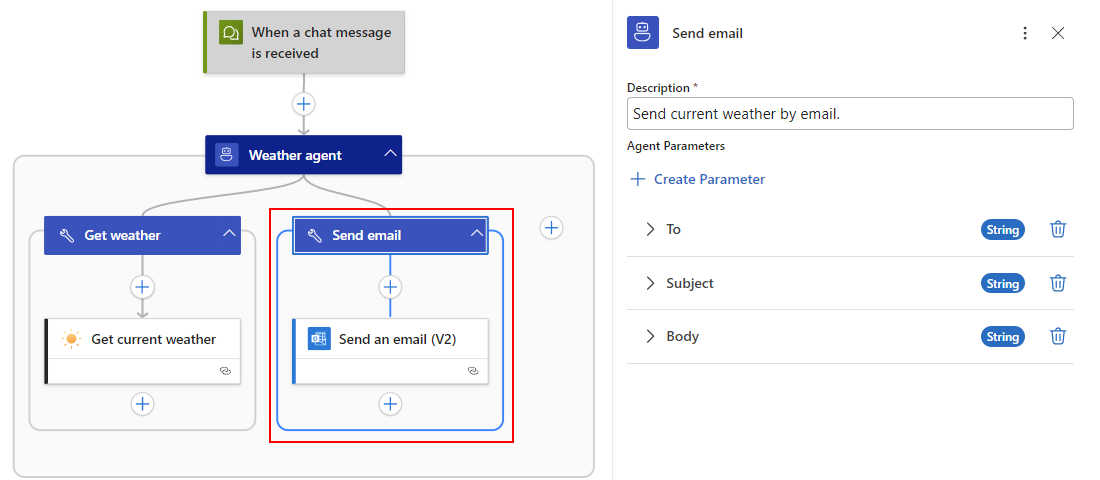

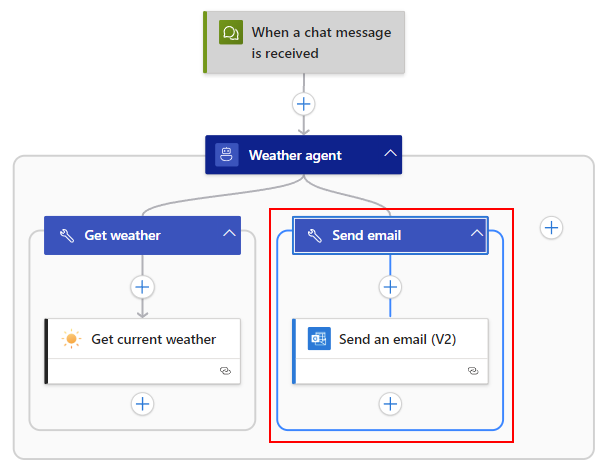

The finished Send email tool looks like the following example:
Best practices for agents and tools
The following sections provide recommendations, best practices, and other guidance that can help you build better agents and tools.
Agents
The following guidance provides best practices for agents.
Prototype agents and tools with 'Compose' actions
Rather than use actual actions and live connections to prototype your agent and tools, use Compose actions to "mock" or simulate the actual actions. This approach provides the following benefits:
Compose actions don't produce side effects, which make these actions useful for ideation, design, and testing.
You can draft and refine agent instructions, prompts, tool names and descriptions plus agent parameters and descriptions - all without having to set up and use live connections.
When you confirm that your agent and tools work with only the Compose actions, you're ready to swap in the actual actions.
When you switch over to the actual actions, you have to reroute or recreate your agent parameters to work with the actual actions, which might take some time.
Manage chat history context length
The workflow agent maintains the chat history or context, including tool invocations, based on the current limit on the number of tokens or messages to keep and pass into the model for the next interaction. Over time, the agent history grows and eventually exceeds your model's context length limit, or the maximum number of input tokens. Models differ in their context lengths.
For example, gpt-4o supports 128,000 input tokens where each token has 3-4 characters. When the agent history approaches the model's context length, consider dropping stale or irrelevant messages to stay below the limit.
Here are some approaches to reduce your agent history:
Reduce the size of results from tools by using the Compose action. For more information, see Tools - Best practices.
Carefully craft your agent instructions and prompts to control the model's behavior.
Experimental capability: You have the option to try chat reduction so you can reduce the maximum number of tokens or messages to keep in chat history and pass into the model.
A workflow agent has almost the same advanced parameters as the Azure OpenAI built-in, service provider connector, except for the Agent History Reduction Type advanced parameter, which exists only in the agent. This parameter controls the history that the agent maintains, based on the maximum number of tokens or messages.
This capability is in active development and might not work for all scenarios. You can change the Agent History Reduction Type option to reduce the limit on tokens or messages. You then specify the numerical limit that you want.
To try the capability, follow these steps:
On the designer, select the agent's title bar to open the information pane.
On the Parameters tab, find the Advanced parameters section.
Check whether the parameter named Agent History Reduction Type exists. If not, open the Advanced parameters list, and select that parameter.
From the Agent History Reduction Type list, select one of the following options:
Option Description Token count reduction Shows the parameter named Maximum Token Count. Specifies the maximum number of tokens in agent history to keep and pass into the model for the next interaction. The default differs based on the currently used model in Azure OpenAI Service. The default limit is 128,000. Message count reduction Shows the parameter named Message Count Limit. Specifies the maximum number of messages in agent history to keep and pass into the model for the next interaction. No default limit exists.
Tools
The following guidance provides best practices for tools.
The name is the most important value for a tool. Make sure the name is succinct and descriptive.
The tool description provides useful and helpful context for the tool.
Both the tool name and description have character limits.
Some limits are enforced by the model in Azure OpenAI Service at run time, rather than when you save the changes in the agent in the workflow.
Too many tools in the same agent can have a negative effect on agent quality.
A good general guideline recommends that an agent includes no more than 10 tools. However, this guidance varies based on the model that you use from Azure OpenAI Service.
In tools, actions don't need to have all their inputs come from the model.
You can finely control which action inputs come from non-model sources and which inputs come from the model. For example, suppose a tool has an action that sends email. You can provide a plain and mostly static email body but use model-generated outputs for part of that email body.
Customize or transform tool results before you pass them to the model.
You can change the results from a tool before they pass into the model by using the Compose action. This approach provides the following benefits:
Improve response quality by reducing irrelevant context that passes into the model. You send only the fields that you need from a large response.
Reduce billing charges for tokens that pass into the model and avoid exceeding the model's limit on context length, the maximum number of tokens that pass into the model. You send only the fields that you need.
Combine the results from multiple actions in the tool.
You can mock the tool results to simulate the expected results from actual actions. Mock actions leave data unchanged at the source and don't incur charges for resource usage outside Azure Logic Apps.
Agent parameters
The following guidance provides best practices for agent parameters.
The name is the most important value for an agent parameter. Make sure the name is succinct and descriptive.
The agent parameter description provides useful and helpful context for the tool.
Authentication and authorization
For nonproduction activities, such as design, development, and quick testing, the Azure portal provides, manages, and uses a developer key to run your workflow and execute actions on your behalf. The following list recommends some best practices for handling this developer key:
Treat the developer key strictly and only as a design-time convenience for authentication and authorization.
Before you expose your conversational agent to other agents, automation, or wider user populations, migrate to signed SAS with network restrictions or the following authentication and authorization methods for external chat, based on your conversational agent workflow type:
Workflow Authentication Consumption OAuth 2.0 with Microsoft Entra ID Standard Managed identity, Easy Auth (App Service Authentication) Basically, if anyone or anything outside your Azure portal session needs to call or interact with your workflow, the developer key is no longer appropriate.
When you're ready to release your agent workflow into production, make sure to follow the migration steps to prepare for production authentication and authorization. For more information, see Authentication and authorization.
Migrate to production authentication
On your logic app resource, set up the following authentication, based on your workflow type:
Workflow Authentication Consumption OAuth 2.0 with Microsoft Entra ID by creating an agent authorization policy on your logic app resource.
To create this policy, follow these steps:
1. Follow the general steps to create the policy, but with these next steps instead.
2. Select Azure Active Directory (AAD).
3. Select Agent Authorization Rule (For Conversational Agents).
4. Under Object IDs, enter the object ID for each user, app, or enterprise app that can access the agent.
5. When you're done, on the toolbar, select Save.
For more information, see:
- Locate important IDs for a user
- Application and service principal objects in Microsoft Entra IDStandard Managed identity, Easy Auth (App Service Authentication) Enforce any authentication required access patterns.
Optionally, lock down any trigger endpoint URLs by disabling or regenerating any unused SAS URLs.
To include the external chat client interface on a website or anywhere else to support human interactions, get the chat client URL and embed the URL in an iFrame HTML element by following these steps:
On the designer toolbar or workflow sidebar, select Chat.
In the Essentials section, copy or select the Chat Client URL link, which opens in new browser tab.
Embed the chat client URL in an iFrame HTML element, which uses the following format:
Workflow iFrame HTML element Consumption <iframe src="https://agents.<region>.logic.azure.com/scaleunits/<scale-unit-ID>/flows/<workflow-ID>/agentChat/IFrame" title="<chat-client-name>"></iframe>Standard <iframe src="https://<logic-app-name>.azurewebsites.net/api/agentsChat/<workflow-name>/IFrame" title="<chat-client-name>"></iframe>
Troubleshoot authentication migration
The following table describes common problems you might encounter when you try to migrate from a developer key to Easy Auth, their possible causes, and actions you can take:
| Symptom | Likely cause | Action |
|---|---|---|
| Portal tests work, but external calls get 401 response. | External calls don't have a valid signed SAS token or Easy Auth access token (Standard workflows only). | Use a workflow trigger URL with a signed SAS or Set up Easy Auth (Standard workflows only). |
| Designer tests work, but Azure API Management calls fail. | API Management calls are missing expected header information. | Add OAuth 2.0 token acquisition in API Management policy or use managed identity authentication where supported. |
| Access is inconsistent after a role changes. | Cached session in the Azure portal | - Sign out and sign back in. - Get a fresh token. |
Troubleshoot problems
This section describes guidance to help troubleshoot errors or problems that you might encounter when you build or run agent workflows.
Review tool execution data
The workflow run history provides useful information that helps you learn what happened during a specific run. For an agent workflow, you can find tool execution inputs and outputs for a specific agent loop iteration.
On the workflow menu, under Tools, select Run history to open the Run history page.
On the Run history tab, in the Identifier column, select the workflow run that you want.
The monitoring view opens to show the status for each step.
Select the agent that you want to inspect. To the right side, the Agent log pane appears.
This pane shows the agent log, including tool executions during the interaction.
To get tool execution data at a specific point, find that point in the agent log, and select the tool execution reference, for example:
This action moves you to the matching tool in monitoring view. The agent shows the current iteration count.
In monitoring view, select the agent or the action with the inputs, outputs, and properties that you want to review.
The following example shows a selected action for the previously selected tool execution:
If you select the agent, you can review the following information that passes into the model and returns from the model, for example:
- Input messages passed into the model.
- Output messages returned from the model.
- Tools that the model asked the agent to call.
- Tool results that passed back into the model.
- Number of tokens that each request used.
To review a different agent loop iteration, in the agent, select the left or right arrow.
Logs in Application Insights
If you set up Application Insights or advanced telemetry for your workflow, you can review the logs for agent events, like any other action. For more information, see Enable and view enhanced telemetry in Application Insights for Standard workflows in Azure Logic Apps.
Model maximum context length exceeded
If your agent's log history exceeds the model's context length, or the maximum number of input tokens, you get an error that looks like the following example:
This model's maximum context length is 4097 tokens. However, you requested 4927 tokens (3927 in the messages, 1000 in the completion). Please reduce the length of the messages or completion.
Try reducing the limit on the number of tokens or messages that your agent keeps in log and passes into the model for the next interaction. For this example, you might select Token count reduction and set Maximum Token Count to a number below the error's stated maximum context length, which is 4097.
For more information, see Manage chat history context length.
Clean up example resources
If you don't need the resources that you created for the examples, make sure to delete the resources so that you don't continue to get charged. You can either follow these steps to delete the resource group that contains these resources, or you can delete each resource individually.
In the Azure search box, enter resource groups, and select Resource groups.
Find and select the resource groups that contain the resources for this example.
On the Overview page, select Delete resource group.
When the confirmation pane appears, enter the resource group name, and select Delete.
