Reference for AS2 message settings in agreements for Azure Logic Apps

Applies to: Azure Logic Apps (Consumption + Standard)

This reference describes the properties that you can set in an AS2 agreement for specifying how to handle messages between trading partners. Set up these properties based on your agreement with the partner that exchanges messages with you.

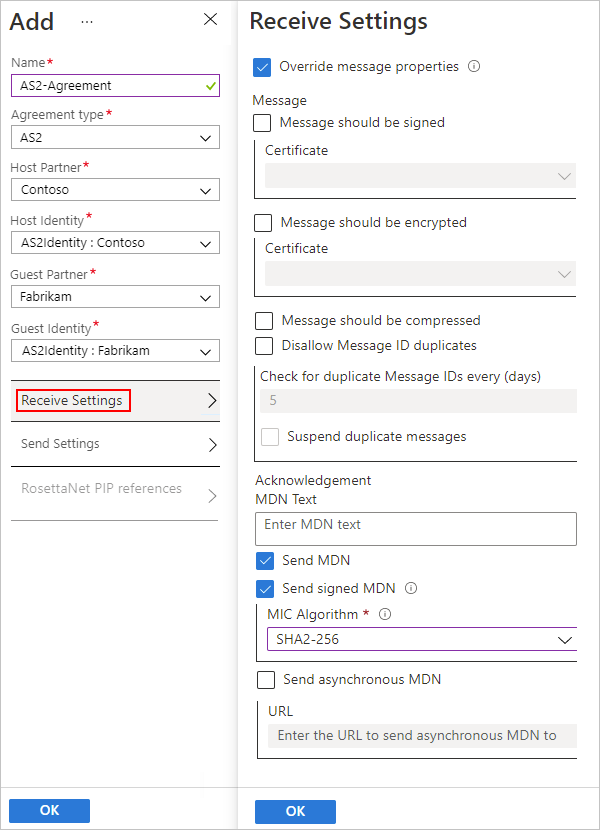

AS2 Receive settings

Property	Required	Description
Override message properties	No	Overrides the properties on incoming messages with your property settings.
Message should be signed	No	Specifies whether all incoming messages must be digitally signed. If you require signing, from the Certificate list, select an existing guest partner public certificate for validating the signature on the messages. If you don't have a certificate, learn more about adding certificates.
Message should be encrypted	No	Specifies whether all incoming messages must be encrypted. Non-encrypted messages are rejected. If you require encryption, from the Certificate list, select an existing host partner private certificate for decrypting incoming messages. If you don't have a certificate, learn more about adding certificates.
Message should be compressed	No	Specifies whether all incoming messages must be compressed. Non-compressed messages are rejected.
Disallow Message ID duplicates	No	Specifies whether to allow messages with duplicate IDs. If you disallow duplicate IDs, select the number of days between checks. You can also choose whether to suspend duplicates.
MDN Text	No	Specifies the default message disposition notification (MDN) that you want sent to the message sender.
Send MDN	No	Specifies whether to send synchronous MDNs for received messages.
Send signed MDN	No	Specifies whether to send signed MDNs for received messages. If you require signing, from the MIC Algorithm list, select the algorithm to use for signing messages.
Send asynchronous MDN	No	Specifies whether to send MDNs asynchronously. If you select asynchronous MDNs, in the URL box, specify the URL for where to send the MDNs.

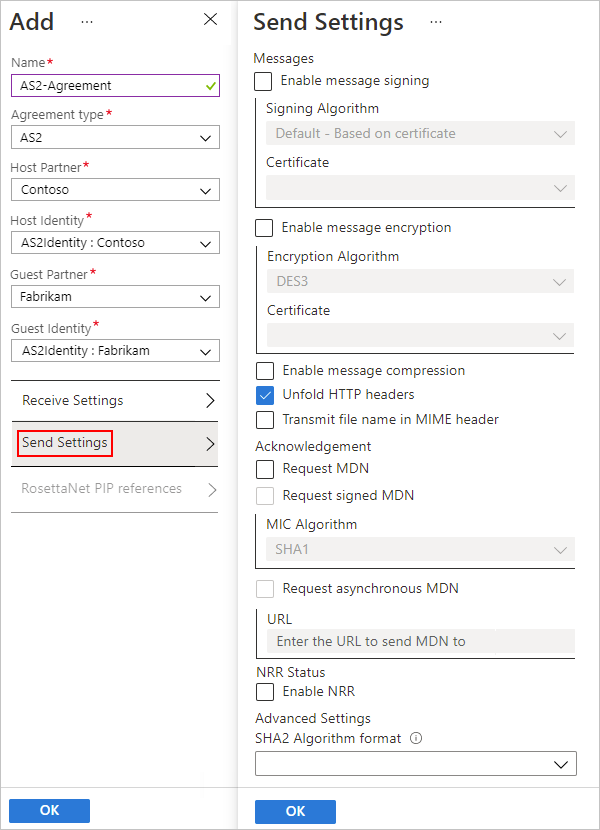

AS2 Send settings

Property	Required	Description
Enable message signing	No	Specifies whether all outgoing messages must be digitally signed. If you require signing, select these values: - From the Signing Algorithm list, select the algorithm to use for signing messages. - From the Certificate list, select an existing host partner private certificate for signing messages. If you don't have a certificate, learn more about adding certificates.
Enable message encryption	No	Specifies whether all outgoing messages must be encrypted. If you require encryption, select these values: - From the Encryption Algorithm list, select the guest partner public certificate algorithm to use for encrypting messages. - From the Certificate list, select an existing guest partner public certificate for encrypting outgoing messages. If you don't have a certificate, learn more about adding certificates.
Enable message compression	No	Specifies whether all outgoing messages must be compressed.
Unfold HTTP headers	No	Puts the HTTP content-type header onto a single line.
Transmit file name in MIME header	No	Specifies whether to include the file name in the MIME header.
Request MDN	No	Specifies whether to receive message disposition notifications (MDNs) for all outgoing messages.
Request signed MDN	No	Specifies whether to receive signed MDNs for all outgoing messages. If you require signing, from the MIC Algorithm list, select the algorithm to use for signing messages.
Request asynchronous MDN	No	Specifies whether to receive MDNs asynchronously. If you select asynchronous MDNs, in the URL box, specify the URL for where to send the MDNs.
Enable NRR	No	Specifies whether to require non-repudiation receipt (NRR). This communication attribute provides evidence that the data was received as addressed.
SHA2 Algorithm format	No	Specifies the MIC algorithm format to use for signing in the headers for the outgoing AS2 messages or MDN
