Exchange X12 messages for B2B enterprise integration using Azure Logic Apps and Enterprise Integration Pack

Applies to: Azure Logic Apps (Consumption + Standard)

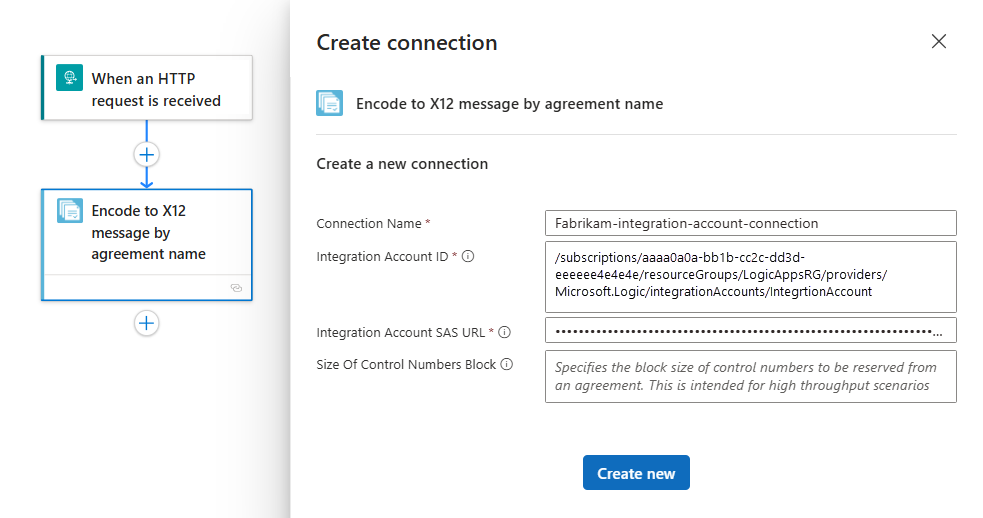

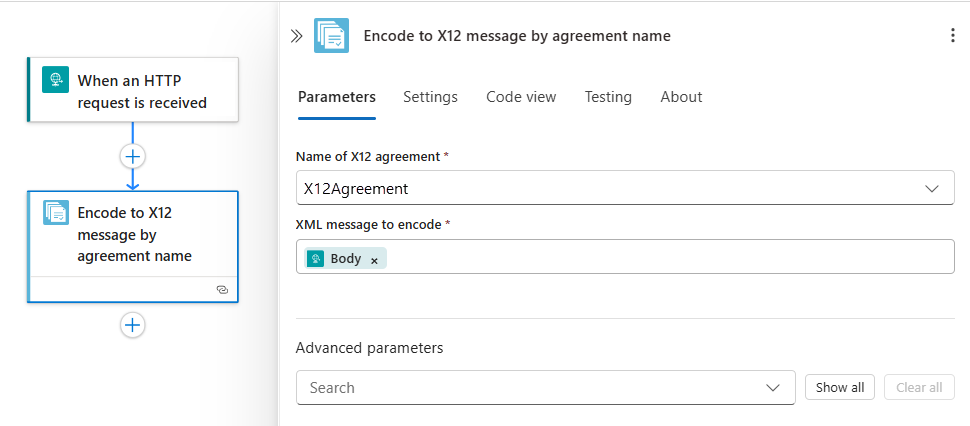

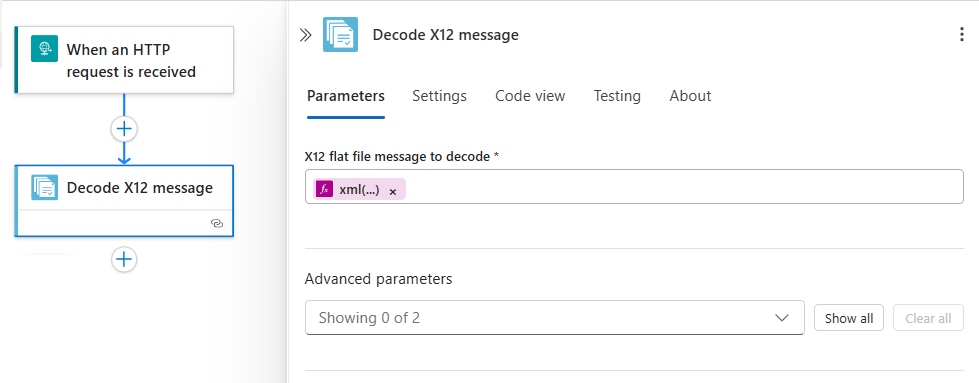

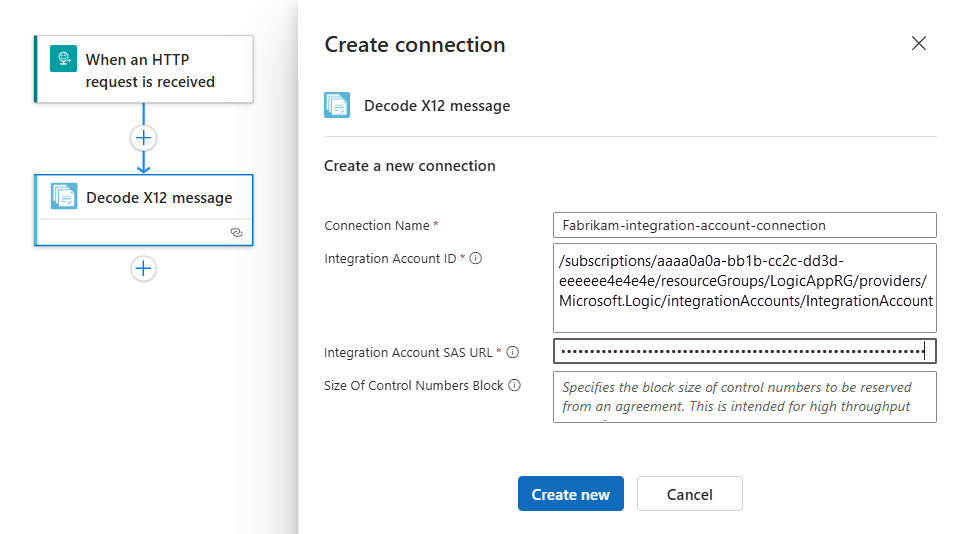

In Azure Logic Apps, you can create workflows that work with X12 messages by using X12 operations. These operations include triggers and actions that you can use in your workflow to handle X12 communication. You can add X12 triggers and actions in the same way as any other trigger and action in a workflow, but you need to meet extra prerequisites before you can use X12 operations.

This article describes the requirements and settings for using X12 triggers and actions in your workflow. If you're looking for EDIFACT messages instead, review Exchange EDIFACT messages. If you're new to logic apps, see What is Azure Logic Apps and the following documentation:

• Create an example Consumption logic app workflow in multi-tenant Azure Logic Apps

• Create an example Standard logic app workflow in single-tenant Azure Logic Apps

Prerequisites

• An Azure account and subscription. If you don't have an Azure subscription yet, sign up for a free Azure account.

• A logic app resource and workflow where you want to use an X12 trigger or action. To use an X12 trigger, you need a blank workflow. To use an X12 action, you need a workflow that has an existing trigger.

• An integration account that's linked to your logic app resource. Both your logic app and integration account have to use the same Azure subscription and exist in the same Azure region or location.

  Your integration account also need to include the following B2B artifacts:

  • At least two trading partners that use the X12 identity qualifier.

  • An X12 agreement defined between your trading partners. For information about settings to use when receiving and sending messages, review Receive Settings and Send Settings.

    Important

    If you're working with Health Insurance Portability and Accountability Act (HIPAA) schemas, you have to add a schemaReferences section to your agreement. For more information, review HIPAA schemas and message types.

  • The schemas to use for XML validation.

    Important

    If you're working with Health Insurance Portability and Accountability Act (HIPAA) schemas, make sure to review HIPAA schemas and message types.

Connector reference

For more technical information about this connector, such as triggers, actions, and limits as described by the connector's Swagger file, see the connector's reference page.

Note

For logic apps in an integration service environment (ISE), this connector's ISE-labeled version uses the B2B message limits for ISE.

Receive Settings

After you set the properties in your trading partner agreement, you can configure how this agreement identifies and handles inbound messages that you receive from your partner through this agreement.

1. Under Add, select Receive Settings.

2. Based on the agreement with the partner that exchanges messages with you, set the properties in the Receive Settings pane, which is organized into the following sections:

   • Identifiers
   • Acknowledgement
   • Schemas
   • Envelopes
   • Control Numbers
   • Validations
   • Internal Settings

3. When you're done, make sure to save your settings by selecting OK.

Receive Settings - Identifiers

Property	Description
ISA1 (Authorization Qualifier)	The Authorization Qualifier value that you want to use. The default value is 00 - No Authorization Information Present. Note: If you select other values, specify a value for the ISA2 property.
ISA2	The Authorization Information value to use when the ISA1 property is not 00 - No Authorization Information Present. This property value must have a minimum of one alphanumeric character and a maximum of 10.
ISA3 (Security Qualifier)	The Security Qualifier value that you want to use. The default value is 00 - No Security Information Present. Note: If you select other values, specify a value for the ISA4 property.
ISA4	The Security Information value to use when the ISA3 property is not 00 - No Security Information Present. This property value must have a minimum of one alphanumeric character and a maximum of 10.

Receive Settings - Acknowledgement

Property	Description
TA1 Expected	Return a technical acknowledgment (TA1) to the interchange sender.
FA Expected	Return a functional acknowledgment (FA) to the interchange sender. For the FA Version property, based on the schema version, select the 997 or 999 acknowledgments. To enable generation of AK2 loops in functional acknowledgments for accepted transaction sets, select Include AK2 / IK2 Loop.

Receive Settings - Schemas

For this section, select a schema from your integration account for each transaction type (ST01) and Sender Application (GS02). The EDI Receive Pipeline disassembles the incoming message by matching the values and schema that you set in this section with the values for ST01 and GS02 in the incoming message and with the schema of the incoming message. After you complete each row, a new empty row automatically appears.

Property	Description
Version	The X12 version for the schema
Transaction Type (ST01)	The transaction type
Sender Application (GS02)	The sender application
Schema	The schema file that you want to use

Receive Settings - Envelopes

Property	Description
ISA11 Usage	The separator to use in a transaction set: - Standard Identifier: Use a period (.) for decimal notation, rather than the decimal notation of the incoming document in the EDI Receive Pipeline. - Repetition Separator: Specify the separator for repeated occurrences of a simple data element or a repeated data structure. For example, usually the carat (^) is used as the repetition separator. For HIPAA schemas, you can only use the carat.

Receive Settings - Control Numbers

Property	Description
Disallow Interchange control number duplicates	Block duplicate interchanges. Check the interchange control number (ISA13) for the received interchange control number. If a match is detected, the EDI Receive Pipeline doesn't process the interchange. To specify the number of days to perform the check, enter a value for the Check for duplicate ISA13 every (days) property.
Disallow Group control number duplicates	Block interchanges that have duplicate group control numbers.
Disallow Transaction set control number duplicates	Block interchanges that have duplicate transaction set control numbers.

Receive Settings - Validations

The Default row shows the validation rules that are used for an EDI message type. If you want to define different rules, select each box where you want the rule set to true. After you complete each row, a new empty row automatically appears.

Property	Description
Message Type	The EDI message type
EDI Validation	Perform EDI validation on data types as defined by the schema's EDI properties, length restrictions, empty data elements, and trailing separators.
Extended Validation	If the data type isn't EDI, validation is on the data element requirement and allowed repetition, enumerations, and data element length validation (min or max).
Allow Leading/Trailing Zeroes	Keep any additional leading or trailing zero and space characters. Don't remove these characters.
Trim Leading/Trailing Zeroes	Remove any leading or trailing zero and space characters.
Trailing Separator Policy	Generate trailing separators. - Not Allowed: Prohibit trailing delimiters and separators in the inbound interchange. If the interchange has trailing delimiters and separators, the interchange is declared not valid. - Optional: Accept interchanges with or without trailing delimiters and separators. - Mandatory: The inbound interchange must have trailing delimiters and separators.

Receive Settings - Internal Settings

Property	Description
Convert implied decimal format Nn to a base 10 numeric value	Convert an EDI number that is specified with the format "Nn" into a base-10 numeric value.
Create empty XML tags if trailing separators are allowed	Have the interchange sender include empty XML tags for trailing separators.
Split Interchange as transaction sets - suspend transaction sets on error	Parse each transaction set that's in an interchange into a separate XML document by applying the appropriate envelope to the transaction set. Suspend only the transactions where the validation fails.
Split Interchange as transaction sets - suspend interchange on error	Parse each transaction set that's in an interchange into a separate XML document by applying the appropriate envelope. Suspend the entire interchange when one or more transaction sets in the interchange fail validation.
Preserve Interchange - suspend transaction sets on error	Leave the interchange intact and create an XML document for the entire batched interchange. Suspend only the transaction sets that fail validation, but continue to process all other transaction sets.
Preserve Interchange - suspend interchange on error	Leaves the interchange intact, creates an XML document for the entire batched interchange. Suspends the entire interchange when one or more transaction sets in the interchange fail validation.

Send Settings

After you set the agreement properties, you can configure how this agreement identifies and handles outbound messages that you send to your partner through this agreement.

1. Under Add, select Send Settings.

2. Configure these properties based on your agreement with the partner that exchanges messages with you. For property descriptions, see the tables in this section.

   The Send Settings are organized into these sections:

   • Identifiers
   • Acknowledgement
   • Schemas
   • Envelopes
   • Control Version Number
   • Control Numbers
   • Character Sets and Separators
   • Validation

3. When you're done, make sure to save your settings by selecting OK.

Send Settings - Identifiers

Property	Description
ISA1 (Authorization Qualifier)	The Authorization Qualifier value that you want to use. The default value is 00 - No Authorization Information Present. Note: If you select other values, specify a value for the ISA2 property.
ISA2	The Authorization Information value to use when the ISA1 property is not 00 - No Authorization Information Present. This property value must have a minimum of one alphanumeric character and a maximum of 10.
ISA3 (Security Qualifier)	The Security Qualifier value that you want to use. The default value is 00 - No Security Information Present. Note: If you select other values, specify a value for the ISA4 property.
ISA4	The Security Information value to use when the ISA3 property is not 00 - No Security Information Present. This property value must have a minimum of one alphanumeric character and a maximum of 10.

Send Settings - Acknowledgement

Property	Description
TA1 Expected	Return a technical acknowledgment (TA1) to the interchange sender. This setting specifies that the host partner, who is sending the message, requests an acknowledgment from the guest partner in the agreement. These acknowledgments are expected by the host partner based on the agreement's Receive Settings.
FA Expected	Return a functional acknowledgment (FA) to the interchange sender. For the FA Version property, based on the schema version, select the 997 or 999 acknowledgements. This setting specifies that the host partner, who is sending the message, requests an acknowledgement from the guest partner in the agreement. These acknowledgments are expected by the host partner based on the agreement's Receive Settings.

Send Settings - Schemas

For this section, select a schema from your integration account for each transaction type (ST01). After you complete each row, a new empty row automatically appears.

Property	Description
Version	The X12 version for the schema
Transaction Type (ST01)	The transaction type for the schema
Schema	The schema file that you want to use. If you select the schema first, the version and transaction type are automatically set.

Send Settings - Envelopes

Property	Description
ISA11 Usage	The separator to use in a transaction set: - Standard Identifier: Use a period (.) for decimal notation, rather than the decimal notation of the outbound document in the EDI Send Pipeline. - Repetition Separator: Specify the separator for repeated occurrences of a simple data element or a repeated data structure. For example, usually the carat (^) is used as the repetition separator. For HIPAA schemas, you can only use the carat.

Send Settings - Control Version Number

For this section, select a schema from your integration account for each interchange. After you complete each row, a new empty row automatically appears.

Property	Description
Control Version Number (ISA12)	The version of the X12 standard
Usage Indicator (ISA15)	The context of an interchange, which is either Test data, Information data, or Production data
Schema	The schema to use for generating the GS and ST segments for an X12-encoded interchange that's sent to the EDI Send Pipeline.
GS1	Optional, select the functional code.
GS2	Optional, specify the application sender.
GS3	Optional, specify the application receiver.
GS4	Optional, select CCYYMMDD or YYMMDD.
GS5	Optional, select HHMM, HHMMSS, or HHMMSSdd.
GS7	Optional, select a value for the responsible agency.
GS8	Optional, specify the schema document version.

Send Settings - Control Numbers

Property	Description
Interchange Control Number (ISA13)	The range of values for the interchange control number, which can have a minimum of value 1 and a maximum value of 999999999
Group Control Number (GS06)	The range of values for the group control number, which can have a minimum value of 1 and a maximum value of 999999999
Transaction Set Control Number (ST02)	The range of values for the transaction set control number, which can have a minimum value of 1 and a maximum value of 999999999 - Prefix: Optional, an alphanumeric value - Suffix: Optional, an alphanumeric value

Send Settings - Character Sets and Separators

The Default row shows the character set that's used as delimiters for a message schema. If you don't want to use the Default character set, you can enter a different set of delimiters for each message type. After you complete each row, a new empty row automatically appears.

Tip

To provide special character values, edit the agreement as JSON and provide the ASCII value for the special character.

Property	Description
Character Set to be used	The X12 character set, which is either Basic, Extended, or UTF8.
Schema	The schema that you want to use. After you select the schema, select the character set that you want to use, based on the separator descriptions below.
Input Type	The input type for the character set
Component Separator	A single character that separates composite data elements
Data Element Separator	A single character that separates simple data elements within composite data
replacement Character Separator	A replacement character that replaces all separator characters in the payload data when generating the outbound X12 message
Segment Terminator	A single character that indicates the end of an EDI segment
Suffix	The character to use with the segment identifier. If you specify a suffix, the segment terminator data element can be empty. If the segment terminator is left empty, you must designate a suffix.

Send Settings - Validation

The Default row shows the validation rules that are used for an EDI message type. If you want to define different rules, select each box where you want the rule set to true. After you complete each row, a new empty row automatically appears.

Property	Description
Message Type	The EDI message type
EDI Validation	Perform EDI validation on data types as defined by the schema's EDI properties, length restrictions, empty data elements, and trailing separators.
Extended Validation	If the data type isn't EDI, validation is on the data element requirement and allowed repetition, enumerations, and data element length validation (min or max).
Allow Leading/Trailing Zeroes	Keep any additional leading or trailing zero and space characters. Don't remove these characters.
Trim Leading/Trailing Zeroes	Remove any leading or trailing zero and space characters.
Trailing Separator Policy	Generate trailing separators. - Not Allowed: Prohibit trailing delimiters and separators in the outbound interchange. If the interchange has trailing delimiters and separators, the interchange is declared not valid. - Optional: Send interchanges with or without trailing delimiters and separators. - Mandatory: The outbound interchange must have trailing delimiters and separators.

HIPAA schemas and message types

When you work with HIPAA schemas and the 277 or 837 message types, you need to perform a few extra steps. The document version numbers (GS8) for these message types have more than nine characters, for example, "005010X222A1". Also, some document version numbers map to variant message types. If you don't reference the correct message type in your schema and in your agreement, you get this error message:

"The message has an unknown document type and did not resolve to any of the existing schemas configured in the agreement."

This table lists the affected message types, any variants, and the document version numbers that map to those message types:

Message type or variant	Description	Document version number (GS8)
277	Health Care Information Status Notification	005010X212
837_I	Health Care Claim Institutional	004010X096A1 005010X223A1 005010X223A2
837_D	Health Care Claim Dental	004010X097A1 005010X224A1 005010X224A2
837_P	Health Care Claim Professional	004010X098A1 005010X222 005010X222A1

You also need to disable EDI validation when you use these document version numbers because they result in an error that the character length is invalid.

To specify these document version numbers and message types, follow these steps:

1. In your HIPAA schema, replace the current message type with the variant message type for the document version number that you want to use.

   For example, suppose you want to use document version number 005010X222A1 with the 837 message type. In your schema, replace each "X12_00501_837" value with the "X12_00501_837_P" value instead.

   To update your schema, follow these steps:

   1. In the Azure portal, go to your integration account. Find and download your schema. Replace the message type and rename the schema file, and upload your revised schema to your integration account. For more information, see Edit a schema.

   2. In your agreement's message settings, select the revised schema.

2. In your agreement's schemaReferences object, add another entry that specifies the variant message type that matches your document version number.

   For example, suppose you want to use document version number 005010X222A1 for the 837 message type. Your agreement has a schemaReferences section with these properties and values:

   "schemaReferences": [
      {
         "messageId": "837",
         "schemaVersion": "00501",
         "schemaName": "X12_00501_837"
      }
   ]


   In this schemaReferences section, add another entry that has these values:

   • "messageId": "837_P"
   • "schemaVersion": "00501"
   • "schemaName": "X12_00501_837_P"

   When you're done, your schemaReferences section looks like this:

   "schemaReferences": [
      {
         "messageId": "837",
         "schemaVersion": "00501",
         "schemaName": "X12_00501_837"
      },
      {
         "messageId": "837_P",
         "schemaVersion": "00501",
         "schemaName": "X12_00501_837_P"
      }
   ]


3. In your agreement's message settings, disable EDI validation by clearing the EDI Validation checkbox either for each message type or for all message types if you're using the Default values.
