Tutorial: Create a payment HSM

  • Article

Azure Payment HSM is a "BareMetal" service delivered using Thales payShield 10K payment hardware security modules (HSM) to provide cryptographic key operations for real-time, critical payment transactions in the Azure cloud. Azure Payment HSM is designed specifically to help a service provider and an individual financial institution accelerate their payment system's digital transformation strategy and adopt the public cloud. For more information, see Azure Payment HSM: Overview.

This tutorial describes how to create an Azure Payment HSM with the host and management port in same virtual network. You can instead:

Note

If you wish to reuse an existing VNet, verify that you have met all of the Prerequisites and then read How to reuse an existing virtual network.

Prerequisites

Important

Azure Payment HSM is a specialized service. To qualify for onboarding and use of Azure Payment HSM, customers must have an assigned Microsoft Account Manager and have a Cloud Service Architect (CSA).

To inquire about the service, start the qualification process, and prepare the prerequisites before on-boarding, ask your Microsoft account manager and CSA to send a request via email.

  • You must register the "Microsoft.HardwareSecurityModules" and "Microsoft.Network" resource providers, as well as the Azure Payment HSM features. Steps for doing so are at Register the Azure Payment HSM resource provider and resource provider features.

    Warning

    You must apply the "FastPathEnabled" feature flag to every subscription ID, and add the "fastpathenabled" tag to every virtual network. For more information, see Fastpathenabled.

    To quickly ascertain if the resource providers and features are already registered, use the Azure CLI az provider show command. (The output of this command is more readable when displayed in table-format.)

    az provider show --namespace "Microsoft.HardwareSecurityModules" -o table

az provider show --namespace "Microsoft.Network" -o table

az feature registration show -n "FastPathEnabled"  --provider-namespace "Microsoft.Network" -o table

az feature registration show -n "AzureDedicatedHsm"  --provider-namespace "Microsoft.HardwareSecurityModules" -o table

    You can continue with this quick start if all four of these commands return "Registered".

  • You must have an Azure subscription. You can create a free account if you don't have one.

Create a resource group

A resource group is a logical container into which Azure resources are deployed and managed. Use the az group create command to create a resource group named myResourceGroup in the eastus location.

az group create --name "myResourceGroup" --location "EastUS"

Create a virtual network and subnet

Before creating a payment HSM, you must first create a virtual network and a subnet. To do so, use the Azure CLI az network vnet create command:

az network vnet create -g "myResourceGroup" -n "myVNet" --address-prefixes "10.0.0.0/16" --tags "fastpathenabled=True" --subnet-name "myPHSMSubnet" --subnet-prefix "10.0.0.0/24"

Afterward, use the Azure CLI az network vnet subnet update command to update the subnet and give it a delegation of "Microsoft.HardwareSecurityModules/dedicatedHSMs":

az network vnet subnet update -g "myResourceGroup" --vnet-name "myVNet" -n "myPHSMSubnet" --delegations "Microsoft.HardwareSecurityModules/dedicatedHSMs"

To verify that the VNet and subnet were created correctly, use the Azure CLI az network vnet subnet show command:

az network vnet subnet show -g "myResourceGroup" --vnet-name "myVNet" -n myPHSMSubnet

Make note of the subnet's ID, as you need it for the next step. The ID of the subnet ends with the name of the subnet:

"id": "/subscriptions/<subscriptionID>/resourceGroups/myResourceGroup/providers/Microsoft.Network/virtualNetworks/myVNet/subnets/myPHSMSubnet",

Create a payment HSM

Important

If you create two payment HSMs in the same region, you must allocate one to "stamp1" and the other to "stamp2". For more information, see Deployment scenarios: High-availablity deployment.

Create with dynamic hosts

To create a payment HSM with dynamic hosts, use the az dedicated-hsm create command. The following example creates a payment HSM named myPaymentHSM in the eastus region, myResourceGroup resource group, and specified subscription, virtual network, and subnet:

az dedicated-hsm create \
   --resource-group "myResourceGroup" \
   --name "myPaymentHSM" \
   --location "EastUS" \
   --subnet id="<subnet-id>" \
   --stamp-id "stamp1" \
   --sku "payShield10K_LMK1_CPS60"

To see the newly created network interfaces, use the az network nic list command, providing the resource group:

az network nic list -g myResourceGroup -o table

In the output, host 1 and host 2 are listed, as well as a management interface:

...  Name                      NicType    Primary    ProvisioningState    ResourceGroup    ...
---  ------------------------  ---------  ---------  -------------------  ---------------  ---
...  myPaymentHSM_HSMHost1Nic  Standard   True       Succeeded            myResourceGroup  ...
...  myPaymentHSM_HSMHost2Nic  Standard   True       Succeeded            myResourceGroup  ...
...  myPaymentHSM_HSMMgmtNic   Standard   True       Succeeded            myResourceGroup  ...

To see the details of a newly created network interface, use the az network nic show command, providing the resource group and name of the network interface:

az network nic show -g myresourcegroup -n myPaymentHSM_HSMHost1Nic

The output contains this line:

  "privateIPAllocationMethod": "Dynamic",

Create with static hosts

To create a payment HSM with static hosts, use the az dedicated-hsm create command. The following example creates a payment HSM named myPaymentHSM in the eastus region, myResourceGroup resource group, and specified subscription, virtual network, and subnet:

az dedicated-hsm create \
  --resource-group "myResourceGroup" \
  --name "myPaymentHSM" \
  --location "EastUS" \
  --subnet id="<subnet-id>" \
  --stamp-id "stamp1" \
  --sku "payShield10K_LMK1_CPS60" \
  --network-interfaces private-ip-address='("10.0.0.5", "10.0.0.6")

If you wish to also specify a static IP for the management host, you can add:

  --mgmt-network-interfaces private-ip-address="10.0.0.7" \
  --mgmt-network-subnet="<subnet-id>"

To see the newly created network interfaces, use the az network nic list command, providing the resource group:

az network nic list -g myResourceGroup -o table

In the output, host 1 and host 2 are listed, as well as the management interface:

...  Name                      NicType    Primary    ProvisioningState    ResourceGroup    ...
---  ------------------------  ---------  ---------  -------------------  ---------------  ---
...  myPaymentHSM_HSMHost1Nic  Standard   True       Succeeded            myResourceGroup  ...
...  myPaymentHSM_HSMHost2Nic  Standard   True       Succeeded            myResourceGroup  ...
...  myPaymentHSM_HSMMgmtNic   Standard   True       Succeeded            myResourceGroup  ...

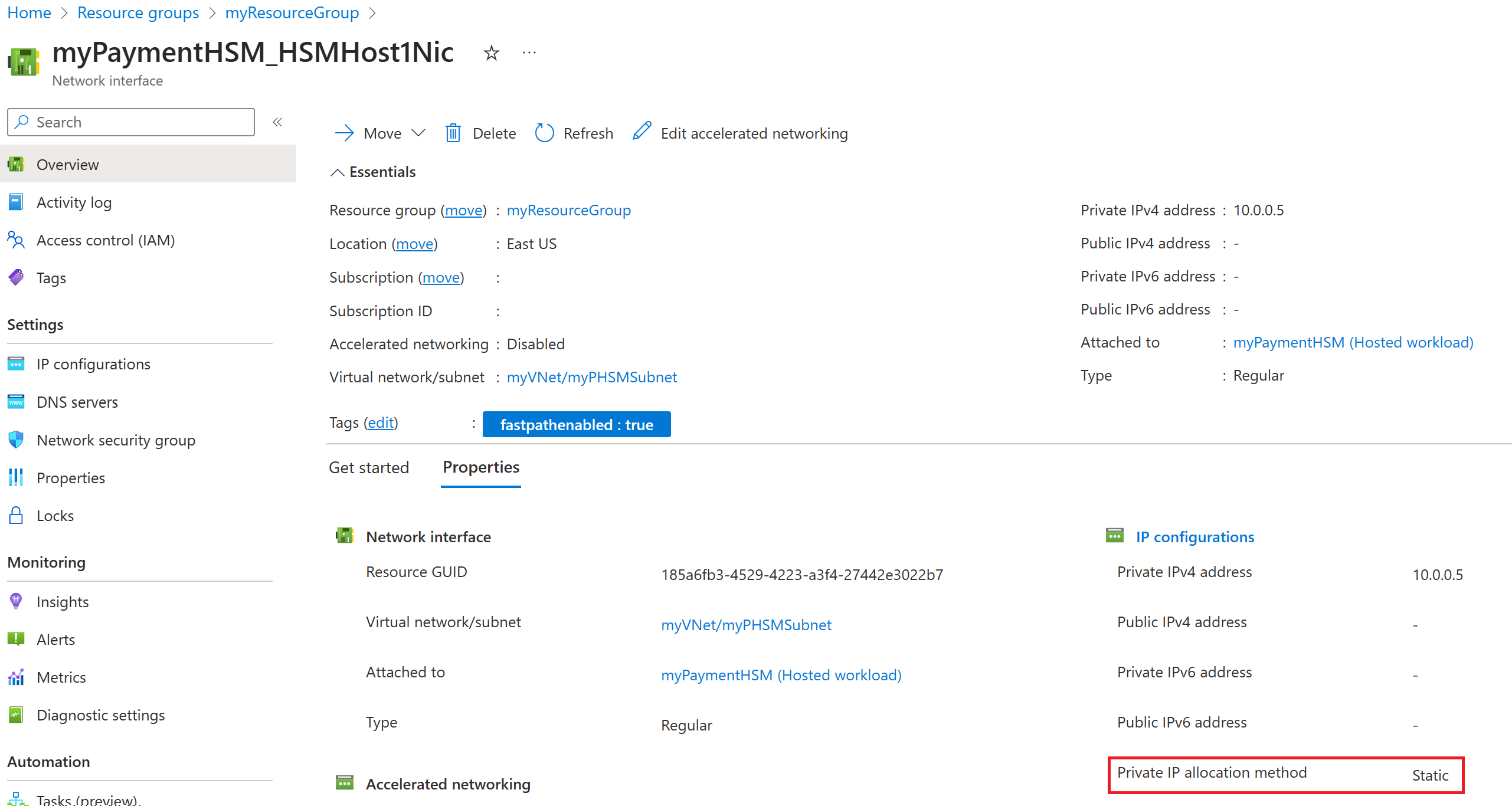

To view the properties of a network interface, use the az network nic show command, providing the resource group and name of the network interface:

 az network nic show -g myresourcegroup -n myPaymentHSM_HSMHost1Nic

The output contains this line:

  "privateIPAllocationMethod": "Static",

Next steps

Advance to the next article to learn how to view your payment HSM.
