Tutorial: Viewing a remotely rendered model

In this tutorial, you learn how to:

  • Provision an Azure Remote Rendering (ARR) instance
  • Create and stop a rendering session
  • Reuse an existing rendering session
  • Connect and disconnect from sessions
  • Load models into a rendering session

Prerequisites

For this tutorial you need:

  • An active pay-as-you-go Azure subscription Create an account
  • Windows SDK 10.0.18362.0 (download)
  • The latest version of Visual Studio 2019 (download)
  • GIT (download)
  • Unity (see system requirements for supported versions)
  • Intermediate knowledge of Unity and the C# language (for example: creating scripts and objects, using prefabs, configuring Unity events, etc.)

Provision an Azure Remote Rendering (ARR) instance

To get access to the Azure Remote Rendering service, you first need to create an account.

Create a new Unity project

Tip

The ARR samples repository contains a project with all the tutorials completed, it can be used as a reference. Look in Unity\Tutorial-Complete for the complete Unity project.

From the Unity Hub, create a new project. In this example, we'll assume the project is being created in a folder called RemoteRendering.

Screenshot of Unity Hub showing the Create a New Unity Project dialog. The panel 3D is selected.

Include the Azure Remote Rendering and OpenXR packages

Follow the instructions on how to add the Azure Remote Rendering and OpenXR packages to your Unity Project.

Configure the camera

  1. Select the Main Camera node.

  2. Open the context menu by right-clicking on the Transform component and select the Reset option:

    Screenshot of the Unity inspector for a Transform component. The context menu is opened and Reset is selected.

  3. Set Clear flags to Solid Color

  4. Set Background to Black (#000000), with fully transparent (0) alpha (A)

    Screenshot of the Unity Color wheel dialog. The color is set to 0 for all R G B A components.

  5. Set Clipping Planes to Near = 0.1 and Far = 20. This means rendering will clip geometry that is closer than 10 cm or farther than 20 meters.

    Screenshot of the Unity inspector for a Camera component.

Adjust the project settings

  1. Open Edit > Project Settings...

  2. Select Quality from the left list menu

    1. Change the Default Quality Level of all platforms to Low. This setting will enable more efficient rendering of local content and doesn't affect the quality of remotely rendered content.

      Screenshot of the Unity Project Settings dialog. The Quality entry is selected in the list on the left. The context menu for the default quality level is opened on the right. The low entry is selected.

  3. Select Graphics from the left list menu

    1. Change the Scriptable Rendering Pipeline setting to HybridRenderingPipeline.
      Screenshot of the Unity Project Settings dialog. The Graphics entry is selected in the list on the left. The button to select a Universal Render Pipeline asset is highlighted.
      Sometimes the UI does not populate the list of available pipeline types from the packages. If this occurs, the HybridRenderingPipeline asset must be dragged onto the field manually:
      Screenshot of the Unity asset browser and Project Settings dialog. The HybridRenderingPipeline asset is highlighted in the asset browser. An arrow points from the asset to the UniversalRenderPipelineAsset field in project settings.

      Note

      If you're unable to drag and drop the HybridRenderingPipeline asset into the Render Pipeline Asset field (possibly because the field doesn't exist!), ensure your package configuration contains the com.unity.render-pipelines.universal package.

  4. Select XR Plugin Management from the left list menu

    1. Click the Install XR Plugin Management button.
    2. Select the Universal Windows Platform settings tab, represented as a Windows icon.
    3. Click the Open XR checkbox under Plug-In Providers
    4. If a dialog opens that asks you to enable the native platform backends for the new input system click No.

    Screenshot of the Unity Project Settings dialog. The X R Plug-in Management entry is selected in the list on the left. The tab with the windows logo is highlighted on the right. The Open X R checkbox below it is also highlighted.

    Note

    If the Microsoft HoloLens feature group is disabled the Windows Mixed Reality OpenXR Plugin is missing from your project. Follow the instructions on how to add the Azure Remote Rendering and OpenXR packages to install it.

  5. Select OpenXR from the left list menu

    1. Set Depth Submission Mode to Depth 16 Bit
    2. Add the Microsoft Hand Interaction Profile to Interaction Profiles.
    3. Enable these OpenXR features:
      • Hand Tracking
      • Mixed Reality Features
      • Motion Controller Model

    Screenshot of the Unity Project Settings dialog. The Open X R sub-entry is selected in the list on the left. Highlights on the right side are placed on the Depth Submission Mode, Interaction Profiles, and Open X R feature settings.

    Note

    If you don't see the required OpenXR features listed the Windows Mixed Reality OpenXR Plugin is missing from your project. Follow the instructions on how to add the Azure Remote Rendering and OpenXR packages to install it.

  6. Select Player from the left list menu

    1. Select the Universal Windows Platform settings tab, represented as a Windows icon.
    2. Expand Other Settings
    3. Under Rendering change Color Space to Linear and restart Unity when it asks you to.
    4. Under Configuration change Active Input Handling to Both and restart Unity when it asks you to. Screenshot of the Unity Project Settings dialog. The Player entry is selected in the list on the left. Highlights on the right side are placed on the tab with the Windows logo, the Color Space setting, and the Active input Handling setting.
    5. Expand Publishing Settings
    6. Scroll down to Capabilities and select:
      • InternetClient
      • InternetClientServer
      • SpatialPerception
      • PrivateNetworkClientServer (optional). Select this option if you want to connect the Unity remote debugger to your device.
    7. Under Supported Device Families, enable Holographic and Desktop Screenshot of the Unity Project Settings dialog. The Player entry is selected in the list on the left. Highlights on the right side are placed on the Capabilities and the Supported Device Families settings.
  7. Close or dock the Project Settings panel

  8. Open File->Build Settings

    1. Select Universal Windows Platform
    2. Configure your settings to match those found below
    3. Press the Switch Platform button.

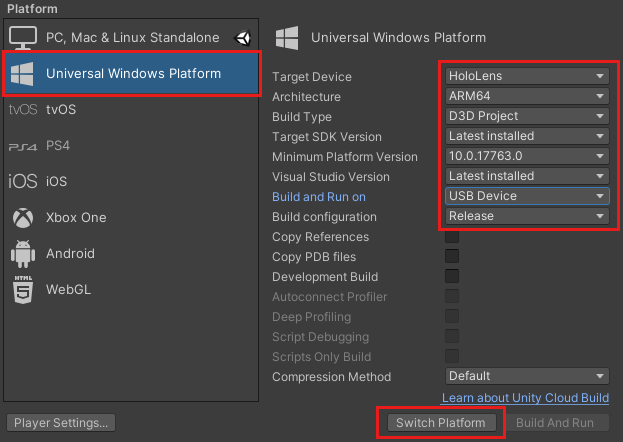

      Screenshot of the Unity Build Settings dialog. The Universal Windows Platform entry is selected in the list on the left. Highlights on the right side are placed on the settings dropdown boxes and the Switch Platform button.
  9. After Unity changes platforms, close the build panel.

Validate project setup

Perform the following steps to validate that the project settings are correct.

  1. Choose the ValidateProject entry from the RemoteRendering menu in the Unity editor toolbar.

  2. Review the ValidateProject window for errors and fix project settings where necessary.

    Screenshot of the Unity Validate Project dialog. The dialog shows a mixture of successful checks, warnings, and errors.

Note

If you use MRTK in your project and you enable the camera subsystem, MRTK will override manual changes that you apply to the camera. This includes fixes from the ValidateProject tool.

Create a script to coordinate Azure Remote Rendering connection and state

There are four basic stages to show remotely rendered models, outlined in the flowchart below. Each stage must be performed in order. The next step is to create a script which will manage the application state and proceed through each required stage.

Diagram of the four stages required to load a model.

  1. In the Project pane, under Assets, create a new folder called RemoteRenderingCore. Then inside RemoteRenderingCore, create another folder called Scripts.

  2. Create a new C# script called RemoteRenderingCoordinator. Your project should look like this:

    Screenshot of Unity Project hierarchy containing the new script.

    This coordinator script will track and manage the remote rendering state. Of note, some of this code is used for maintaining state, exposing functionality to other components, triggering events, and storing application-specific data that is not directly related to Azure Remote Rendering. Use the code below as a starting point, and we'll address and implement the specific Azure Remote Rendering code later in the tutorial.

  3. Open RemoteRenderingCoordinator in your code editor and replace its entire content with the code below:

// Copyright (c) Microsoft Corporation. All rights reserved.
// Licensed under the MIT License. See LICENSE in the project root for license information.

using Microsoft.Azure.RemoteRendering;
using Microsoft.Azure.RemoteRendering.Unity;
using System;
using System.Linq;
using System.Threading.Tasks;
using UnityEngine;
using UnityEngine.Events;

#if UNITY_WSA
using UnityEngine.XR.WSA;
#endif

/// <summary>
/// Remote Rendering Coordinator is the controller for all Remote Rendering operations.
/// </summary>

// Require the GameObject with a RemoteRenderingCoordinator to also have the ARRServiceUnity component
[RequireComponent(typeof(ARRServiceUnity))]
public class RemoteRenderingCoordinator : MonoBehaviour
{
    public enum RemoteRenderingState
    {
        NotSet,
        NotInitialized,
        NotAuthorized,
        NoSession,
        ConnectingToExistingRemoteSession,
        ConnectingToNewRemoteSession,
        RemoteSessionReady,
        ConnectingToRuntime,
        RuntimeConnected
    }

    public static RemoteRenderingCoordinator instance;

    // Account
    // RemoteRenderingDomain must be '<region>.mixedreality.azure.com' - if no '<region>' is specified, connections will fail
    // For most people '<region>' is either 'westus2' or 'westeurope'
    [SerializeField]
    private string remoteRenderingDomain = "westus2.mixedreality.azure.com";
    public string RemoteRenderingDomain
    {
        get => remoteRenderingDomain.Trim();
        set => remoteRenderingDomain = value;
    }

    [Header("Development Account Credentials")]
    [SerializeField]
    private string accountId = "<enter your account id here>";
    public string AccountId {
        get => accountId.Trim();
        set => accountId = value;
    }

    [SerializeField]
    private string accountDomain = "<enter your account domain here>";
    public string AccountDomain
    {
        get => accountDomain.Trim();
        set => accountDomain = value;
    }

    [SerializeField]
    private string accountKey = "<enter your account key here>";
    public string AccountKey {
        get => accountKey.Trim();
        set => accountKey = value;
    }

    // These settings are important. All three should be set as low as possible, while maintaining a good user experience
    // See the documentation around session management and the technical differences in session VM size
    [Header("New Session Defaults")]

    public RenderingSessionVmSize renderingSessionVmSize = RenderingSessionVmSize.Standard;
    public uint maxLeaseHours = 0;
    public uint maxLeaseMinutes = 20;

    [Header("Other Configuration")]

    [Tooltip("If you have a known active SessionID, you can fill it in here before connecting")]
    [SerializeField]
    private string sessionIDOverride;
    public string SessionIDOverride {
        get => sessionIDOverride.Trim();
        set => sessionIDOverride = value;
    }

    // When Automatic Mode is true, the coordinator will attempt to automatically proceed through the process of connecting and loading a model
    public bool automaticMode = true;

    public event Action RequestingAuthorization;
    public UnityEvent OnRequestingAuthorization = new UnityEvent();

    public event Action AuthorizedChanged;
    public UnityEvent OnAuthorizationChanged = new UnityEvent();
    private bool authorized;
    public bool Authorized
    {
        get => authorized;
        set
        {
            if (value == true) //This is a one-way value, once we're authorized it lasts until the app is shutdown.
            {
                authorized = value;
                AuthorizedChanged?.Invoke();
            }
        }
    }

    public delegate Task<SessionConfiguration> AccountInfoGetter();

    public static AccountInfoGetter ARRCredentialGetter
    {
        private get;
        set;
    }

    private RemoteRenderingState currentCoordinatorState = RemoteRenderingState.NotSet;
    public RemoteRenderingState CurrentCoordinatorState
    {
        get => currentCoordinatorState;
        private set
        {
            if (currentCoordinatorState != value)
            {
                currentCoordinatorState = value;
                Debug.LogFormat(LogType.Log, LogOption.NoStacktrace, null, "{0}", $"State changed to: {currentCoordinatorState}");
                CoordinatorStateChange?.Invoke(currentCoordinatorState);
            }
        }
    }

    public static event Action<RemoteRenderingState> CoordinatorStateChange;

    public static RenderingSession CurrentSession => instance?.ARRSessionService?.CurrentActiveSession;

    private ARRServiceUnity arrSessionService;

    private ARRServiceUnity ARRSessionService
    {
        get
        {
            if (arrSessionService == null)
                arrSessionService = GetComponent<ARRServiceUnity>();
            return arrSessionService;
        }
    }

    private async Task<SessionConfiguration> GetDevelopmentCredentials()
    {
        Debug.LogWarning("Using development credentials! Not recommended for production.");
        return await Task.FromResult(new SessionConfiguration(AccountDomain, RemoteRenderingDomain, AccountId, AccountKey));
    }

    /// <summary>
    /// Keep the last used SessionID, when launching, connect to this session if its available
    /// </summary>
    private string LastUsedSessionID
    {
        get
        {
            if (!string.IsNullOrEmpty(SessionIDOverride))
                return SessionIDOverride;

            if (PlayerPrefs.HasKey("LastUsedSessionID"))
                return PlayerPrefs.GetString("LastUsedSessionID");
            else
                return null;
        }
        set
        {
            PlayerPrefs.SetString("LastUsedSessionID", value);
        }
    }

    public void Awake()
    {
        //Forward events to Unity events
        RequestingAuthorization += () => OnRequestingAuthorization?.Invoke();
        AuthorizedChanged += () => OnAuthorizationChanged?.Invoke();

        //Attach to event
        AuthorizedChanged += RemoteRenderingCoordinator_AuthorizedChanged;

        if (instance == null)
            instance = this;
        else
            Destroy(this);

        CoordinatorStateChange += AutomaticMode;

        CurrentCoordinatorState = RemoteRenderingState.NotInitialized;
    }

    private void RemoteRenderingCoordinator_AuthorizedChanged()
    {
        if (CurrentCoordinatorState != RemoteRenderingState.NotAuthorized)
            return; //This isn't valid from any other state than NotAuthorized


        //We just became authorized to connect to Azure
        InitializeSessionService();
    }

    /// <summary>
    /// Automatic mode attempts to automatically progress through the connection and loading steps. Doesn't handle error states.
    /// </summary>
    /// <param name="currentState">The current state</param>
    private async void AutomaticMode(RemoteRenderingState currentState)
    {
        if (!automaticMode)
            return;

        //Add a small delay for visual effect
        await Task.Delay(1500);
        switch (currentState)
        {
            case RemoteRenderingState.NotInitialized:
                InitializeARR();
                break;
            case RemoteRenderingState.NotAuthorized:
                RequestAuthorization();
                break;
            case RemoteRenderingState.NoSession:
                JoinRemoteSession();
                break;
            case RemoteRenderingState.RemoteSessionReady:
                ConnectRuntimeToRemoteSession();
                break;
        }
    }

    /// <summary>
    /// Initializes ARR, associating the main camera
    /// Note: This must be called on the main Unity thread
    /// </summary>
    public void InitializeARR()
    {
        //Implement me
    }

    /// <summary>
    /// Create a new remote session manager
    /// If the ARRCredentialGetter is set, use it as it, otherwise use the development credentials
    /// </summary>
    public async void InitializeSessionService()
    {
        //Implement me
    }

    /// <summary>
    /// Trigger the event for checking authorization, respond to this event by prompting the user for authentication
    /// If authorized, set Authorized = true
    /// </summary>
    public void RequestAuthorization()
    {
        RequestingAuthorization?.Invoke();
    }

    public void BypassAuthorization()
    {
        Authorized = true;
    }

    /// <summary>
    /// Attempts to join an existing session or start a new session
    /// </summary>
    public async void JoinRemoteSession()
    {
        //Implement me
    }

    public async void StopRemoteSession()
    {
        //Implement me
    }

    private async Task<bool> IsSessionAvailable(string sessionID)
    {
        bool sessionAvailable = false;
        try
        {
            RenderingSessionPropertiesArrayResult result = await ARRSessionService.Client.GetCurrentRenderingSessionsAsync();
            if (result.ErrorCode == Result.Success)
            {
                RenderingSessionProperties[] properties = result.SessionProperties;
                if (properties != null)
                {
                    sessionAvailable = properties.Any(x => x.Id == sessionID && (x.Status == RenderingSessionStatus.Ready || x.Status == RenderingSessionStatus.Starting));
                }
            }
            else
            {
                Debug.LogError($"Failed to get current rendering sessions. Error: {result.Context.ErrorMessage}");
            }
        }
        catch (RRException ex)
        {
            Debug.LogError($"Failed to get current rendering sessions. Error: {ex.Message}");
        }
        return sessionAvailable;
    }

    /// <summary>
    /// Connects the local runtime to the current active session, if there's a session available
    /// </summary>
    public async void ConnectRuntimeToRemoteSession()
    {
        //Implement me
    }

    public void DisconnectRuntimeFromRemoteSession()
    {
        //Implement me
    }

    /// <summary>
    /// The session must have its runtime pump updated.
    /// The Connection.Update() will push messages to the server, receive messages, and update the frame-buffer with the remotely rendered content.
    /// </summary>
    private void LateUpdate()
    {
        ARRSessionService?.CurrentActiveSession?.Connection?.Update();
    }

    /// <summary>
    /// Loads a model into the remote session for rendering
    /// </summary>
    /// <param name="modelPath">The model's path</param>
    /// <param name="progress">A call back method that accepts a float progress value [0->1]</param>
    /// <param name="parent">The parent Transform for this remote entity</param>
    /// <returns>An awaitable Remote Rendering Entity</returns>
    public async Task<Entity> LoadModel(string modelPath, Transform parent = null, Action<float> progress = null)
    {
        //Implement me
        return null;
    }

    private async void OnRemoteSessionStatusChanged(ARRServiceUnity caller, RenderingSession session)
    {
        var properties = await session.GetPropertiesAsync();

        switch (properties.SessionProperties.Status)
        {
            case RenderingSessionStatus.Error:
            case RenderingSessionStatus.Expired:
            case RenderingSessionStatus.Stopped:
            case RenderingSessionStatus.Unknown:
                CurrentCoordinatorState = RemoteRenderingState.NoSession;
                break;
            case RenderingSessionStatus.Starting:
                CurrentCoordinatorState = RemoteRenderingState.ConnectingToNewRemoteSession;
                break;
            case RenderingSessionStatus.Ready:
                CurrentCoordinatorState = RemoteRenderingState.RemoteSessionReady;
                break;
        }
    }

    private void OnLocalRuntimeStatusChanged(ConnectionStatus status, Result error)
    {
        switch (status)
        {
            case ConnectionStatus.Connected:
                CurrentCoordinatorState = RemoteRenderingState.RuntimeConnected;
                break;
            case ConnectionStatus.Connecting:
                CurrentCoordinatorState = RemoteRenderingState.ConnectingToRuntime;
                break;
            case ConnectionStatus.Disconnected:
                CurrentCoordinatorState = RemoteRenderingState.RemoteSessionReady;
                break;
        }
    }
}

Create the Azure Remote Rendering GameObject

The remote rendering coordinator and its required script (ARRServiceUnity) are both MonoBehaviours that must be attached to a GameObject in the scene. The ARRServiceUnity script is provided by ARR to expose much of ARR's functionality for connecting to and managing remote sessions.

  1. Create a new GameObject in the scene (Ctrl+Shift+N or GameObject->Create Empty) and name it RemoteRenderingCoordinator.
  2. Add the RemoteRenderingCoordinator script to the RemoteRenderingCoordinator GameObject.
    Screenshot of the Unity Add Component dialog. The search text field contains the text RemoteRenderingCoordinator.
  3. Confirm the ARRServiceUnity script, appearing as Service in the inspector, is automatically added to the GameObject. In case you're wondering, this is a result having [RequireComponent(typeof(ARRServiceUnity))] at the top of the RemoteRenderingCoordinator script.
  4. Add your Azure Remote Rendering credentials, your Account Domain, and the Remote Rendering Domain to the coordinator script:
    Screenshot of the Unity inspector of the Remote Rendering Coordinator Script. The credential input fields are highlighted.

Initialize Azure Remote Rendering

Now that we have the framework for our coordinator, we will implement each of the four stages starting with Initialize Remote Rendering.

Diagram of the four stages required to load a model. The first stage "Initialize Remote Rendering" is highlighted.

Initialize tells Azure Remote Rendering which camera object to use for rendering and progresses the state machine into NotAuthorized. This means it's initialized but not yet authorized to connect to a session. Since starting an ARR session incurs a cost, we need to confirm the user wants to proceed.

When entering the NotAuthorized state, CheckAuthorization is called, which invokes the RequestingAuthorization event and determines which account credentials to use (AccountInfo is defined near the top of the class and uses the credentials you defined via the Unity Inspector in the step above).

Note

Runtime recompilation is not supported by ARR. Modifying the script and saving it while the play mode is active may result in Unity freezing and needing to force shut down through the task manager. Always ensure you've stopped play mode before editing your scripts.

  1. Replace the contents of InitializeARR and InitializeSessionService with the completed code below:
/// <summary>
/// Initializes ARR, associating the main camera
/// Note: This must be called on the main Unity thread
/// </summary>
public void InitializeARR()
{
   RemoteManagerUnity.InitializeManager(new RemoteUnityClientInit(Camera.main));

   CurrentCoordinatorState = RemoteRenderingState.NotAuthorized;
}

/// <summary>
/// Create a new remote session manager
/// If the ARRCredentialGetter is set, use it as it, otherwise use the development credentials
/// </summary>
public async void InitializeSessionService()
{
   if (ARRCredentialGetter == null)
       ARRCredentialGetter = GetDevelopmentCredentials;

   var sessionConfiguration = await ARRCredentialGetter.Invoke();

   ARRSessionService.OnSessionStatusChanged += OnRemoteSessionStatusChanged;

   try
   {
       ARRSessionService.Initialize(sessionConfiguration);
   }
   catch (ArgumentException argumentException)
   {
       NotificationBar.Message("InitializeSessionService failed: SessionConfiguration is invalid.");
       Debug.LogError(argumentException.Message);
       CurrentCoordinatorState = RemoteRenderingState.NotAuthorized;
       return;
   }

   CurrentCoordinatorState = RemoteRenderingState.NoSession;
}

In order to progress from NotAuthorized to NoSession, we'd typically present a modal dialog to the user so they can choose (and we'll do just that in another chapter). For now, we'll automatically bypass the authorization check by calling ByPassAuthentication as soon as the RequestingAuthorization event is triggered.

  1. Select the RemoteRenderingCoordinator GameObject and find the OnRequestingAuthorization Unity Event exposed in the Inspector of the RemoteRenderingCoordinator component.

  2. Add a new event by pressing the '+' in the lower right.

  3. Drag the component on to its own event, to reference itself. Screenshot of the Unity inspector of the Remote Rendering Coordinator Script. The title bar of the component is highlighted and an arrow connects it to the On Requesting Authorization event.

  4. In the drop down select RemoteRenderingCoordinator -> BypassAuthorization.
    Screenshot of the On Requesting Authorization event.

Create or join a remote session

The second stage is to Create or Join a Remote Rendering Session (see Remote Rendering Sessions for more information).

Diagram of the four stages required to load a model. The second stage "Create or Join Remote Rendering Session" is highlighted.

The remote session is where the models will be rendered. The JoinRemoteSession( ) method will attempt to join an existing session, tracked with the LastUsedSessionID property or if there is an assigned active session ID on SessionIDOverride. SessionIDOverride is intended for your debugging purposes only, it should only be used when you know the session exists and would like to explicitly connect to it.

If no sessions are available, a new session will be created. Creating a new session is, however, a time-consuming operation. Therefore, you should try to create sessions only when required and reuse them whenever possible (see Commercial Ready: Session pooling, scheduling, and best practices for more information on managing sessions).

Tip

StopRemoteSession() will end the active session. To prevent unnecessary charges, you should always stop sessions when they are no longer needed.

The state machine will now progress to either ConnectingToNewRemoteSession or ConnectingToExistingRemoteSession, depending on available sessions. Both opening an existing session or creating a new session will trigger the ARRSessionService.OnSessionStatusChanged event, executing our OnRemoteSessionStatusChanged method. Ideally, this will result in advancing the state machine to RemoteSessionReady.

  1. To join a new session, modify the code to replace the JoinRemoteSession( ) and StopRemoteSession( ) methods with the completed examples below:
/// <summary>
/// Attempts to join an existing session or start a new session
/// </summary>
public async void JoinRemoteSession()
{
    //If there's a session available that previously belonged to us, and it's ready, use it. Otherwise start a new session.
    RenderingSessionProperties joinResult;
    if (await IsSessionAvailable(LastUsedSessionID))
    {
        CurrentCoordinatorState = RemoteRenderingState.ConnectingToExistingRemoteSession;
        joinResult = await ARRSessionService.OpenSession(LastUsedSessionID);
    }
    else
    {
        CurrentCoordinatorState = RemoteRenderingState.ConnectingToNewRemoteSession;
        joinResult = await ARRSessionService.StartSession(new RenderingSessionCreationOptions(renderingSessionVmSize, (int)maxLeaseHours, (int)maxLeaseMinutes));
    }

    if (joinResult.Status == RenderingSessionStatus.Ready || joinResult.Status == RenderingSessionStatus.Starting)
    {
        LastUsedSessionID = joinResult.Id;
    }
    else
    {
        //The session should be ready or starting, if it's not, something went wrong
        await ARRSessionService.StopSession();
        if(LastUsedSessionID == SessionIDOverride)
            SessionIDOverride = "";
        CurrentCoordinatorState = RemoteRenderingState.NoSession;
    }
}

public async void StopRemoteSession()
{
    if (ARRSessionService.CurrentActiveSession != null)
    {
        await ARRSessionService.CurrentActiveSession.StopAsync();
    }
}

If you want to save time by reusing sessions, make sure to deactivate the option Auto-Stop Session in the ARRServiceUnity component. Keep in mind that this will leave sessions running, even when no one is connected to them. Your session may run for as long as your MaxLeaseTime before it is shut down by the server (The value for MaxLeaseTime can be modified in the Remote Rendering Coordinator, under New Session Defaults). On the other hand, if you automatically shut down every session when disconnecting, you will have to wait for a new session to be started every time, which can be a somewhat lengthy process.

Note

Stopping a session will take immediate effect and cannot be undone. Once stopped, you have to create a new session, with the same startup overhead.

Connect the local runtime to the remote session

Next, the application needs to connect its local runtime to the remote session.

Diagram of the four stages required to load a model. The third stage "Connect Local Runtime to Remote Session" is highlighted.

The application also needs to listen for events about the connection between the runtime and the current session; those state changes are handled in OnLocalRuntimeStatusChanged. This code will advance our state to ConnectingToRuntime. Once connected in OnLocalRuntimeStatusChanged, the state will advance to RuntimeConnected. Connecting to the runtime is the last state the coordinator concerns itself with, which means the application is done with all the common configuration and is ready to begin the session-specific work of loading and rendering models.

  1. Replace the ConnectRuntimeToRemoteSession( ) and DisconnectRuntimeFromRemoteSession( ) methods with the completed versions below.
  2. It's important to take note of the Unity method LateUpdate and that it's updating the current active session. This allows the current session to send/receive messages and update the frame buffer with the frames received from the remote session. It's critical to ARR functioning correctly.
/// <summary>
/// Connects the local runtime to the current active session, if there's a session available
/// </summary>
public async void ConnectRuntimeToRemoteSession()
{
    if (ARRSessionService == null || ARRSessionService.CurrentActiveSession == null)
    {
        Debug.LogError("Not ready to connect runtime");
        return;
    }

    // Connect the local runtime to the currently connected session
    // This session is set when connecting to a new or existing session

    ARRSessionService.CurrentActiveSession.ConnectionStatusChanged += OnLocalRuntimeStatusChanged;
    await ARRSessionService.CurrentActiveSession.ConnectAsync(new RendererInitOptions());
}

public void DisconnectRuntimeFromRemoteSession()
{
    if (ARRSessionService == null || ARRSessionService.CurrentActiveSession == null || ARRSessionService.CurrentActiveSession.ConnectionStatus != ConnectionStatus.Connected)
    {
        Debug.LogError("Runtime not connected!");
        return;
    }

    ARRSessionService.CurrentActiveSession.Disconnect();
    ARRSessionService.CurrentActiveSession.ConnectionStatusChanged -= OnLocalRuntimeStatusChanged;
    CurrentCoordinatorState = RemoteRenderingState.RemoteSessionReady;
}

Note

Connecting the local runtime to a remote session depends on Update being called on the currently active session. If you find your application is never progressing past the ConnectingToRuntime state, ensure you're calling Update regularly on the active session.

Load a model

With the required foundation in place, you are ready to load a model into the remote session and start receiving frames.

Diagram of the four stages required to load a model. The fourth stage "Load and view a Model" is highlighted.

The LoadModel method is designed to accept a model path, progress handler, and parent transform. These arguments will be used to load a model into the remote session, update the user on the loading progress, and orient the remotely rendered model based on the parent transform.

  1. Replace the LoadModel method entirely with the code below:

    /// <summary>
    /// Loads a model into the remote session for rendering
    /// </summary>
    /// <param name="modelName">The model's path</param>
    /// <param name="parent">The parent Transform for this remote entity</param>
    /// <param name="progress">A call back method that accepts a float progress value [0->1]</param>
    /// <returns>An awaitable Remote Rendering Entity</returns>
    public async Task<Entity> LoadModel(string modelPath, Transform parent = null, Action<float> progress = null)
    {
        //Create a root object to parent a loaded model to
        var modelEntity = ARRSessionService.CurrentActiveSession.Connection.CreateEntity();

        //Get the game object representation of this entity
        var modelGameObject = modelEntity.GetOrCreateGameObject(UnityCreationMode.DoNotCreateUnityComponents);

        //Ensure the entity will sync its transform with the server
        var sync = modelGameObject.GetComponent<RemoteEntitySyncObject>();
        sync.SyncEveryFrame = true;

        //Parent the new object under the defined parent
        if (parent != null)
        {
            modelGameObject.transform.SetParent(parent, false);
            modelGameObject.name = parent.name + "_Entity";
        }

        //Load a model that will be parented to the entity
        var loadModelParams = new LoadModelFromSasOptions(modelPath, modelEntity);
        var loadModelAsync = ARRSessionService.CurrentActiveSession.Connection.LoadModelFromSasAsync(loadModelParams, progress);
        var result = await loadModelAsync;
        return modelEntity;
    }


The code above is performing the following steps:

  1. Create a Remote Entity.
  2. Create a local GameObject to represent the remote entity.
  3. Configure the local GameObject to sync its state (i.e. Transform) to the remote entity every frame.
  4. Load model data from Blob Storage into the remote entity.
  5. Return the parent Entity, for later reference.

View the test model

We now have all the code required to view a remotely rendered model, all four of the required stages for remote rendering are complete. Now we need to add a little code to start the model load process.

Diagram of the four stages required to load a model. All stages are marked as completed.

  1. Add the following code to the RemoteRenderingCoordinator class, just below the LoadModel method is fine:

    private bool loadingTestModel = false;
    [ContextMenu("Load Test Model")]
    public async void LoadTestModel()
    {
        if(CurrentCoordinatorState != RemoteRenderingState.RuntimeConnected)
        {
            Debug.LogError("Please wait for the runtime to connect before loading the test model. Try again later.");
            return;
        }
        if(loadingTestModel)
        {
            Debug.Log("Test model already loading or loaded!");
            return;
        }
        loadingTestModel = true;

        // Create a parent object to use for positioning
        GameObject testParent = new GameObject("TestModelParent");
        testParent.transform.position = new Vector3(0f, 0f, 3f);

        // The 'built in engine path' is a special path that references a test model built into Azure Remote Rendering.
        await LoadModel("builtin://Engine", testParent.transform, (progressValue) => Debug.Log($"Loading Test Model progress: {Math.Round(progressValue * 100, 2)}%"));
    }


    This code creates a GameObject to act as the parent to the test model. Then it calls the LoadModel method to load the model "builtin://Engine", which is an asset built into Azure Remote Rendering for the purpose of testing the rendering.

  2. Save your code.

  3. Press the Play button in the Unity Editor to start the process of connecting to Azure Remote Rendering and creating a new session.

  4. You will not see much in the Game view, however, the Console will show the state of the application changing. It will likely progress to ConnectingToNewRemoteSession, and stay there, possibly for up to five minutes.

  5. Select the RemoteRenderingCoordinator GameObject to see its attached scripts in the inspector. Watch the Service component update as it progresses through its initialization and connection steps.

  6. Monitor the Console output - waiting for the state to change to RuntimeConnected.

  7. Once the runtime is connected, right-click on the RemoteRenderingCoordinator in the inspector to expose the context menu. Then, click the Load Test Model option in the context menu, added by the [ContextMenu("Load Test Model")] part of our code above.

    Screenshot of the Unity inspector of the Remote Rendering Coordinator Script. Highlights instruct to first right-click on the title bar and then select Load Test Model from the context menu.

  8. Watch the Console for the output of the ProgressHandler we passed into the LoadModel method.

  9. See the remotely rendered model!

Note

The remote model will never be visible in the Scene view, only in the game view. This is because ARR is rendering the frames remotely specifically for the perspective of the Game view camera and isn't aware of the Editor camera (used to render the Scene view).

Next steps

Screenshot of Unity running the project in Play mode. A car engine is rendered in the center of the viewport.

Congratulations! You've created a basic application capable of viewing remotely rendered models using Azure Remote Rendering. In the next tutorial, we will integrate MRTK and import our own models.
