Work with threat indicators in Microsoft Sentinel

• Applies to:

  Microsoft Sentinel in the Azure portal, Microsoft Sentinel in the Microsoft Defender portal

Integrate threat intelligence (TI) into Microsoft Sentinel through the following activities:

• Import threat intelligence into Microsoft Sentinel by enabling data connectors to various TI platforms and feeds.

• View and manage the imported threat intelligence in Logs and in the Microsoft Sentinel Threat Intelligence page.

• Detect threats and generate security alerts and incidents using the built-in Analytics rule templates based on your imported threat intelligence.

• Visualize key information about your imported threat intelligence in Microsoft Sentinel with the Threat Intelligence workbook.

Important

Microsoft Sentinel is available as part of the public preview for the unified security operations platform in the Microsoft Defender portal. For more information, see Microsoft Sentinel in the Microsoft Defender portal.

View your threat indicators in Microsoft Sentinel

Find and view your indicators in the Threat intelligence page

This procedure describes how to view and manage your indicators in the Threat intelligence page, accessible from the main Microsoft Sentinel menu. Use the Threat intelligence page to sort, filter, and search your imported threat indicators without writing a Log Analytics query.

To view your threat intelligence indicators in the Threat intelligence page:

1. For Microsoft Sentinel in the Azure portal, under Threat management, select Threat intelligence.
   For Microsoft Sentinel in the Defender portal, select Microsoft Sentinel > Threat management > Threat intelligence.

2. From the grid, select the indicator for which you want to view more details. The indicator's details appear on the right, showing information such as confidence levels, tags, threat types, and more.

3. Microsoft Sentinel only displays the most current version of indicators in this view. For more information on how indicators are updated, see Understand threat intelligence.

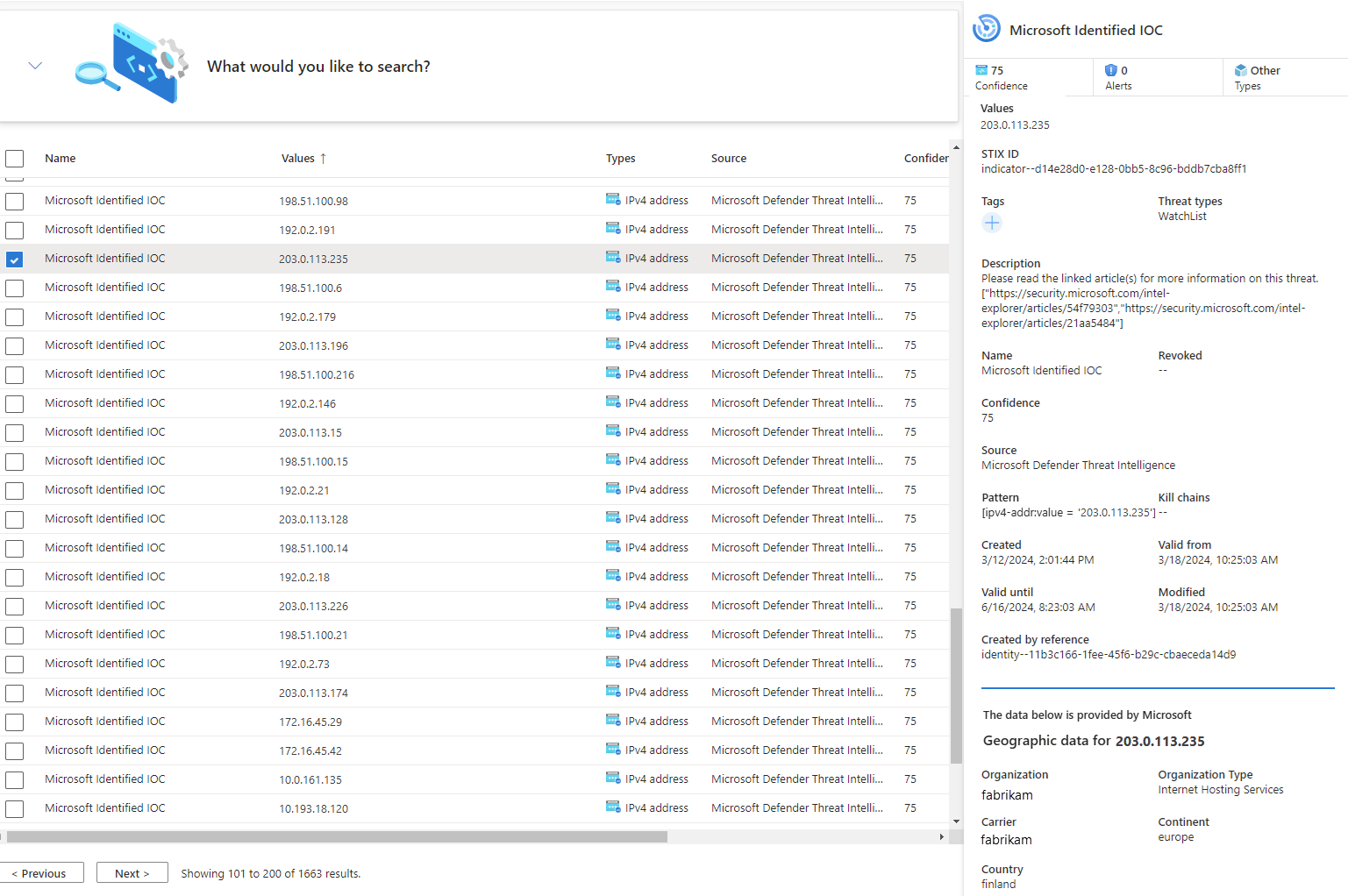

4. IP and domain name indicators are enriched with extra GeoLocation and WhoIs data, providing more context for investigations where the selected indicator is found.

For example:

Azure portal

Defender portal

Important

GeoLocation and WhoIs enrichment is currently in PREVIEW. The Azure Preview Supplemental Terms include additional legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.

Find and view your indicators in Logs

This procedure describes how to view your imported threat indicators in the Microsoft Sentinel Logs area, together with other Microsoft Sentinel event data, regardless of the source feed or the connector used.

Imported threat indicators are listed in the Microsoft Sentinel > ThreatIntelligenceIndicator table, which is the basis for threat intelligence queries run elsewhere in Microsoft Sentinel, such as in Analytics or Workbooks.

To view your threat intelligence indicators in Logs:

1. For Microsoft Sentinel in the Azure portal, under General, select Logs.
   For Microsoft Sentinel in the Defender portal, select Investigation & response > Hunting > Advanced hunting.

2. The ThreatIntelligenceIndicator table is located under the Microsoft Sentinel group.

3. Select the Preview data icon (the eye) next to the table name and select the See in query editor button to run a query that will show records from this table.

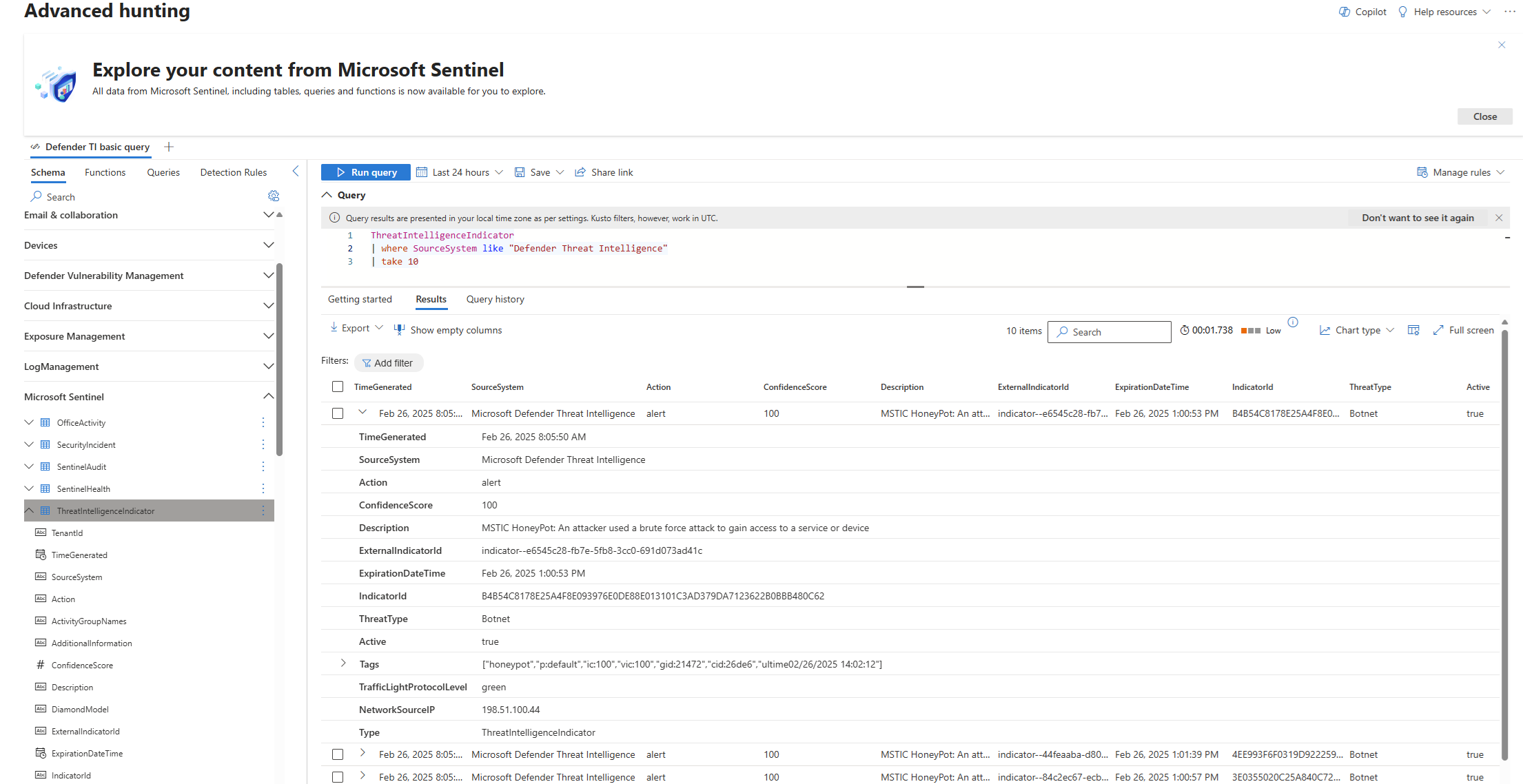

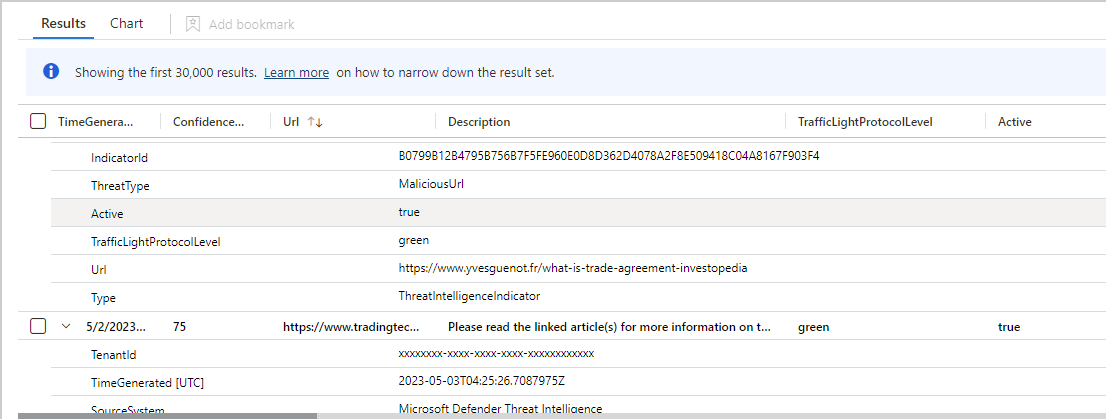

   Your results should look similar to the sample threat indicator shown in this screenshot:



Create and tag indicators

The Threat intelligence page also allows you to create threat indicators directly within the Microsoft Sentinel interface, and perform two of the most common threat intelligence administrative tasks: indicator tagging and creating new indicators related to security investigations.

Create a new indicator

1. For Microsoft Sentinel in the Azure portal, under Threat management, select Threat intelligence.
   For Microsoft Sentinel in the Defender portal, select Microsoft Sentinel > Threat management > Threat intelligence.

2. Select the Add new button from the menu bar at the top of the page.

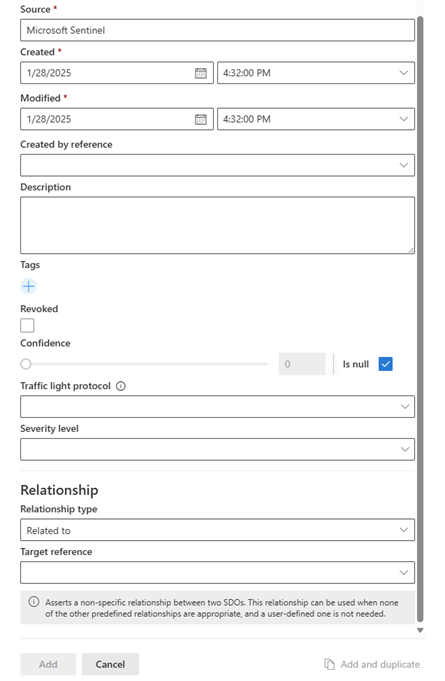

3. Choose the indicator type, then complete the form on the New indicator panel. The required fields are marked with a red asterisk (*).

4. Select Apply. The indicator is added to the indicators list, and is also sent to the ThreatIntelligenceIndicator table in Logs.

Tag and edit threat indicators

Tagging threat indicators is an easy way to group them together to make them easier to find. Typically, you might apply a tag to indicators related to a particular incident, or to those representing threats from a particular known actor or well-known attack campaign. Tag threat indicators individually, or multi-select indicators and tag them all at once. Shown below is an example of tagging multiple indicators with an incident ID. Since tagging is free-form, a recommended practice is to create standard naming conventions for threat indicator tags. Indicators allow applying multiple tags.

Microsoft Sentinel also allows you to edit indicators, whether they've been created directly in Microsoft Sentinel, or come from partner sources, like TIP and TAXII servers. For indicators created in Microsoft Sentinel, all fields are editable. For indicators coming from partner sources, only specific fields are editable, including tags, Expiration date, Confidence, and Revoked. Either way, keep in mind only the latest version of the indicator is displayed in the Threat Intelligence page view. For more information on how indicators are updated, see Understand threat intelligence.

Workbooks provide insights about your threat intelligence

Use a purpose-built Microsoft Sentinel workbook to visualize key information about your threat intelligence in Microsoft Sentinel, and customize the workbook according to your business needs.

Here's how to find the threat intelligence workbook provided in Microsoft Sentinel, and an example of how to make edits to the workbook to customize it.

1. From the Azure portal, navigate to the Microsoft Sentinel service.

2. Choose the workspace to which you’ve imported threat indicators using either threat intelligence data connector.

3. Select Workbooks from the Threat management section of the Microsoft Sentinel menu.

4. Find the workbook titled Threat Intelligence and verify you have data in the ThreatIntelligenceIndicator table as shown below.



5. Select the Save button and choose an Azure location to store the workbook. This step is required if you are going to modify the workbook in any way and save your changes.

6. Now select the View saved workbook button to open the workbook for viewing and editing.

7. You should now see the default charts provided by the template. To modify a chart, select the Edit button at the top of the page to enter editing mode for the workbook.

8. Add a new chart of threat indicators by threat type. Scroll to the bottom of the page and select Add Query.

9. Add the following text to the Log Analytics workspace Log Query text box:

   ThreatIntelligenceIndicator
   | summarize count() by ThreatType


10. In the Visualization drop-down, select Bar chart.

11. Select the Done editing button. You’ve created a new chart for your workbook.



Workbooks provide powerful interactive dashboards that give you insights into all aspects of Microsoft Sentinel. There is a whole lot you can do with workbooks, and while the provided templates are a great starting point, you will likely want to dive in and customize these templates, or create new dashboards combining many different data sources so to visualize your data in unique ways. Since Microsoft Sentinel workbooks are based on Azure Monitor workbooks, there is already extensive documentation available, and many more templates. A great place to start is this article on how to Create interactive reports with Azure Monitor workbooks.

There is also a rich community of Azure Monitor workbooks on GitHub to download more templates and contribute your own templates.

Related content

In this article, you learned all the ways to work with threat intelligence indicators throughout Microsoft Sentinel. For more about threat intelligence in Microsoft Sentinel, see the following articles:

• Understand threat intelligence in Microsoft Sentinel.
• Connect Microsoft Sentinel to STIX/TAXII threat intelligence feeds.
• See which TIPs, TAXII feeds, and enrichments can be readily integrated with Microsoft Sentinel.
