Reprotect failed over Azure VMs to the primary region

When you fail over Azure VMs from one region to another using Azure Site Recovery, the VMs boot up in the secondary region, in an unprotected state. If you want to fail back the VMs to the primary region, do the following tasks:

1. Reprotect the VMs in the secondary region, so that they start to replicate to the primary region.
2. After reprotection completes and the VMs are replicating, you can fail over from the secondary to primary region.

Prerequisites

• The VM failover from the primary to secondary region must be committed.
• The primary target site should be available, and you should be able to access or create resources in that region.

Reprotect a VM

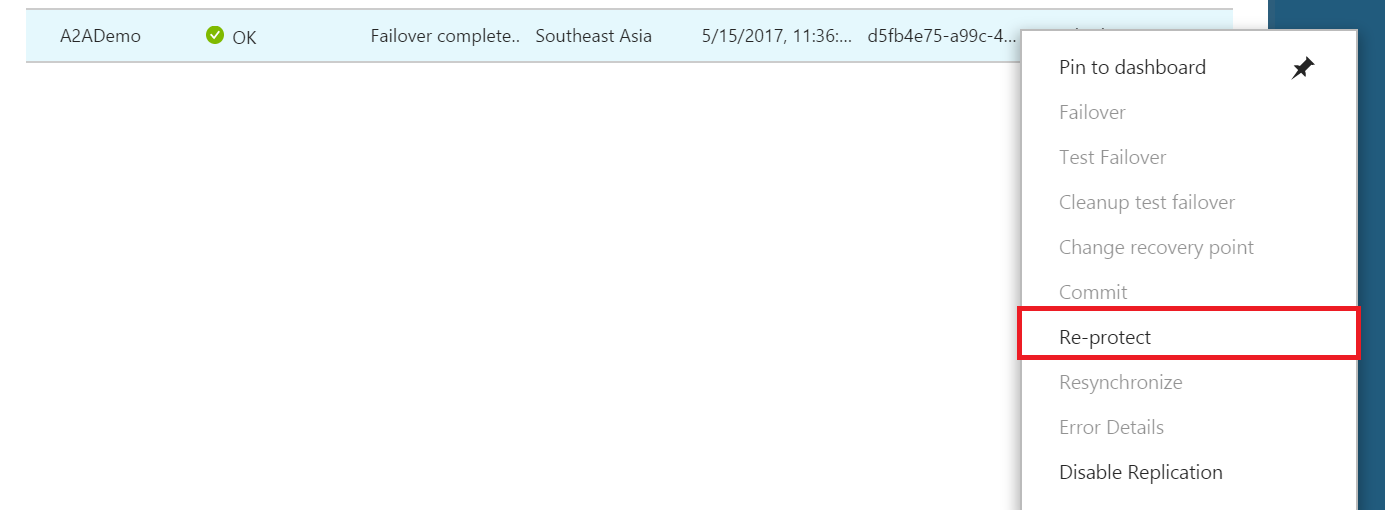

1. In Vault > Replicated items, right-click the failed over VM, and select Re-Protect. The reprotection direction should show from secondary to primary.

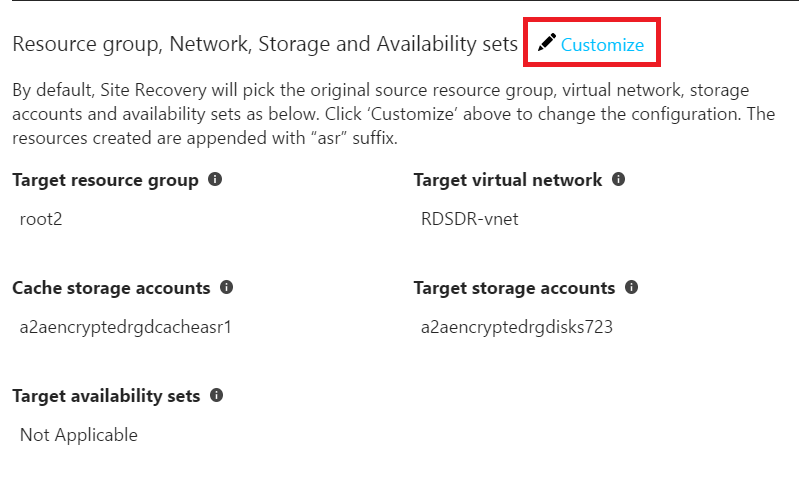

2. Review the resource group, network, storage, and availability sets. Then select OK. If there are any resources marked as new, they're created as part of the reprotection process.

3. The reprotection job seeds the target site with the latest data. After the job finishes, delta replication takes place. Then, you can fail over back to the primary site. You can select the storage account or the network you want to use during reprotect, using the customize option.



Customize reprotect settings

You can customize the following properties of the target VM during reprotection.

Property	Notes
Target resource group	Modify the target resource group in which the VM is created. As the part of reprotection, the target VM is deleted. You can choose a new resource group under which to create the VM after failover.
Target virtual network	The target network can't be changed during the reprotect job. To change the network, redo the network mapping.
Capacity reservation	Configure a capacity reservation for the VM. You can create a new capacity reservation group to reserve capacity or select an existing capacity reservation group. Learn more about capacity reservation.
Target storage (Secondary VM doesn't use managed disks)	You can change the storage account that the VM uses after failover.
Replica managed disks (Secondary VM uses managed disks)	Site Recovery creates replica managed disks in the primary region to mirror the secondary VM's managed disks.
Cache storage	You can specify a cache storage account to be used during replication. By default, a new cache storage account is created, if it doesn't exist. By default, type of storage account (Standard storage account or Premium Block Blob storage account) that you have selected for the source VM in original primary location is used. For example, during replication from original source to target, if you have selected High Churn, during re-protection back from target to original source, Premium Block blob will be used by default. You can configure and change it for re-protection. For more information, see Azure VM Disaster Recovery - High Churn Support.
Availability set	If the VM in the secondary region is part of an availability set, you can choose an availability set for the target VM in the primary region. By default, Site Recovery tries to find the existing availability set in the primary region, and use it. During customization, you can specify a new availability set.

What happens during reprotection?

By default, the following occurs:

1. A cache storage account is created in the region where the failed over VM is running.
2. If the target storage account (the original storage account in the primary region) doesn't exist, a new one is created. The assigned storage account name is the name of the storage account used by the secondary VM, suffixed with asr.
3. If your VM uses managed disks, replica managed disks are created in the primary region to store the data replicated from the secondary VM's disks.
4. Temporary replicas of the source disks (disks attached to the VMs in secondary region) are created with the name ms-asr-<GUID>, that are used to transfer / read data. The temp disks let us utilize the complete bandwidth of the disk instead of only 16% bandwidth of the original disks (that are connected to the VM). The temp disks are deleted once the reprotection completes.
5. If the target availability set doesn't exist, a new one is created as part of the reprotect job if necessary. If you've customized the reprotection settings, then the selected set is used.

When you trigger a reprotect job, and the target VM exists, the following occurs:

1. The target side VM is turned off if it's running.
2. If the VM is using managed disks, a copy of the original disk is created with an -ASRReplica suffix. The original disks are deleted. The -ASRReplica copies are used for replication.
3. If the VM is using unmanaged disks, the target VM's data disks are detached and used for replication. A copy of the OS disk is created and attached on the VM. The original OS disk is detached and used for replication.
4. Only changes between the source disk and the target disk are synchronized. The differentials are computed by comparing both the disks and then transferred. Check below to find the estimated time to complete the reprotection.
5. After the synchronization completes, the delta replication begins, and a recovery point is created in line with the replication policy.

When you trigger a reprotect job, and the target VM and disks don't exist, the following occurs:

1. If the VM is using managed disks, replica disks are created with -ASRReplica suffix. The -ASRReplica copies are used for replication.
2. If the VM is using unmanaged disks, replica disks are created in the target storage account.
3. The entire disks are copied from the failed over region to the new target region.
4. After the synchronization completes, the delta replication begins, and a recovery point is created in line with the replication policy.

Note

The ms-asr disks are temporary disks that are deleted after the reprotect action is completed. You will be charged a minimal cost based on the Azure managed disk price for the time that these disks are active.

Estimated time to do the reprotection

In most cases, Azure Site Recovery doesn't replicate the complete data to the source region. The amount of data replicated depends on the following conditions:

1. Azure Site Recovery doesn't support reprotection if the source virtual machine's data is deleted, corrupted, or inaccessible for some reason. For example, a resource group change or deletion. Alternatively, you can disable the previous disaster recovery protection and enable a new protection from the current region.
2. If the source VM data is accessible, then differentials are computed by comparing both the disks and only the differences are transferred. In this case, the reprotection time is greater than or equal to the checksum calculation time + checksum differentials transfer time + time taken to process the recovery points from Azure Site Recovery agent + auto scale time.

Factors governing reprotection time in scenario 2

The following factors affect the reprotection time when the source VM is accessible in scenario 2:

1. Checksum calculation time - The time taken to complete the enable replication process from the primary to the disaster recovery location is used as a benchmark for the checksum differential calculation. Navigate to Recovery Services vaults > Monitoring > Site Recovery jobs to see the time taken to complete the enable replication process. This will be the minimum time required to complete the checksum calculation.

2. Checksum differential data transfer happens at approximately 23% of disk throughput.

3. The time taken to process the recovery points sent from Azure Site Recovery agent – Azure Site Recovery agent continues to send recovery points during the checksum calculation and transfer phase, as well. However, Azure Site Recovery processes them only once the checksum diff transfer is complete. The time taken to process recovery points will be around one-fifth (1/5th) of the time taken for checksum differentials calculation and checksum differentials transfer time (time for checksum diff calculation + time for checksum diff transfer). For example, if the time taken for checksum differential calculation and checksum differential transfer is 15 hours, the time taken to process the recovery points from the agent will be three hours.

4. The auto scale time is approximately 20-30 minutes.

Example scenario:

Let's take the example from the following screenshot, where Enable Replication from the primary to the disaster recovery location took an hour and 12 minutes. The Checksum calculation time would be at least an hour and 12 minutes. Assuming that the amount of data change post failover is 45 GB, and the disk has a throughput of 60 Mbps, the differential transfer will occur at 14 Mbps, and the time taken for differential transfer will be 45 GB / 14 Mbps, that is approximately 55 minutes. The time taken to process the recovery points is approximately one-fifth of the total time taken for the checksum calculation (72 minutes) and time taken for data transfer (55minutes), which is approximately 25 minutes. Additionally, it takes 20-30 minutes for auto-scaling. So, the total time for reprotection should be at least three hours.

The above is a simple illustration of how to estimate the reprotection time.

When the VM is re-protected from disaster recovery region to primary region (that is, after failing over from the primary region to disaster recovery region), the target VM (original source VM), and associated NIC(s) are deleted.

However, when the VM is re-protected again from the primary region to disaster recovery region after failback, we do not delete the VM and associated NIC(s) in the disaster recovery region that were created during the earlier failover.

Next steps

After the VM is protected, you can initiate a failover. The failover shuts down the VM in the secondary region and creates and boots the VM in the primary region, with brief downtime during this process. We recommend you choose an appropriate time for this process and that you run a test failover before initiating a full failover to the primary site.

Learn more about Azure Site Recovery failover.
