Tutorial: Configure agent hooks in Azure SRE Agent

In this tutorial, you create a subagent with a Stop hook that forces the agent to add a completion marker to every response. You configure the hook through the REST API, then test it in the portal's playground.

Estimated time: 15 minutes

In this tutorial, you learn how to:

• Create a subagent with a Stop hook using the REST API
• Test hook behavior in the portal's Test playground
• Add a PostToolUse hook for auditing tool usage
• Block dangerous commands with a policy hook

Prerequisites

• An Azure SRE Agent in Running state
• curl (or Postman) to call the REST API
• Azure CLI logged in (az login) to get an access token

Understand the hook API format

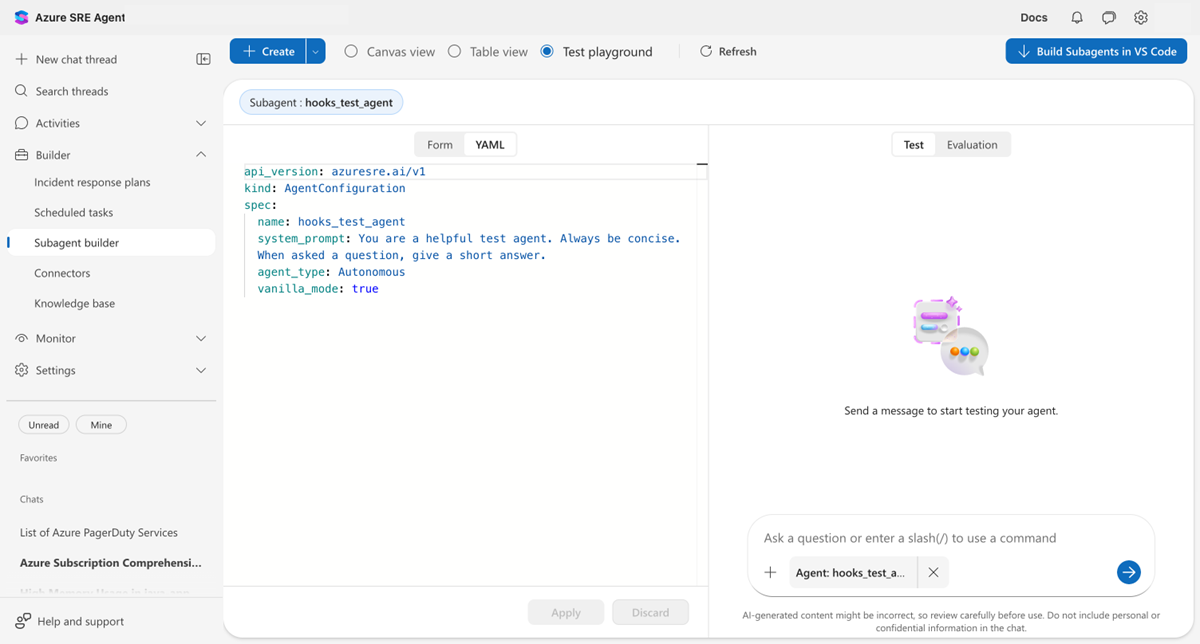

Hooks require the v2 API format. The portal's YAML editor only shows v1 and can't display or edit hooks. You use the REST API to configure hooks, then use the portal's Test playground to verify they work.

The portal YAML tab shows v1 format. Hooks you configure through the API are active but don't appear in the portal YAML tab.

Find your agent's API URL

Follow these steps to locate the API base URL for your agent:

1. Open sre.azure.com and select your agent.

2. After the agent loads, look at the browser address bar to find the portal URL.

3. In the left sidebar, select Builder > Subagent builder. The page loads inside an iframe whose URL is your agent's API base. The URL looks like:

   https://your-agent--xxxxxxxx.yyyyyyyy.region.azuresre.ai


You can find it by right-clicking the main content area, selecting Inspect, and looking at the iframe src. Alternatively, check the browser developer tools Network tab for API calls.

Get an access token

Run the following command to get an access token for the SRE Agent API:

TOKEN=$(az account get-access-token \
  --resource <RESOURCE_ID> \
  --query accessToken -o tsv)

Create a subagent with a Stop hook

This step creates a subagent called my_hooked_agent with a Stop hook that checks whether the response ends with === RESPONSE COMPLETE ===. If the marker is missing, the hook rejects the response and tells the agent to add the marker.

AGENT_URL="https://your-agent--xxxxxxxx.yyyyyyyy.region.azuresre.ai"

curl -X PUT "${AGENT_URL}/api/v2/extendedAgent/agents/my_hooked_agent" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d @- << 'EOF'
{
  "name": "my_hooked_agent",
  "properties": {
    "instructions": "You are a helpful assistant. Be concise.",
    "handoffDescription": "",
    "handoffs": [],
    "enableVanillaMode": true,
    "hooks": {
      "Stop": [
        {
          "type": "prompt",
          "prompt": "Check the agent response below.\n\n$ARGUMENTS\n\nDoes it end with === RESPONSE COMPLETE ===?\nIf yes: {\"ok\": true}\nIf no: {\"ok\": false, \"reason\": \"Add === RESPONSE COMPLETE === at the end.\"}",
          "timeout": 30
        }
      ]
    }
  }
}
EOF

You should get HTTP 202 Accepted with the full agent config in the response body.

The following example shows the same configuration in v2 YAML format for reference:

api_version: azuresre.ai/v2
kind: ExtendedAgent
metadata:
  name: my_hooked_agent
spec:
  instructions: |
    You are a helpful assistant. Be concise.
  handoffDescription: ""
  enableVanillaMode: true
  hooks:
    Stop:
      - type: prompt
        prompt: |
          Check the agent response below.

          $ARGUMENTS

          Does it end with === RESPONSE COMPLETE ===?
          If yes: {"ok": true}
          If no: {"ok": false, "reason": "Add === RESPONSE COMPLETE === at the end."}
        timeout: 30

How the Stop hook works

The Stop hook evaluates the agent's response before it returns to the user:

• Replaces $ARGUMENTS with the hook context JSON, which includes the agent's final response.
• The LLM evaluates the prompt and returns {"ok": true} or {"ok": false, "reason": "..."}.
• If rejected, the agent continues working after the reason is injected as a user message.
• After three rejections (the default), the agent stops.

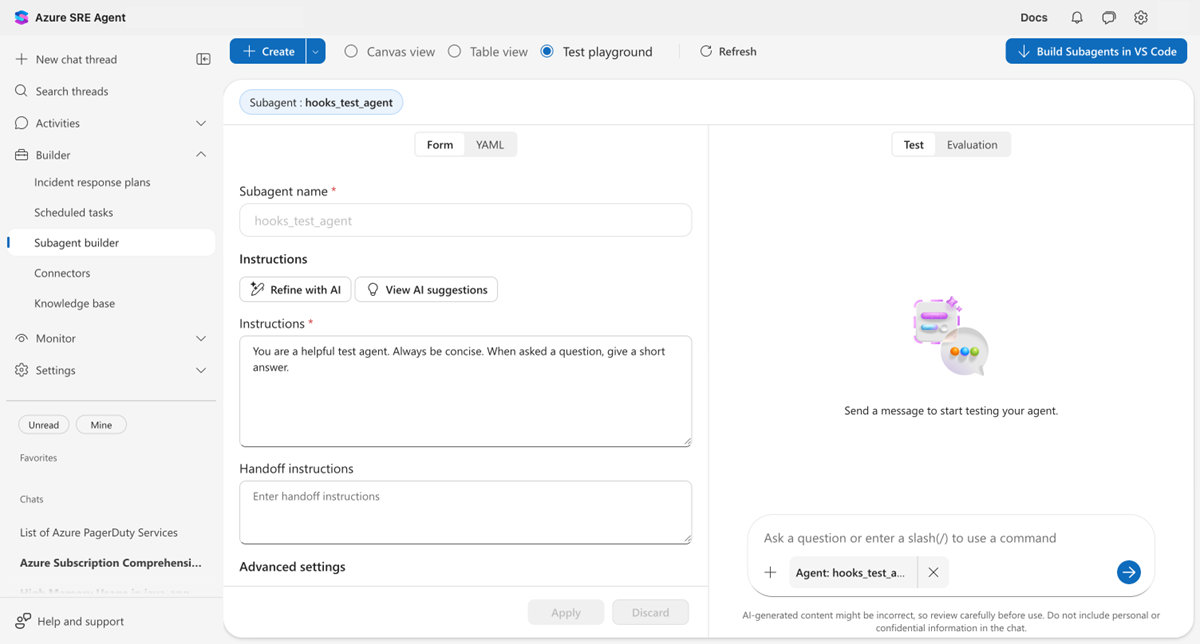

Test the hook in the portal

Follow these steps to test the Stop hook:

1. Go to your agent in the portal and select Builder > Subagent builder.

2. Select the Test playground radio button.

3. Select the Subagent/Tool dropdown, find my_hooked_agent, and select Apply.



4. Type What is 2+2? in the chat and select Send.

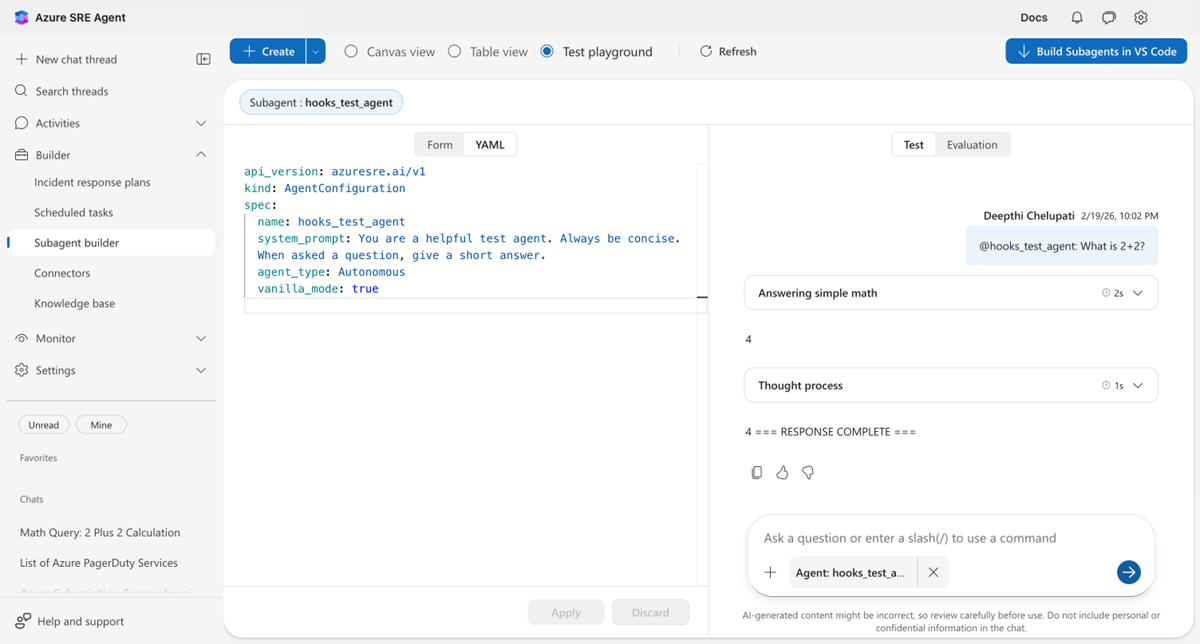

Watch what happens:

• The agent first responds with 4.
• The Stop hook evaluates and rejects the response (no completion marker).
• A Thought process step appears where the agent continues.
• The final response appears: 4 === RESPONSE COMPLETE ===.

The hook worked. It forced the agent to add the marker before stopping.

Add a PostToolUse hook for auditing

Add a PostToolUse hook that logs every tool the agent uses. Update the same agent by sending a new PUT request with both hooks:

curl -X PUT "${AGENT_URL}/api/v2/extendedAgent/agents/my_hooked_agent" \
  -H "Authorization: Bearer ${TOKEN}" \
  -H "Content-Type: application/json" \
  -d @- << 'EOF'
{
  "name": "my_hooked_agent",
  "properties": {
    "instructions": "You are a helpful assistant. Be concise.",
    "handoffDescription": "",
    "handoffs": [],
    "enableVanillaMode": true,
    "hooks": {
      "Stop": [
        {
          "type": "prompt",
          "prompt": "Check the agent response below.\n\n$ARGUMENTS\n\nDoes it end with === RESPONSE COMPLETE ===?\nIf yes: {\"ok\": true}\nIf no: {\"ok\": false, \"reason\": \"Add === RESPONSE COMPLETE === at the end.\"}",
          "timeout": 30
        }
      ],
      "PostToolUse": [
        {
          "type": "command",
          "matcher": "*",
          "timeout": 30,
          "failMode": "allow",
          "script": "#!/usr/bin/env python3\nimport sys, json\ncontext = json.load(sys.stdin)\ntool = context.get('tool_name', 'unknown')\nprint(json.dumps({'decision': 'allow', 'hookSpecificOutput': {'additionalContext': f'[AUDIT] {tool} executed.'}}))"
        }
      ]
    }
  }
}
EOF

matcher: "*" means this hook runs for every tool call. The script logs the tool name and injects an [AUDIT] message into the conversation.

To test the hook, ask the agent a question that triggers a tool (for example, "Run echo hello").

Block dangerous commands

Add a second PostToolUse hook that blocks rm -rf, sudo, and chmod 777:

PostToolUse:
  # Audit hook (runs for all tools)
  - type: command
    matcher: "*"
    timeout: 30
    failMode: allow
    script: |
      #!/usr/bin/env python3
      import sys, json
      context = json.load(sys.stdin)
      tool = context.get('tool_name', 'unknown')
      print(json.dumps({"decision": "allow",
        "hookSpecificOutput": {"additionalContext": f"[AUDIT] {tool} executed."}}))

  # Policy hook (only for shell tools)
  - type: command
    matcher: "Bash|ExecuteShellCommand"
    timeout: 30
    failMode: block
    script: |
      #!/usr/bin/env python3
      import sys, json, re
      context = json.load(sys.stdin)
      command = context.get('tool_input', {}).get('command', '')
      for pattern in [r'\brm\s+-rf\b', r'\bsudo\b', r'\bchmod\s+777\b']:
          if re.search(pattern, command):
              print(json.dumps({"decision": "block", "reason": f"Blocked: {pattern}"}))
              sys.exit(0)
      print(json.dumps({"decision": "allow"}))

Key differences from the audit hook:

• matcher: "Bash|ExecuteShellCommand" only runs for shell tools (pattern is anchored as ^(Bash|ExecuteShellCommand)$).
• failMode: block blocks the tool result if the script itself crashes (strict mode).
• Returns "block" with a reason when a dangerous pattern is found.

Hook response formats

Prompt hooks and command hooks use different response formats.

Prompt hooks

Prompt hooks return simple JSON:

{"ok": true}

{"ok": false, "reason": "Please fix X."}

Command hooks

Command hooks return expanded JSON:

{"decision": "allow"}

{"decision": "block", "reason": "Dangerous command."}

{"decision": "allow", "hookSpecificOutput": {"additionalContext": "Audit note."}}

Command hooks can also use exit codes instead of JSON:

Exit code	Behavior
0 with no output	Allow
0 with JSON	Parse the JSON
2	Block (stderr becomes the reason)
Other	Falls back to failMode

Caution

A rejection without a reason is treated as approval. Always include reason when rejecting.

Verify

After you configure and test the hooks, confirm the following:

• The stop hook causes the agent to add the === RESPONSE COMPLETE === marker before stopping.
• The PostToolUse audit hook logs [AUDIT] messages for tool calls.
• The policy hook blocks dangerous commands like rm -rf and sudo.

Troubleshooting

The following table lists common problems and solutions for agent hooks.

Problem	Solution
Hooks not visible in portal YAML tab	Expected behavior. The portal shows v1 only. Hooks are active; test them through the playground.
Unsupported kind: ExtendedAgent	Use the v2 endpoint: PUT /api/v2/extendedAgent/agents/{name}.
Handoffs cannot be null	Add "handoffs": [] to the JSON payload.
Hook has no effect	Include a reason field when rejecting. Without it, rejection is treated as approval.
Agent loops forever	Lower maxRejections (default: 3, range: 1-25).
