Best practices for monitoring Azure Blob Storage
This article features a collection of common storage monitoring scenarios, and provides you with best practice guidelines to accomplish them.
Identify storage accounts with no or low use
Storage Insights is a dashboard on top of Azure Storage metrics and logs. You can use Storage Insights to examine the transaction volume and used capacity of all your accounts. That information can help you decide which accounts you might want to retire. To configure Storage Insights, see Monitoring your storage service with Azure Monitor Storage insights.
Analyze transaction volume

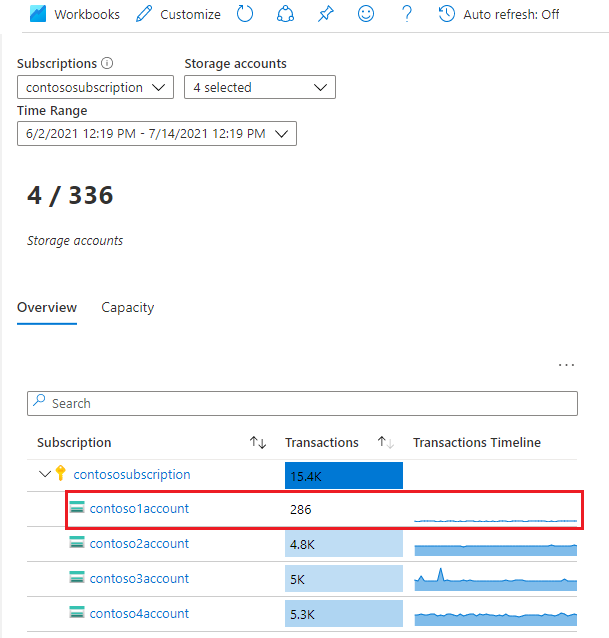

From the Storage Insights view in Azure monitor, sort your accounts in ascending order by using the Transactions column. The following image shows an account with low transaction volume over the specified period.
Click the account link to learn more about these transactions. In this example, most requests are made to the Blob Storage service.
To determine what sorts of requests are being made, drill into the Transactions by API name chart.
In this example, all requests are listing operations or requests for account property information. There are no read and write transactions. This might lead you to believe that the account is not being used in a significant way.
Analyze used capacity
From the Capacity tab of the Storage Insights view in Azure monitor, sort your accounts in ascending order by using the Account used capacity column. The following image shows an account with lower capacity volume than other accounts.
To examine the blobs associated with this used capacity, you can use Storage Explorer. For large numbers of blobs, consider generating a report by using a Blob Inventory policy.
Monitor the use of a container
If you partition your customer's data by container, then can monitor how much capacity is used by each customer. You can use Azure Storage blob inventory to take an inventory of blobs with size information. Then, you can aggregate the size and count at the container level. For an example, see Calculate blob count and total size per container using Azure Storage inventory.
You can also evaluate traffic at the container level by querying logs. To learn more about writing Log Analytic queries, see Log Analytics. To learn more about the storage logs schema, see Azure Blob Storage monitoring data reference.
Here's a query to get the number of read transactions and the number of bytes read on each container.
StorageBlobLogs | where OperationName == "GetBlob" | extend ContainerName = split(parse_url(Uri).Path, "/") | summarize ReadSize = sum(ResponseBodySize), ReadCount = count() by tostring(ContainerName)
The following query uses a similar query to obtain information about write operations.
StorageBlobLogs | where OperationName == "PutBlob" or OperationName == "PutBlock" or OperationName == "PutBlockList" or OperationName == "AppendBlock" or OperationName == "SnapshotBlob" or OperationName == "CopyBlob" or OperationName == "SetBlobTier" | extend ContainerName = split(parse_url(Uri).Path, "/") | summarize WriteSize = sum(RequestBodySize), WriteCount = count() by tostring(ContainerName)
The above query references the names of multiple operations because more than one type of operation can count as a write operation. To learn more about which operations are considered read and write operations, see either Azure Blob Storage pricing or Azure Data Lake Storage pricing.
Audit account activity
In many cases, you'll need to audit the activities of your storage accounts for security and compliance. Operations on storage accounts fall into two categories: Control Plane and Data Plane.
A control plane operation is any Azure Resource Manager request to create a storage account or to update a property of an existing storage account. For more information, see Azure Resource Manager.
A data plane operation is an operation on the data in a storage account that results from a request to the storage service endpoint. For example, a data plane operation is executed when you upload a blob to a storage account or download a blob from a storage account. For more information, see Azure Storage API.
The section shows you how to identify the "when", "who", "what" and "how" information of control and data plane operations.
Auditing control plane operations

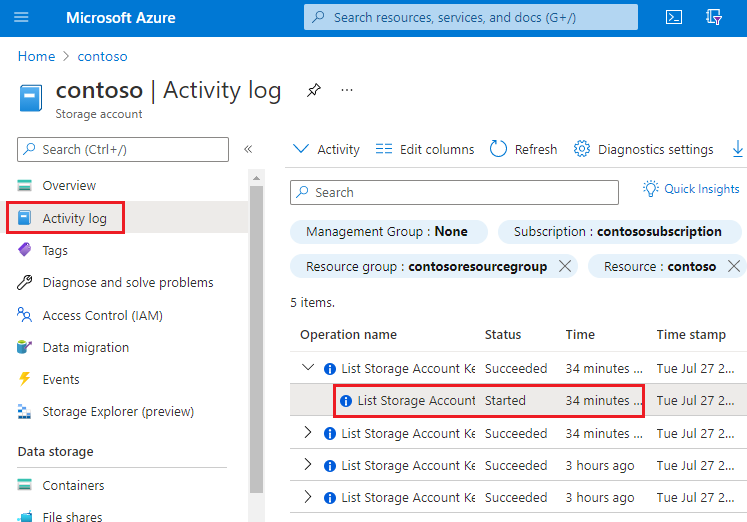

Resource Manager operations are captured in the Azure activity log. To view the activity log, open your storage account in the Azure portal, and then select Activity log.

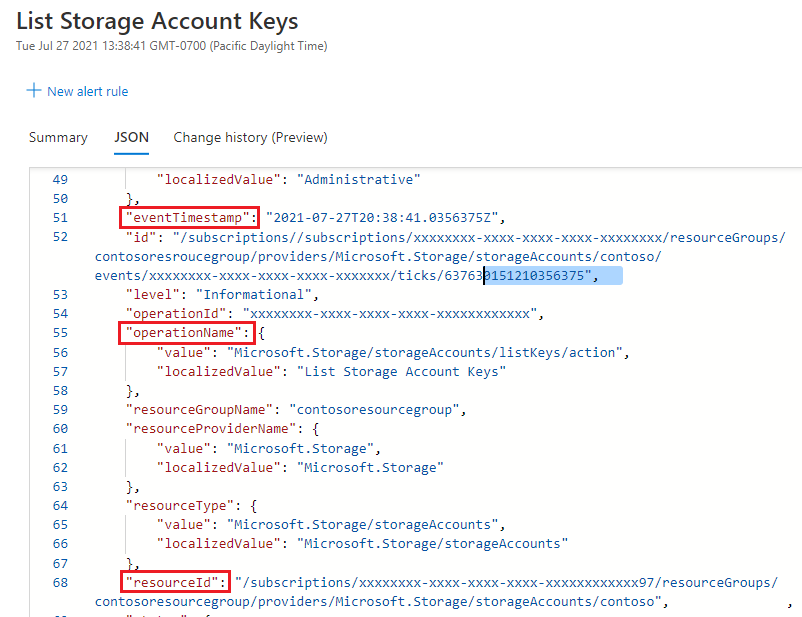

Open any log entry to view JSON that describes the activity. The following JSON shows the "when", "what" and "how" information of a control plane operation:
The availability of the "who" information depends on the method of authentication that was used to perform the control plane operation. If the authorization was performed by an Azure AD security principal, the object identifier of that security principal would also appear in this JSON output (For example:
"http://schemas.microsoft.com/identity/claims/objectidentifier": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxx"). Because you might not always see other identity-related information such as an email address or name, the object identifier is always the best way to uniquely identify the security principal.

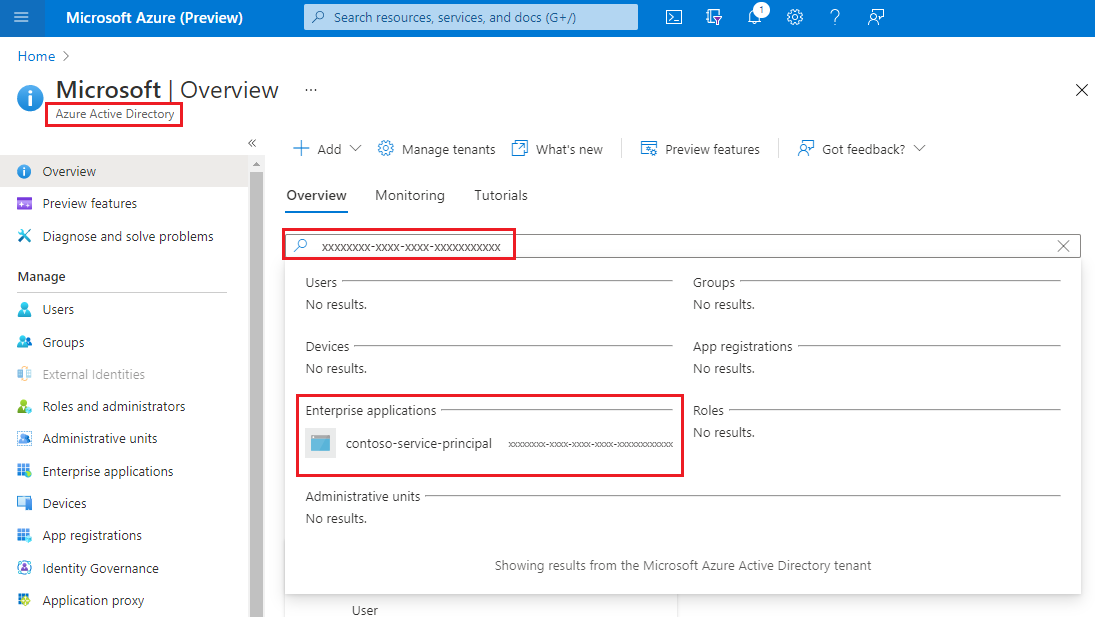

You can find the friendly name of that security principal by taking the value of the object identifier, and searching for the security principal in Azure AD page of the Azure portal. The following screenshot shows a search result in Azure AD.
Auditing data plane operations
Here's a Log Analytics query that retrieves the "when", "who", "what", and "how" information in a list of log entries.
StorageBlobLogs | where TimeGenerated > ago(3d) | project TimeGenerated, AuthenticationType, RequesterObjectId, OperationName, Uri
For the "when" portion of your audit, the
TimeGenerated field shows when the log entry was recorded.
For the "what" portion of your audit, the
Uri field shows the item was modified or read.
For the "how" portion of your audit, the
OperationName field shows which operation was executed.
For example, if you suspect that a blob or container has been deleted by mistake, then add a
where clause that returns only log entries where the
OperationName is set to either Delete blob or Delete Container.
For the "who" portion of your audit,
AuthenticationType shows which type of authentication was used to make a request. This field can show any of the types of authentication that Azure Storage supports including the use of an account key, a SAS token, or Azure Active Directory (Azure AD) authentication.
If the request is authorized by using Azure AD, you can use the
RequestObjectId field to identify the "who". Shared Key and SAS authentication provide no means of auditing individual identities. In those cases, the
userAgentHeader fields might help you to identify the source of the operation. If a SAS token was used to authorize an operation, you can identify that token, and if you've mapped tokens to token recipients at your end, you can identify which user, organization, or application has performed the operation. See Identifying the SAS token used to authorize a request.
Identifying the security principal used to authorize a request
If a request was authenticated by using Azure AD, the
RequesterObjectId field provides the most reliable way to identify the security principal. You can find the friendly name of that security principal by taking the value of the
RequesterObjectId field, and searching for the security principal in Azure AD page of the Azure portal. The following screenshot shows a search result in Azure AD.
In some cases, a user principal name or UPN might appear in logs. For example, if the security principal is an Azure AD user, the UPN will likely appear. For other types of security principals such as user assigned managed identities, or in certain scenarios such as cross Azure AD tenant authentication, the UPN will not appear in logs.
This query shows all read operations performed by OAuth security principals.
StorageBlobLogs | where TimeGenerated > ago(3d) and OperationName == "GetBlob" and AuthenticationType == "OAuth" | project TimeGenerated, AuthenticationType, RequesterObjectId, OperationName, Uri
Shared Key and SAS authentication provide no means of auditing individual identities. Therefore, if you want to improve your ability to audit based on identity, we recommended that you transition to Azure AD, and prevent shared key and SAS authentication. To learn how to prevent Shared Key and SAS authentication, see Prevent Shared Key authorization for an Azure Storage account. To get started with Azure AD, see Authorize access to blobs using Azure Active Directory.
Identifying the SAS token used to authorize a request
You can query for operations that were authorized by using a SAS token. For example, this query returns all write operations that were authorized by using a SAS token.
StorageBlobLogs | where TimeGenerated > ago(3d) and OperationName == "PutBlob" and AuthenticationType == "SAS" | project TimeGenerated, AuthenticationType, AuthenticationHash, OperationName, Uri
For security reasons, SAS tokens don't appear in logs. However, the SHA-256 hash of the SAS token will appear in the
AuthenticationHash field that is returned by this query.
If you've distributed several SAS tokens, and you want to know which SAS tokens are being used, you'll have to convert each of your SAS tokens to an SHA-256 hash, and then compare that hash to the hash value that appears in logs.
First decode each SAS token string. The following example decodes a SAS token string by using PowerShell.
[uri]::UnescapeDataString("<SAS token goes here>")
Alternatively, you can pass the decoded string to the hash_sha256() function as part of a query when you use Azure Data Explorer.
SAS tokens do not contain identity information. One way to track the activities of users or organizations, is to keep a mapping of users or organizations to various SAS token hashes.
Optimize cost for infrequent queries
You can export logs to Log Analytics for rich native query capabilities. When you have massive transactions on your storage account, the cost of using logs with Log Analytics might be high. For more information, see Azure Log Analytics Pricing. If you only plan to query logs occasionally (for example, query logs for compliance auditing), you can consider reducing the total cost by exporting logs to storage account, and then using a serverless query solution on top of log data, for example, Azure Synapse.
With Azure Synapse, you can create server-less SQL pool to query log data when you need. This could save costs significantly.
Export logs to storage account. For more information, see Creating a diagnostic setting.
Create and configure a Synapse workspace. For more information, see Quickstart: Create a Synapse workspace.
Query logs. For more information, see Query JSON files using serverless SQL pool in Azure Synapse Analytics.
Here's an example:
select JSON_VALUE(doc, '$.time') AS time, JSON_VALUE(doc, '$.properties.accountName') AS accountName, JSON_VALUE(doc, '$.identity.type') AS identityType, JSON_VALUE(doc, '$.identity.requester.objectId') AS requesterObjectId, JSON_VALUE(doc, '$.operationName') AS operationName, JSON_VALUE(doc, '$.callerIpAddress') AS callerIpAddress, JSON_VALUE(doc, '$.uri') AS uri doc from openrowset( bulk 'https://demo2uswest4log.blob.core.windows.net/insights-logs-storageread/resourceId=/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/resourceGroups/mytestrp/providers/Microsoft.Storage/storageAccounts/demo2uswest/blobServices/default/y=2021/m=03/d=19/h=*/m=*/PT1H.json', format = 'csv', fieldterminator ='0x0b', fieldquote = '0x0b' ) with (doc nvarchar(max)) as rows order by JSON_VALUE(doc, '$.time') desc
