Enforce Azure Active Directory Multi-Factor Authentication for Azure Virtual Desktop using Conditional Access

  • Article

Important

If you're visiting this page from the Azure Virtual Desktop (classic) documentation, make sure to return to the Azure Virtual Desktop (classic) documentation once you're finished.

Users can sign into Azure Virtual Desktop from anywhere using different devices and clients. However, there are certain measures you should take to help keep yourself and your users safe. Using Azure Active Directory (Azure AD) Multi-Factor Authentication (MFA) with Azure Virtual Desktop prompts users during the sign-in process for another form of identification in addition to their username and password. You can enforce MFA for Azure Virtual Desktop using Conditional Access, and can also configure whether it applies to the web client, mobile apps, desktop clients, or all clients.

How often a user is prompted to reauthenticate depends on Azure AD session lifetime configuration settings. For example, if their Windows client device is registered with Azure AD, it will receive a Primary Refresh Token (PRT) to use for single sign-on (SSO) across applications. Once issued, a PRT is valid for 14 days and is continuously renewed as long as the user actively uses the device.

While remembering credentials is convenient, it can also make deployments for Enterprise scenarios using personal devices less secure. To protect your users, you can make sure the client keeps asking for Azure AD Multi-Factor Authentication credentials more frequently. You can use Conditional Access to configure this behavior.

Learn how to enforce MFA for Azure Virtual Desktop and optionally configure sign-in frequency below.

Prerequisites

Here's what you'll need to get started:

Create a Conditional Access policy

Here's how to create a Conditional Access policy that requires multi-factor authentication when connecting to Azure Virtual Desktop:

  1. Sign in to the Azure portal as a global administrator, security administrator, or Conditional Access administrator.

  2. In the search bar, type Azure Active Directory and select the matching service entry.

  3. Browse to Security > Conditional Access.

  4. Select New policy > Create new policy.

  5. Give your policy a name. We recommend that organizations create a meaningful standard for the names of their policies.

  6. Under Assignments, select Users or workload entities.

  7. Under the Include tab, select Select users and groups and tick Users and groups. On the right, search for and choose the group that contains your Azure Virtual Desktop users as group members.

  8. Select Select.

  9. Under Assignments, select Cloud apps or actions.

  10. Under the Include tab, select Select apps.

  11. On the right, select one of the following apps based on which version of Azure Virtual Desktop you're using.

    • If you're using Azure Virtual Desktop (based on Azure Resource Manager), you can configure MFA on two different apps:

      • Azure Virtual Desktop (app ID 9cdead84-a844-4324-93f2-b2e6bb768d07), which applies when the user subscribes to a feed and authenticates to the Azure Virtual Desktop Gateway during a connection.

      Tip

      The app name was previously Windows Virtual Desktop. If you registered the Microsoft.DesktopVirtualization resource provider before the display name changed, the application will be named Windows Virtual Desktop with the same app ID as above.

      • Microsoft Remote Desktop (app ID a4a365df-50f1-4397-bc59-1a1564b8bb9c), which applies when the user authenticates to the session host when single sign-on is enabled.

    • If you're using Azure Virtual Desktop (classic), choose these apps:

      • Windows Virtual Desktop (app ID 5a0aa725-4958-4b0c-80a9-34562e23f3b7)
      • Windows Virtual Desktop Client (app ID fa4345a4-a730-4230-84a8-7d9651b86739), which will let you set policies on the web client

      Tip

      If you're using Azure Virtual Desktop (classic) and if the Conditional Access policy blocks all access excluding Azure Virtual Desktop app IDs, you can fix this by also adding the Azure Virtual Desktop (app ID 9cdead84-a844-4324-93f2-b2e6bb768d07) to the policy. Not adding this app ID will block feed discovery of Azure Virtual Desktop (classic) resources.

    Important

    Don't select the app called Azure Virtual Desktop Azure Resource Manager Provider (app ID 50e95039-b200-4007-bc97-8d5790743a63). This app is only used for retrieving the user feed and shouldn't have multi-factor authentication.

  12. Once you've selected your app, select Select.

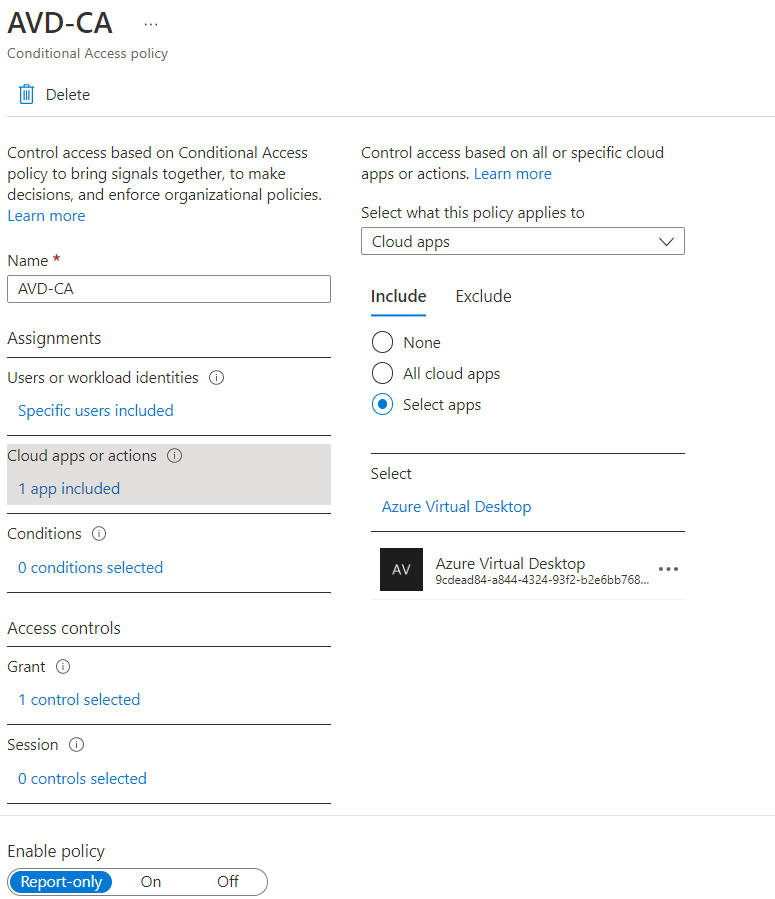

    A screenshot of the Conditional Access Cloud apps or actions page. The Azure Virtual Desktop app is shown.

  13. Under Assignments, select Conditions > Client apps. On the right, for Configure, select Yes, and then select the client apps this policy will apply to:

    • Select both check boxes if you want to apply the policy to all clients.
    • Select Browser if you want the policy to apply to the web client.
    • Select Mobile apps and desktop clients if you want to apply the policy to other clients.
    • Deselect values for legacy authentication clients.

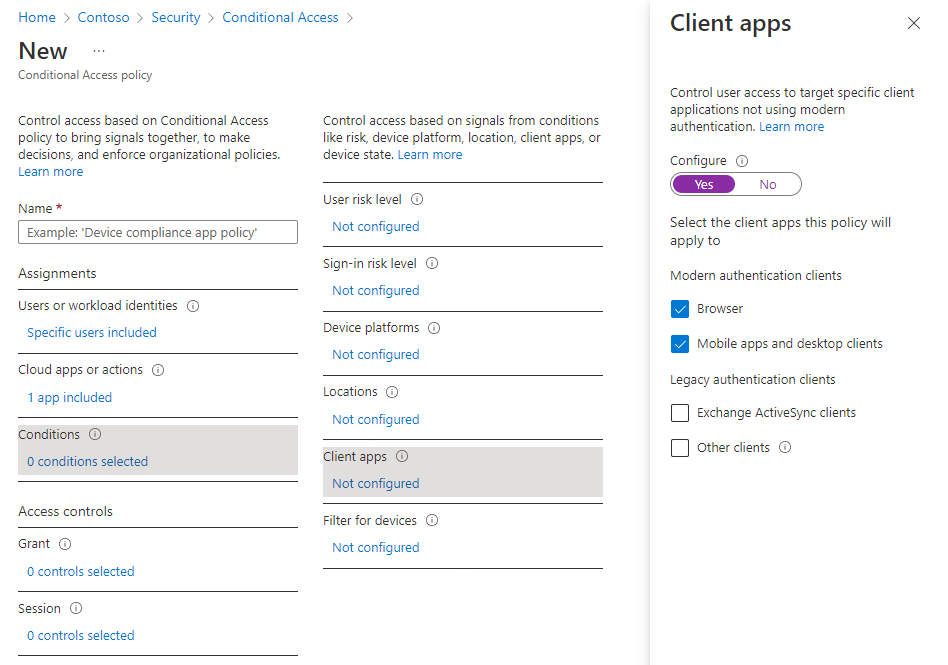

    A screenshot of the Conditional Access Client apps page. The user has selected the mobile apps and desktop clients, and browser check boxes.

  14. Once you've selected the client apps this policy will apply to, select Done.

  15. Under Assignments, select Access controls > Grant, select Grant access, Require multi-factor authentication, and then select Select.

  16. At the bottom of the page, set Enable policy to On and select Create.

Note

When you use the web client to sign in to Azure Virtual Desktop through your browser, the log will list the client app ID as a85cf173-4192-42f8-81fa-777a763e6e2c (Azure Virtual Desktop client). This is because the client app is internally linked to the server app ID where the conditional access policy was set.

Tip

Some users may see a prompt titled Stay signed in to all your apps if the Windows device they're using is not already registered with Azure AD. If they deselect Allow my organization to manage my device and select No, sign in to this app only, this may reappear frequently.

Configure sign-in frequency

To optionally configure the time period before a user is asked to sign-in again:

  1. Open the policy you created previously.
  2. Under Assignments, select Access controls > Session. On the right, select Sign-in frequency. Set the value for the time period before a user is asked to sign-in again, and then select Select. For example, setting the value to 1 and the unit to Hours, will require multi-factor authentication if a connection is launched over an hour after the last one.
  3. At the bottom of the page, under Enable policy select Save.

Azure AD joined session host VMs

For connections to succeed, you must disable the legacy per-user multi-factor authentication sign-in method. If you don't want to restrict signing in to strong authentication methods like Windows Hello for Business, you'll also need to exclude the Azure Windows VM Sign-In app from your Conditional Access policy.
