Learn how configuration deployments in Azure Virtual Network Manager are applied to your network resources. Explore how updating a configuration deployment differs by network group membership type, and understand details about deployment status and the goal state model.
How deployment works
Deployment is the method Azure Virtual Network Manager uses to apply configurations to your network groups' virtual networks. Configurations don't take effect until they're deployed. When a deployment request is sent to Azure Virtual Network Manager, it calculates the goal state of all targeted resources under your network manager in the targeted regions. The goal state is a combination of deployed configurations and network group membership. Azure Virtual Network Manager applies the necessary changes to your resources' settings to achieve the desired goal state.
When committing a deployment, you select the regions where you want the selected configurations to apply. The time it takes for a deployment to complete depends on how large the configuration is. Once the virtual networks are members of a network group targeted by a configuration, deploying that configuration onto that network group can take a few minutes. This scenario includes adding or removing virtual networks to or from the targeted network group manually or conditionally with Azure Policy. Safe deployment practices recommend gradually rolling out changes on a per-region basis.
Important
Only one security admin configuration can be deployed from a single network manager to a region at a time. However, multiple connectivity and routing configurations can exist in a region. To deploy multiple sets of security admin rules to a region, you can create multiple rule collections within a security admin configuration.
Deployment latency and timing
There are two factors in how quickly a deployment's configurations are applied and take effect:
The base time of applying a configuration is a few minutes.
The time to update network group membership (and thus the members onto which active configurations are newly applied to or removed from) can vary.
For manually added members, the network group membership immediately updates. For conditionally added members where the scope is less than 1,000 subscriptions, the network group membership can take a few minutes to update. For conditionally added members in environments with more than 1,000 subscriptions, the network group gets notified by Azure Policy in a 24-hour window; after that notification, active configurations are applied to the updated network group members in a few minutes. Changes to network group membership take effect without the need for configuration redeployment.
For example, if a virtual network is newly added to a network group with an active configuration already deployed onto it in the same region as that new virtual network member, that virtual network automatically receives the configuration without manually deploying the configuration again.
Deployment status and monitoring

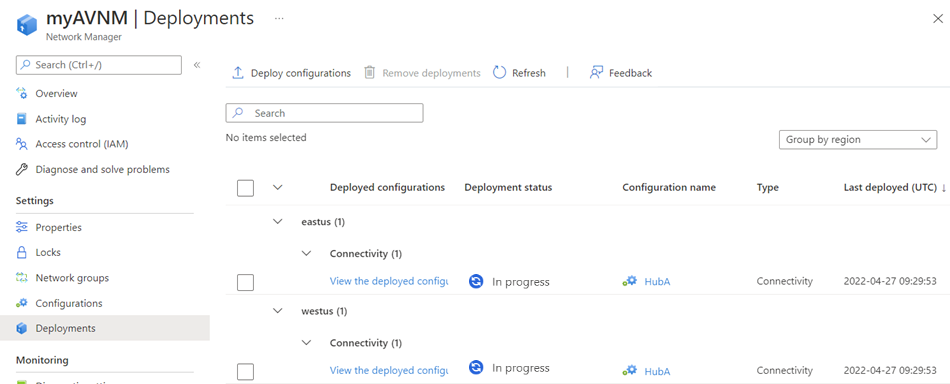

When you commit a configuration deployment, the API forms a POST operation. Once the deployment request is made, Azure Virtual Network Manager calculates the goal state of your networks in the deployed regions and requests the underlying infrastructure to make the changes. You can see the deployment status on the Deployment page of your Azure Virtual Network Manager instance, or network manager.
Goal state model
When you commit a deployment of configurations, you describe the goal state of your network manager in the targeted regions. This goal state is enforced during the next deployment. For example, when you commit configurations Config1 and Config2 into a region, these two configurations get applied and become the region's goal state. If you decided to commit configurations Config1 and Config3 into the same region, Config2 would then be removed, and Config3 would be added. To remove all configurations, you would deploy None to the regions where you no longer wish to have any configurations applied.
Configuration availability
A network manager is available in a region as long as the region is up and running. Should a region with a network manager go down, the network manager is no longer available to submit new configuration deployments or modify existing configurations. However, the configurations that were deployed to the targeted network groups' virtual networks in the targeted regions are still in effect unless those virtual networks are in the region that went down.
For example, if a network manager exists in regionA and has deployed configurations onto virtual networks in regionB, those configurations are still in effect even if regionA goes down. However, you won't be able to create new, modify existing, or deploy configurations from the network manager in regionA. As another example, if regionB goes down, those configurations are no longer in effect. In this case, further deployments to virtual networks in regionB won't be successful.
