Define dynamic network group membership in Azure Virtual Network Manager with Azure Policy

In this article, you learn how to use Azure Policy conditional statements to create network groups with dynamic membership. You create these conditional statements using the basic editor by selecting parameters and operators from a drop-down menu. Also, you learn how to use the advanced editor to update conditional statements of an existing network group.

Azure Policy is a service to enable you to enforce per-resource governance at scale. It can be used to specify conditional expressions that define group membership, as opposed to explicit lists of virtual networks. This condition continues to power your network groups dynamically, allowing virtual networks to join and leave the group automatically as their fulfillment of the condition changes, with no Network Manager operation required.

Important

Azure Virtual Network Manager is generally available for Virtual Network Manager and hub-and-spoke connectivity configurations. Mesh connectivity configurations remain in public preview.

Security configurations with security admin rules is generally available in the following regions:

  • Australia East
  • Australia Southeast
  • Brazil South
  • Brazil Southeast
  • East Asia
  • Europe North
  • France South
  • Germany West Central
  • India Central
  • India South
  • India West
  • Israel Central
  • Italy North
  • Japan East
  • Jio India West
  • Korea Central
  • Norway East
  • Norway West
  • Poland Central
  • Qatar Central
  • South Africa North
  • South Africa West
  • Sweden Central
  • Sweden South
  • Switzerland North
  • UAE North
  • US East
  • US North
  • US West Central

All other regions remain in public preview.

This preview version is provided without a service level agreement, and it's not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

Prerequisites

Parameters and operators

Virtual networks with dynamic memberships are selected using conditional statements. You can define more than one conditional statement by using logical operators such as AND and OR for scenarios where you need to further narrow the selected virtual networks.

List of supported parameters:

Parameters Advanced editor field
Name Name
ID Id
Tags tag['tagName']
Subscription Name [subscription().Name]
Subscription ID [subscription().Id]
Subscription Tags [subscription().tags['tagName']]
Resource Group Name [resourceGroup().Name]
Resource Group ID [resourceGroup().Id]
Resource Group Tags [resourceGroup().tags['tagName']]

List of supported operators:

Operators Advanced editor
Contains "contains": <>
Doesn't contain "notcontains": <>
In "in": <>
Not In "notin": <>
Equals "equals": <>
Doesn't equal "notequals": <>
Contains any of "contains": <>
Contains all of "contains": <>
Doesn't contain any of "notcontains": <>
Exists "exists": true
Doesn't exist "exists": false

Note

The Exists and Does not exist operators are only used with the Tags parameter.

Basic editor

Assume you have the following virtual networks in your subscription. Each virtual network has an associated tag named environment with the respective value of production or test.

Virtual Network Tag Name Tag Value
myVNet01-EastUS environment production
myVNet01-WestUS environment production
myVNet02-WestUS environment test
myVNet03-WestUS environment test

You only want to select virtual networks that whose tag has a key value pair of environment equal to production. To begin using the basic editor to create your conditional statement, you need to create a new network group.

  1. Go to your Azure Virtual Network Manager instance and select Network Groups under Settings. Then select + Create to create a new network group.

  2. Enter a Name and an optional Description for the network group, and select Add.

  3. Select the network group from the list and select Create Azure Policy.

  4. Enter a Policy name and leave the Scope selections unless changes are needed.

  5. Under Criteria, select Tags from the drop-down under Parameter and then select Key value pair from the drop-down under Operator.

  6. Enter environment and production under Condition and select Preview Resources. You should see myVNet01-EastUS and myVNet01-WestUS show up in the list.

    Screenshot of Create Azure Policy window setting tag with key value pair.

  7. Select Close and Save.

  8. After a few minutes, select your network group and select Group Members under Settings. You should only see myVNet01-WestUS and myVNet01-WestUS.

Important

The basic editor is only available during the creation of an Azure Policy. Once a policy is created, all edits will be done using JSON in the Policies section of virtual network manager or via Azure Policy.

Advanced editor

The advanced editor can be used to select virtual networks during the creation of a network group or when updating an existing network group. Based in JSON, the advanced editor is useful for creating and updating complex Azure Policy conditional statements by experienced users.

Create a new policy with advanced editor

  1. Go to your Azure Virtual Network Manager instance and select Network Groups under Settings. Then select + Create to create a new network group.

  2. Enter a Name and an optional Description for the network group, and select Add.

  3. Select the network group from the list and select Create Azure Policy.

  4. Enter a Policy name and leave the Scope selections unless changes are needed.

  5. Under Criteria, select Advanced (JSON) editor to open the editor.

  6. Enter the following JSON code into the text box and select Save:

       {
       "field": "Name",
       "contains": "myVNet01"
       }

  7. After a few minutes, select your network group and select Group Members under Settings. You should only see myVNet01-WestUS and myVNet01-EastUS.

Important

Any Azure Policies you create through with virtual network manager will live in the Azure Policy services area. They will not be remove from your Azure Policy assignments and definitions when a virtual network manager instance is delete. This requires removal of the policies manually. Learn to remove Azure Policies

Edit an existing policy

  1. Select the network group created in the previous section. Then select the Policies tab.

  2. Select the policy created in the previous section.

  3. You see the conditional statements for the network group in the advance editor view as follows:

    [
      {
         "field": "Name",
         "contains": "myVNet01"
      }
    ]

  4. To add another conditional statement for a Name field not containing WestUS, enter the following into the advanced editor:

    {
       "allOf": [

          {
             "field": "Name",
             "contains": "VNet01"
          },
          {
             "field": "Name",
             "notcontains": "WestUS"
          }
       ]
    }


    The "allOf" parameter contains both the conditional statements that are separated by the AND logical operator.

  5. Select Save.

  6. After a few minutes, select your network group and select Group Members under Settings. You should only see myVNet01-EastUS.

See Parameter and operators for the complete list of parameters and operators you can use with the advanced editor.

More examples

Here are more examples of conditional statements in the advanced editor.

Example 1: OR operator only

This example uses the OR logical operator to separate two conditional statements.

  • Basic editor:

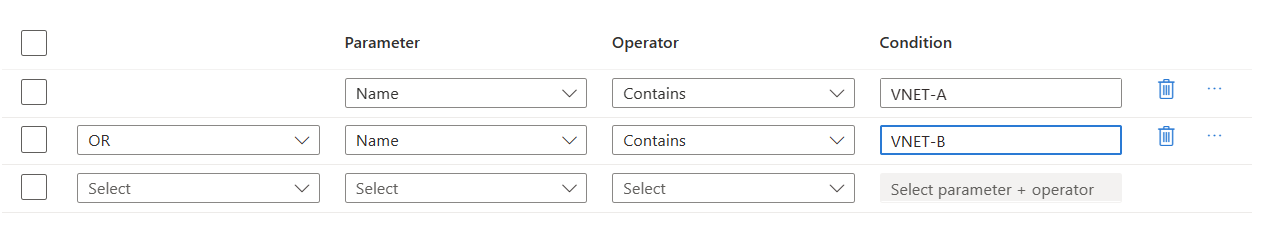

    Screenshot of network group conditional statement using the OR logical operator.

  • Advanced operator:

    {
       "anyOf": [
          {
             "field": "Name",
             "contains": "myVNet01"
          },
          {
             "field": "Name",
             "contains": "myVNet02"
          }
       ]
    }


The "anyOf" parameter contains both the conditional statements that are separated by the OR logical operator.

Example 2: AND and OR operator at the same time

  • Basic editor:

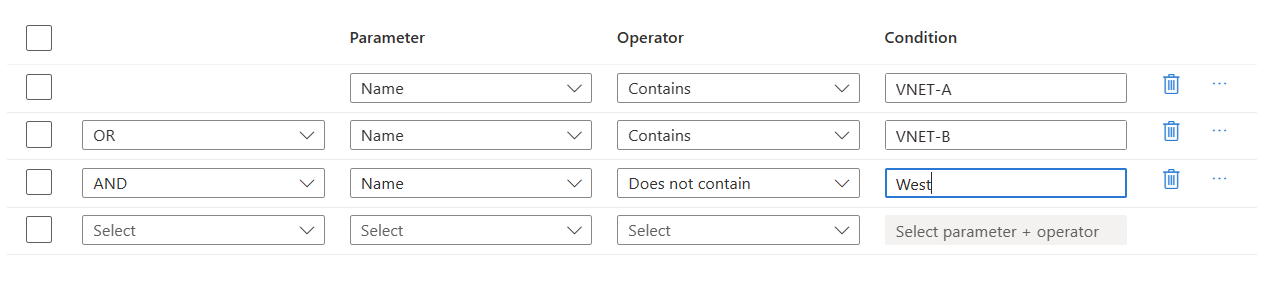

    Screenshot of network group conditional statement using both OR and AND logical operator.

  • Advanced editor:

{
   "allOf": [
      {
         "anyOf": [
            {
               "field": "Name",
               "contains": "myVNet01"
            },
            {
               "field": "Name",
               "contains": "myVNet02"
            }
         ]
      },
      {
         "field": "Name",
         "notcontains": "West"
      }
   ]
}

Both "allOf" and "anyOf" are used in the code. Since the AND operator is last in the list, it is on the outer part of the code containing the two conditional statements with the OR operator.

Example 3: Using custom tag values with advanced editor

In this example, a conditional statement is created that finds virtual networks where the name includes myVNet AND the environment tag equals production.

  • Advanced editor:


       {
            "allOf": [
              {
                 "field": "Name",
                 "contains": "myVNet"
              },
              {
                 "field": "tags['environment']",
                 "equals": "production"
              }
            ]
       }



    Note

    Conditionals should filter on resource type Microsoft.Network/virtualNetwork to improve efficiency. This condition is prepended for you on any conditionals specified through the portal.
