Azure Web Application Firewall (WAF) on Azure Application Gateway offers a JavaScript (JS) challenge feature as one of the mitigation options for advanced bot protection.
Azure Web Application Firewall (WAF) on Azure Front Door offers a JavaScript (JS) challenge feature as one of the mitigation options for advanced bot protection. It's available on the premium version as an action in the custom rule set and the Bot Manager 1.x ruleset.
The JavaScript challenge is an invisible web challenge that distinguishes between legitimate users and bots. Malicious bots fail the challenge, protecting your web applications. Additionally, the JavaScript challenge reduces friction for legitimate users because it doesn't require human intervention.
Important
Azure Web Application Firewall JavaScript challenge on Azure Application Gateway is currently in PREVIEW. See the Supplemental Terms of Use for Microsoft Azure Previews for legal terms that apply to Azure features that are in beta, preview, or otherwise not yet released into general availability.
How it works
When the JavaScript challenge is active on Azure WAF and a client's HTTP(S) request matches a specific rule, the client is shown a Microsoft JavaScript challenge page. The user sees this page for a few seconds while the browser computes the challenge. If the user's browser successfully computes the challenge, it sends a response back to an Azure endpoint that's exposed when you have WAF configured. This endpoint is exposed to the public, however, requests sent to this endpoint aren't forwarded to the backend and don't count towards rate limiting features. If the browser's call to this endpoint contains the correct values indicating a successful computation, the user passes the challenge.
The client's browser must successfully compute a JavaScript challenge on this page to receive validation from Azure WAF. When the computation succeeds, WAF validates the request as a nonbot client and runs the rest of the WAF rules. Requests that fail to successfully compute the challenge are blocked.
Cross-origin resource sharing (CORS) requests are challenged on each access attempt. So if a client accesses a page that triggers the JavaScript challenge from a domain different from the domain hosting the challenge, the client faces the challenge again even if the client previously passed the challenge.
In addition, if a client solves the JavaScript challenge and then the client's IP address changes, the challenge is issued again.

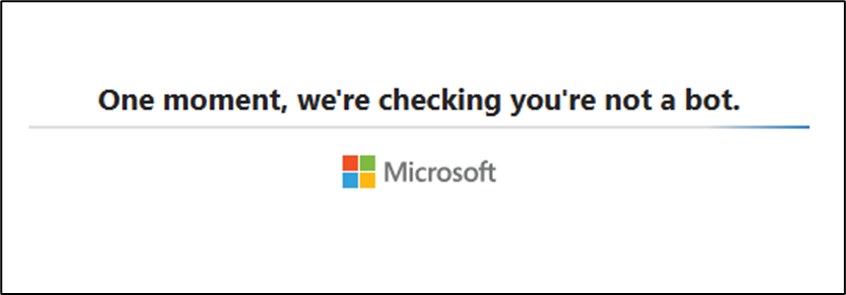

Here's an example JavaScript challenge page:
Expiration
The WAF policy setting defines the JavaScript challenge cookie validity lifetime in minutes. The user is challenged after the lifetime expires. The lifetime is an integer between 5 and 1,440 minutes and the default is 30 minutes. The JavaScript challenge cookie name is appgw_azwaf_jsclearance on Azure Application Gateway.
The WAF policy setting defines the JavaScript challenge cookie validity lifetime in minutes. The user is challenged after the lifetime expires. The lifetime is an integer between 5 and 1,440 minutes and the default is 30 minutes. The JavaScript challenge cookie name is afd_azwaf_jsclearance on Azure Front Door.
Note
The JavaScript challenge expiration cookie is injected into the user's browser after successfully completing the challenge.
Limitations
- AJAX and API calls aren't supported: JavaScript challenge doesn't apply to AJAX and API requests.
- POST body size restriction: The first request that triggers a JavaScript challenge is blocked if its POST body exceeds 128 KB on Azure Application Gateway.
- POST body size restriction: The first request that triggers a JavaScript challenge is blocked if its POST body exceeds 64 KB on Azure Front Door.
Non-HTML embedded resources: JavaScript challenge is designed for HTML resources. Challenges for non-HTML resources embedded in a page, such as images, CSS, JavaScript files, or similar resources, aren't supported. However, if there was a prior successful JavaScript challenge request, those limitations are lifted.
Browser compatibility: JavaScript challenge isn't supported on Microsoft Internet Explorer. It's compatible with the latest versions of Microsoft Edge, Chrome, Firefox, and Safari web browsers.
Rate limit isn't supported: The JavaScript challenge action on Application Gateway isn't supported for Rate Limit type custom rules during the preview.
Application Gateway for Containers WAF: Application Gateway for Containers WAF doesn't support JavaScript challenge.
