ROWNUMBER

  • Article

Applies to: Calculated column Calculated table Measure Visual calculation

Returns the unique ranking for the current context within the specified partition, sorted by the specified order. If a match cannot be found then rownumber is blank.

Syntax

DAX
ROWNUMBER ( [<relation> or <axis>][, <orderBy>][, <blanks>][, <partitionBy>][, <matchBy>][, <reset>] )

Parameters

Term Definition
relation (Optional) A table expression from which the output row is returned.
If specified, all columns in orderBy and partitionBy must come from it.
If omitted:
- orderBy must be explicitly specified.
- All orderBy and partitionBy columns must be fully qualified and come from a single table.
- Defaults to ALLSELECTED() of all columns in orderBy and partitionBy.
axis (Optional) An axis in the visual shape. Available in visual calculations only, and replaces relation.
orderBy (Optional) An ORDERBY() clause containing the columns that define how each partition is sorted.
If omitted:
- relation must be explicitly specified.
- Defaults to ordering by every column in relation that is not already specified in partitionBy.
blanks (Optional) An enumeration that defines how to handle blank values when sorting the relation or axis.
The supported values are:
  • DEFAULT (the default value), where the behavior for numerical values is blank values are ordered between zero and negative values. The behavior for strings is blank values are ordered before all strings, including empty strings.
  • FIRST, blanks are always ordered on the beginning, regardless of ascending or descending sorting order.
  • LAST, blanks are always ordered on the end, regardless of ascending or descending sorting order.

Note, when the blanks parameter and blanks in the ORDERBY() function on individual expressions are both specified, blanks on individual orderBy expression takes priority for the relevant orderBy expression, and orderBy expressions without blanks being specified will honor the blanks parameter on the parent function.
partitionBy (Optional) A PARTITIONBY() clause containing the columns that define how relation is partitioned. If omitted, relation is treated as a single partition.
matchBy (Optional) A MATCHBY() clause containing the columns that define how to match data and identify the current row.
reset (Optional) Available in visual calculations only. Indicates if the calculation resets, and at which level of the visual shape's column hierarchy. Accepted values are: a field reference to a column in the current visual shape, NONE (default), LOWESTPARENT, HIGHESTPARENT, or an integer. The behavior depends on the integer sign:
- If zero or omitted, the calculation does not reset. Equivalent to NONE.
- If positive, the integer identifies the column starting from the highest, independent of grain. HIGHESTPARENT is equivalent to 1.
- If negative, the integer identifies the column starting from the lowest, relative to the current grain. LOWESTPARENT is equivalent to -1.

Return value

The rownumber number for the current context.

Remarks

Each orderBy, partitionBy, and matchBy column must have a corresponding outer value to help define the current row on which to operate, with the following behavior:

  • If there is exactly one corresponding outer column, its value is used.
  • If there is no corresponding outer column, then:
    • ROWNUMBER will first determine all orderBy, partitionBy, and matchBy columns that have no corresponding outer column.
    • For every combination of existing values for these columns in ROWNUMBER parent context, ROWNUMBER is evaluated and a row is returned.
    • ROWNUMBER’s final output is a union of these rows.
  • If there is more than one corresponding outer column, an error is returned.

If matchBy is present, then ROWNUMBER will try to use columns in matchBy and partitionBy to idenfity the current row. If the columns specified within orderBy and partitionBy cannot uniquely identify every row in relation, then:

  • ROWNUMBER will try to find the least number of additional columns required to uniquely identify every row.
  • If such columns can be found, ROWNUMBER will
    • Try to find the least number of additional columns required to uniquely identify every row.
    • Automatically append these new columns to orderBy clause.
    • Sort each partition using this new set of orderBy columns.
  • If such columns cannot be found and the function detects a tie at runtime, an error is returned.

reset can be used in visual calculations only, and cannot be used in combination with orderBy or partitionBy. If reset is present, axis can be specified but relation cannot.

Example 1 - calculated column

The following DAX query:

DAX
EVALUATE
ADDCOLUMNS(
    'DimGeography',
    "UniqueRank",
    ROWNUMBER(
    	'DimGeography',
    	ORDERBY(
    		'DimGeography'[StateProvinceName], desc,
    		'DimGeography'[City], asc),
    	PARTITIONBY(
    		'DimGeography'[EnglishCountryRegionName])))
ORDER BY [EnglishCountryRegionName] asc, [StateProvinceName] desc, [City] asc

Returns a table that uniquely ranks each geography with the same EnglishCountryRegionName, by their StateProvinceName and City.

Example 2 - visual calculation

The following visual calculation DAX queries:

DAX
SalesRankWithinYear = ROWNUMBER(ORDERBY([SalesAmount], DESC), PARTITIONBY([CalendarYear]))

SalesRankAllHistory = ROWNUMBER(ORDERBY([SalesAmount], DESC))

Create two columns that uniquely rank each month by the total sales, both within each year, and the entire history.

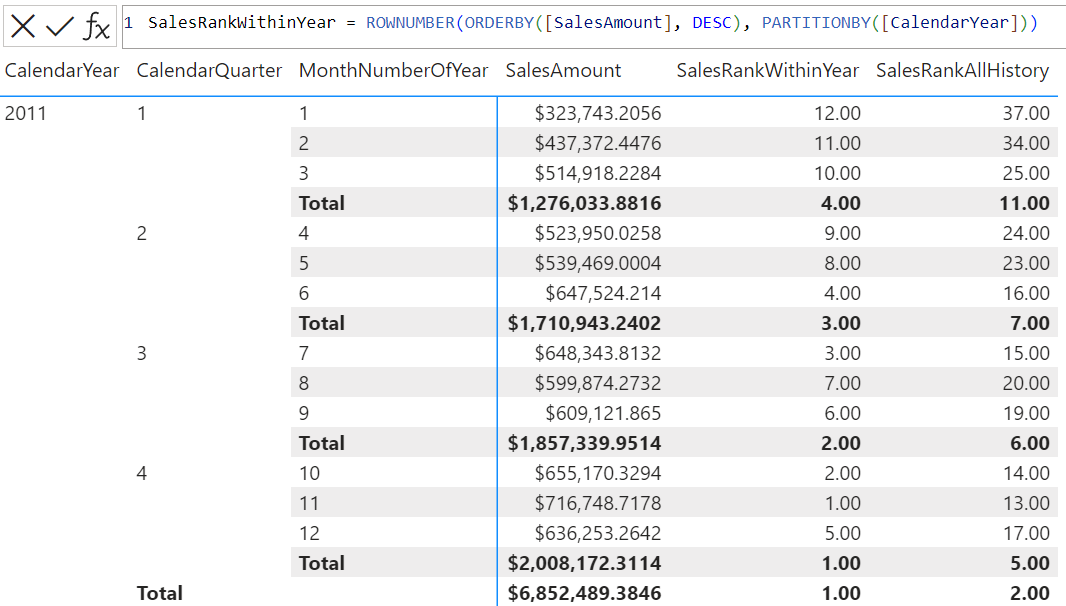

The screenshot below shows the visual matrix and the first visual calculation expression:

DAX visual calculation
