Access Microsoft Defender for Cloud Apps with application context
This page describes how to create an application to get programmatic access to Defender for Cloud Apps without a user. If you need programmatic access to Defender for Cloud Apps on behalf of a user, see Get access with user context. If you aren't sure which access you need, see the Managing API tokens page.
Microsoft Defender for Cloud Apps exposes much of its data and actions through a set of programmatic APIs. Those APIs help you automate work flows and innovate based on Defender for Cloud Apps capabilities. The API access requires OAuth2.0 authentication. For more information, see OAuth 2.0 Authorization Code Flow.
In general, you need to take the following steps to use the APIs:
- Create a Microsoft Entra application.
- Get an access token using this application.
- Use the token to access Defender for Cloud Apps API.
This article explains how to create a Microsoft Entra application, get an access token to Microsoft Defender for Cloud Apps, and validate the token.
In the Microsoft Entra admin center, register a new application. For more information, see Quickstart: Register an application with the Microsoft Entra admin center.

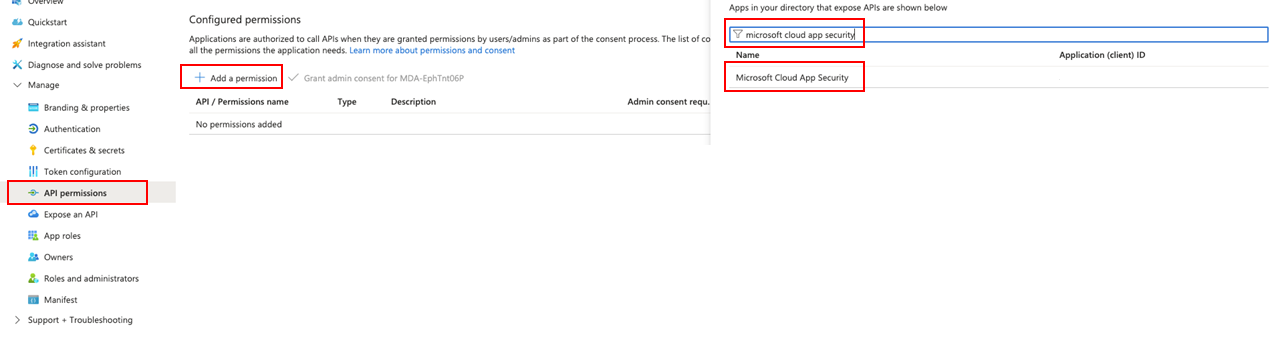

To enable your app to access Defender for Cloud Apps and assign it 'Read all alerts' permission, on your application page, select API Permissions > Add permission > APIs my organization uses >, type Microsoft Cloud App Security, and then select Microsoft Cloud App Security.
Note
Microsoft Cloud App Security does not appear in the original list. Start writing its name in the text box to see it appear. Make sure to type this name, even though the product is now called Defender for Cloud Apps.

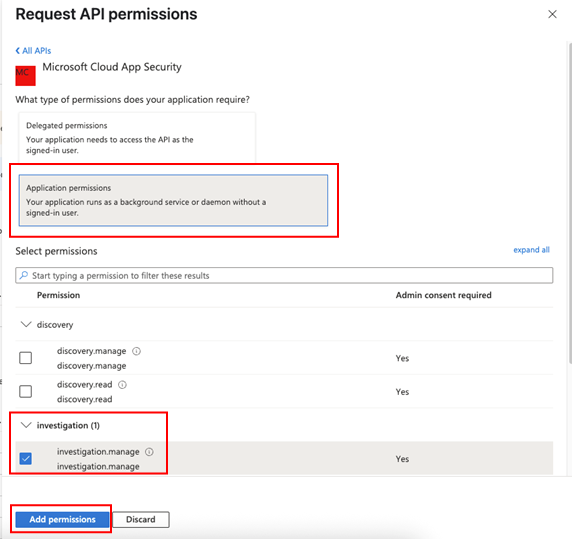

Select Application permissions > Investigation.Read, and then select Add permissions.
You need to select the relevant permissions. Investigation.Read is only an example. For other permission scopes, see Supported permission scopes
- To determine which permission you need, look at the Permissions section in the API you're interested to call.

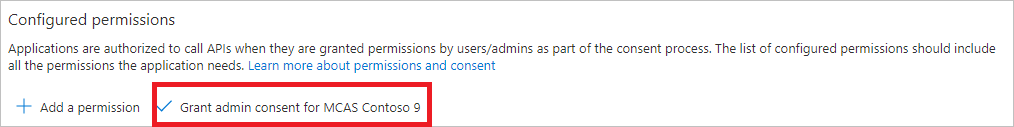

Select Grant admin consent.
Note
Every time you add a permission, you must select Grant admin consent for the new permission to take effect.

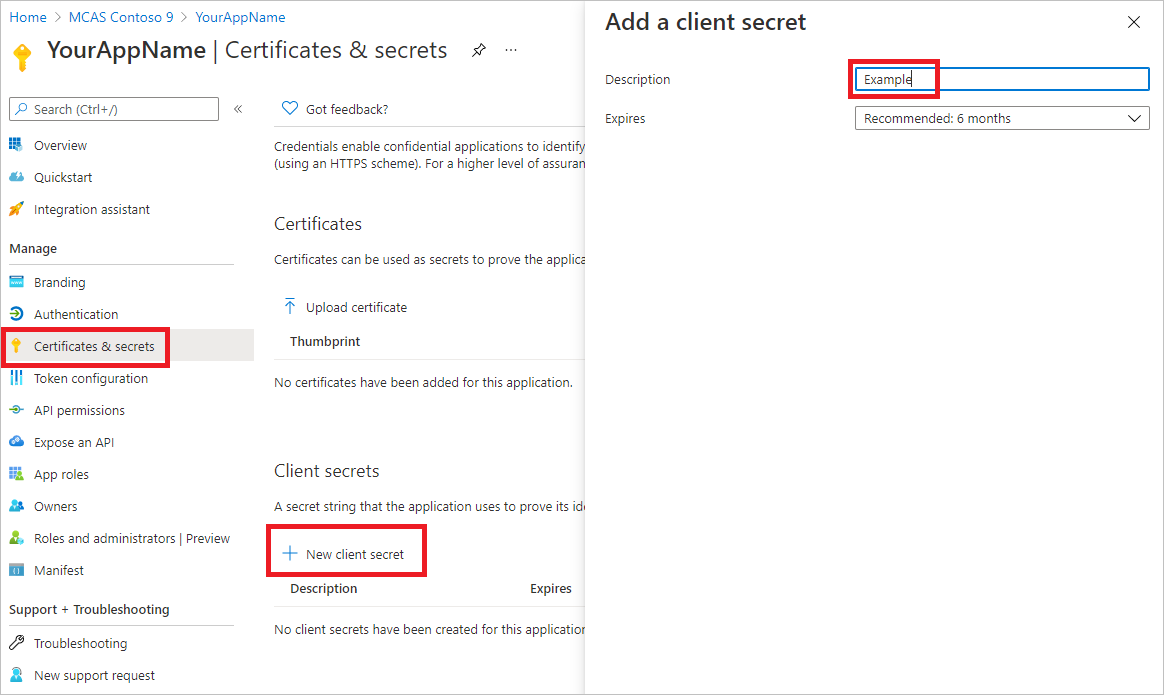

To add a secret to the application, select Certificates & secrets, select New client secret, add a description to the secret, and then select Add.
Note
After you select Add, select copy the generated secret value. You won't be able to retrieve this value after you leave.

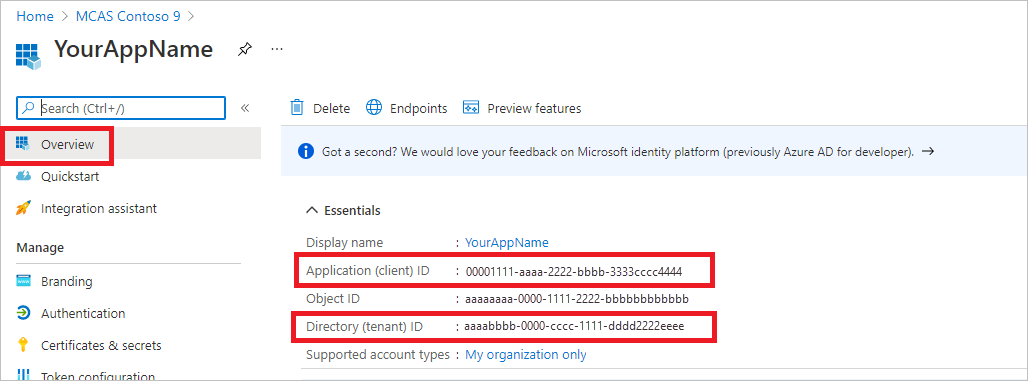

Write down your application ID and your tenant ID. On your application page, go to Overview and copy the Application (client) ID and the Directory (tenant) ID.
For Microsoft Defender for Cloud Apps Partners only. Set your app to be multitenanted (available in all tenants after consent). This is required for third-party apps (for example, if you create an app that is intended to run in multiple customers' tenant). This is not required if you create a service that you want to run in your tenant only (for example, if you create an application for your own usage that will only interact with your own data). To set your app to be multitenanted:
Go to Authentication, and add
https://portal.azure.com
as the Redirect URI.On the bottom of the page, under Supported account types, select the Accounts in any organizational directory application consent for your multitenant app.
You need your application to be approved in each tenant where you intend to use it. This is because your application interacts Defender for Cloud Apps on behalf of your customer.
You (or your customer if you're writing a third-party app) need to select the consent link and approve your app. The consent should be done with a user who has administrative privileges in Active Directory.
The consent link is formed as follows:
https://login.microsoftonline.com/common/oauth2/authorize?prompt=consent&client_id=00000000-0000-0000-0000-000000000000&response_type=code&sso_reload=true
Where 00000000-0000-0000-0000-000000000000 is replaced with your application ID.
Done! You've successfully registered an application! See examples below for token acquisition and validation.
Permission name | Description | Supported actions |
---|---|---|
Investigation.read | Perform all supported actions on activities and alerts except closing alerts. View IP ranges but not add, update, or delete. Perform all entities actions. |
Activities list, fetch, feedback Alerts list, fetch, mark as read/unread Entities list, fetch, fetch tree Subnet list |
Investigation.manage | Perform all investigation.read actions in addition to managing alerts and IP ranges. | Activities list, fetch, feedback Alerts list, fetch, mark as read/unread, close Entities list, fetch, fetch tree Subnet list, create/update/delete |
Discovery.read | Perform all supported actions on activities and alerts except closing alerts. List discovery reports and categories. |
Alerts list, fetch, mark as read/unread Discovery list reports, list report categories |
Discovery.manage | Discovery.read permissions Close alerts, upload discovery files, and generate block scripts |
Alerts list, fetch, mark as read/unread, close Discovery list reports, list report categories Discovery file upload, generate block script |
Settings.read | List IP ranges. | Subnet list |
Settings.manage | List and manage IP ranges. | Subnet list, create/update/delete |
For more information on Microsoft Entra tokens, see the Microsoft Entra tutorial.
# This script acquires the App Context Token and stores it in the variable $token for later use in the script.
# Paste your Tenant ID, App ID, and App Secret (App key) into the indicated quotes below.
$tenantId = '' ### Paste your tenant ID here
$appId = '' ### Paste your Application ID here
$appSecret = '' ### Paste your Application key here
$resourceAppIdUri = '05a65629-4c1b-48c1-a78b-804c4abdd4af'
$oAuthUri = "https://login.microsoftonline.com/$TenantId/oauth2/token"
$authBody = [Ordered] @{
resource = "$resourceAppIdUri"
client_id = "$appId"
client_secret = "$appSecret"
grant_type = 'client_credentials'
}
$authResponse = Invoke-RestMethod -Method Post -Uri $oAuthUri -Body $authBody -ErrorAction Stop
$token = $authResponse.access_token
The following code was tested with NuGet Microsoft.Identity.Client 4.47.2.
Create a new console application.
Install NuGet Microsoft.Identity.Client.
Add the following:
using Microsoft.Identity.Client;
Copy and paste the following code in your app (don't forget to update the three variables:
tenantId, appId, appSecret
):string tenantId = "00000000-0000-0000-0000-000000000000"; // Paste your own tenant ID here string appId = "00001111-aaaa-2222-bbbb-3333cccc4444"; // Paste your own app ID here string appSecret = "22222222-2222-2222-2222-222222222222"; // Paste your own app secret here for a test, and then store it in a safe place! const string authority = "https://login.microsoftonline.com"; const string audience = "05a65629-4c1b-48c1-a78b-804c4abdd4af"; IConfidentialClientApplication myApp = ConfidentialClientApplicationBuilder.Create(appId).WithClientSecret(appSecret).WithAuthority($"{authority}/{tenantId}").Build(); List scopes = new List() { $"{audience}/.default" }; AuthenticationResult authResult = myApp.AcquireTokenForClient(scopes).ExecuteAsync().GetAwaiter().GetResult(); string token = authResult.AccessToken;
See Microsoft Authentication Library (MSAL) for Python.
Note
The following procedure assumes that Curl for Windows is already installed on your computer.
- Open a command prompt, and set CLIENT_ID to your Azure application ID.
- Set CLIENT_SECRET to your Azure application secret.
- Set TENANT_ID to the Azure tenant ID of the customer that wants to use your app to access Defender for Cloud Apps.
- Run the following command:
curl -i -X POST -H "Content-Type:application/x-www-form-urlencoded" -d "grant_type=client_credentials" -d "client_id=%CLIENT_ID%" -d "scope=05a65629-4c1b-48c1-a78b-804c4abdd4af/.default" -d "client_secret=%CLIENT_SECRET%" "https://login.microsoftonline.com/%TENANT_ID%/oauth2/v2.0/token" -k
You get an answer in the following form:
{"token_type":"Bearer","expires_in":3599,"ext_expires_in":0,"access_token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsIn <truncated> aWReH7P0s0tjTBX8wGWqJUdDA"}
Ensure that you got the correct token:
- Copy and paste the token you got in the previous step into JWT in order to decode it.
- Validate that you get a 'roles' claim with the desired permissions

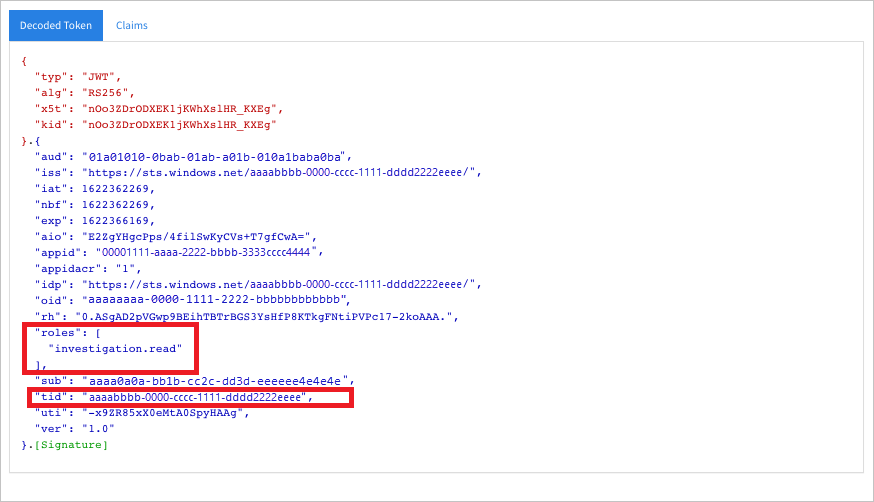

- In the following image, you can see a decoded token acquired from an app with permissions to all Microsoft Defender for Cloud Apps roles:
- Choose the API you want to use. For more information, see Defender for Cloud Apps APIs.
- Set the authorization header in the http request you send to "Bearer {token}" (Bearer is the authorization scheme).
- The expiration time of the token is one hour. You can send more than one request with the same token.
The following is an example of sending a request to get a list of alerts using C#:
var httpClient = new HttpClient();
var request = new HttpRequestMessage(HttpMethod.Get, "https://portal.cloudappsecurity.com/cas/api/v1/alerts/");
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var response = httpClient.SendAsync(request).GetAwaiter().GetResult();
// Do something useful with the response
