Analyze list page and query data using data analysis feature

APPLIES TO: Public preview in Business Central 2023 release wave 1 and later for analyzing list pages; Generally available in Business Central 2023 release wave 2 for analyzing data from list pages and queries.

In this article, you learn how to analyze data from list pages and queries using the data analysis feature. With data analysis feature, you can analyze data directly from the page, without having to run a report or switch another application like Excel. It provides an interactive and versatile way to calculate, summarize, and examine data. Instead of running reports using different options and filters, you can add multiple tabs that represent different tasks or views on the data. Examples could be "My customers", "Follow up items", "Recently added vendors", "Sales statistics", or any other view you can imagine.

Tip

A good thing about the data analysis feature is that it doesn't change any of the underlying data of list page or query, or the layout of the page or query when it's not in the analysis mode. So the best way to learn about what you can do in the analysis mode is to try things out.

Prerequisites

• If you're using Business Central version 22, the data analysis feature is in preview. So, an admin must enable it before you can use it. To enable it, go to the Feature Management page and switch on Feature Update: Analysis mode, quickly analyze data directly in Business Central. Learn more about Feature Management.
• In version 23 and later, your account must be assigned the DATA ANALYSIS - EXEC permission set or include execute permission on the system object 9640 Allow Data Analysis mode. As an admin, you can exclude these permissions on users who you don't want to have access to the analysis mode.

Note

You may notice some list pages that don't include the Enter analysis mode switch for changing to the analysis mode. The reason is that developers can disable analysis mode on specific pages by using the AnalysisModeEnabled property in AL.

Get started

Complete these steps to get started analyzing data using the analysis mode.

Tip

Analysis mode also includes a Copilot feature called analysis assist that can help you get started. Learn more about analysis assist with Copilot.

1. Open the list page or query.

   For example, to work with Customer Ledger Entries page, select the icon (Alt+Q), enter customer ledger entries, and then choose the related link.

2. In the action bar at the top of the page, select on the Enter analysis mode button.

   The analysis mode opens the data in an experience that's optimized for data analysis. While in analysis mode, the normal action bar is replaced with a special analysis mode bar. The following figure illustrates the different areas of a page in the analysis mode.



   Each area is explained in the sections that follow.

3. Use the different areas to manipulate, summarize, and analyze data. See the sections that follow for details.

4. When you want to stop the analysis mode, select the Leave analysis mode button

   The analysis tabs that you added remain until you delete them. So if you return to the analysis mode again, you see them exactly as you left them.

Note

The data shown in analysis mode is controlled by the filters or views set on the list page. This allows you to pre-filter data before entering analysis mode.

Work with analysis mode

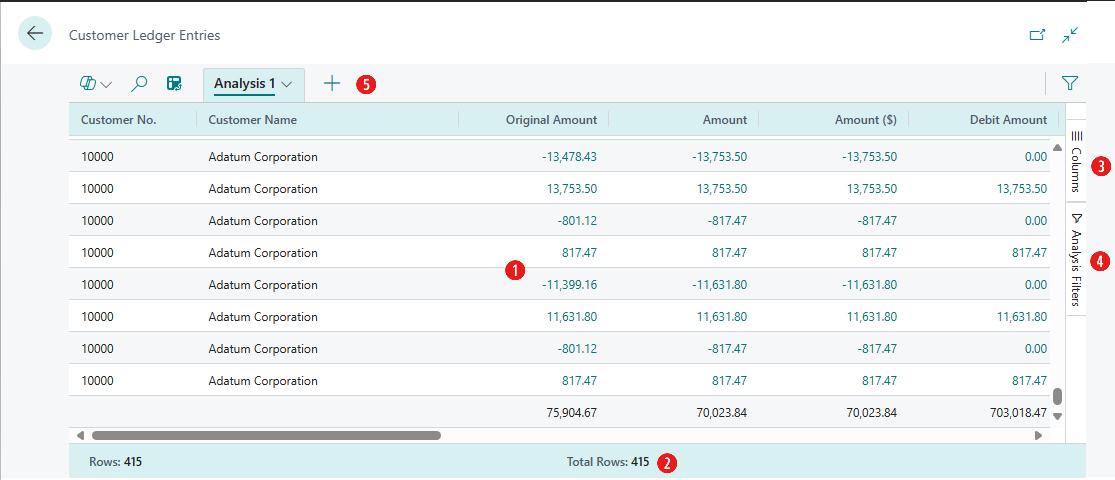

In the analysis mode, the page is divided into two areas:

• The main area, which consists of the data area (1), summary bar (2), and tabs bar (5).
• The data manipulation area, which consists of two panes: columns (3) and analysis filters (4).

Data area (1)

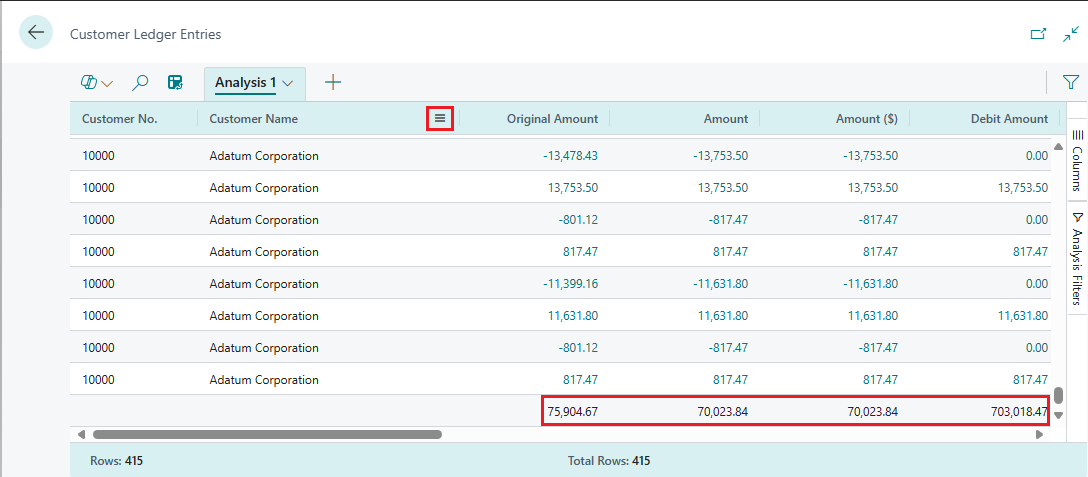

The data area is where the rows and columns of the list page query are shown and data is summarized. The data area provides a versatile way to control of the layout of columns and a quick way to get a summary of the data. For columns that contain numeric values, the sum of all values in the column is shown in a last row, unless you've defined row groups. In this case, the sums appear as a subtotal for the groups.

• To move a column, select it and drag it to where they make the most sense in your analysis.

• To sort on a column, select the column header. To sort on multiple columns, select and hold Shift key while selecting the column headers want to sort on.

• Right-click the column or hover over it and select the menu icon to access several actions that you can do on columns. For example:

  • To pin a column to the left or right of the data area so that it doesn't move off the screen when you scroll, select > Pin column > Pin left the column part.

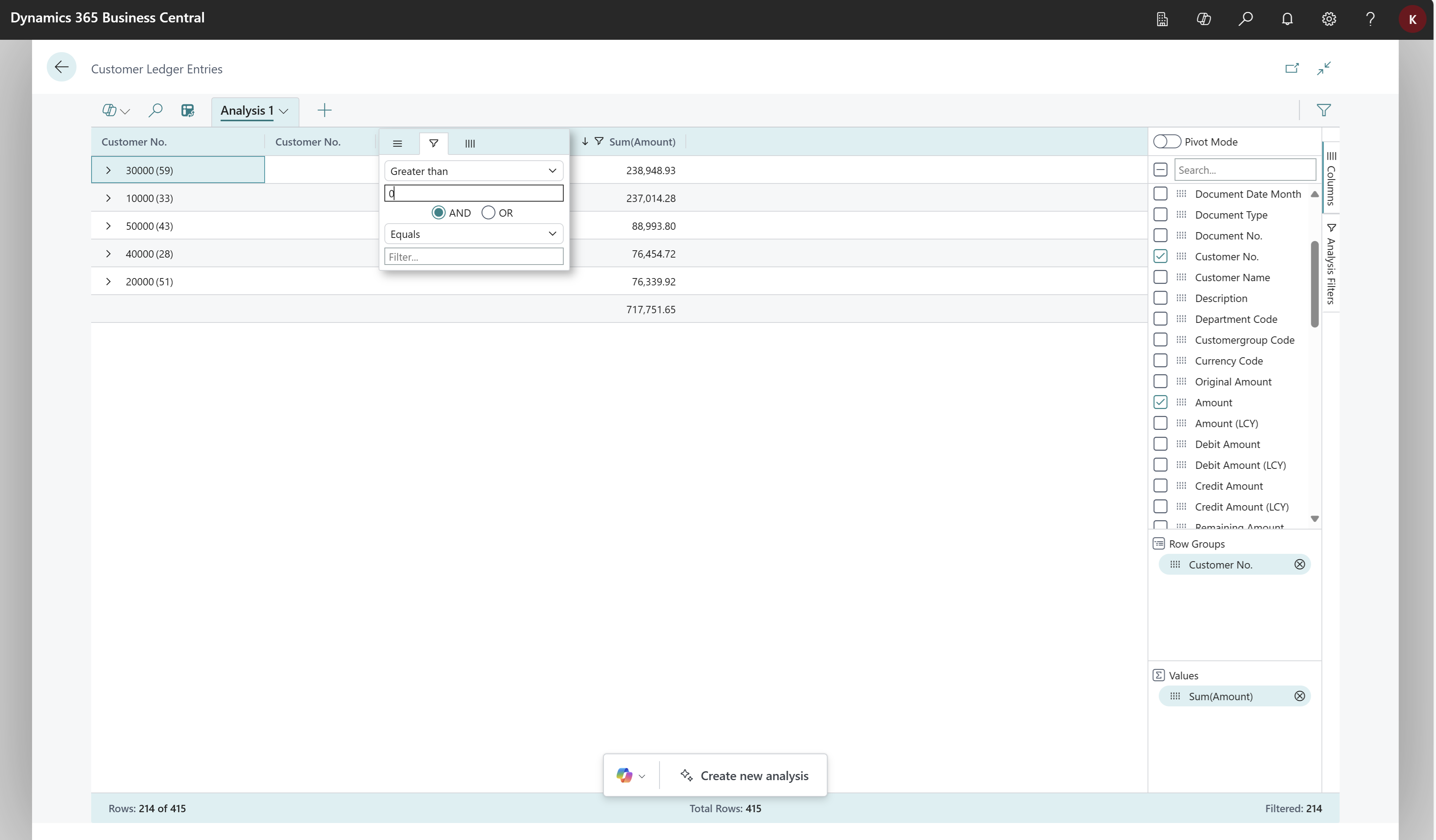

  • Define data filters directly on the column definition instead of going to the Analysis Filters panes. You can still peek in on details about related data and for each line, and open the card to learn more about a given entity.

• Use the data area to interact with the data. For columns that contain numeric, summable values, you can get descriptive statistics on a set of fields by marking them. The statistics appear in the status bar (2) along the bottom of the page.

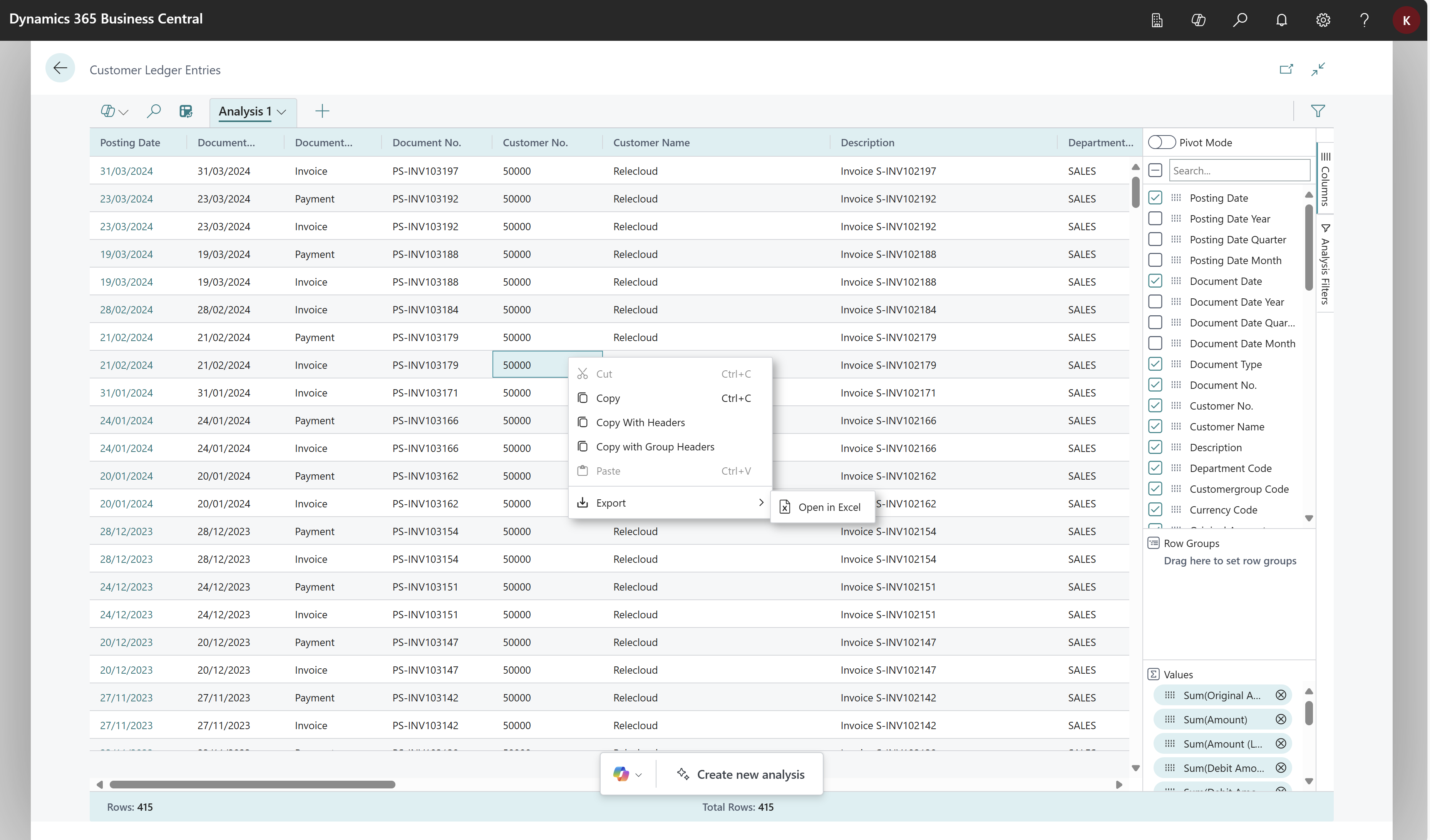

• Export data in Excel or csv format. Right-click on the data area or a selection of cells to export.

Summary bar (2)

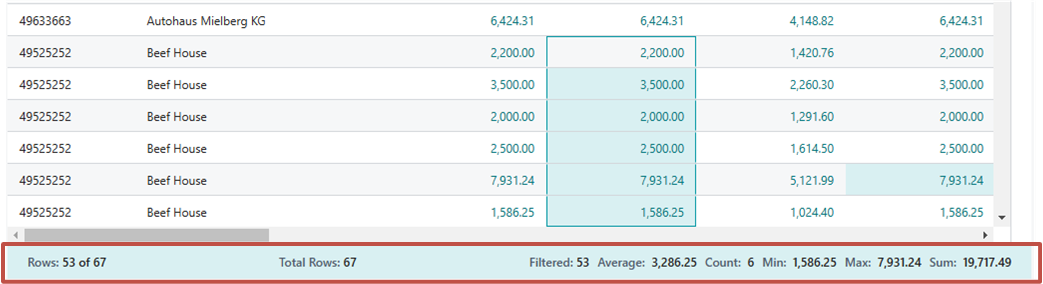

The summary bar is along the bottom of the page and displays statistics about the data in the list page or query. As you interact with columns whose values can be summed, like selecting multiple rows in a column that displays amounts, the data updates.

The following table describes the different numbers that are shown in the totals area:

Number	Description
Rows	The number of selected rows as a part of the total number of available rows.
Total rows	The numbers of rows in the unfiltered list or query.
Filtered	The number of rows displayed as a result of the filters applied to the list or query.
Average	The average value in all the selected summable fields.
Count	The number of selected rows.
Min	The minimum value in all the selected summable fields.
Max	The maximum value in all the selected summable fields.
Sum	The sum total of all the values in the selected summable fields.

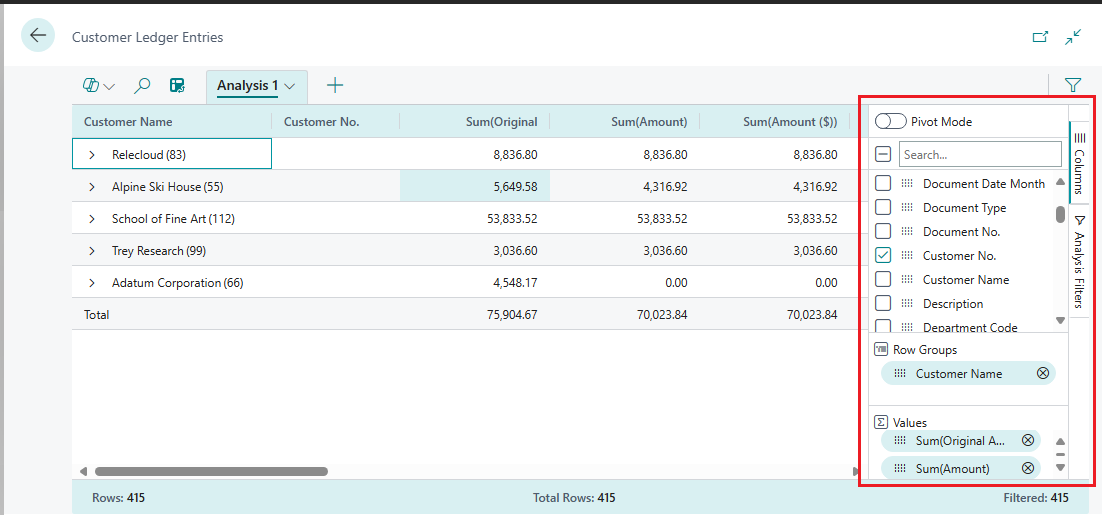

Columns (3)

The Columns is one of two panes that work together to define your analysis. The other area is the Analysis filters pane. The Columns pane is used to summarize the data. Use the Columns pane to define which columns should be included in the analysis.

Areas	Description
Search/check or clear all boxes	Search for columns. Select the check box to select/clear all columns.
Check boxes	This area includes a check box for each field in the list's or query's source table. Use this area to change what columns are shown. Select a check box to show column for the field on the page; clear the check box to hide the column.
Row groups	Use this area to group and sum data by one or more fields. You can only include non-numeric fields, like text, date and time fields. Row groups are used often in pivot mode.
Values	Use this area to specify fields that you want a sum total for. You can only include fields that contain numbers that can be added together; for example, not text, date, or time fields.

To move a field from one area to another, select the grab icon next to the column in the list and drag into the target area. You're prevented from moving a field into an area where's it's not allowed.

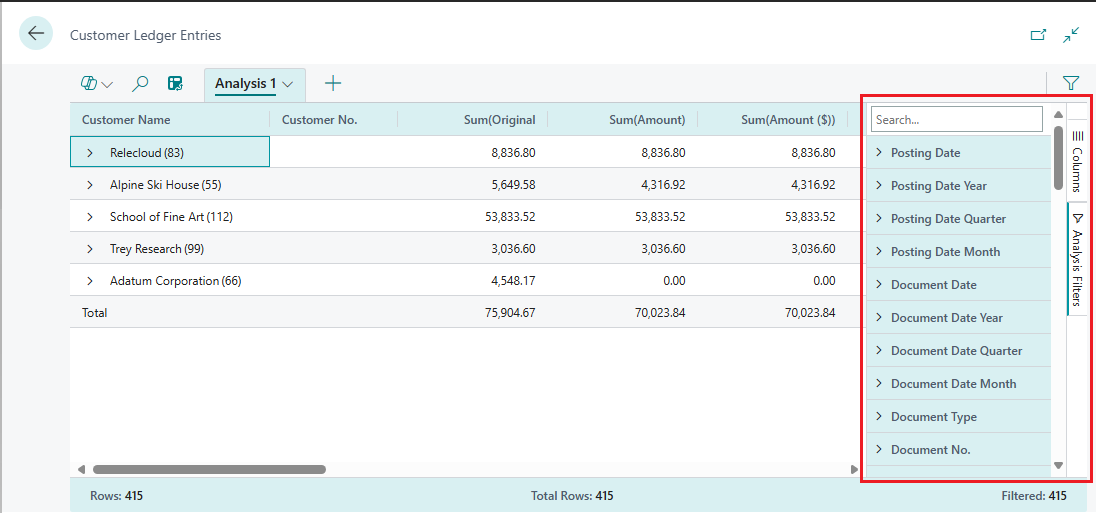

Analysis filters (4)

The Analysis filters pane lets you set further data filters on columns to limit the entries in the list. Set filters on columns to limit the entries in the list and subsequent sums to only those entries you're interested in based on a criteria you define. For example, suppose you're only interested in data for a specific customer or sales orders that exceed a specific amount. To set a filter, select the column, choose the comparison operation from the list (like Equals or Starts with), then enter the value.

Note

The additional filters only apply to the current analysis tab. This allows you to define exactly the extra data filters that are needed for a specific analysis.

Tabs (5)

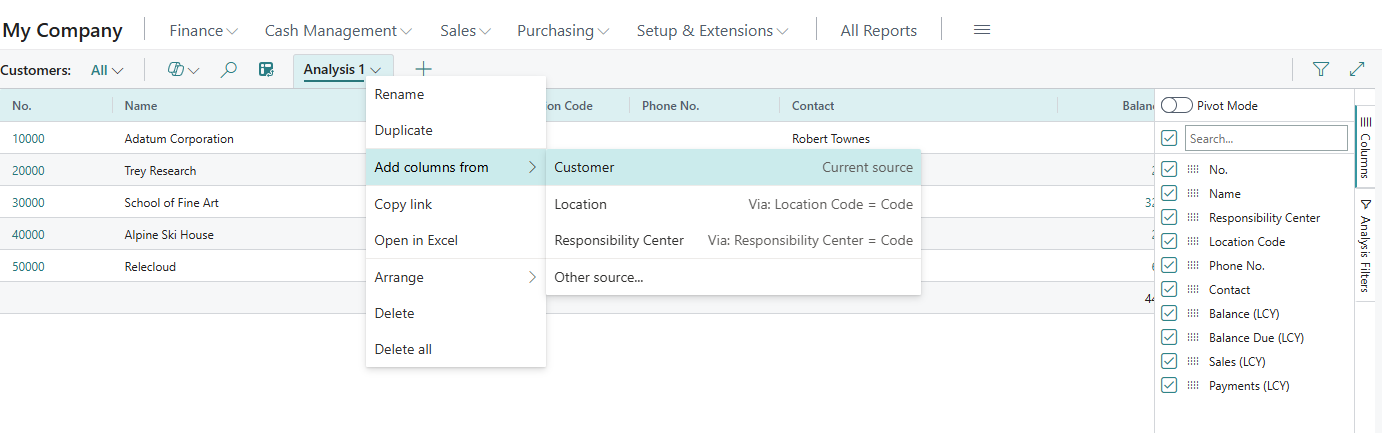

The tabs area at the top lets you create different configurations (columns and analysis filters) on separate tabs, where you can manipulate data on the tabs independently of each other. There's always at least one tab, called Analysis 1 by default. Adding more tabs is beneficial for saving frequently used analysis configurations on a dataset. For example, you might have tabs for analyzing data in the pivot mode, and other tabs that filter to a subset of rows. Some tabs might show a detailed view with many columns, and others only display a few key columns.

Here's some pointers on working with multiple analysis tabs:

• To add a new tab, select the large + sign next to the last analysis tab.

• Select the down arrowhead on a tab to access a list of actions you can do on a tab, like rename, duplicate, delete, and move.

  • Delete deletes the tab you currently have open. Delete All deletes all tabs that you've added, except the default Analysis 1 tab.

• You can't completely remove the Analysis 1, but you can rename it by using the Rename action and clear the changes you've made by using Delete or Delete All.

• The analysis tabs that you've added and configured remain until you delete them. So if you return to the analysis mode again, you see them exactly as you left them.

  Tip

  The tabs that you set up are only visible to you. Other users will only see tabs they've set up.

• You can copy analysis tabs. Copying can be useful if you want to experiment with changing a tab without changing the original, or if you want to create different variations of the same analysis.

Date hierarchies

In analysis mode, date fields of the dataset are generated in a Year-Quarter-Month hierarchy of three separate fields. This hierarchy is based on the normal calendar, not any fiscal calendars defined in Business Central.

The extra fields are named <field name> Year, <field name> Quarter, and <field name> Month. For example, if the dataset includes a field called Posting Date, then the corresponding date hierarchy consists of fields called Posting Date Year, Posting Date Quarter, and Posting Date Month.

Note

The date hierarchy currently only applies to fields of type date, not for fields of type datetime.

Pivot mode

You can use pivot mode to analyze large amount of numerical data, subtotaling data by categories and subcategories. The pivot mode is like pivot tables in Microsoft Excel.

To turn the pivot mode on and off, slide the Pivot mode switch in the Columns pane (3). When you turn on the pivot mode, the Column labels area appears in the pane. Use the Column labels area to group sum totals for rows into categories. Fields that you add to the Column labels area show as columns in the data area (1).

Building out the data analysis in pivot mode involves moving fields into the three areas: Row groups, Columns labels, and Values. The following figure illustrates where the fields map to the data area (1), where sum is the calculated data, and optionally Values.

	Column label		Column label
Row group	Value	Value	Value	Value
row	sum	sum	sum	sum
row	sum	sum	sum	sum
row	sum	sum	sum	sum
row	sum	sum	sum	sum

Tip

Columns that only have a few possible values are the best candidates for using in column Values.

Analyze large amounts of data

If the dataset you want to analyze exceeds 100,000 rows, you're suggested to enter an analysis mode that's optimized for large datasets. There are currently two limitations if you switch to this mode:

• Formatting of fields of the following four data types might change:

  • currency
  • decimals (always shown with two decimals)
  • dates (always shown in the format YYYY-MM-DD)
  • timezones

• Fields that are used in pivot mode and added to column labels must have a low number of distinct values.

  If you enable pivot mode and drag a field into Column labels area, where the underlying data for that field has too many distinct values, then the browser tab might become unresponsive and will eventually close, requiring you to start over in a new session. In this case, either don't pivot on that field or set a filter on the field before adding it to the Column labels area.

Share data analysis

After you’ve prepared an analysis on a tab, you can share it as a link with coworkers and others in your organization directly from the client. Only recipients that have permission to the company and the data can use the link.

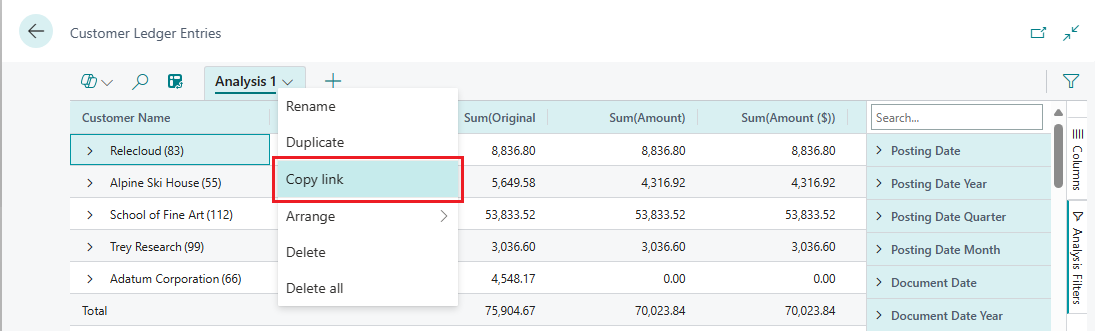

1. On the analysis tab, select the down arrowhead, and then select Copy link.



   The Link to <tab name> dialog opens.

2. By default, the analysis you share will link to the page or query in the company you're currently working in, which is indicated by company=<company_name> in the URL field next to the Copy button. If you want to send a link to an analysis that's not associated with a specific company, set the Company: field to Do not link to a specific company.



3. Select Copy.

4. Paste the link into the communication media of your choice, like Word, Outlook, Teams, OneNote, and so on.

5. Once received, recipients can then select the link and open the analysis for the page or query in Business Central. They're prompted to specify a name for the new analysis tab that will be created.

Examples of how to analyze data

The Analyze Data feature is meant for quick fact checking and ad-hoc analysis when you don't want to run a report, if a report for your specific needs does exist, or if you want to quickly iterate to get a good overview on part of your business.

In the following sections, you'll find examples of usage scenarios for many of the functional areas in the Business Central application.

Area	To...	Open this page in analysis mode	Using these fields
Finance (Accounts Receivables)	See what your customers owe you, for example, broken down into time intervals for when amounts are due.	Customer Ledger Entries	Customer Name, Due Date, and Remaining Amount
Finance (Income statement)	See your income over the income accounts from the chart of account, for example, broken down into time intervals for when amounts were posted.	General Ledger Entries	G/L Account No., Posting Date, and Amount.
Finance (total assets)	See your assets over the asset accounts from the chart of account, for example, broken down into time intervals for when amounts were posted.	General Ledger Entries	G/L Account No., Posting Date, and Amount.

Example: Finance (Accounts Receivables)

To see what your customers owe you, maybe broken down into time intervals for when amounts are due, do as follows:

1. Open the Customer Ledger Entries list and switch on the analysis mode.
2. Go to the Columns menu and remove all columns (select the box next to the Search field).
3. Turn on Pivot mode* (located directly above the Search field).
4. Now, drag the Customer Name field to the Row Groups area and drag Remaining Amount to the Values area.
5. Finally, find the Due Date Month field and drag it to the Column Labels area.
6. If you want to restrict the analysis to a given year/quarter, apply a filter in the Additional Filters menu (to the right, just below the Columns menu.)
7. Rename your analysis tab to "Aged Accounts by Month" or something that describes this analysis for you.

Example: Finance (Income statement)

To see your income over the income accounts from the chart of account, broken down into time intervals for when amounts were posted, do as follows:

1. Open the General Ledger Entries list and switch on the analysis mode.
2. Go to the Columns menu and remove all columns (select the box next to the Search field).
3. Turn on Pivot mode (located directly above the Search field).
4. Now, drag the G/L Account No. field to the Row Groups area and drag Amount to the Values area.
5. Finally, find the Posting Date Month field and drag it to the Column Labels area.
6. For the income statement, you need to filter on the accounts you use for this, in the Business Central demo data, these are accounts starting with "4", your chart of account setup might be different (if you run the Trial Balance by Period report, you can easily see which accounts is used in your setup). Set a filter on appropriate accounts in the Additional Filters menu (to the right, just below the Columns menu.)
7. Rename your analysis tab to "Income by Month" or something that describes this analysis for you.

Example: Finance (total assets)

To see your assets over the asset accounts from the chart of account, broken down into time intervals for when amounts were posted, do as follows:

1. Open the General Ledger Entries list and switch on the analysis mode.
2. Go to the Columns menu and remove all columns (select the box next to the Search field).
3. Turn on Pivot mode (located directly above the Search field).
4. Now, drag the G/L Account No. field to the Row Groups area and drag Amount to the Values area.
5. Finally, find the Posting Date Month field and drag it to the Column Labels area.
6. For the total assets statement, you need to filter on the accounts you use for this, in the Business Central demo data, these are accounts starting with "10", your chart of account setup might be different. If you run the Trial Balance by Period report, you can easily see which accounts are used in your setup. Set a filter on appropriate accounts in the Additional Filters menu (to the right, just below the Columns menu.)
7. Rename your analysis tab to "Income by Month" or something that describes this analysis for you.

Limitations in 2023 release wave 1 (preview)

The public preview of this feature has the following limitations:

• The analysis mode view has a limit of 100,000 rows. If you exceed this limit, you get a message telling you so. To work around this limitation, the set filters on the page before you switch to analysis mode, if it's possible. For example, maybe you want to analyze a certain group of customers or only want data from the current year. You can also choose a predefined view if it would work for your analysis.
• The share data analysis feature isn't available.
• The ability to save preferred data analysis choices on list pages and save analysis menus per analysis tab are currently not available.
