Import vendor electronic invoices

  • Article

This article explains how to configure and import vendor electronic invoices in the formats based on the Pan-European Public Procurement Online (PEPPOL) into Microsoft Dynamics 365 Finance.

The import from the following electronic invoice formats are supported:

  • Standard PEPPOL format;
  • Germany-specific XRechnung format in the Universal Business Language (UBL) syntax.

Prerequisites

Before you complete the tasks in this article, import the following or latest versions of Electronic reporting (ER) configurations from the repository. For more information, see Import Electronic reporting (ER) configurations from Dataverse.

  • Invoice model version 280
  • Vendor Invoice Mapping to Destination version 280.46
  • Vendor Invoice Import version 280.7

Configure parameters

Reference the imported ER format configurations

  1. Go to Accounts payable > Setup > Accounts payable parameters.
  2. On the Electronic documents tab, on the Electronic reporting FastTab, in the Vendor invoice field, select the imported Vendor Invoice Import format.

Configure the sources to import files in batch mode

Configure a SharePoint folder as a source location for incoming vendor invoice files.

  1. Go to Organization administration > Document management > Document types.

  2. Create a new document type, or select an existing one.

  3. On the General FastTab, in the Location field, select SharePoint.

  4. In the SharePoint Address field, select the folder where import files will be located.

  5. Go to Organization administration > Electronic reporting > Electronic reporting source.

  6. Create a new ER source.

  7. In the Format field, select the Vendor Invoice Import format configuration.

  8. On the File source FastTab, in the Name field, assign a source name.

  9. Select Settings.

  10. In the Source settings dialog box, enable the Sharepoint option.

  11. In the Document type for input sources field, select the document type that you created earlier.

  12. Optional: Set up three more document types, and use them to define different post-process locations:

    • Document type for imported files – Move the files that were successfully imported.
    • Document type for files with warnings – Move the files that were imported with warnings.
    • Document type for failed files – Move the files that failed with errors.

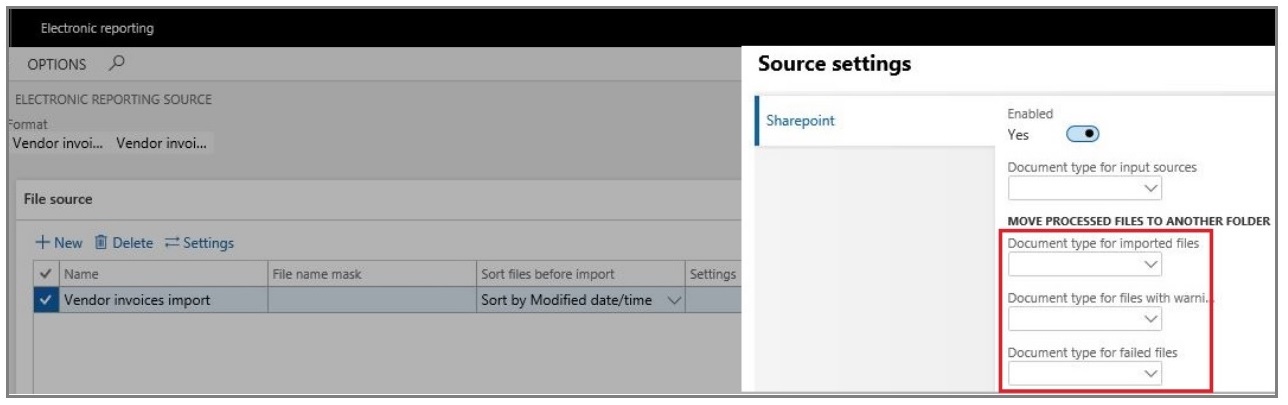

    Screenshot that shows the fields in the Move processed files to another location section of the Source settings dialog box.

Note

If no source is defined for import in batch mode, the system prompts you to define an individual import file before the start of the import process.

Configure vendor data

During the import process, vendors are identified by their tax exempt number. To enable correct vendor identification, follow these steps.

  1. Go to Accounts payable > Vendors > All vendors, and select a vendor.
  2. On the Invoice and delivery FastTab, in the Tax exempt number field, enter a valid tax registration number for the vendor. This number is used to identify the vendor during import, by matching it to the value of the Invoice\cac:AccountingSupplierParty\cac:Party\cac:PartyTaxScheme\cbc:CompanyID element in the import XML file.

Configure products

During the import process, products are identified by their external descriptions. These descriptions are usually vendor-specific. To enable correct product identification, follow these steps.

  1. Go to Product information management > Products > Released products.
  2. Select a product, and then, on the Purchase menu, in the Related information section, select External item description.
  3. Create a new external description for the selected product.
  4. In the Account code column, select Table to define an external product description for a specific vendor.
  5. In the Vendor relation column, select a vendor.
  6. In the External item number column, enter an external product code. This code is used to identify the product during import, by matching the code to the value of the Invoice\cac:InvoiceLine\cac:Item\cac:SellersItemIdentification\cbc:ID element in the import XML file.

Configure units of measure (optional)

You can configure external codes for units of measure, if specific units are explicitly defined in the incoming import files.

  1. Go to Organization administration > Setup > Units > Units.
  2. Select a unit ID, and then select External codes.
  3. On the External codes page, in the Overview section, in the Code field, enter a code that corresponds to the selected unit ID.
  4. In the Value section, in the Value field, enter the external unit code that's expected in import files.

Import vendor electronic invoices

To run the import of vendor electronic invoices, follow these steps.

  1. Go to Accounts payable > Periodic tasks > Import vendor invoices.
  2. On the Electronic report parameters page, on the File source FastTab, in the Source settings field, select the source location for batch mode import. If no source is defined for batch import, the system prompts you to select a single file for import.

Note

Leave the Description field empty.

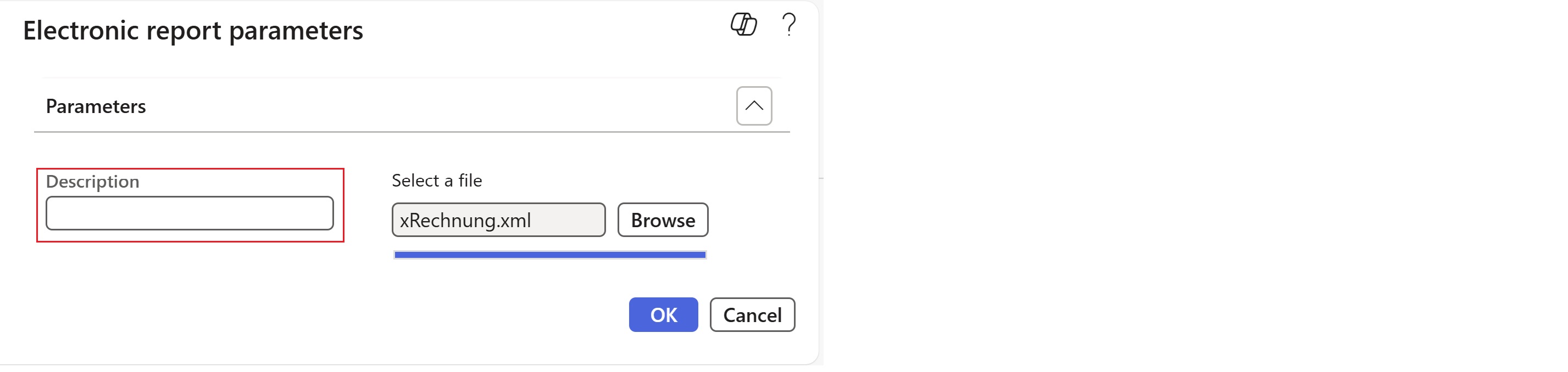

Screenshot that shows empty description before the import.

  1. Select OK to immediately start the import process or to schedule the import to run in the background.

Import process description

The following is an overview of the steps in the import process.

  1. Vendors are identified by using the tax exempt number that's defined in the vendor record. If no vendor matches the data that's being searched, the import process fails, and a related error message is shown.
  2. Products that are used on invoice lines are identified by using an external item number, which might be vendor-specific. If no product matches the external description, the import process fails, and a related error message is shown.
  3. If units of measure are used on invoices lines, they're identified by using external codes values. If no unit that has a matching external code value is found in the system, the import process fails, and a related error message is shown.
  4. If an incoming import file contains information about purchase orders and their lines in the Invoice\cac:OrderReference\cbc:ID and Invoice\cac:InvoiceLine\cac:OrderLineReference\cbc:LineID elements, the numbers are used to match invoices with purchase orders and lines that are entered in the system.
  5. If no order or line references are defined in an incoming file, the system tries to automatically match incoming vendor invoices with existing confirmed purchase orders. Products purchase prices are used for matching.
  6. If no purchase order is found, the system raises a warning but continues the import. It now considers the products on invoice lines Non-stock items. Therefore, the system expects that these products belong to an item model group where the Stocked product checkbox is cleared on the Inventory policy page.
  7. If no related Non-stock products exist, the system tries to import invoice lines by referring to a default item. The default item must be configured in the system as a released product where the code is defined exactly as DEFAULT_ITEM, and the product must belong to an item model group where the Stocked product checkbox is cleared on the Inventory policy page. The details of incoming invoice lines' descriptions are imported into the Text field of the related line's Line details section. If no default item is configured in the system, the import process fails, and a related error message is shown.
  8. Taxes are calculated in the system, based on the imported data and tax settings. Taxes aren't imported as fixed amounts from the incoming XML file. The results of the calculation can be manually adjusted as required.
  9. File attachments are supported during the import. All attached files that are specified in the Invoice\cac:AdditionalDocumentReference element of import files should have extensions. If an attached file has no extension, the system raises a warning, and the attachment is skipped during the import.

Successfully imported vendor electronic invoices are shown in the system as pending invoices. To review imported invoices, go to Accounts payable > Invoices > Pending vendor invoices.

Note

There are some limitations to this import process:

  • The import of miscellaneous charges isn't supported.
  • Only the import of line-level discounts is supported.
