Configure expansion maps

Note

Sync admin for FHIR has now been rebranded as Data integration toolkit.

Expansion maps provide the rules for transforming JSON document based hierarchical data into Dataverse's relational data model, allowing administrators to map complex JSON attributes to multiple, related Dataverse attributes.

With expansion maps, you can specify parent link attributes to determine the relationship between parent and child records.

For example, expansion maps for the "Patient" entity maps can bring Patient identifiers and Patient links into Dataverse.

For patient links, expansion maps let admins integrate patient merge requests with the following link types:

• See also
• Replaces
• Replaced by

Expansion maps included with Data integration toolkit

The Data integration toolkit includes the following key expansion entity maps and associated attribute maps:

Entity map description	Entity map	Attribute maps	FHIR element map
Medical identifier expansion map	msemr_medicalidentifier	msemr_identifiersystem msemr_type msemr_value	$.system $.coding[0].code $.value
Patient link expansion map	msemr_contactlink	msemr_link msemr_linktype	$.other.reference $.type
Care team participant role expansion map	msemr_careteamparticipantrole	msemr_codeableconceptid msemr_display	$.coding[0].code $.coding[0].display
Care team participant expansion map	msemr_careteamparticipant	msemr_memberpractioner msemr_description msemr_memberrelatedperson msemr_role msemr_periodstart msemr_periodend msemr_membercareteam msemr_memberpatient msemr_onbehalfof msemr_memberorganization	$.member.reference $.note $.member.reference $.member.reference $.period.start $.period.end $.member.reference $.member.reference $.onBehalfOf.reference $.member.reference
Appointment expansion map	msemr_appointmentemrslot	msemr_slot	$.reference

Important

The default entity and attribute maps are based on the FHIR specification. For this reason, we recommend that you don't change the value of FHIR Element Map for expansion maps, because that could adversely affect data synchronization.

If you need to customize more, the medical identifier expansion map contains more fields under Related Attribute Maps.

Attribute name	FHIR element map
msemr_periodstart	$.period[0].start
msemr_assigner	$.assigner
msemr_use	$.use

You can also add, remove, or change values under Value Maps for attribute types to refine choices based on user needs. For example, if you have an attribute of the type Picklist, you can change its list of values.

Add an expansion map

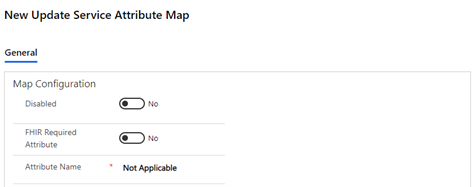

1. Open an entity map, and then add a new attribute map. The attribute should have a new value Not Applicable. Add this new value to the top of the list.



2. Select the attribute name Not Applicable, default the Action Type to a new value Expand, and clear all other values.

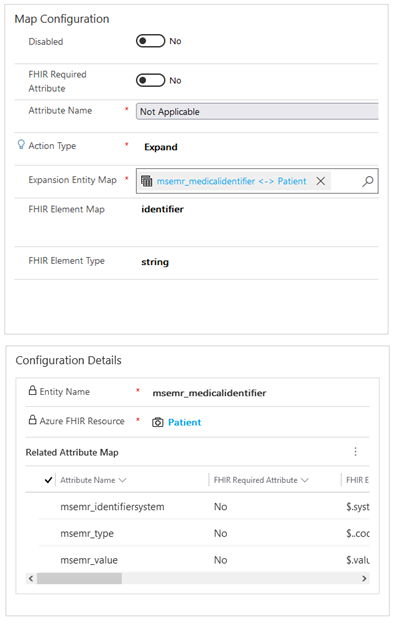

3. For the Expansion Entity Map field, allow users to create or select an existing record.

   The expansion entity map is a lookup to the entity map. It should display the records where Is Expansion Map? = Yes and Is Disabled = No.

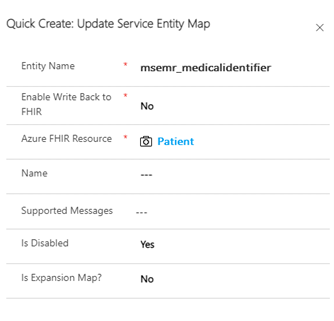

4. Select + New Update Service Entity Map from the expansion entity map. A quick create form displays.

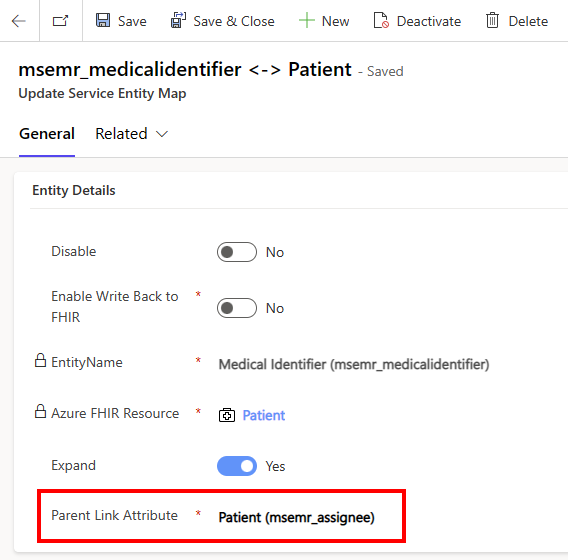

5. When you create the Expansion Entity Map, you can view the expansion entity map and its related attribute maps.
