Build resilience in your hybrid architecture
Hybrid authentication allows users to access cloud-based resources with their identities mastered on premises. A hybrid infrastructure includes both cloud and on premises components.
- Cloud components include Microsoft Entra ID, Azure resources and services, your organization's cloud-based apps, and SaaS applications.
- on premises components include on premises applications, resources like SQL databases, and an identity provider like Windows Server Active Directory.
As you plan for resilience in your hybrid infrastructure, it's key to minimize dependencies and single points of failure.
Microsoft offers three mechanisms for hybrid authentication. The options are listed in order of resilience. We recommend that you implement password hash synchronization, if possible.
- Password hash synchronization (PHS) uses Microsoft Entra Connect to sync the identity and a hash-of-the-hash of the password to Microsoft Entra ID. It enables users to sign in to cloud-based resources with their password mastered on premises. PHS has on premises dependencies only for synchronization, not for authentication.
- Pass-through Authentication (PTA) redirects users to Microsoft Entra ID for sign-in. Then, the username and password are validated against Active Directory on premises through an agent that is deployed in the corporate network. PTA has an on premises footprint of its Microsoft Entra PTA agents that reside on servers on premises.
- Federation customers deploy a federation service such as Active Directory Federation Services (ADFS). Then Microsoft Entra ID validates the SAML assertion produced by the federation service. Federation has the highest dependency on on-premises infrastructure and, therefore, more failure points.
You may be using one or more of these methods in your organization. For more information, see Choose the right authentication method for your Microsoft Entra hybrid identity solution. This article contains a decision tree that can help you decide on your methodology.
Password hash synchronization

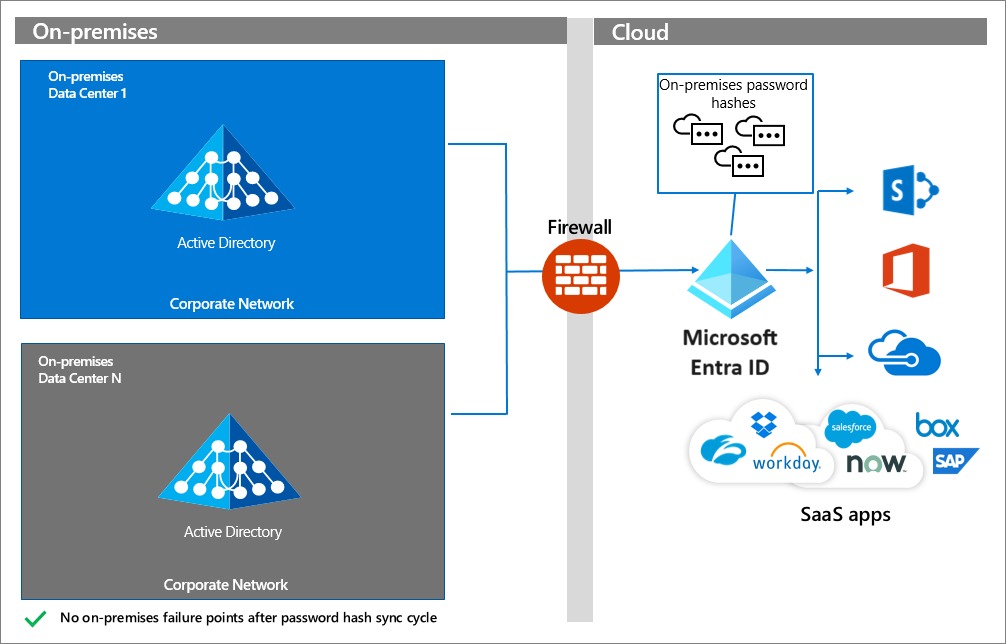

The simplest and most resilient hybrid authentication option for Microsoft Entra ID is Password Hash Synchronization. It doesn't have any on premises identity infrastructure dependency when processing authentication requests. After identities with password hashes are synchronized to Microsoft Entra ID, users can authenticate to cloud resources with no dependency on the on premises identity components.
If you choose this authentication option, you won't experience disruption when on premises identity components become unavailable. On premises disruption can occur for many reasons, including hardware failure, power outages, natural disasters, and malware attacks.
How do I implement PHS?
To implement PHS, see the following resources:
- Implement password hash synchronization with Microsoft Entra Connect
- Enable password hash synchronization
If your requirements are such that you can't use PHS, use Pass-through Authentication.

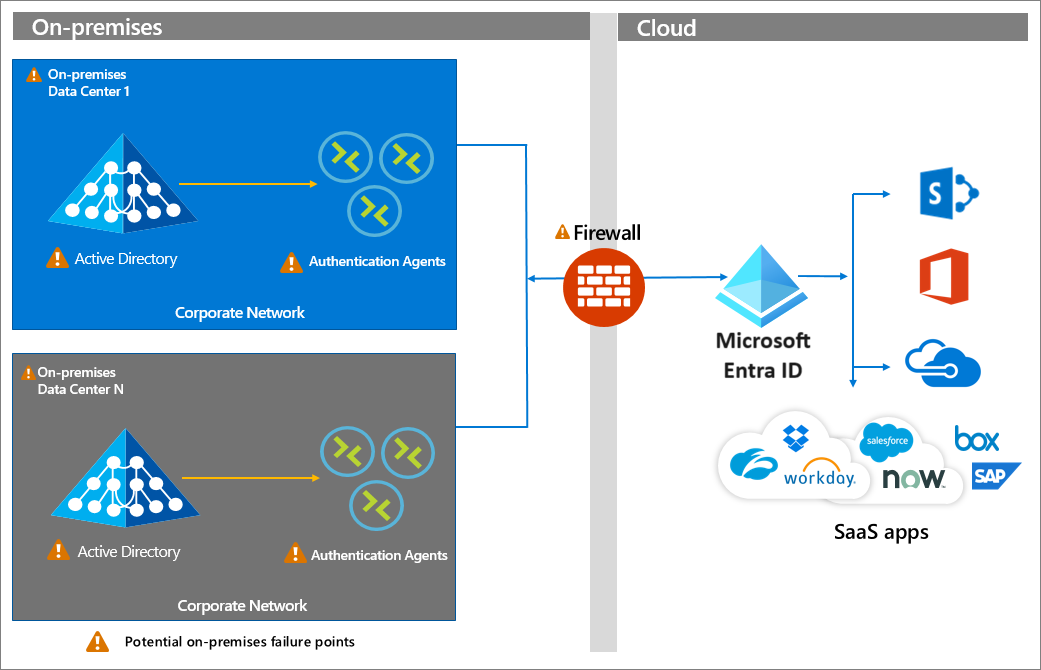

Pass-through Authentication has a dependency on authentication agents that reside on premises on servers. A persistent connection, or service bus, is present between Microsoft Entra ID and the on premises PTA agents. The firewall, servers hosting the authentication agents, and the on premises Windows Server Active Directory (or other identity provider) are all potential failure points.
How do I implement PTA?
To implement Pass-through Authentication, see the following resources.
If you're using PTA, define a highly available topology.
Federation involves the creation of a trust relationship between Microsoft Entra ID and the federation service, which includes the exchange of endpoints, token signing certificates, and other metadata. When a request comes to Microsoft Entra ID, it reads the configuration and redirects the user to the endpoints configured. At that point, the user interacts with the federation service, which issues a SAML assertion that is validated by Microsoft Entra ID.

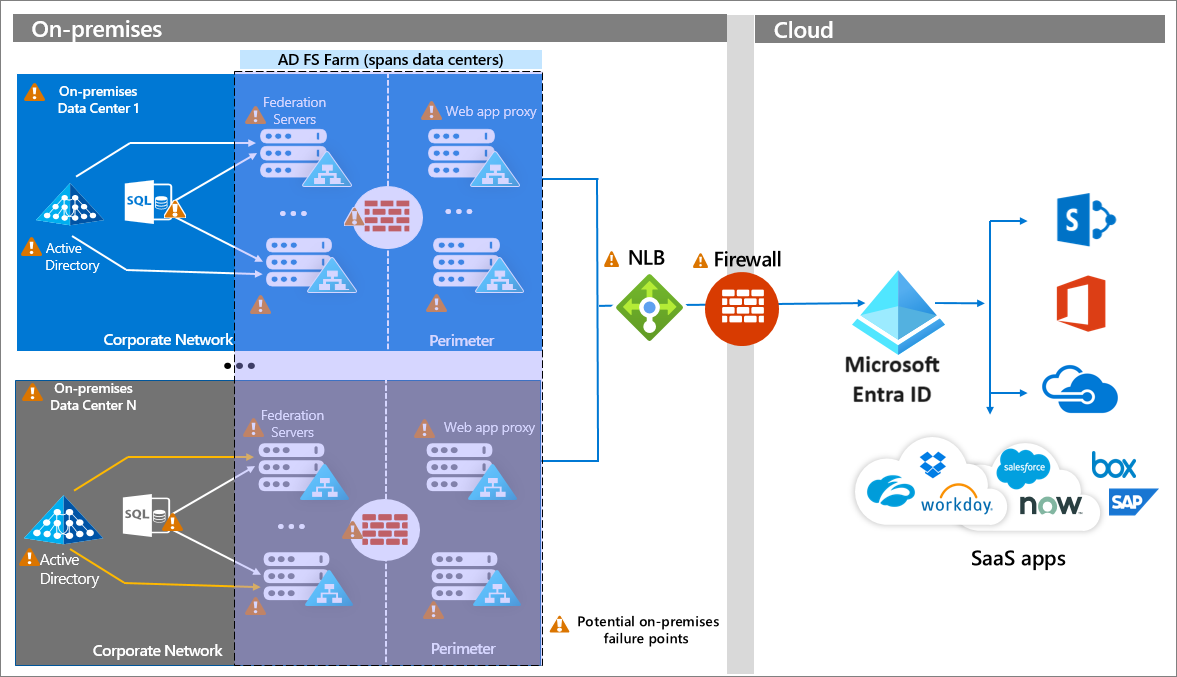

The following diagram shows a topology of an enterprise AD FS deployment that includes redundant federation and web application proxy servers across multiple on premises data centers. This configuration relies on enterprise networking infrastructure components like DNS, Network Load Balancing with geo-affinity capabilities, and firewalls. All on premises components and connections are susceptible to failure. Visit the AD FS Capacity Planning Documentation for more information.
Federation has the highest number of on premises dependencies and, therefore, the most potential points of failure. While this diagram shows AD FS, other on premises identity providers are subject to similar design considerations to achieve high availability, scalability, and fail over.
How do I implement federation?
If you're implementing a federated authentication strategy or want to make it more resilient, see the following resources.
- What is federated authentication
- How federation works
- Microsoft Entra federation compatibility list
- Follow the AD FS capacity planning documentation
- Deploying AD FS in Azure IaaS
- Enable PHS along with your federation
