User profile attributes

The user attributes you collect during sign-up are stored with the user's profile in your directory. You can choose from built-in user attributes or create custom user attributes.

• Built-in user attributes, such as city, country/region, email address, and so on, are available in Microsoft Entra External ID. You can choose the built-in user attributes you want to collect during sign-up.

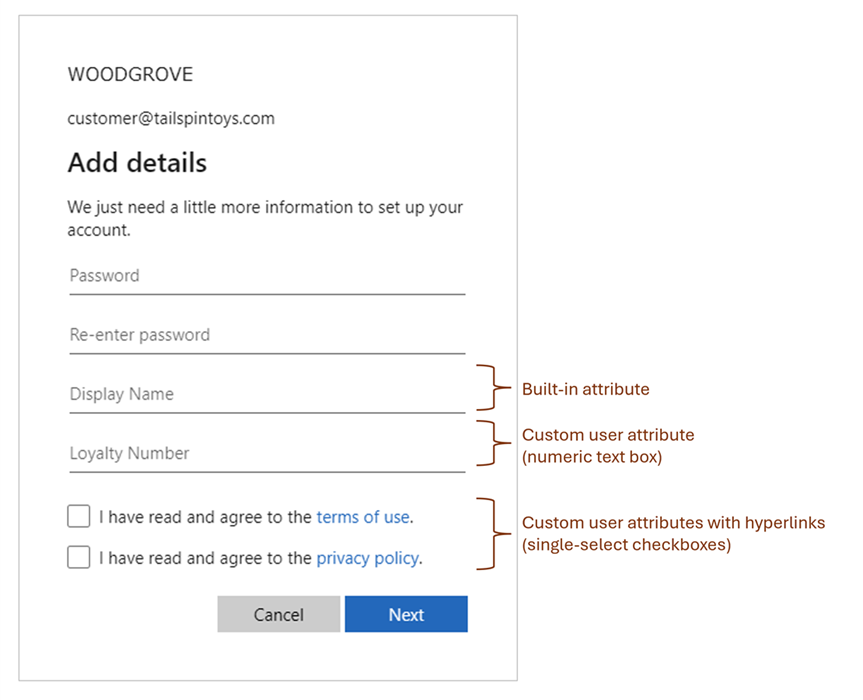

• For any additional information you want to collect, you can create custom user attributes. Several custom input controls can be added to the sign-up page to collect the attributes, including text boxes, radio buttons, and check boxes. The following example shows how custom input controls can be used to collect attributes for loyalty number, terms of use consent for terms of use, and privacy policy consent.



Built-in user attributes

Microsoft Entra External ID has built-in user attributes you can collect during sign-up. You configure these attributes when you create user flows in the Microsoft Entra admin center.

This table summarizes the built-in user attributes you can collect during the sign-up flow:

• Label in Microsoft Entra admin center is the name of the user attribute as it appears in the Microsoft Entra admin center.
• Programmable name is the name of the user attribute as used in the user resource of the Microsoft Graph API. You use this name when you want to use this user attribute programmatically, such as in native authentication.
• Data type is the user attribute's data type.

Label in Microsoft Entra admin center	Programmable name	Data type	Remarks
City	city	String	Maximum length is 128 characters.
Country/Region	country	String	Maximum length is 128 characters.
Display Name	displayName	String	Maximum length is 256 characters.
Email Address	mail	String	This property can't contain accent characters. In the native authentication API, this attribute is referenced as username.
Given Name	givenName	String	Maximum length is 64 characters.
Job Title	jobTitle	String	Maximum length is 128 characters.
Postal Code	postalCode	String	Maximum length is 40 characters.
State/Province	state	String	Maximum length is 128 characters.
Street Address	streetAddress	String	Maximum length is 1024 characters.
Surname	surname	String	Maximum length is 64 characters.

Custom user attributes

If your app requires more information than the built-in user attributes provide, you can add your own attributes. We refer to these attributes as custom user attributes.

To define a custom user attribute, you first create the attribute at the tenant level so it can be used in any user flow in the tenant. Then you assign the attribute to your sign-up user flow and configure how you want it to appear on the sign-up page.

Learn how to create custom user attributes Create custom user attributes article.

Custom user attributes input types

Before you use custom user attributes, determine the best way to gather user input for each custom attribute you want to collect. You can collect information from your users during sign-up by using the following input type controls:

• String text box
• Radio buttons
• Multiselect checkboxes
• Numeric text box
• Single-select checkbox

Refer to this table to find the appropriate data types and user input types:

Data type	User input type	Description
String	TextBox	Free-form text entry field.
String	RadioSingleSelect	Series of radio buttons with only one selection allowed. The Text for individual radio buttons can include hyperlinks formatted in Markdown language.
String	CheckboxMultiSelect	Series of one or more checkboxes with multiple selections allowed. The Text for individual checkboxes can include hyperlinks formatted in Markdown language.
Boolean	CheckboxSingleSelect	Single boolean checkbox with a label. The Label for the checkbox can include hyperlinks formatted in Markdown language.
Int	NumericTextBox	Free-form integer entry.

Checkboxes and radio buttons can include hyperlinks to other content, such as terms of use and privacy policies. The example at the beginning of this article shows a sign-up page that combines built-in attributes and custom attributes. In the example:

• The Display Name field is a built-in attribute.
• The Loyalty Number is a custom attribute with a free-form entry field that accepts a numeric integer. You can configure this format using the Int data type and NumericTextBox user input type.
• The terms of use and privacy policy custom attributes are separate, single-select checkboxes with labels containing hyperlinks. You can configure a single checkbox using the Boolean data type, which defaults to the CheckboxSingleSelect user input type. Use Markdown language to add hyperlinks to the checkbox label.

Learn how to configure their user attributes input types in Configure the user input types article.

Where custom user attributes are stored

Custom user attributes are also known as directory extension attributes because they extend the user profile information stored in your directory. All extension attributes for your external tenant are stored in an app named b2c-extensions-app. After a user enters a value for the custom attribute during sign-up, it's added to the user object and can be called via the Microsoft Graph API using the naming convention extension_{appId-without-hyphens}_{custom-attribute-name} where:

• {appId-without-hyphens} is the stripped version of the client ID for the b2c-extensions-app.
• {custom-attribute-name} is the name you assigned to the custom attribute.

For example, if the client ID of the b2c-extensions-app is 2588a-bcdwh-tfeehj-jeeqw-ertc and the attribute name is:

• loyaltyNumber, then the custom attribute is named asextension_2588abcdwhtfeehjjeeqwertc_loyaltyNumber.
• Loyalty Number then the custom attribute is named asextension_2588abcdwhtfeehjjeeqwertc_loyaltyNumber. You remove the space and use camel case to separate the words.

Use the Find the application ID for the extensions app article to learn how to find the application ID for the b2c-extensions-app registered in your external tenant.

Microsoft Graph APIs

User attributes are referred to as user flow attributes in Microsoft Graph. Use the identityUserFlowAttribute resource type and its associated methods to manage both built-in and custom user flow attributes.

Related content

• Add attributes to the ID token returned to your application.

• Learn more about creating a sign-up and sign-in user flow for customers.

• Native authentication MSAL Android SDK attribute builder.
