Add Microsoft account (live.com) as an OpenID Connect identity provider

Applies to: White circle with a gray X symbol. Workforce tenants Green circle with a white check mark symbol. External tenants (learn more)

By setting up federation with Microsoft account (live.com) using OpenID Connect (OIDC) identity provider, you enable users to sign up and sign in to your applications using their existing Microsoft accounts (MSA). After you add the MSA (live.com) as one of your user flow's sign-in options, customers can sign up and sign in to your application with their Microsoft account.

Tip

Try it now

To try out this feature, go to the Woodgrove Groceries demo and start the “Microsoft personal account (live.com)” use case.

Prerequisites

Create a Microsoft account application

To enable sign-in for users with a Microsoft account, you need to create an application in a Microsoft Entra ID tenant. The resource tenant for the application can be any Microsoft Entra ID tenant, like your workforce or external tenant.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Entra ID > App registrations then select New registration.

  3. Name the application, for example ContosoApp.

  4. Under Supported account types, select Accounts in any organizational directory (Any Microsoft Entra ID tenant - Multitenant) and personal Microsoft accounts (e.g., Skype, Xbox).

  5. Under Redirect URI, select Web and enter your populated redirect URI explained here

  6. Select Register.

    When registration finishes, the Microsoft Entra admin center displays the app registration's Overview pane. You see the Application (client) ID. Record this value, as you need it later.

  7. Under Manage browse to Certificate & secrets then select New client secret.

  8. Name the secret, for example Key 1 and select Add.

  9. Record the Value of the secret, as you need it later. Make sure to save the secret before leaving the page. Client secret values cannot be viewed, except for immediately after creation.

Configure optional claims

You can also configure optional claims to be provided for your application such as family_name and given_name.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Entra ID > App registrations.
  3. Select your MSA application that you created earlier.
  4. Under Manage, select Token configuration.
  5. Select Add optional claim.
  6. Select the token type you want to configure, such as ID.
  7. Select the optional claims to add.
  8. Select Add.

Configure the Microsoft account (live.com) as an OpenID connect identity provider

Once you have configured your Microsoft account (live.com) as an application, you can proceed to set it up as an OIDC identity provider in your external tenant.

  1. Sign in to the Microsoft Entra admin center as at least an External Identity Provider Administrator.

  2. Browse to Entra ID > External Identities > All identity providers.

  3. Select the Custom tab, and then select Add new > Open ID Connect.

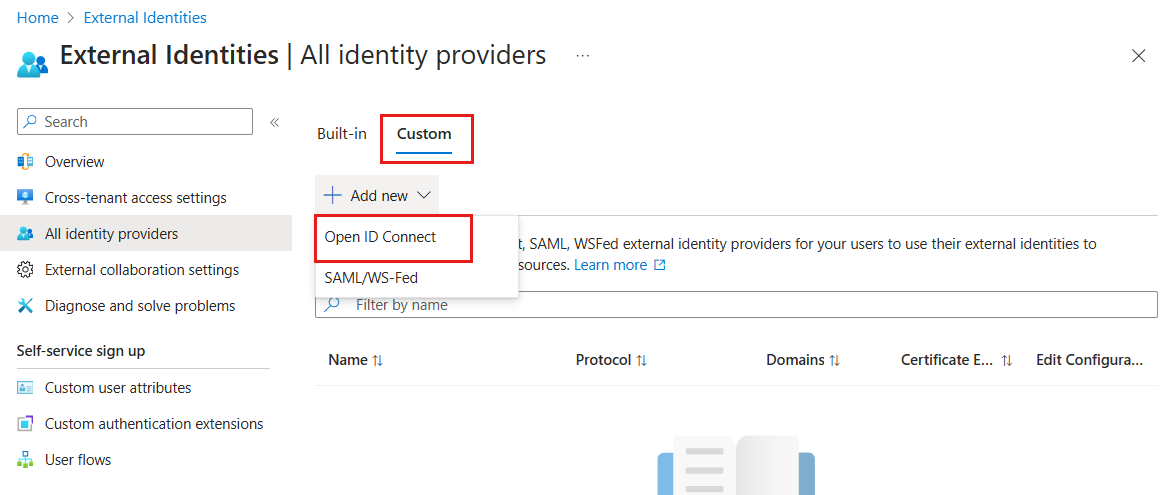

    Screenshot of adding a new custom identity provider.

  4. Enter the following details for your identity provider on the Basics tab:

    • Display name: Enter a name for your identity provider, for example Microsoft account This name is displayed to your users during the sign-in and sign-up flows. For example, Sign in with Microsoft account or Sign up with your Microsoft account.
    • Well-known endpoint: Enter the endpoint URI as https://login.microsoftonline.com/consumers/v2.0/.well-known/openid-configuration, which is the discovery URI of the common authority URL for Microsoft accounts.
    • OpenID Issuer URI: Enter the Issuer URI as https://login.live.com.
    • Client ID and Client Secret: Enter the Application (client) ID and Value of the client secret you created earlier.
    • Client Authentication: Select client_secret and add openid profile email to Scope.
    • Response type: Select code.

  5. You can select Next: Claims mapping to configure claims mapping or Review + create to add your identity provider.

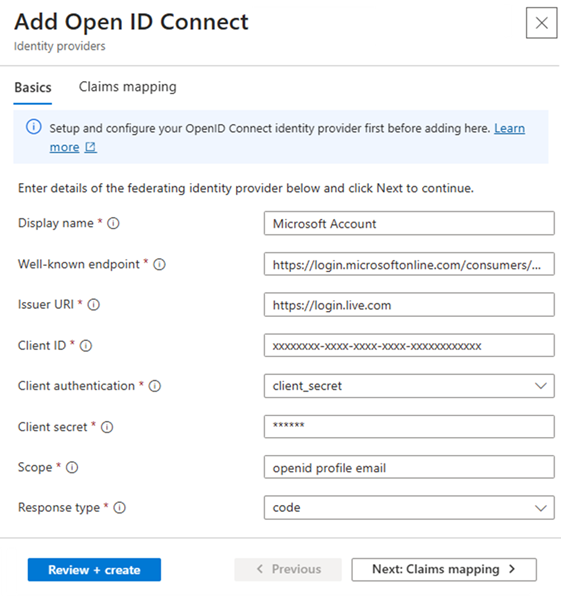

    Screenshot of the MSA provider setup.

Add OIDC identity provider to a user flow

At this point, the MSA identity provider has been set up in your Microsoft Entra ID, but it's not yet available in any of the sign-in pages. To add the OIDC identity provider to a user flow:

  1. In your external tenant, browse to Entra ID > External Identities > User flows.

  2. Select the user flow where you want to add the OIDC identity provider.

  3. Under Settings, select Identity providers.

  4. Under Other Identity Providers, select the identity provider you created, which is Microsoft Account.

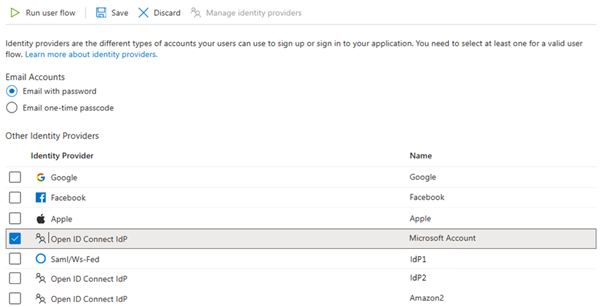

    Screenshot of the MSA provider in the IdP list.

  5. Select Save.
