Quickstart: Configure a client application to access a web API

In this quickstart, you provide a client app registered with the Microsoft identity platform with scoped, permissions-based access to your own web API. You also provide the client app access to Microsoft Graph.

By specifying a web API's scopes in your client app's registration, the client app can obtain an access token containing those scopes from the Microsoft identity platform. Within its code, the web API can then provide permission-based access to its resources based on the scopes found in the access token.


Add permissions to access your web API


Steps in this article might vary slightly based on the portal you start from.

Access to APIs requires configuration of access scopes and roles. If you want to expose your resource application web APIs to client applications, you can configure access scopes and roles for the API. If you want a client application to access a web API, you configure permissions to access the API in the app registration.

To grant a client application to access to your own web API, you need to have two app registrations;

The diagram shows how the two app registrations relate to one another, where the client app has different permission types and the web API has different scopes that the client application can access. In this section, you add permissions to the client app's registration.

Line diagram showing a web API with exposed scopes on the right and a client app on the left with those scopes selected as permissions

Once you've registered both your client app and web API and you've exposed the API by creating scopes, you can configure the client's permissions to the API by following these steps:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. If you have access to multiple tenants, use the Settings icon in the top menu to switch to the tenant containing the app registration from the Directories + subscriptions menu.

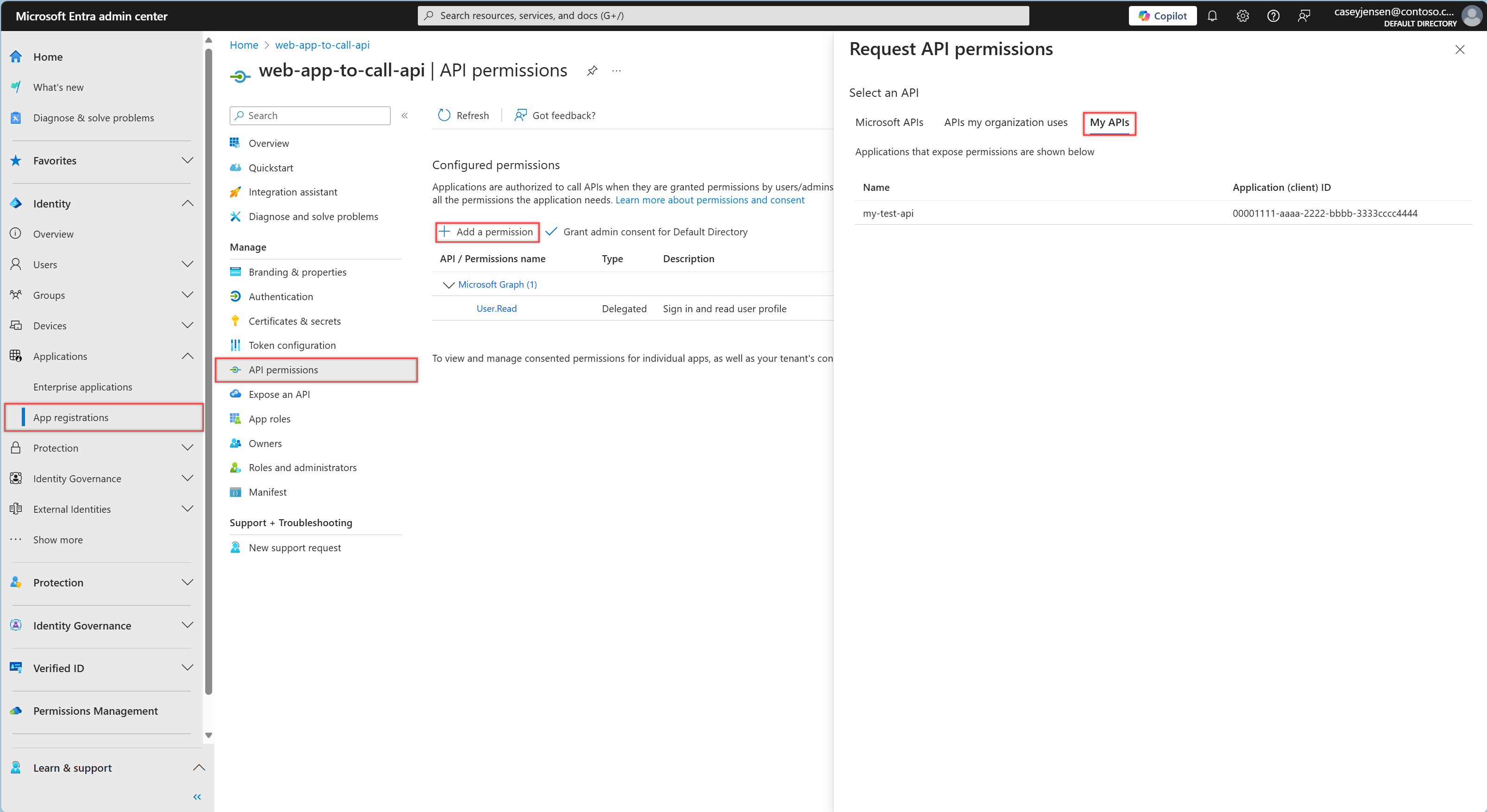

  3. Browse to Identity > Applications > App registrations, and then select your client application (not your web API).

  4. Select API permissions, then Add a permission and select My APIs in the sidebar.

  5. Select the web API you registered as part of the prerequisites, and select Delegated permissions.

    • Delegated permissions are appropriate for client apps that access a web API as the signed-in user, and whose access should be restricted to the permissions you select in the next step. Leave Delegated permissions selected for this example.

    • Application permissions are for service- or daemon-type applications that need to access a web API as themselves, without user interaction for sign-in or consent. Unless you've defined application roles for your web API, this option is disabled.

  6. Under Select permissions, expand the resource whose scopes you defined for your web API, and select the permissions the client app should have on behalf of the signed-in user.

    • If you used the example scope names specified in the previous quickstart, you should see Employees.Read.All and Employees.Write.All.
  7. Select the permission you created while completing the prerequisites, for example, Employees.Read.All.

  8. Select Add permissions to complete the process.

After adding permissions to your API, you should see the selected permissions under Configured permissions. The following image shows the example Employees.Read.All delegated permission added to the client app's registration.

Configured permissions pane in the Azure portal showing the newly added permission

You might also notice the User.Read permission for the Microsoft Graph API. This permission is added automatically when you register an app in the Azure portal.

Add permissions to access Microsoft Graph

In addition to accessing your own web API on behalf of the signed-in user, your application might also need to access or modify the user's (or other) data stored in Microsoft Graph. Or you might have service or daemon app that needs to access Microsoft Graph as itself, performing operations without any user interaction.

Delegated permission to Microsoft Graph

Configure delegated permission to Microsoft Graph to enable your client application to perform operations on behalf of the logged-in user, for example reading their email or modifying their profile. By default, users of your client app are asked when they sign in to consent to the delegated permissions you've configured for it.

  1. From the Overview page of your client application, select API permissions > Add a permission > Microsoft Graph

  2. Select Delegated permissions. Microsoft Graph exposes many permissions, with the most commonly used shown at the top of the list.

  3. Under Select permissions, select the following permissions:

    Permission Description
    email View users' email address
    offline_access Maintain access to data you have given it access to
    openid Sign users in
    profile View users' basic profile
  4. Select Add permissions to complete the process.

Whenever you configure permissions, users of your app are asked at sign-in for their consent to allow your app to access the resource API on their behalf.

As an admin, you can also grant consent on behalf of all users so they're not prompted to do so. Admin consent is discussed later in the More on API permissions and admin consent section of this article.

Application permission to Microsoft Graph

Configure application permissions for an application that needs to authenticate as itself without user interaction or consent. Application permissions are typically used by background services or daemon apps that access an API in a "headless" manner, and by web APIs that access another (downstream) API.

In the following steps, you grant permission to Microsoft Graph's Files.Read.All permission as an example.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. If you have access to multiple tenants, use the Settings icon in the top menu to switch to the tenant containing the app registration from the Directories + subscriptions menu.
  3. Browse to Identity > Applications > App registrations, and then select your client application.
  4. Select API permissions > Add a permission > Microsoft Graph > Application permissions.
  5. All permissions exposed by Microsoft Graph are shown under Select permissions.
  6. Select the permission or permissions you want to grant your application. As an example, you might have a daemon app that scans files in your organization, alerting on a specific file type or name. Under Select permissions, expand Files, and then select the Files.Read.All permission.
  7. Select Add permissions.
  8. Some permissions, like Microsoft Graph's Files.Read.All permission, require admin consent. You grant admin consent by selecting the Grant admin consent button, discussed later in the Admin consent button section.

Configure client credentials

Apps that use application permissions authenticate as themselves by using their own credentials, without requiring any user interaction. Before your application (or API) can access Microsoft Graph, your own web API, or another API by using application permissions, you must configure that client app's credentials.

For more information about configuring an app's credentials, see the Add credentials section of Quickstart: Register an application with the Microsoft identity platform.

The API permissions pane of an app registration contains the Configured permissions table and the Admin consent button, which are described in the following sections.

Configured permissions

The Configured permissions table on the API permissions pane shows the list of permissions that your application requires for basic operation - the required resource access (RRA) list. Users, or their admins, will need to consent to these permissions before using your app. Other, optional permissions can be requested later at runtime (using dynamic consent).

This is the minimum list of permissions people will have to consent to for your app. There could be more, but these will always be required. For security and to help users and admins feel more comfortable using your app, never ask for anything you don’t need.

You can add or remove the permissions that appear in this table by using the steps outlined above. As an admin, you can grant admin consent for the full set of an API's permissions that appear in the table, and revoke consent for individual permissions.

The Grant admin consent for {your tenant} button allows an admin to grant admin consent to the permissions configured for the application. When you select the button, a dialog is shown requesting that you confirm the consent action.

Grant admin consent button highlighted in the Configured permissions pane in the Azure portal

After granting consent, the permissions that required admin consent are shown as having consent granted:

Configure permissions table in Azure portal showing admin consent granted for the Files.Read.All permission

The Grant admin consent button is disabled if you aren't an admin or if no permissions have been configured for the application. If you have permissions that have been granted but not yet configured, the admin consent button prompts you to handle these permissions. You can add them to configured permissions or remove them.

Remove application permissions

It's important not to give an application too many permissions than is necessary. To revoke admin consent for a permission in your application;

  1. Navigate to your application and select API permissions.
  2. Under Configured permissions, select the three dots next to the permission you wish to remove, and select Remove permission
  3. In the pop-up that appears, select Yes, remove to revoke the admin consent for the permission.

Advance to the next quickstart in the series to learn how to configure which account types can access your application. For example, you might want to limit access only to those users in your organization (single-tenant) or allow users in other Microsoft Entra tenants (multitenant) and those with personal Microsoft accounts (MSA).
