Securely integrate Azure Logic Apps with on premises APIs using Microsoft Entra application proxy
Azure Logic Apps is a service allowing easy creation of managed workflows in a no-code environment that can integrate with various external services and systems. Workflows help automate a wide range of business processes, such as data integration, data processing, and event-driven scenarios. Logic Apps integrates with other public and cloud-based services. Or, utilize Logic Apps with on premises applications and services. Private network integration doesn't expose the service to the public with port forwarding or a traditional reverse proxy.
This article describes the steps necessary to utilize the Microsoft Entra application proxy solution to provide secure access to a Logic App, while protecting the internal application from unwanted actors. The process and end result is similar to Access on premises APIs with Microsoft Entra application proxy with special attention paid to utilizing the API from within a Logic App.
Overview
The following diagram shows a traditional way to publish on premises APIs for access from Azure Logic Apps. This approach requires opening incoming Transmission Control Protocol (TCP) ports 80 and/or 443 to the API service.
The following diagram shows how you can use Microsoft Entra application proxy to securely publish APIs for use with Logic Apps (or other Azure Cloud services) without opening any incoming ports:
The Microsoft Entra application proxy and associated connector facilitate secure authorization and integration to your on premises services without more configuration to your network security infrastructure.
Prerequisites
To follow this tutorial, you need:
- Admin access to an Azure directory, with an account that can create and register apps
- The Logic App Contributor role (or higher) in an active tenant
- Azure private network connector deployed and an application configured as detailed in Add an on premises app - application proxy in Microsoft Entra ID
Note
While granting a user entitlement and testing the sign on is recommended, it's not required for this guide.
Configure the Application Access
When a new Enterprise Application is created, a matching App Registration is also created. The App Registration allows configuration of secure programmatic access using certificates, secrets, or federated credentials. For integration with a Logic App, configure a client secret key, and configure the API permissions.
Sign in to the Microsoft Entra admin center as at least an Application Administrator.
Browse to Identity > Applications > App registrations.
From the App Registrations window, select the All applications tab option.
Navigate to the application with a matching name to your deployed application proxy application. For example, if you deployed Sample App 1 as an Enterprise Application, select the Sample App 1 registration item.
Note
If an associated application can't be found, it may have not been automatically created or may have been deleted. A registration can be created using the New Registration button.
From the Sample App 1 detail page, record the Application (client) ID and Directory (tenant) ID fields.

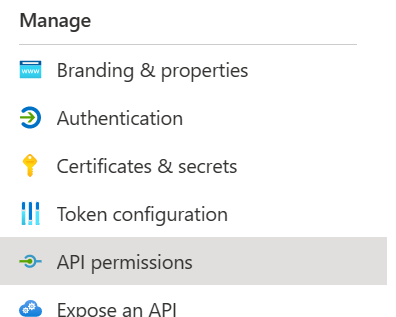

Select the API permissions menu item from the navigation pane.
Select the Add a permission button.
Select the APIs my organization uses tab.
Search for your app by name (for example, Sample App 1) and select the item.
Ensure Delegated Permissions is selected, then check the box for user_impersonation.
Select Add permissions.
Verify the configured permission appears.
Select the Certificates & secrets menu item from the navigation pane.
Select the Client secrets tab item.
Select the New client secret button.
From the Add a client secret pop-up.
Enter a Description and desired expiration.
Select Add.
Verify the new client secret appears.
Select the Copy button for the Value of the newly created secret. Save the secret securely for use later, this value is only shown one time.
Configure the Logic App
From the Logic App, open the Designer view.
Select a desired trigger (if prompted).
Add a new step and select the HTTP operation.
Method: Select the desired HTTP method to be sent to the internal API.
URI: Fill in with the public Fully Qualified Domain Name (FQDN) of your application registered in Microsoft Entra ID, along with the other URI required for API access (for example, sampleapp1.msappproxy.net/api/1/status).
Note
Specific values for API will depend on your internal application.
Headers: Enter any desired headers to be sent to the internal API.
Queries: Enter any desired queries to be sent to the internal API.
Body: Enter any desired body contents to be sent to the internal API.
Cookie: Enter any desired cookies to be sent to the internal API.
Select Add new parameter, then check Authentication.
From the Authentication type, select Microsoft Entra ID OAuth.
For the authentication, fill the following details.
Authority: Enter https://login.windows.net.
Tenant: Enter the Directory (tenant) ID noted in Configure the Application Access.
Audience: Enter the public FQDN of your application registered in Microsoft Entra ID (for example, sampleapp1.msappproxy.net).
Client ID: Enter the Application (client) ID noted in Configure the Application Access.
Credential Type: Secret.
Secret: Enter the secret value noted in Configure the Application Access.
Save the logic app and test with your trigger.
Caveats
APIs that require authentication/authorization require special handling when using this method. Since Microsoft Entra ID OAuth is being used for access, the requests sent already contain an Authorization field that the internal API can't utilize (unless single sign-on is configured). As a workaround, some applications offer authentication or authorization that uses methods other than an Authorization header. For example, GitLab allows for a header titled PRIVATE-TOKEN, and Atlassian Jira allows for requesting a Cookie that can be used in later requests.
The Logic App HTTP action shows clear text values. However, store the App Registration Secret Key in Azure Key Vault for secure retrieval and use.
