Configure and test Microsoft Entra SSO for Origami
Configure and test Microsoft Entra SSO with Origami using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Origami.
To configure and test Microsoft Entra SSO with Origami, perform the following steps:
Browse to Identity > Applications > Enterprise applications > Origami > Single sign-on.
On the Select a single sign-on method page, select SAML.
On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
On the Basic SAML Configuration section, perform the following steps:
In the Sign-on URL text box, type a URL using the following pattern:
https://live.origamirisk.com/origami/account/login?account=<COMPANY_NAME>
Note
The value is not real. Update the value with the actual Sign-On URL. Contact Origami Client support team to get the value. You can also refer to the patterns shown in the Basic SAML Configuration section.
On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Certificate (Base64) from the given options as per your requirement and save it on your computer.
On the Set up Origami section, copy the appropriate URL(s) as per your requirement.
Create a Microsoft Entra test user
In this section, you'll create a test user called B.Simon.
Browse to Identity > Applications > Enterprise applications > Origami.
In the app's overview page, select Users and groups.
Select Add user/group, then select Users and groups in the Add Assignment dialog.
In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
In the Add Assignment dialog, click the Assign button.
Configure Origami SSO
Log in to the Origami account with Admin rights.
In the menu on the top, click Admin.

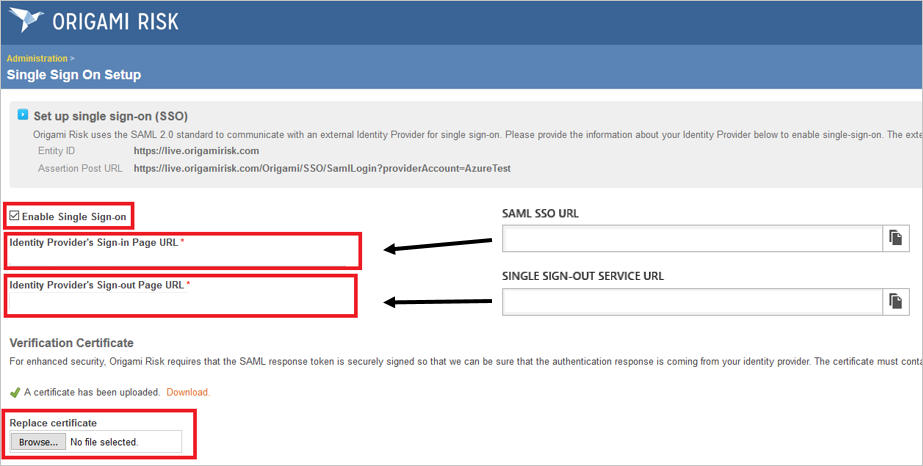

On the Single Sign On Setup dialog page, perform the following steps:
a. Select Enable Single Sign On.
b. In the Identity Provider's Sign-in Page URL textbox, paste the value of Login URL.
c. In the Identity Provider's Sign-out Page URL textbox, paste the value of Logout URL.
d. Click Browse to upload the certificate you have downloaded.
e. Click Save Changes.
Create Origami test user
In this section, you create a user called Britta Simon in Origami.
Log in to the Origami account with Admin rights.
In the menu on the top, click Admin.
On the Users and Security dialog, click Users.
Click Add New User.

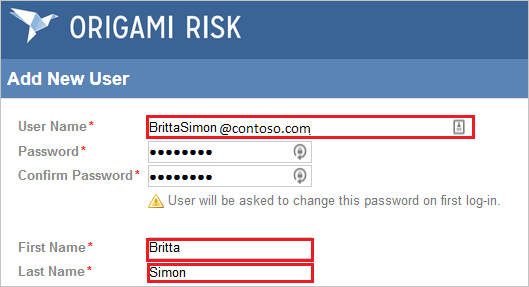

On the Add New User dialog, perform the following steps:
a. In the User Name textbox, enter the email of user like brittasimon@contoso.com.
b. In the Password textbox, type a password.
c. In the Confirm Password textbox, type the password again.
d. In the First Name textbox, enter the first name of user like Britta.
e. In the Last Name textbox, enter the last name of user like Simon.
f. Click Save.
Assign User Roles and Client Access to the user.
Test SSO
In this section, you test your Microsoft Entra single sign-on configuration with following options.
Click on Test this application, this will redirect to Origami Sign-on URL where you can initiate the login flow.
Go to Origami Sign-on URL directly and initiate the login flow from there.
You can use Microsoft My Apps. When you click the Origami tile in the My Apps, this will redirect to Origami Sign-on URL. For more information about the My Apps, see Introduction to the My Apps.
