Configure Visa Spend Clarity for Enterprise for automatic user provisioning with Microsoft Entra ID

This article describes the steps you need to perform in both Visa Spend Clarity for Enterprise and Microsoft Entra ID to configure automatic user provisioning. When configured, Microsoft Entra ID automatically provisions and deprovisions users to Visa Spend Clarity for Enterprise using the Microsoft Entra provisioning service. For important details on what this service does, how it works, and frequently asked questions, see Automate user provisioning and deprovisioning to SaaS applications with Microsoft Entra ID.

Capabilities supported

  • Create users in Visa Spend Clarity for Enterprise.
  • Remove users in Visa Spend Clarity for Enterprise when they don't require access anymore.
  • Keep user attributes synchronized between Microsoft Entra ID and Visa Spend Clarity for Enterprise.
  • Provision groups and group memberships in Visa Spend Clarity for Enterprise.
  • Enable single sign-on to Visa Spend Clarity for Enterprise (recommended).

Prerequisites

The scenario outlined in this article assumes that you already have the following prerequisites:

Step 1: Plan your provisioning deployment

Step 2: Configure Visa Spend Clarity for Enterprise to support provisioning with Microsoft Entra ID

Before configuring provisioning in Microsoft Entra ID, you need to register an OAuth client in Visa Spend Clarity for Enterprise. Visa Spend Clarity for Enterprise supports Dynamic Client Registration, which automatically creates the OAuth 2.0 / OpenID Connect (OIDC) client when you map your Microsoft Entra tenant to your corporation or company.

To register an OAuth client and obtain the credentials Microsoft Entra ID uses to call the Visa Spend Clarity for Enterprise provisioning API, follow these steps:

  1. Sign in to Visa Spend Clarity for Enterprise with an Admin account.

  2. Depending on your access level, navigate to one of the following:

    • Administration > Company Management > Advanced Configuration > External SSO Configuration (for company-level mapping in a company context), or
    • Administration > Corporate Administration > Manage Corporate SSO (for corporation-level mapping).

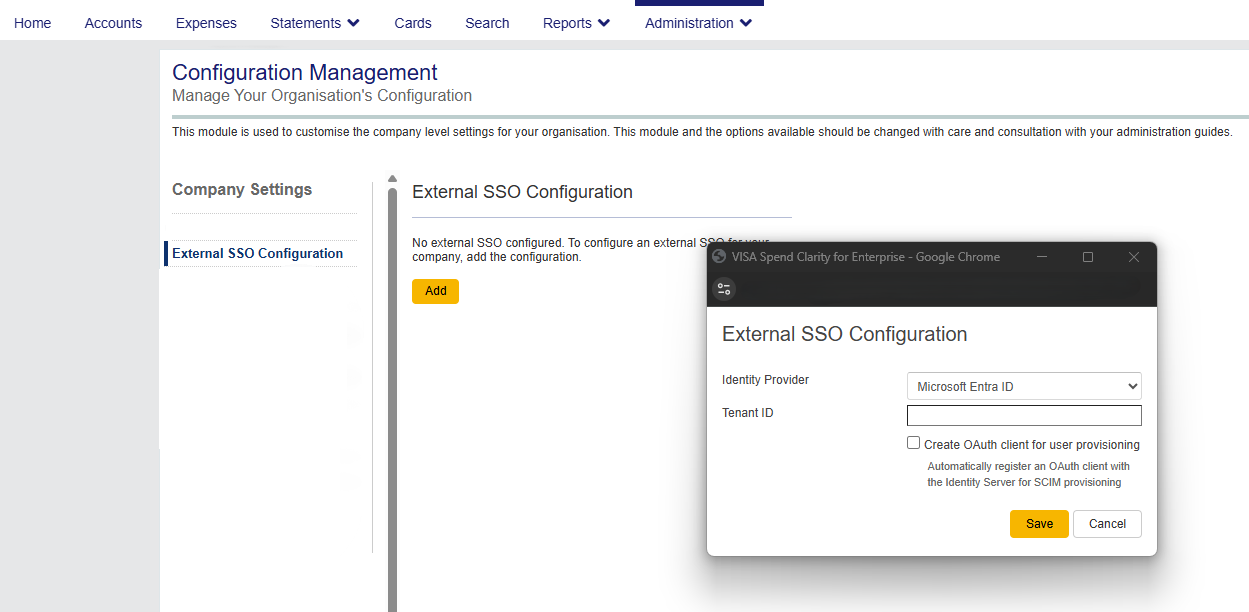

    Screenshot of the External SSO Configuration option in the Visa Spend Clarity for Enterprise administration menu.

  3. In the External SSO Configuration dialog, complete the following fields:

    Field Value
    Identity Provider Select Microsoft Entra ID from the drop-down list.
    Tenant ID Enter your Microsoft Entra tenant ID (for example, 12345678-1234-1234-1234-123456789abc).
    Create OAuth Client for User Provisioning Select this checkbox to automatically create an OAuth/OIDC client via Dynamic Client Registration.

    Important

    The Create OAuth Client checkbox is hidden when editing an existing tenant mapping to prevent duplicate client creation. If you need to recreate credentials for an existing mapping, contact Visa Spend Clarity for Enterprise support.

  4. Select Save. Visa Spend Clarity for Enterprise saves the tenant mapping and initiates Dynamic Client Registration in the background.

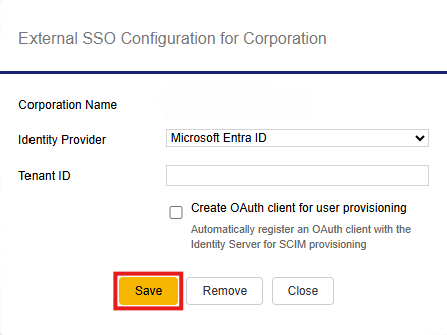

    Screenshot of the External SSO Configuration dialog in Visa Spend Clarity for Enterprise after the tenant mapping is saved.

  5. After successful registration, Visa Spend Clarity for Enterprise displays the OAuth client credentials:

    Credential Description
    Client ID The unique identifier of the OAuth client.
    Client Secret The secret used to authenticate as the OAuth client.

    Use the Copy buttons next to each value to copy them to your clipboard.

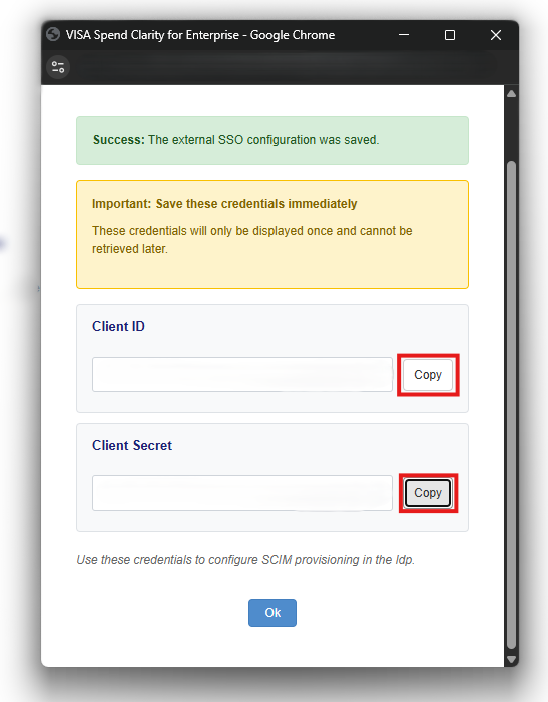

    Screenshot of the OAuth client credentials panel in Visa Spend Clarity for Enterprise, showing the Client ID and Client Secret with Copy buttons.

    Warning

    Save these credentials immediately. The client secret is displayed only once and cannot be retrieved later. Store the values in a secure password manager or secrets vault. If the credentials are lost, you must delete the OAuth client and create a new tenant mapping.

  6. If client registration fails, the tenant mapping is still saved, but you see an error message indicating that OAuth client creation failed. In this case, contact Visa Spend Clarity for Enterprise support to register the OAuth client manually.

  7. Retain the Client ID and Client Secret values. You use them in Step 5 when configuring the Tenant URL and Secret Token in Microsoft Entra ID.

Add Visa Spend Clarity for Enterprise from the Microsoft Entra application gallery to start managing provisioning to Visa Spend Clarity for Enterprise. If you've previously set up Visa Spend Clarity for Enterprise for SSO, you can use the same application. However, we recommend that you create a separate app when testing out the integration initially. For more information, see Add an application to your Microsoft Entra tenant.

Step 4: Define who is in scope for provisioning

The Microsoft Entra provisioning service allows you to scope who is provisioned based on assignment to the application, or based on attributes of the user or group. If you choose to scope who is provisioned to your app based on assignment, you can use the steps to assign users and groups to the application. If you choose to scope who is provisioned based solely on attributes of the user or group, you can use a scoping filter.

  • Start small. Test with a small set of users and groups before rolling out to everyone. When scope for provisioning is set to assigned users and groups, you can control this by assigning one or two users or groups to the app. When scope is set to all users and groups, you can specify an attribute based scoping filter.

  • If you need extra roles, you can update the application manifest to add new roles.

Step 5: Configure automatic user provisioning to Visa Spend Clarity for Enterprise

This section guides you through the steps to configure the Microsoft Entra provisioning service to create, update, and disable users in Visa Spend Clarity for Enterprise based on user assignments in Microsoft Entra ID.

To configure automatic user provisioning in Microsoft Entra ID, follow these steps:

  1. Sign in to the Microsoft Entra admin center as at least an app owner or a Cloud Application Administrator.

  2. Browse to Entra ID > Enterprise apps

    Screenshot shows the enterprise applications blade.

  3. In the applications list, select Visa Spend Clarity for Enterprise.

    Screenshot shows the Visa Spend Clarity for Enterprise link in the Applications list.

  4. Select the Provisioning tab.

    Screenshot shows the provisioning tab.

  5. Select + New configuration.

    Screenshot of the Provisioning tab in the Microsoft Entra admin center with the New configuration button highlighted.

  6. In the Tenant URL field, enter your Visa Spend Clarity for Enterprise tenant URL and secret token. Select Test Connection to ensure Microsoft Entra ID can connect to Visa Spend Clarity for Enterprise. If the connection fails, ensure your Visa Spend Clarity for Enterprise account has Admin permissions and try again.

    Screenshot of Provisioning test connection.

  7. Select Create to create your configuration.

  8. Select Properties in the Overview page.

  9. Select the pencil to edit the properties. Enable notification emails and provide an email to receive quarantine emails. Enable accidental deletions prevention. Select Apply to save the changes.

    Screenshot of the Provisioning Properties page in the Microsoft Entra admin center.

  10. Select Attribute Mapping in the left panel and select users.

  11. Review the user attributes that are synchronized from Microsoft Entra ID to Visa Spend Clarity for Enterprise in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the user accounts in Visa Spend Clarity for Enterprise for update operations. If you choose to change the matching target attribute, you need to ensure that the Visa Spend Clarity for Enterprise API supports filtering users based on that attribute. Select the Save button to commit any changes.

    Attribute Type Supported for filtering Required by Visa Spend Clarity for Enterprise
    userName String ✓ ✓
    active Boolean
    externalId String
    givenName String
    surname String
    emails String
    employeeNumber Number
    urn:ietf:params:scim:schemas:extension:visa:2.0:User:subCompanyId String

    Note

    The SubCompanyId is required only when provisioning is set for a corporation.

  12. Select groups.

  13. Review the group attributes that are synchronized from Microsoft Entra ID to Visa Spend Clarity for Enterprise in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the groups in Visa Spend Clarity for Enterprise for update operations. Select the Save button to commit any changes.

  14. To configure scoping filters, refer to the following instructions provided in the Scoping filter article article.

  15. When you're ready to provision, select Start Provisioning from the Overview page.

Step 6: Monitor your deployment

Once you configure provisioning, use the following resources to monitor your deployment:

  1. Use the provisioning logs to determine which users are provisioned successfully or unsuccessfully
  2. Check the progress bar to see the status of the provisioning cycle and how close it's to completion
  3. If the provisioning configuration seems to be in an unhealthy state, the application goes into quarantine. Learn more about quarantine states the application provisioning quarantine status article.
