How to configure Amazon RDS for SQL Server in copy activity

  • Article

This article outlines how to use the copy activity in a data pipeline to copy data from Amazon RDS for SQL Server.

Supported configuration

For the configuration of each tab under copy activity, go to the following sections respectively.

General

Refer to the General settings guidance to configure the General settings tab.

Source

The following properties are supported for Amazon RDS for SQL Server under the Source tab of a copy activity.

Screenshot showing the source tab and the list of properties.

The following properties are required:

  • Data store type: Select External.

  • Connection: Select an Amazon RDS for SQL Server connection from the connection list. If the connection doesn't exist, then create a new Amazon RDS for SQL Server connection by selecting New.

  • Connection type: Select Amazon RDS for SQL Server.

  • Use query: Specify the way to read data. You can choose Table, Query, or Stored procedure. The following list describes the configuration of each setting:

    • Table: Read data from the table specified. Select your source table from the drop-down list or select Edit to enter it manually.

    • Query: Specify the custom SQL query to read data. An example is select * from MyTable. Or select the pencil icon to edit in code editor.

      Screenshot showing Query settings.

    • Stored procedure: Use the stored procedure that reads data from the source table. The last SQL statement must be a SELECT statement in the stored procedure.

      • Stored procedure name: Select the stored procedure or specify the stored procedure name manually when selecting the Edit to read data from the source table.

      • Stored procedure parameters: Specify values for stored procedure parameters. Allowed values are name or value pairs. The names and casing of parameters must match the names and casing of the stored procedure parameters. You can select Import parameters to get your stored procedure parameters.

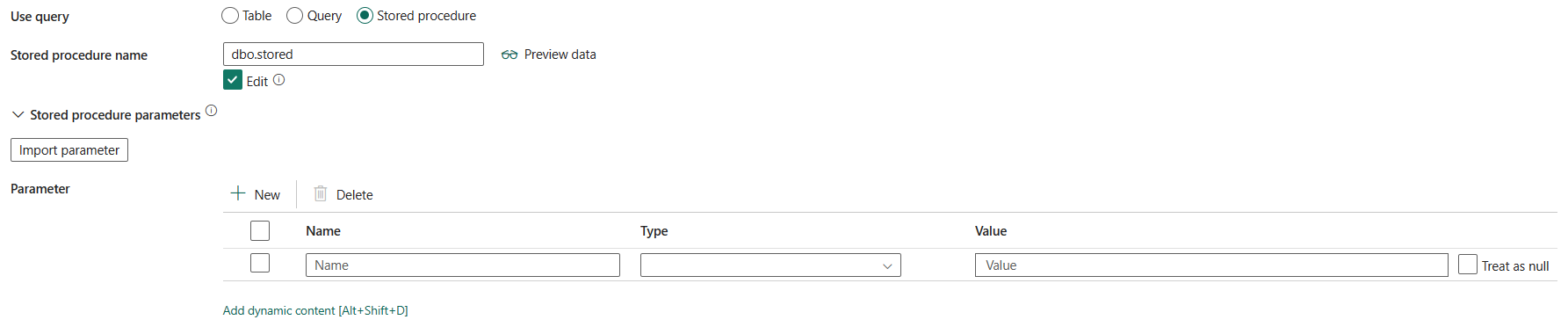

        Screenshot showing stored procedure settings.

Under Advanced, you can specify the following fields:

  • Query timeout (minutes): Specify the timeout for query command execution, default is 120 minutes. If a parameter is set for this property, allowed values are timespan, such as "02:00:00" (120 minutes).

  • Isolation level: Specifies the transaction locking behavior for the SQL source. The allowed values are: Read committed, Read uncommitted, Repeatable read, Serializable, Snapshot. If not specified, the database's default isolation level is used. Refer to IsolationLevel Enum for more details.

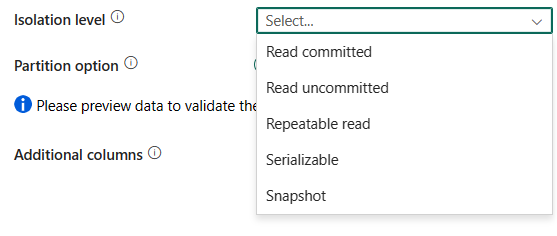

    Screenshot showing Isolation level settings.

  • Partition option: Specify the data partitioning options used to load data from Amazon RDS for SQL Server. Allowed values are: None (default), Physical partitions of table, and Dynamic range. When a partition option is enabled (that is, not None), the degree of parallelism to concurrently load data from Amazon RDS for SQL Server is controlled by Degree of copy parallelism in copy activity settings tab.

    • None: Choose this setting to not use a partition.

    • Physical partitions of table: When using a physical partition, the partition column and mechanism are automatically determined based on your physical table definition.

    • Dynamic range: When using query with parallel enabled, the range partition parameter(?DfDynamicRangePartitionCondition) is needed. Sample query: SELECT * FROM <TableName> WHERE ?DfDynamicRangePartitionCondition.

      • Partition column name: Specify the name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is auto-detected and used as the partition column.

        If you use a query to retrieve the source data, hook ?DfDynamicRangePartitionCondition in the WHERE clause. For an example, see the Parallel copy from SQL database section.

      • Partition upper bound: Specify the maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result will be partitioned and copied. If not specified, copy activity auto detect the value. For an example, see the Parallel copy from SQL database section.

      • Partition lower bound: Specify the minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result will be partitioned and copied. If not specified, copy activity auto detect the value. For an example, see the Parallel copy from SQL database section.

  • Additional columns: Add additional data columns to store source files' relative path or static value. Expression is supported for the latter.

Note the following points:

  • If Query is specified for source, the copy activity runs this query against the Amazon RDS for SQL Server source to get the data. You also can specify a stored procedure by specifying Stored procedure name and Stored procedure parameters if the stored procedure takes parameters.
  • When using stored procedure in source to retrieve data, note if your stored procedure is designed as returning different schema when different parameter value is passed in, you may encounter failure or see unexpected result when importing schema from UI or when copying data to SQL database with auto table creation.

Mapping

For Mapping tab configuration, go to Configure your mappings under mapping tab.

Settings

For Settings tab configuration, go to Configure your other settings under settings tab.

Parallel copy from SQL database

The Amazon RDS for SQL Server connector in copy activity provides built-in data partitioning to copy data in parallel. You can find data partitioning options on the Source tab of the copy activity.

When you enable partitioned copy, copy activity runs parallel queries against your Amazon RDS for SQL Server source to load data by partitions. The parallel degree is controlled by the Degree of copy parallelism in the copy activity settings tab. For example, if you set Degree of copy parallelism to four, the service concurrently generates and runs four queries based on your specified partition option and settings, and each query retrieves a portion of data from your Amazon RDS for SQL Server.

You are suggested to enable parallel copy with data partitioning especially when you load large amount of data from your Amazon RDS for SQL Server. The following are suggested configurations for different scenarios. When copying data into file-based data store, it's recommended to write to a folder as multiple files (only specify folder name), in which case the performance is better than writing to a single file.

Scenario Suggested settings
Full load from large table, with physical partitions. Partition option: Physical partitions of table.

During execution, the service automatically detects the physical partitions, and copies data by partitions.

To check if your table has physical partition or not, you can refer to this query.
Full load from large table, without physical partitions, while with an integer or datetime column for data partitioning. Partition options: Dynamic range partition.
Partition column (optional): Specify the column used to partition data. If not specified, the primary key column is used.
Partition upper bound and partition lower bound (optional): Specify if you want to determine the partition stride. This is not for filtering the rows in table, all rows in the table will be partitioned and copied. If not specified, copy activity auto detects the values and it can take long time depending on MIN and MAX values. It is recommended to provide upper bound and lower bound.

For example, if your partition column "ID" has values range from 1 to 100, and you set the lower bound as 20 and the upper bound as 80, with parallel copy as 4, the service retrieves data by 4 partitions - IDs in range <=20, [21, 50], [51, 80], and >=81, respectively.
Load a large amount of data by using a custom query, without physical partitions, while with an integer or date/datetime column for data partitioning. Partition options: Dynamic range partition.
Query: SELECT * FROM <TableName> WHERE ?DfDynamicRangePartitionCondition AND <your_additional_where_clause>.
Partition column: Specify the column used to partition data.
Partition upper bound and partition lower bound (optional): Specify if you want to determine the partition stride. This is not for filtering the rows in table, all rows in the query result will be partitioned and copied. If not specified, copy activity auto detect the value.

For example, if your partition column "ID" has values range from 1 to 100, and you set the lower bound as 20 and the upper bound as 80, with parallel copy as 4, the service retrieves data by 4 partitions- IDs in range <=20, [21, 50], [51, 80], and >=81, respectively.

Here are more sample queries for different scenarios:
• Query the whole table:
SELECT * FROM <TableName> WHERE ?DfDynamicRangePartitionCondition
• Query from a table with column selection and additional where-clause filters:
SELECT <column_list> FROM <TableName> WHERE ?DfDynamicRangePartitionCondition AND <your_additional_where_clause>
• Query with subqueries:
SELECT <column_list> FROM (<your_sub_query>) AS T WHERE ?DfDynamicRangePartitionCondition AND <your_additional_where_clause>
• Query with partition in subquery:
SELECT <column_list> FROM (SELECT <your_sub_query_column_list> FROM <TableName> WHERE ?DfDynamicRangePartitionCondition) AS T

Best practices to load data with partition option:

  1. Choose distinctive column as partition column (like primary key or unique key) to avoid data skew.
  2. If the table has built-in partition, use partition option Physical partitions of table to get better performance.

Sample query to check physical partition

SELECT DISTINCT s.name AS SchemaName, t.name AS TableName, pf.name AS PartitionFunctionName, c.name AS ColumnName, iif(pf.name is null, 'no', 'yes') AS HasPartition
FROM sys.tables AS t
LEFT JOIN sys.objects AS o ON t.object_id = o.object_id
LEFT JOIN sys.schemas AS s ON o.schema_id = s.schema_id
LEFT JOIN sys.indexes AS i ON t.object_id = i.object_id
LEFT JOIN sys.index_columns AS ic ON ic.partition_ordinal > 0 AND ic.index_id = i.index_id AND ic.object_id = t.object_id
LEFT JOIN sys.columns AS c ON c.object_id = ic.object_id AND c.column_id = ic.column_id
LEFT JOIN sys.partition_schemes ps ON i.data_space_id = ps.data_space_id
LEFT JOIN sys.partition_functions pf ON pf.function_id = ps.function_id
WHERE s.name='[your schema]' AND t.name = '[your table name]'

If the table has physical partition, you would see "HasPartition" as "yes" like the following.

Sql query result

Table summary

See the following table for the summary and more information for the Amazon RDS for SQL Server copy activity.

Source information

Name Description Value Required JSON script property
Data store type Your data store type. External Yes /
Connection Your connection to the source data store. < your connection > Yes connection
Connection type Your connection type. Select Amazon RDS for SQL Server. Amazon RDS for SQL Server Yes /
Use query The custom SQL query to read data. • Table
• Query
• Stored procedure		 Yes /
Table Your source data table. < name of your destination table> No schema
table
Query The custom SQL query to read data. < your query > No sqlReaderQuery
Stored procedure name This property is the name of the stored procedure that reads data from the source table. The last SQL statement must be a SELECT statement in the stored procedure. < stored procedure name > No sqlReaderStoredProcedureName
Stored procedure parameter These parameters are for the stored procedure. Allowed values are name or value pairs. The names and casing of parameters must match the names and casing of the stored procedure parameters. < name or value pairs > No storedProcedureParameters
Query timeout The timeout for query command execution. timespan
(the default is 120 minutes)		 No queryTimeout
Isolation level Specifies the transaction locking behavior for the SQL source. • Read committed
• Read uncommitted
• Repeatable read
• Serializable
• Snapshot		 No isolationLevel:
• ReadCommitted
• ReadUncommitted
• RepeatableRead
• Serializable
• Snapshot
Partition option The data partitioning options used to load data from Amazon RDS for SQL Server. • None (default)
• Physical partitions of table
• Dynamic range		 No partitionOption:
• None (default)
• PhysicalPartitionsOfTable
• DynamicRange
Partition column name The name of the source column in integer or date/datetime type (int, smallint, bigint, date, smalldatetime, datetime, datetime2, or datetimeoffset) that's used by range partitioning for parallel copy. If not specified, the index or the primary key of the table is auto-detected and used as the partition column. If you use a query to retrieve the source data, hook ?DfDynamicRangePartitionCondition in the WHERE clause. < your partition column names > No partitionColumnName
Partition upper bound The maximum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result will be partitioned and copied. If not specified, copy activity auto detect the value. < your partition upper bound > No partitionUpperBound
Partition lower bound The minimum value of the partition column for partition range splitting. This value is used to decide the partition stride, not for filtering the rows in table. All rows in the table or query result will be partitioned and copied. If not specified, copy activity auto detect the value. < your partition lower bound > No partitionLowerBound
Additional columns Add additional data columns to store source files' relative path or static value. Expression is supported for the latter. • Name
• Value		 No additionalColumns:
• name
• value
