Configure Snowflake in a copy activity
This article outlines how to use the copy activity in data pipeline to copy data from and to Snowflake.
Supported configuration
For the configuration of each tab under copy activity, go to the following sections respectively.
General
Refer to the General settings guidance to configure the General settings tab.

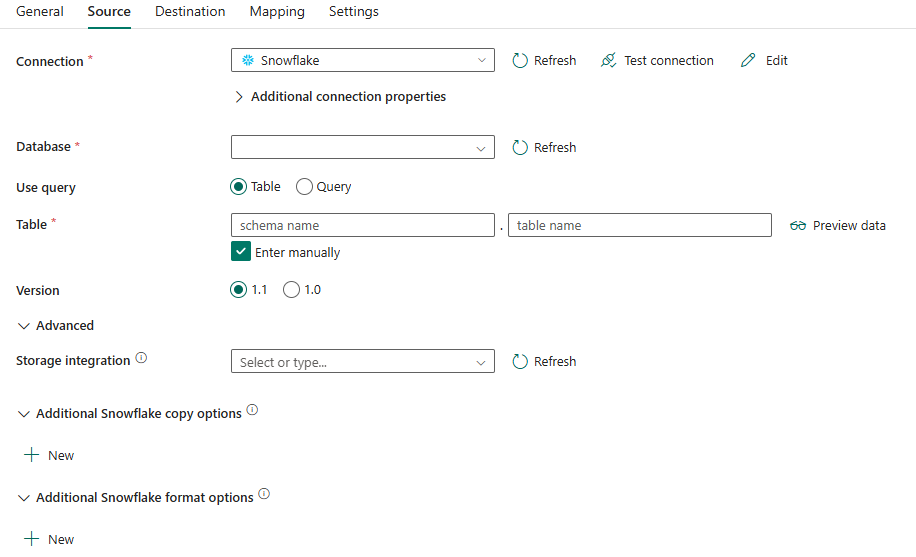

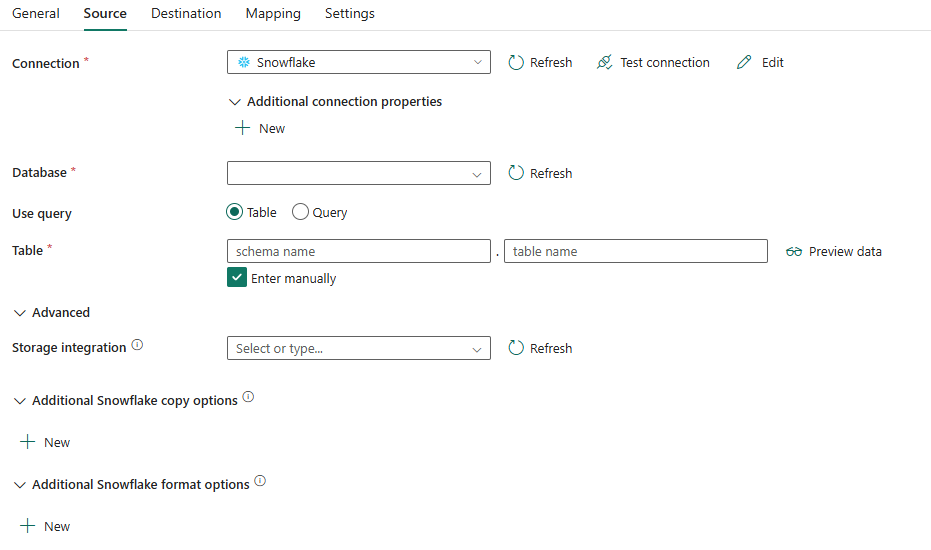

Source
The following properties are supported for Snowflake under the Source tab of a copy activity.
The following properties are required:
- Data store type: Select External.
- Connection: Select a Snowflake connection from the connection list. If the connection doesn't exist, then create a new Snowflake connection by selecting New.
- Database: The default database to use once connected. It should be an existing database for which the specified role has privileges.
- Use query: You can choose either Table or Query as your use query. The following list describes the configuration of each setting.
- Table: Select the table in your database from the drop-down list. Or check Edit to enter your table name manually.
- Query: Specify the SQL query to read data from Snowflake. If the names of the schema, table and columns contain lower case, quote the object identifier in query e.g.
select * from "schema"."myTable".
Under Advanced, you can specify the following fields:
Additional Snowflake copy options: Specify additional Snowflake copy options which will be used in Snowflake COPY statement to load data. Additional copy options are provided as a dictionary of key-value pairs. Examples: MAX_FILE_SIZE, OVERWRITE. For more information, see Snowflake Copy Options.

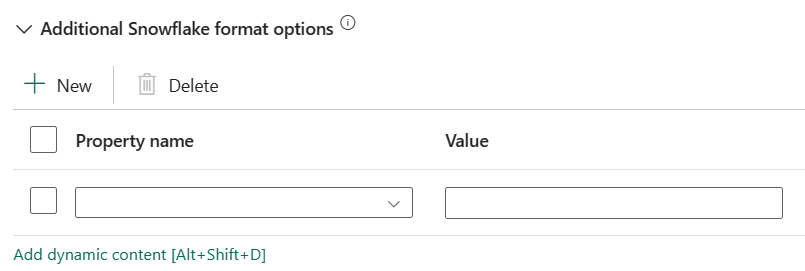

Additional Snowflake format options: Specify additional Snowflake format options, which will be used in Snowflake COPY statement to load data. Additional file format options provided to the COPY command are provided as a dictionary of key-value pairs. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Snowflake Format Type Options.
Direct copy from Snowflake
If your destination data store and format meet the criteria described in this section, you can use the Copy activity to directly copy from Snowflake to destination. The service checks the settings and fails the Copy activity run if the following criteria is not met:
The destination connection is Azure Blob storage with shared access signature authentication. If you want to directly copy data to Azure Data Lake Storage Gen2 in the following supported format, you can create an Azure Blob connection with SAS authentication against your ADLS Gen2 account.
The destination data format is of Parquet, DelimitedText, or JSON with the following configurations:
- For Parquet format, the compression codec is None, Snappy, or Lzo.
- For DelimitedText format:
- Row delimiter is \r\n, or any single character.
- Compression type can be None, gzip, bzip2, or deflate.
- Encoding is left as default or set to UTF-8.
- Quote character is Double quote, Single quote, or No quote character.
- For JSON format, direct copy only supports the case that source Snowflake table or query result only has single column and the data type of this column is VARIANT, OBJECT, or ARRAY.
- Compression type can be None, gzip, bzip2, or deflate.
- Encoding is left as default or set to UTF-8.
- File pattern in copy activity destination is left as default or set to Set of objects.
In copy activity source, Additional columns is not specified.
Column mapping is not specified.

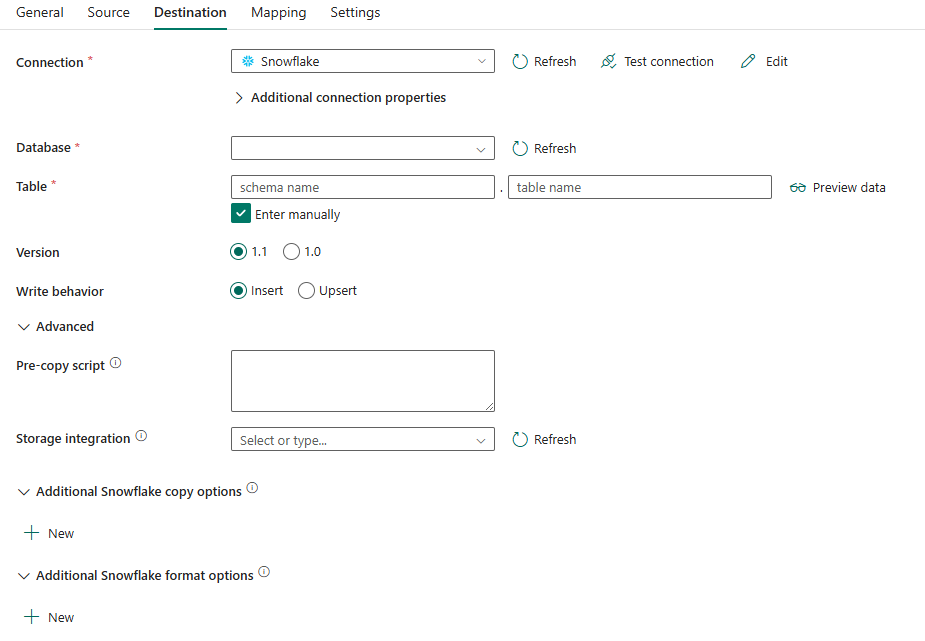

Destination
The following properties are supported for Snowflake under the Destination tab of a copy activity.
The following properties are required:
- Data store type: Select External.
- Connection: Select a Snowflake connection from the connection list. If the connection doesn't exist, then create a new Snowflake connection by selecting New.
- Database: The default database to use once connected. It should be an existing database for which the specified role has privileges.
- Table: Select the table in your database from the drop-down list. Or check Edit to enter your table name manually.
Under Advanced, you can specify the following fields:
Pre-copy script: Specify a script for Copy Activity to execute before writing data into destination table in each run. You can use this property to clean up the pre-loaded data.

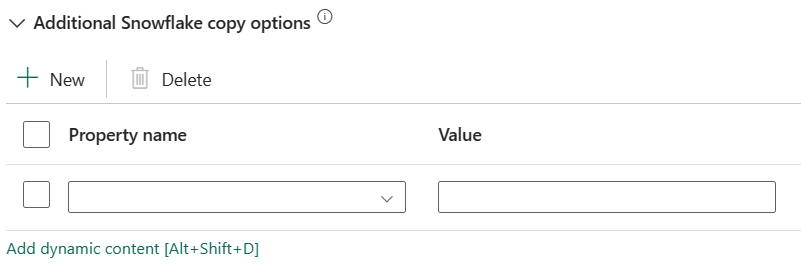

Additional Snowflake copy options: Specify additional Snowflake copy options, which will be used in Snowflake COPY statement to load data. Additional copy options are provided as a dictionary of key-value pairs. Examples: ON_ERROR, FORCE, LOAD_UNCERTAIN_FILES. For more information, see Snowflake Copy Options.
Additional Snowflake format options: Specify additional Snowflake format options, which will be used in Snowflake COPY statement to load data. Additional file format options provided to the COPY command are provided as a dictionary of key-value pairs. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Snowflake Format Type Options.
Direct copy to Snowflake
If your source data store and format meet the criteria described in this section, you can use the Copy activity to directly copy from source to Snowflake. The service checks the settings and fails the Copy activity run if the following criteria is not met:
The source connection is Azure Blob storage with shared access signature authentication. If you want to directly copy data from Azure Data Lake Storage Gen2 in the following supported format, you can create an Azure Blob connection with SAS authentication against your ADLS Gen2 account.
The source data format is Parquet, DelimitedText, or JSON with the following configurations:
For Parquet format, the compression codec is None, or Snappy.
For DelimitedText format:
- Row delimiter is \r\n, or any single character. If row delimiter is not “\r\n”, First row as header is unselected, and Skip line count is not specified.
- Compression type can be None, gzip, bzip2, or deflate.
- Encoding is left as default or set to "UTF-8", "UTF-16", "UTF-16BE", "UTF-32", "UTF-32BE", "BIG5", "EUC-JP", "EUC-KR", "GB18030", "ISO-2022-JP", "ISO-2022-KR", "ISO-8859-1", "ISO-8859-2", "ISO-8859-5", "ISO-8859-6", "ISO-8859-7", "ISO-8859-8", "ISO-8859-9", "WINDOWS-1250", "WINDOWS-1251", "WINDOWS-1252", "WINDOWS-1253", "WINDOWS-1254", "WINDOWS-1255".
- Quote character is Double quote, Single quote, or No quote character.
For JSON format, direct copy only supports the case that destination Snowflake table only has single column and the data type of this column is VARIANT, OBJECT, or ARRAY.
- Compression type can be None, gzip, bzip2, or deflate.
- Encoding is left as default or set to UTF-8.
- Column mapping is not specified.
In the Copy activity source:
- Additional columns is not specified.
- If your source is a folder, Recursively is selected.
- Prefix, Start time (UTC) and End time (UTC) in Filter by last modified and Enable partition discovery are not specified.

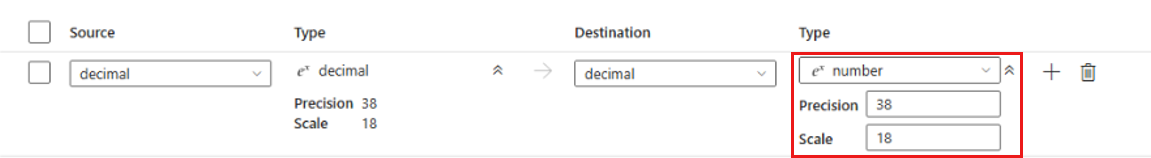

Mapping
For Mapping tab configuration, go to Configure your mappings under mapping tab.
Settings
For Settings tab configuration, go to Configure your other settings under settings tab.
Table summary
The following tables contain more information about the copy activity in Snowflake.
Source
| Name | Description | Value | Required | JSON script property |
|---|---|---|---|---|
| Data store type | Your data store type. | External | Yes | / |
| Connection | Your connection to the source data store. | < your connection > | Yes | connection |
| Database | Your database that you use as source. | < your database > | Yes | database |
| Use query | The way to read data from Snowflake. | • Table • Query |
No | • table • query |
| Table | The name of the table to read data. | < name of your source table> | Yes | schema table |
| Query | The SQL query to read data from Snowflake. | < name of your source query> | Yes | query |
| Additional Snowflake copy options | Additional copy options, provided as a dictionary of key-value pairs. Examples: MAX_FILE_SIZE, OVERWRITE. For more information, see Snowflake Copy Options. | • Name • Value |
No | additionalCopyOptions |
| Additional Snowflake format options | Additional file format options that are provided to COPY command as a dictionary of key-value pairs. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Snowflake Format Type Options. | • Name • Value |
No | additionalFormatOptions |
Destination
Note
While non-Azure Snowflake instances are supported for source, only Azure Snowflake instances are currently supported for Snowflake destinations (also referred to as sinks in Azure Data Factory).
| Name | Description | Value | Required | JSON script property |
|---|---|---|---|---|
| Data store type | Your data store type. | External | Yes | / |
| Connection | Your connection to the destination data store. | < your connection > | Yes | connection |
| Database | Your database that you use as destination. | < your database> | Yes | / |
| Table | Your destination data table. | < name of your destination table> | Yes | • schema • table |
| Pre-copy script | A SQL query for the Copy activity to run before writing data into Snowflake in each run. Use this property to clean up the preloaded data. | < your pre-copy script> | NO | preCopyScript |
| Additional Snowflake copy options | Additional copy options, provided as a dictionary of key-value pairs. Examples: ON_ERROR, FORCE, LOAD_UNCERTAIN_FILES. For more information, see Snowflake Copy Options. | • Name • Value |
No | additionalCopyOptions |
| Additional Snowflake format options | Additional file format options provided to the COPY command, provided as a dictionary of key-value pairs. Examples: DATE_FORMAT, TIME_FORMAT, TIMESTAMP_FORMAT. For more information, see Snowflake Format Type Options. | • Name • Value |
No | additionalFormatOptions |
